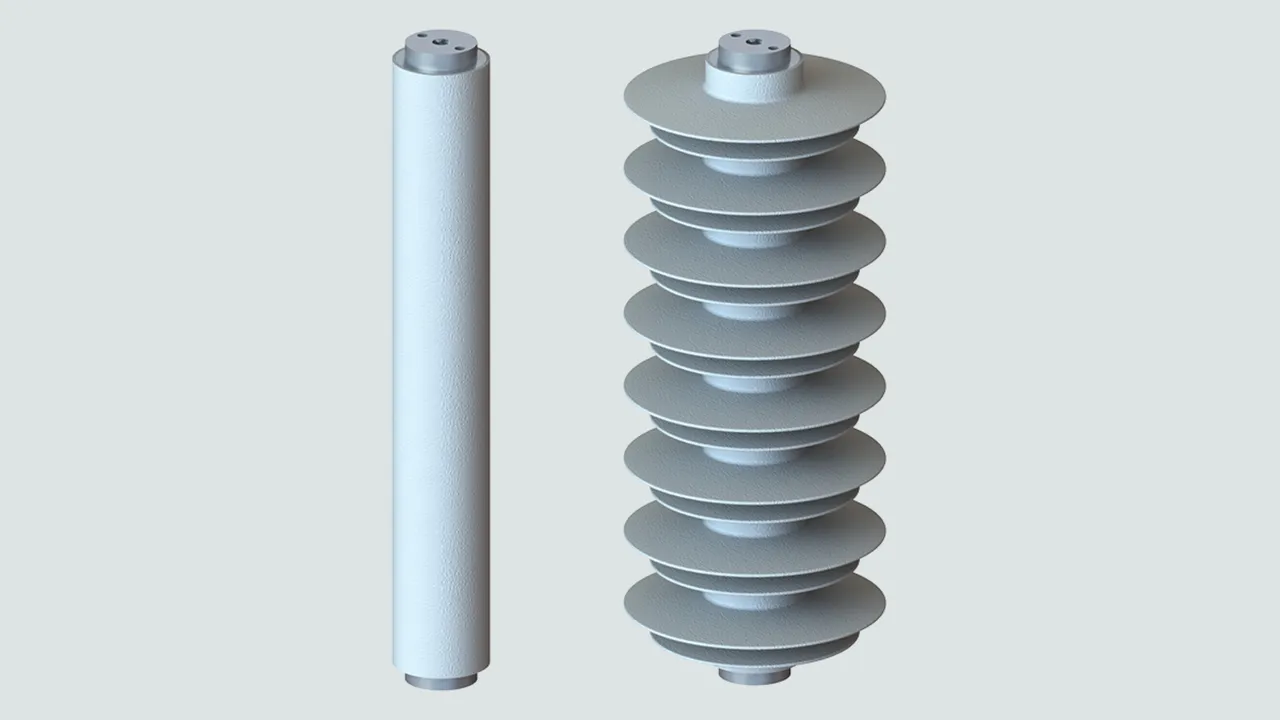

SBKW

  • Metal oxide arrester for medium-voltage systems up to 51 kV
  • Nominal discharge current 10 kA (8/20 µs)
  • High current withstand capability 100 kA (4/10 µs)
  • For indoor and outdoor applications
  • High temperature vulcanised (HTV) silicone enclosure
  • Best performance in polluted systems
  • Very high mechanical bending resistance
  • Unbreakable at overloads
  • Flexible installation

SBKW ... DH-I-0

19 Products

Part No. 990401 SBKW 3/DH-I-0

GTIN 4013364537255, Customs tariff No. (EU): 85354000, Gross weight: 1.00 kg, PU: 1.00 pc(s)

Images

Additional information

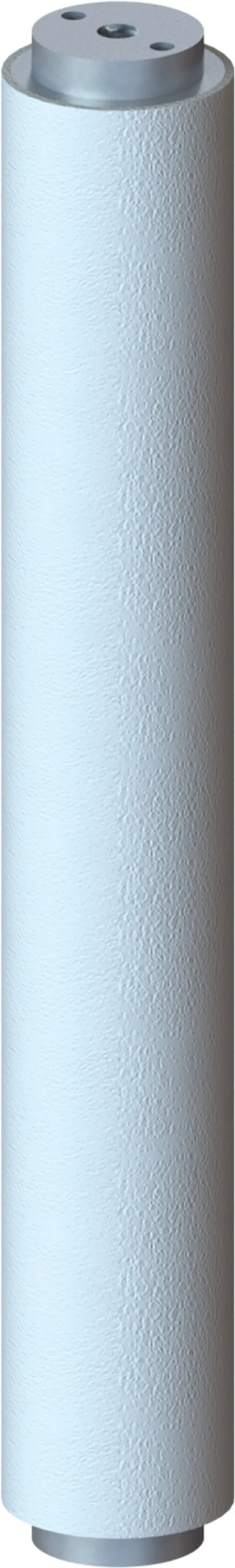

Medium-voltage arrester SBKW 3/DH-I-0
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 3/DH-I-0
Part No.: 990401
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 3 kV
Continuous operating voltage (a.c.) (Uc ) 2.4 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 8.0 kV

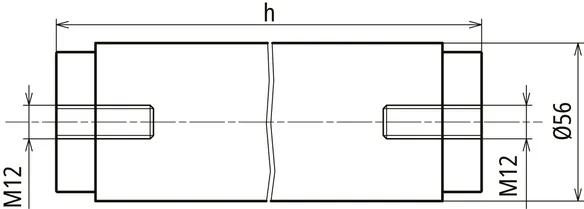

Height (h) 120 mm
Creepage distance (+/- 5%) 103 mm

Product 990401 was added to Notepad.

Go to Notepad

Product 990401 was added to the cart.

Go to Web-Shop

Part No. 990402 SBKW 6/DH-I-0

GTIN 4013364537330, Customs tariff No. (EU): 85354000, Gross weight: 1.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 6/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 6/DH-I-0
Part No.: 990402
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 6 kV
Continuous operating voltage (a.c.) (Uc ) 4.8 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 16.1 kV
Height (h) 164 mm
Creepage distance (+/- 5%) 147 mm

Product 990402 was added to Notepad.

Go to Notepad

Product 990402 was added to the cart.

Go to Web-Shop

Part No. 990403 SBKW 9/DH-I-0

GTIN 4013364537323, Customs tariff No. (EU): 85354000, Gross weight: 1.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 9/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 9/DH-I-0
Part No.: 990403
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 9 kV
Continuous operating voltage (a.c.) (Uc ) 7.2 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 24.1 kV
Height (h) 164 mm
Creepage distance (+/- 5%) 147 mm

Product 990403 was added to Notepad.

Go to Notepad

Product 990403 was added to the cart.

Go to Web-Shop

Part No. 990404 SBKW 12/DH-I-0

GTIN 4013364537347, Customs tariff No. (EU): 85354000, Gross weight: 1.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 12/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 12/DH-I-0
Part No.: 990404
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 12 kV
Continuous operating voltage (a.c.) (Uc ) 9.6 kV
Rated short-circuit current (Isc ) 63 kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 32.1 kV
Height (h) 208 mm
Creepage distance (+/- 5%) 191 mm

Product 990404 was added to Notepad.

Go to Notepad

Product 990404 was added to the cart.

Go to Web-Shop

Part No. 990405 SBKW 15/DH-I-0

GTIN 4013364537354, Customs tariff No. (EU): 85354000, Gross weight: 1.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 15/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 15/DH-I-0
Part No.: 990405
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 15 kV
Continuous operating voltage (a.c.) (Uc ) 12.0 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 40.0 kV
Height (h) 208 mm
Creepage distance (+/- 5%) 191 mm

Product 990405 was added to Notepad.

Go to Notepad

Product 990405 was added to the cart.

Go to Web-Shop

Part No. 990406 SBKW 18/DH-I-0

GTIN 4013364537378, Customs tariff No. (EU): 85354000, Gross weight: 2.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 18/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 18/DH-I-0
Part No.: 990406
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 18 kV
Continuous operating voltage (a.c.) (Uc ) 14.4 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 48.2 kV
Height (h) 208 mm
Creepage distance (+/- 5%) 191 mm

Product 990406 was added to Notepad.

Go to Notepad

Product 990406 was added to the cart.

Go to Web-Shop

Part No. 990407 SBKW 21/DH-I-0

GTIN 4013364537385, Customs tariff No. (EU): 85354000, Gross weight: 2.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 21/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 21/DH-I-0
Part No.: 990407
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 21 kV
Continuous operating voltage (a.c.) (Uc ) 16.8 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 56.2 kV
Height (h) 252 mm
Creepage distance (+/- 5%) 235 mm

Product 990407 was added to Notepad.

Go to Notepad

Product 990407 was added to the cart.

Go to Web-Shop

Part No. 990408 SBKW 24/DH-I-0

GTIN 4013364537408, Customs tariff No. (EU): 85354000, Gross weight: 2.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 24/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 24/DH-I-0
Part No.: 990408
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 24 kV
Continuous operating voltage (a.c.) (Uc ) 19.2 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 64.2 kV
Height (h) 252 mm
Creepage distance (+/- 5%) 235 mm

Product 990408 was added to Notepad.

Go to Notepad

Product 990408 was added to the cart.

Go to Web-Shop

Part No. 990409 SBKW 27/DH-I-0

GTIN 4013364537415, Customs tariff No. (EU): 85354000, Gross weight: 2.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 27/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 27/DH-I-0
Part No.: 990409
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 27 kV
Continuous operating voltage (a.c.) (Uc ) 21.6 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 72.2 kV
Height (h) 296 mm
Creepage distance (+/- 5%) 279 mm

Product 990409 was added to Notepad.

Go to Notepad

Product 990409 was added to the cart.

Go to Web-Shop

Part No. 990410 SBKW 30/DH-I-0

GTIN 4013364537422, Customs tariff No. (EU): 85354000, Gross weight: 2.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 30/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 30/DH-I-0
Part No.: 990410
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 30 kV
Continuous operating voltage (a.c.) (Uc ) 24.0 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 80.0 kV
Height (h) 296 mm
Creepage distance (+/- 5%) 279 mm

Product 990410 was added to Notepad.

Go to Notepad

Product 990410 was added to the cart.

Go to Web-Shop

Part No. 990412 SBKW 33/DH-I-0

GTIN 4013364537446, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 33/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 33/DH-I-0
Part No.: 990412
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 33 kV
Continuous operating voltage (a.c.) (Uc ) 26.4 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 88.0 kV
Height (h) 340 mm
Creepage distance (+/- 5%) 323 mm

Product 990412 was added to Notepad.

Go to Notepad

Product 990412 was added to the cart.

Go to Web-Shop

Part No. 990413 SBKW 36/DH-I-0

GTIN 4013364537453, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 36/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 36/DH-I-0
Part No.: 990413
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 36 kV
Continuous operating voltage (a.c.) (Uc ) 28.8 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 96.3 kV
Height (h) 340 mm
Creepage distance (+/- 5%) 323 mm

Product 990413 was added to Notepad.

Go to Notepad

Product 990413 was added to the cart.

Go to Web-Shop

Part No. 990414 SBKW 39/DH-I-0

GTIN 4013364537477, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 39/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 39/DH-I-0
Part No.: 990414
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 39 kV
Continuous operating voltage (a.c.) (Uc ) 31.2 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 104.3 kV
Height (h) 340 mm
Creepage distance (+/- 5%) 323 mm

Product 990414 was added to Notepad.

Go to Notepad

Product 990414 was added to the cart.

Go to Web-Shop

Part No. 990415 SBKW 42/DH-I-0

GTIN 4013364537484, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 42/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 42/DH-I-0
Part No.: 990415
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 42 kV
Continuous operating voltage (a.c.) (Uc ) 33.6 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 112.4 kV
Height (h) 384 mm
Creepage distance (+/- 5%) 367 mm

Product 990415 was added to Notepad.

Go to Notepad

Product 990415 was added to the cart.

Go to Web-Shop

Part No. 990416 SBKW 45/DH-I-0

GTIN 4013364537491, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 45/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 45/DH-I-0
Part No.: 990416
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 45 kV
Continuous operating voltage (a.c.) (Uc ) 36.0 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 120.0 kV
Height (h) 384 mm
Creepage distance (+/- 5%) 367 mm

Product 990416 was added to Notepad.

Go to Notepad

Product 990416 was added to the cart.

Go to Web-Shop

Part No. 990417 SBKW 48/DH-I-0

GTIN 4013364537514, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 48/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 48/DH-I-0
Part No.: 990417
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 48 kV
Continuous operating voltage (a.c.) (Uc ) 38.4 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 128.4 kV
Height (h) 428 mm
Creepage distance (+/- 5%) 411 mm

Product 990417 was added to Notepad.

Go to Notepad

Product 990417 was added to the cart.

Go to Web-Shop

Part No. 990418 SBKW 51/DH-I-0

GTIN 4013364537538, Customs tariff No. (EU): 85354000, Gross weight: 4.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 51/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 51/DH-I-0
Part No.: 990418
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 51 kV
Continuous operating voltage (a.c.) (Uc ) 41 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 137 kV
Height (h) 428 mm
Creepage distance (+/- 5%) 411 mm

Product 990418 was added to Notepad.

Go to Notepad

Product 990418 was added to the cart.

Go to Web-Shop

Part No. 990419 SBKW 54/DH-I-0

GTIN 4013364537545, Customs tariff No. (EU): 85354000, Gross weight: 4.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 54/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 54/DH-I-0
Part No.: 990419
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 54 kV
Continuous operating voltage (a.c.) (Uc ) 43 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 145 kV
Height (h) 428 mm
Creepage distance (+/- 5%) 411 mm

Product 990419 was added to Notepad.

Go to Notepad

Product 990419 was added to the cart.

Go to Web-Shop

Part No. 990421 SBKW 60/DH-I-0

GTIN 4013364537569, Customs tariff No. (EU): 85354000, Gross weight: 4.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 60/DH-I-0 medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 60/DH-I-0
Part No.: 990421
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 60 kV
Continuous operating voltage (a.c.) (Uc ) 48 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 160 kV
Height (h) 470 mm
Creepage distance (+/- 5%) 453 mm

Product 990421 was added to Notepad.

Go to Notepad

Product 990421 was added to the cart.

Go to Web-Shop

SBKW ... DH-I

19 Products

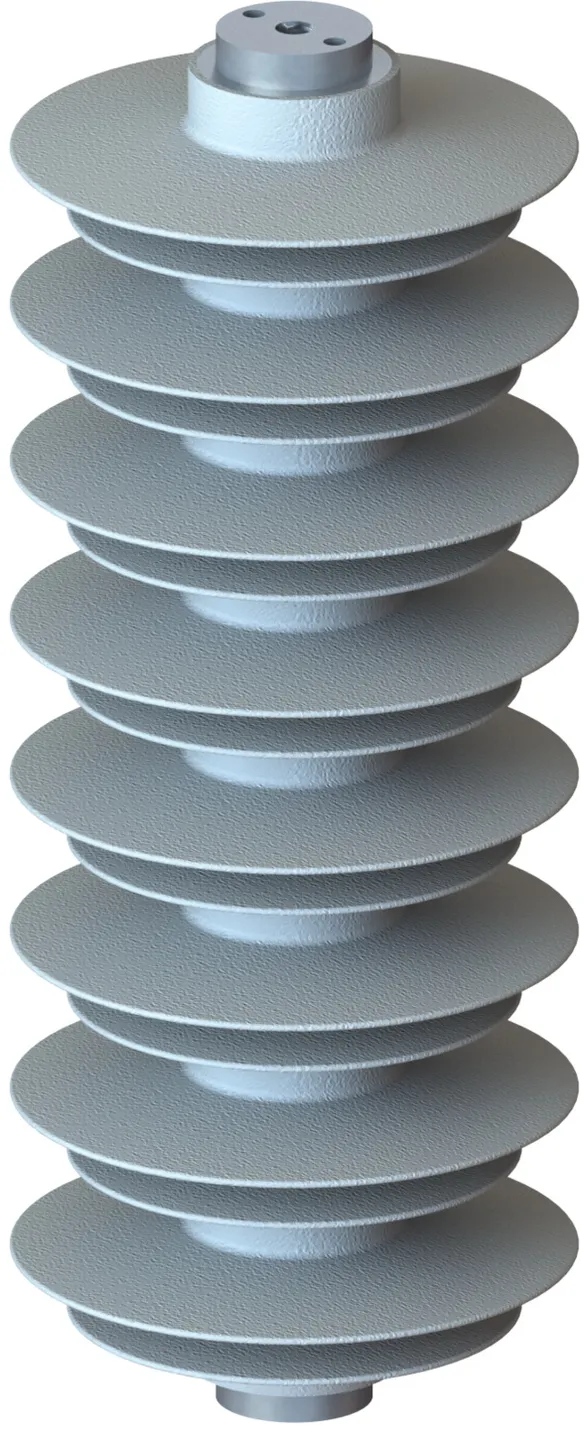

Part No. 990501 SBKW 3/DH-I

GTIN 4013364537613, Customs tariff No. (EU): 85354000, Gross weight: 1.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 3/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 3/DH-I
Part No.: 990501
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 3 kV
Continuous operating voltage (a.c.) (Uc ) 2.4 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 8.0 kV
Height (h) 120 mm
Creepage distance (+/- 5%) 387 mm

Product 990501 was added to Notepad.

Go to Notepad

Product 990501 was added to the cart.

Go to Web-Shop

Part No. 990502 SBKW 6/DH-I

GTIN 4013364537620, Customs tariff No. (EU): 85354000, Gross weight: 1.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 6/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 6/DH-I
Part No.: 990502
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 6 kV
Continuous operating voltage (a.c.) (Uc ) 4.8 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 16.1 kV
Height (h) 164 mm
Creepage distance (+/- 5%) 574 mm

Product 990502 was added to Notepad.

Go to Notepad

Product 990502 was added to the cart.

Go to Web-Shop

Part No. 990503 SBKW 9/DH-I

GTIN 4013364537644, Customs tariff No. (EU): 85354000, Gross weight: 1.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 9/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 9/DH-I
Part No.: 990503
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 9 kV
Continuous operating voltage (a.c.) (Uc ) 7.2 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 24.1 kV
Height (h) 164 mm
Creepage distance (+/- 5%) 574 mm

Product 990503 was added to Notepad.

Go to Notepad

Product 990503 was added to the cart.

Go to Web-Shop

Part No. 990504 SBKW 12/DH-I

GTIN 4013364537781, Customs tariff No. (EU): 85354000, Gross weight: 1.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 12/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 12/DH-I
Part No.: 990504
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 12 kV
Continuous operating voltage (a.c.) (Uc ) 9.6 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 32.1 kV
Height (h) 208 mm
Creepage distance (+/- 5%) 762 mm

Product 990504 was added to Notepad.

Go to Notepad

Product 990504 was added to the cart.

Go to Web-Shop

Part No. 990505 SBKW 15/DH-I

GTIN 4013364537798, Customs tariff No. (EU): 85354000, Gross weight: 2.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 15/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 15/DH-I
Part No.: 990505
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 15 kV
Continuous operating voltage (a.c.) (Uc ) 12.0 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 40.0 kV
Height (h) 208 mm
Creepage distance (+/- 5%) 762 mm

Product 990505 was added to Notepad.

Go to Notepad

Product 990505 was added to the cart.

Go to Web-Shop

Part No. 990506 SBKW 18/DH-I

GTIN 4013364537804, Customs tariff No. (EU): 85354000, Gross weight: 2.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 18/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 18/DH-I
Part No.: 990506
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 18 kV
Continuous operating voltage (a.c.) (Uc ) 14.4 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 48.2 kV
Height (h) 208 mm
Creepage distance (+/- 5%) 762 mm

Product 990506 was added to Notepad.

Go to Notepad

Product 990506 was added to the cart.

Go to Web-Shop

Part No. 990507 SBKW 21/DH-I

GTIN 4013364537811, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 21/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 21/DH-I
Part No.: 990507
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 21 kV
Continuous operating voltage (a.c.) (Uc ) 16.8 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 56.2 kV
Height (h) 252 mm
Creepage distance (+/- 5%) 950 mm

Product 990507 was added to Notepad.

Go to Notepad

Product 990507 was added to the cart.

Go to Web-Shop

Part No. 990508 SBKW 24/DH-I

GTIN 4013364543225, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 24/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 24/DH-I
Part No.: 990508
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 24 kV
Continuous operating voltage (a.c.) (Uc ) 19.2 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 64.2 kV
Height (h) 252 mm
Creepage distance (+/- 5%) 950 mm

Product 990508 was added to Notepad.

Go to Notepad

Product 990508 was added to the cart.

Go to Web-Shop

Part No. 990509 SBKW 27/DH-I

GTIN 4013364537835, Gross weight: 0.00 g, PU: 1.00 pc(s)

Images

Additional information

SBKW 27/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 27/DH-I
Part No.: 990509
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 27 kV
Continuous operating voltage (a.c.) (Uc ) 21.6 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 72.2 kV
Height (h) 296 mm
Creepage distance (+/- 5%) 1137 mm

Product 990509 was added to Notepad.

Go to Notepad

Product 990509 was added to the cart.

Go to Web-Shop

Part No. 990510 SBKW 30/DH-I

GTIN 4013364537842, Customs tariff No. (EU): 85354000, Gross weight: 3.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 30/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 30/DH-I
Part No.: 990510
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 30 kV
Continuous operating voltage (a.c.) (Uc ) 24.0 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 80.0 kV
Height (h) 296 mm
Creepage distance (+/- 5%) 1137 mm

Product 990510 was added to Notepad.

Go to Notepad

Product 990510 was added to the cart.

Go to Web-Shop

Part No. 990512 SBKW 33/DH-I

GTIN 4013364538054, Customs tariff No. (EU): 85354000, Gross weight: 4.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 33/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 33/DH-I
Part No.: 990512
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 33 kV
Continuous operating voltage (a.c.) (Uc ) 26.4 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 88.0 kV
Height (h) 340 mm
Creepage distance (+/- 5%) 1325 mm

Product 990512 was added to Notepad.

Go to Notepad

Product 990512 was added to the cart.

Go to Web-Shop

Part No. 990513 SBKW 36/DH-I

GTIN 4013364538061, Customs tariff No. (EU): 85354000, Gross weight: 4.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 36/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 36/DH-I
Part No.: 990513
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 36 kV
Continuous operating voltage (a.c.) (Uc ) 28.8 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 96.3 kV
Height (h) 340 mm
Creepage distance (+/- 5%) 1325 mm

Product 990513 was added to Notepad.

Go to Notepad

Product 990513 was added to the cart.

Go to Web-Shop

Part No. 990514 SBKW 39/DH-I

GTIN 4013364538078, Customs tariff No. (EU): 85354000, Gross weight: 4.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 39/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 39/DH-I
Part No.: 990514
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 39 kV
Continuous operating voltage (a.c.) (Uc ) 31.2 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 104.3 kV
Height (h) 340 mm
Creepage distance (+/- 5%) 1325 mm

Product 990514 was added to Notepad.

Go to Notepad

Product 990514 was added to the cart.

Go to Web-Shop

Part No. 990515 SBKW 42/DH-I

GTIN 4013364538092, Customs tariff No. (EU): 85354000, Gross weight: 4.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 42/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 42/DH-I
Part No.: 990515
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 42 kV
Continuous operating voltage (a.c.) (Uc ) 33.6 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 112.4 kV
Height (h) 384 mm
Creepage distance (+/- 5%) 1513 mm

Product 990515 was added to Notepad.

Go to Notepad

Product 990515 was added to the cart.

Go to Web-Shop

Part No. 990516 SBKW 45/DH-I

GTIN 4013364538108, Customs tariff No. (EU): 85354000, Gross weight: 4.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 45/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 45/DH-I
Part No.: 990516
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 45 kV
Continuous operating voltage (a.c.) (Uc ) 36.0 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 120.0 kV
Height (h) 384 mm
Creepage distance (+/- 5%) 1513 mm

Product 990516 was added to Notepad.

Go to Notepad

Product 990516 was added to the cart.

Go to Web-Shop

Part No. 990517 SBKW 48/DH-I

GTIN 4013364538115, Customs tariff No. (EU): 85354000, Gross weight: 5.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 48/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 48/DH-I
Part No.: 990517
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 48 kV
Continuous operating voltage (a.c.) (Uc ) 38.4 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 128.4 kV
Height (h) 428 mm
Creepage distance (+/- 5%) 1700 mm

Product 990517 was added to Notepad.

Go to Notepad

Product 990517 was added to the cart.

Go to Web-Shop

Part No. 990518 SBKW 51/DH-I

GTIN 4013364538139, Customs tariff No. (EU): 85354000, Gross weight: 5.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 51/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 51/DH-I
Part No.: 990518
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 51 kV
Continuous operating voltage (a.c.) (Uc ) 41 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 137 kV
Height (h) 428 mm
Creepage distance (+/- 5%) 1700 mm

Product 990518 was added to Notepad.

Go to Notepad

Product 990518 was added to the cart.

Go to Web-Shop

Part No. 990519 SBKW 54/DH-I

GTIN 4013364538160, Customs tariff No. (EU): 85354000, Gross weight: 5.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 54/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 54/DH-I
Part No.: 990519
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 54 kV
Continuous operating voltage (a.c.) (Uc ) 43 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 145 kV
Height (h) 428 mm
Creepage distance (+/- 5%) 1700 mm

Product 990519 was added to Notepad.

Go to Notepad

Product 990519 was added to the cart.

Go to Web-Shop

Part No. 990521 SBKW 60/DH-I

GTIN 4013364538184, Customs tariff No. (EU): 85354000, Gross weight: 6.00 kg, PU: 1.00 pc(s)

Images

Additional information

SBKW 60/DH-I medium-voltage arrester
Medium voltage arrester without shield
for protecting transformers, switch-
gear and transmission lines
against atmospheric and switching
overvoltages
according to IEC 60099-4 / EN 60099-4
High-temperature-vulcanised, hydrophobic, silicone enclosure
Epoxy-resin-bonded glass fibre fabric
High bending strength
Shatterproof overload behaviour

Brand: DEHN
Type: SBKW 60/DH-I
Part No.: 990521
or equivalent.



Technical data

Nominal discharge current (8/20 µs) (In ) 10 kA
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
Rated voltage (a.c.) (Ur ) 60 kV
Continuous operating voltage (a.c.) (Uc ) 48 kV
Rated short-circuit current (Isc ) <TRANSLATION_PLACEHOLDER> kA
Residual voltage at 10 kA (8/20 µs) (Upl ) 160 kV
Height (h) 470 mm
Creepage distance (+/- 5%) 1886 mm

Product 990521 was added to Notepad.

Go to Notepad

Product 990521 was added to the cart.

Go to Web-Shop
