Kits for Railway Applications


Details

lorem ipsum

Kit for Overhead Contact Lines (non-profile-free)

Telescopic earthing stick with adjusting ring (max. 5 m long)

2 Products

Part No. 750210 BEV OL NPF K

GTIN 4013364123793, Customs tariff No. (EU): 85359000, Gross weight: 13.44 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Design Tommy bar
Cable length 8500 mm
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. 3 Ebgw 01.51
DB material No. 237 117

Product 750210 was added to Notepad.

Product 750210 was added to the cart.

Part No. 750218 BEV OL NPF R

GTIN 4013364157224, Customs tariff No. (EU): 85359000, Gross weight: 14.73 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Design Ratchet
Cable length 8500 mm
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. 3 Ebgw 01.51

Product 750218 was added to Notepad.

Product 750218 was added to the cart.


Kit for Overhead Contact Lines (profile-free *))

Telescopic earthing stick with adjusting ring (max. 5 m long).

2 Products

Part No. 750211 BEV OL PF K

GTIN 4013364123809, Customs tariff No. (EU): 85359000, Gross weight: 15.55 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Design Tommy bar
Cable length 12000 mm
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. 3 Ebgw 01.51
DB material No. 237 118

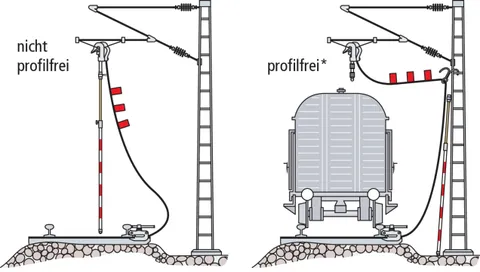

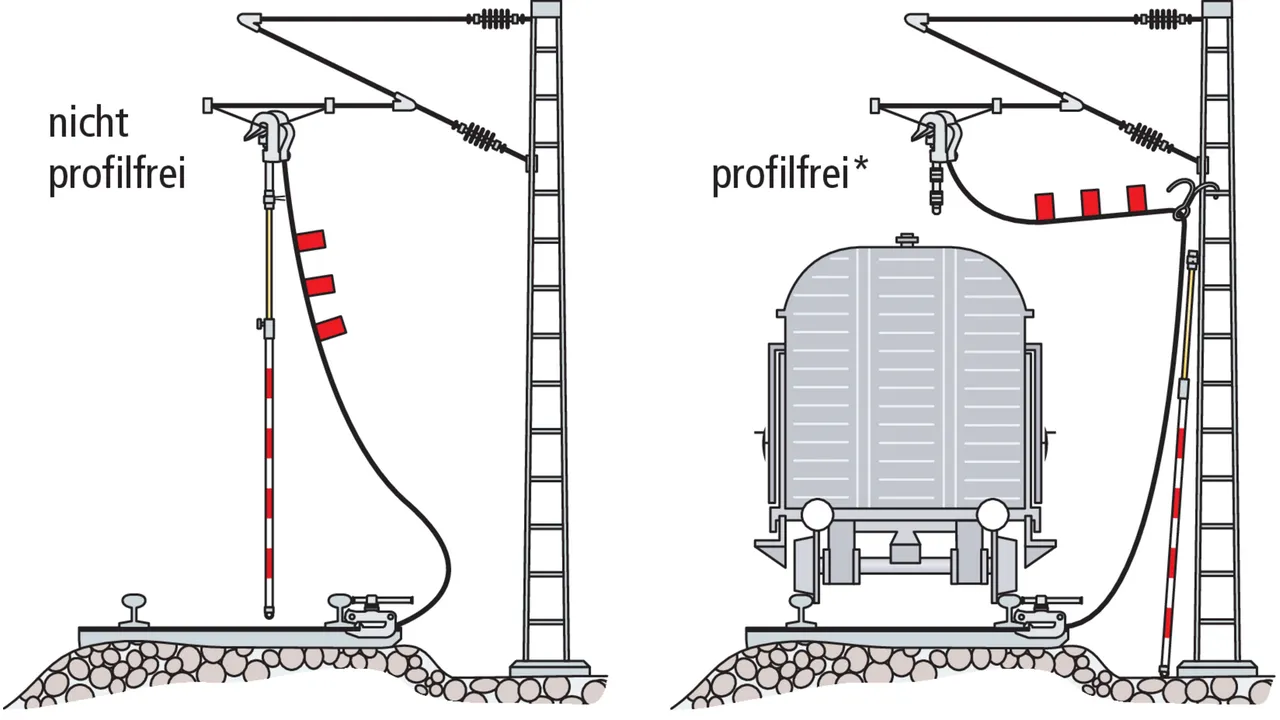

*) Profile-free earthing means that the earthing cable can be suspended on the tower thus allowing for limited diesel locomotive operation.

Product 750211 was added to Notepad.

Product 750211 was added to the cart.

Part No. 750219 BEV OL PF R

GTIN 4013364157231, Customs tariff No. (EU): 85359000, Gross weight: 16.87 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Design Ratchet
Cable length 12000 mm
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. 3 Ebgw 01.51
*) Profile-free earthing means that the earthing cable can be suspended on the tower thus allowing for limited diesel locomotive operation.

Product 750219 was added to Notepad.

Product 750219 was added to the cart.


Kit for Overhead Contact Lines (profile-free *))

Telescopic earthing stick with cable guide and hook (max. 5 m long).

2 Products

Part No. 750214 BEV OL PF V2 K

GTIN 4013364123816, Customs tariff No. (EU): 85359000, Gross weight: 15.60 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Design Tommy bar
Cable length 12000 mm
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. 3 Ebgw 01.51
DB material No. 237 115
*) Profile-free earthing means that the earthing cable can be suspended on the tower thus allowing for limited diesel locomotive operation.

Product 750214 was added to Notepad.

Product 750214 was added to the cart.

Part No. 750221 BEV OL PF V2 R

GTIN 4013364157248, Customs tariff No. (EU): 85359000, Gross weight: 15.51 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Design Ratchet
Cable length 12000 mm
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. 3 Ebgw 01.51
*) Profile-free earthing means that the earthing cable can be suspended on the tower thus allowing for limited diesel locomotive operation.

Product 750221 was added to Notepad.

Product 750221 was added to the cart.


Kit for Overhead Contact Lines for Transport in Motor Vehicles (non-profile-free)

For technical emergency service and emergency management
Telescopic earthing stick kit consisting of six elements, pluggable (max. 5 m long).

2 Products

Part No. 750196 BEV OL NPF PKW K

GTIN 4013364123823, Customs tariff No. (EU): 85359000, Gross weight: 26.58 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Design Tommy bar
Cable length 8500 mm
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. 3 Ebgw 01.67
DB material No. 237 125

Product 750196 was added to Notepad.

Product 750196 was added to the cart.

Part No. 750216 BEV OL NPF PKW R

GTIN 4013364157255, Customs tariff No. (EU): 85359000, Gross weight: 26.58 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Design Ratchet
Cable length 8500 mm
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. 3 Ebgw 01.67

Product 750216 was added to Notepad.

Product 750216 was added to the cart.


Kit for Overhead Contact Lines for Transport in Motor Vehicles (profile-free *))

For technical emergency service and emergency management
Telescopic earthing stick kit consisting of six elements, pluggable (max. 5 m long).

2 Products

Part No. 750200 BEV OL PF PKW K

GTIN 4013364123830, Customs tariff No. (EU): 85359000, Gross weight: 16.95 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Design Tommy bar
Cable length 12000 mm
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. 3 Ebgw 01.67
*) Profile-free earthing means that the earthing cable can be suspended at the tower, thus allowing for limited diesel locomotive operation.

Product 750200 was added to Notepad.

Product 750200 was added to the cart.

Part No. 750217 BEV OL PF PKW R

GTIN 4013364157262, Customs tariff No. (EU): 85359000, Gross weight: 17.08 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Design Ratchet
Cable length 12000 mm
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. 3 Ebgw 01.67
*) Profile-free earthing means that the earthing cable can be suspended at the tower, thus allowing for limited diesel locomotive operation.

Product 750217 was added to Notepad.

Product 750217 was added to the cart.


Kit for Transformers at Overhead Line Towers

For earthing on fuse carriers
Telescopic earthing stick with adjusting ring (max. 3.5 m long).

1 Product

Part No. 750212 BEV US OL ST

GTIN 4013364123847, Customs tariff No. (EU): 85359000, Gross weight: 13.00 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Cable length 4000 mm
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 3 Ebgw 01.57
DB material No. 237 121

Product 750212 was added to Notepad.

Product 750212 was added to the cart.


Kit for Supply Lines, Line Feeders, Bypass Lines and other Types of Lines

For earthing the supply line and traction current lines
Telescopic earthing stick with adjusting ring (max. 3.5 m long).

1 Product

Part No. 750213 BEV SVUL

GTIN 4013364123861, Customs tariff No. (EU): 85359000, Gross weight: 8.76 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Cable length 4000 mm
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 3 Ebgw 01.57
DB material No. 237 119

Product 750213 was added to Notepad.

Product 750213 was added to the cart.


Kit for Electric Point and Train Pre-Heating Systems

For the initial equipment of a transformer of electric point and train pre-heating systems.

1 Product

Part No. 750215 BEV WHA ZVA

GTIN 4013364123878, Customs tariff No. (EU): 85359000, Gross weight: 7.30 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Cable length 600 / 1800 mm
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 3 Ebgw 01.70
DB material No. 742 402
For voltage detectors for electric point heating systems, please refer to the PHE voltage detector chapter.

Product 750215 was added to Notepad.

Product 750215 was added to the cart.
