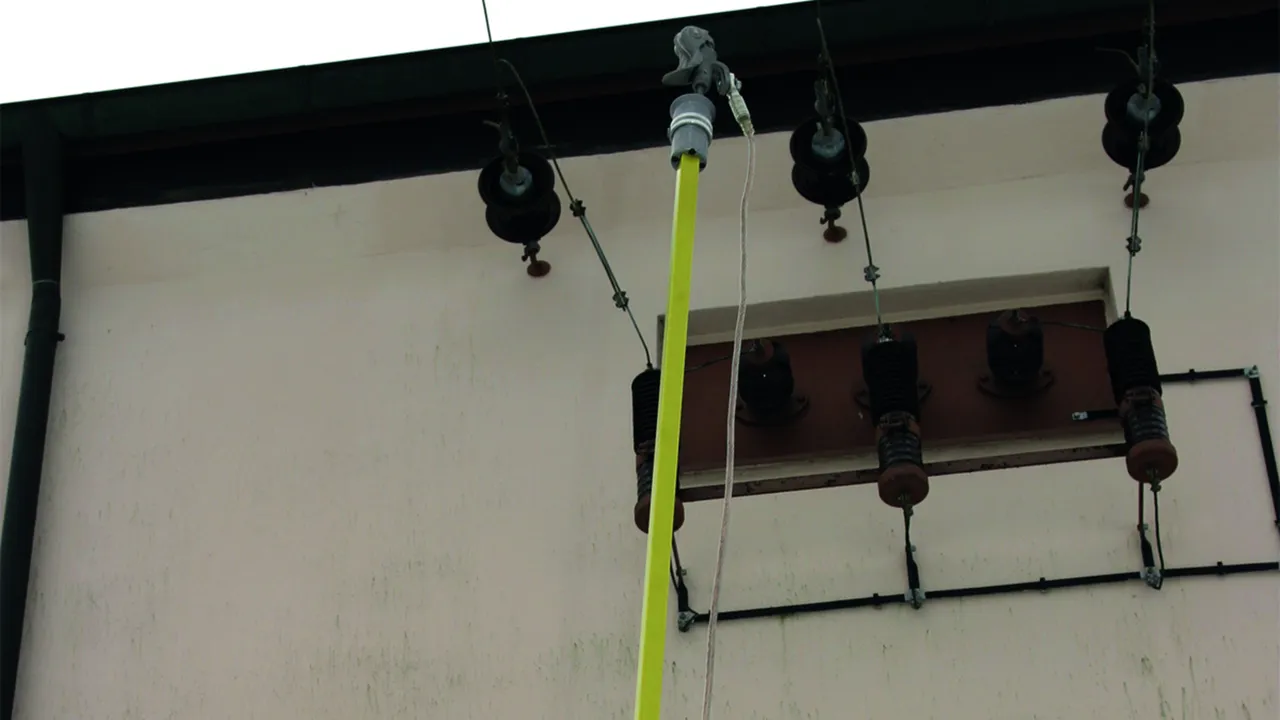

Earthing Sticks for Overhead Lines

For outdoor use
Robust aluminium cone coupling
Total lengths up to 6000 mm
Telescopic stick, length continuously adjustable by star knob
For phase screw clamps and clamps with long T pin shaft

Details

End fitting with eye (Al/rubber) or plug-in coupling with eye (Al/rubber) for extending the handle.

lorem ipsum — End fitting with eye (Al/rubber) or plug-in coupling with eye (Al/rubber) for extending the handle.

Earthing stick with aluminium cone coupling used for clamps with long shaft in accordance with DIN 48087.

lorem ipsum — Earthing stick with aluminium cone coupling used for clamps with long shaft in accordance with DIN 48087.

Lockable adjusting ring
The adjusting ring on the cone has the following functions:
– Position "AUF" (= OPEN): Stick can be removed after the clamp has been attached
– Position "ZU" (= CLOSED): Stick and clamp remain coupled even after the earthing and short-circuiting device has been attached

lorem ipsum — Lockable adjusting ring
The adjusting ring on the cone has the following functions:
– Position "AUF" (= OPEN): Stick can be removed after the clamp has been attached
– Position "ZU" (= CLOSED): Stick and clamp remain coupled even after the earthing and short-circuiting device has been attached

Robust aluminium threaded coupling allows positive and non-positive connection due to the screw connection and gearing.

lorem ipsum — Robust aluminium threaded coupling allows positive and non-positive connection due to the screw connection and gearing.

Load values for extendible earthing sticks.

lorem ipsum — Load values for extendible earthing sticks.
