Disconnecting Sleeves

For connecting down conductors with earth entry rods.

Open design for earth entry rods

2 Products

Part No. 450000 TM 7.10 16 ZG

GTIN 4013364025158, Customs tariff No. (EU): 85359000, Gross weight: 124.00 g, PU: 50.00 pc(s)


Images

Additional information

Disconnecting sleeves, open, for earth entry rods, ZDC
Disconnecting sleeve for connecting down conductors with
earth entry rods
Material: ZDC
Clamping range Rd / Rd: 7-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: TM 7.10 16 ZG
Part No.: 450000
or equivalent.

Certificates



Technical data

Material ZDC
Clamping range Rd / Rd 7-10 / 16 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 450000 was added to Notepad.

Product 450000 was added to the cart.

Part No. 450007 TM 7.10 16 RG

GTIN 4013364025165, Customs tariff No. (EU): 85359000, Gross weight: 135.40 g, PU: 1.00 pc(s)


Images

Additional information

Disconnecting sleeves, open, for earth entry rods, ZDC
Disconnecting sleeve for connecting down conductors with
earth entry rods
Material: Gunmetal
Clamping range Rd / Rd: 7-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: TM 7.10 16 RG
Part No.: 450007
or equivalent.

Certificates



Technical data

Material Gunmetal
Clamping range Rd / Rd 7-10 / 16 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 450007 was added to Notepad.

Product 450007 was added to the cart.


Open design for earth entry rods

1 Product

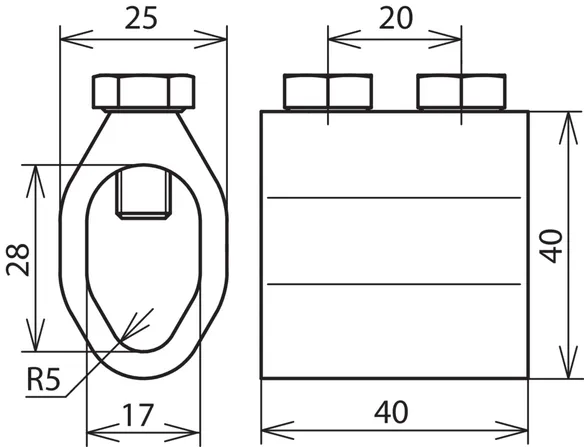

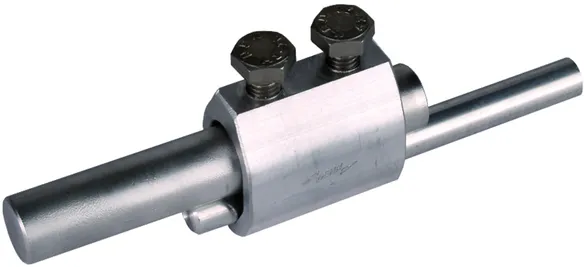

Part No. 450001 TM 7.10 16 AL

GTIN 4013364090903, Customs tariff No. (EU): 85359000, Gross weight: 64.50 g, PU: 50.00 pc(s)


Images

Additional information

Disconnecting sleeves, open, for earth entry rods, Al
Disconnecting sleeve for connecting down conductors
with earth entry rods
Material: Al
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: TM 7.10 16 AL
Part No.: 450001
or equivalent.

Certificates



Technical data

Material Al
Clamping range Rd / Rd 8-10 / 16 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 450001 was added to Notepad.

Product 450001 was added to the cart.


Closed design for earth entry rods

1 Product

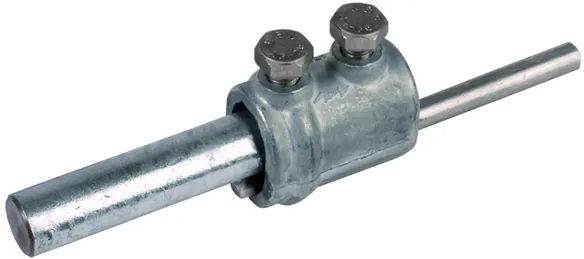

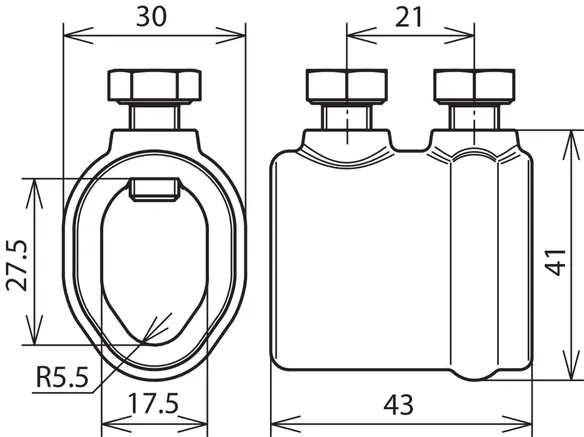

Part No. 450011 TM G 7.10 16 ZG

GTIN 4013364025172, Customs tariff No. (EU): 85359000, Gross weight: 136.50 g, PU: 50.00 pc(s)


Images

Additional information

Disconnecting sleeves, closed, for earth entry rods, ZDC
Disconnecting sleeve for connecting down conductors
with earth entry rods
Material: ZDC
Clamping range Rd / Rd: 7-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: TM G 7.10 16 ZG
Part No.: 450011
or equivalent.

Certificates



Technical data

Material ZDC
Clamping range Rd / Rd 7-10 / 16 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 450011 was added to Notepad.

Product 450011 was added to the cart.


Open design for wires

1 Product

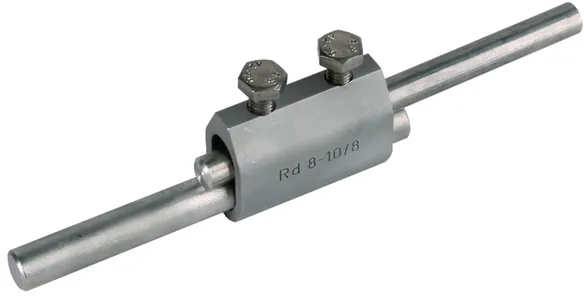

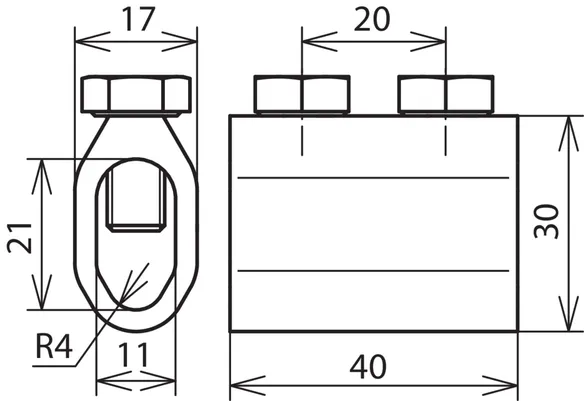

Part No. 450101 TM 8.10 8 AL

GTIN 4013364094093, Customs tariff No. (EU): 85359000, Gross weight: 45.10 g, PU: 50.00 pc(s)


Images

Additional information

Disconnecting sleeves, open, for wires, Al
Disconnecting sleeve for connecting down conductors
with earth entry rods
Material: Al
Clamping range Rd / Rd: 8-10 / 8 mm
Standard: EN 62561-1

Brand: DEHN
Type: TM 8.10 8 AL
Part No.: 450101
or equivalent.

Certificates



Technical data

Material Al
Clamping range Rd / Rd 8-10 / 8 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 450101 was added to Notepad.

Product 450101 was added to the cart.
