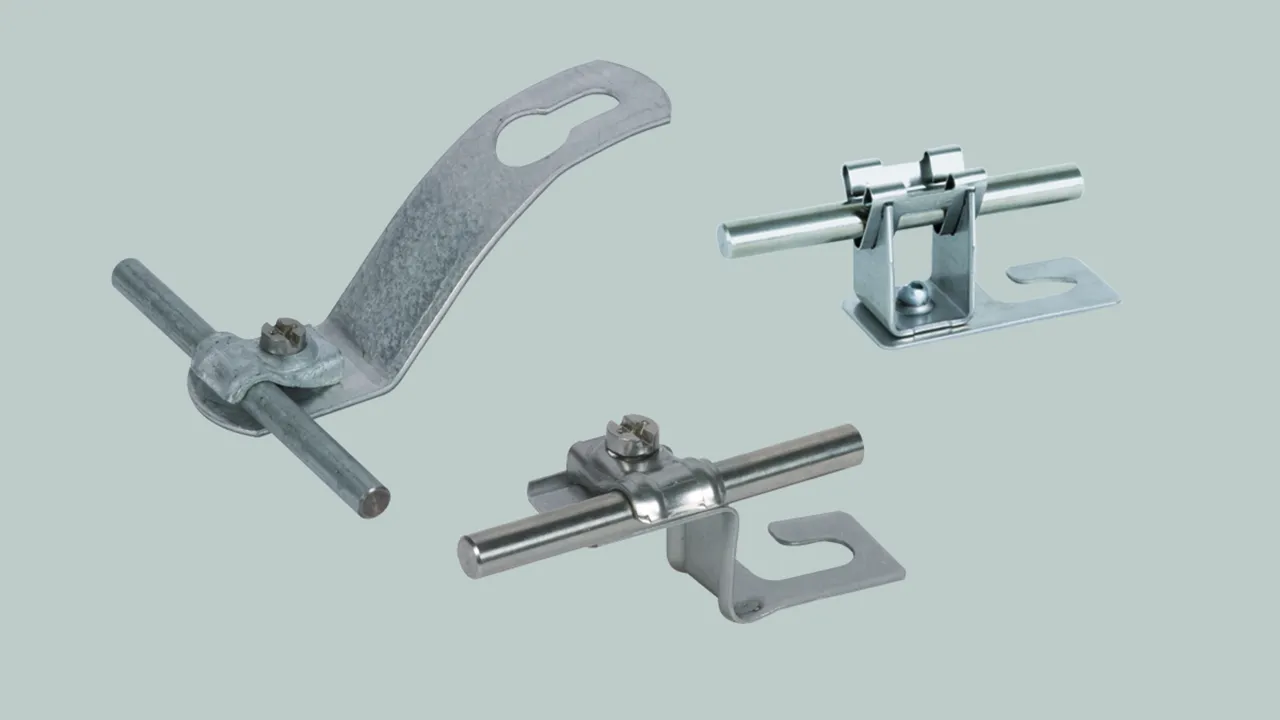

Roof Conductor Holders for Corrugated Sheet Roofing

For installing ridge conductors and conductors on the roof surface. Corrugations 177 mm (profile 5) and 130 mm (profile 8).

For corrugated sheet roofing profile 5 with DEHNquick

For installation on the roof surface.

1 Product

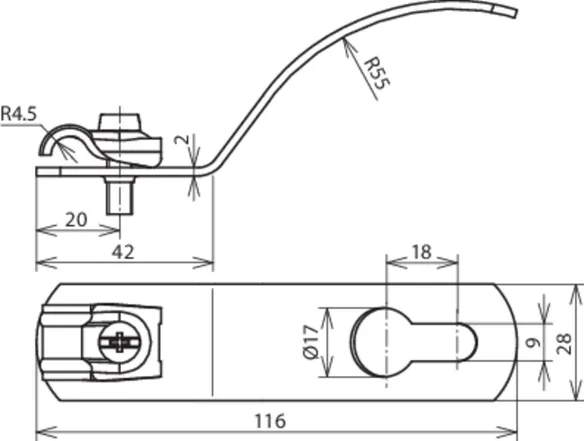

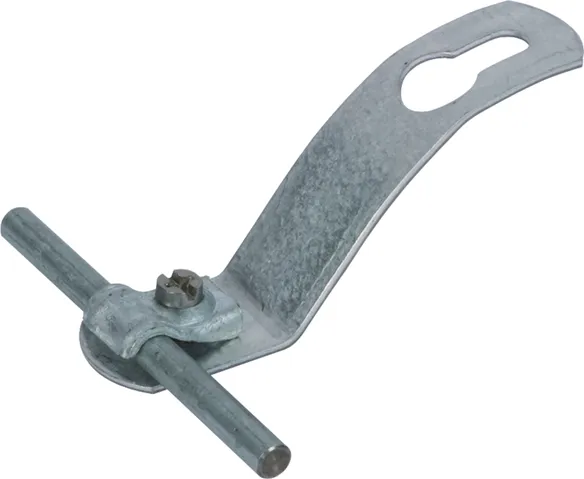

Part No. 202005 DLH DQ 6.10 WPRO5 STTZN

GTIN 4013364022041, Customs tariff No. (EU): 85389099, Gross weight: 72.20 g, PU: 50.00 pc(s)


Images

Additional information

Roof conductor holder for corrugated sheet roofs (DEHNQUICK), St/tZn
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5
Material of roof conductor holder: St/tZn
Type of conductor holder: DEHNquick
Material of conductor holder: St/tZn
Conductor holder support Rd: 6-10 mm
Conductor leading: fixed

Brand: DEHN
Type: DLH DQ 6.10 WPRO5 STTZN
Part No.: 202005
or equivalent.

Certificates



Technical data

Material of roof conductor holder St/tZn
Material of conductor holder St/tZn
Conductor holder support Rd 6-10 mm
Conductor leading fixed

Product 202005 was added to Notepad.

Product 202005 was added to the cart.


For corrugated sheet roofing profile 5 with DEHNgrip

For installation on the roof surface.

1 Product

Part No. 206105 DLH DQ 8 WPRO5 V2A STTZN

GTIN 4013364083189, Customs tariff No. (EU): 85389099, Gross weight: 76.30 g, PU: 50.00 pc(s)


Images

Additional information

Roof conductor holder for corrugated sheet roofs (DEHNgrip)
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5
Material of roof conductor holder: St/tZn
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor holder support Rd: 8 mm
Conductor leading: loose

Brand: DEHN
Type: DLH DQ 8 WPRO5 V2A STTZN
Part No.: 206105
or equivalent.

Certificates



Technical data

Material of roof conductor holder St/tZn
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Conductor leading loose
Standard EN 62561-4

Product 206105 was added to Notepad.

Product 206105 was added to the cart.

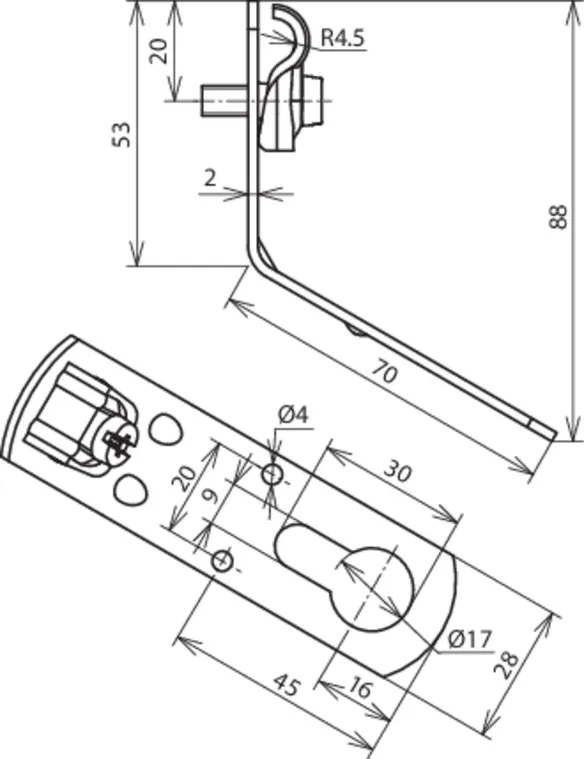

For corrugated sheet roofing profile 5 and profile 8 with DEHNquick

For installing ridge conductors and conductors on the roof surface, angled design.

1 Product

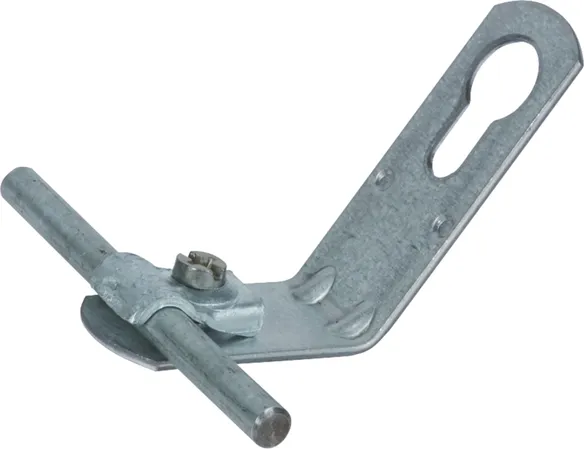

Part No. 202015 DLH DQ 6.10 WPRO5 8 STTZN

GTIN 4013364022089, Customs tariff No. (EU): 85389099, Gross weight: 61.20 g, PU: 50.00 pc(s)


Images

Additional information

Roof conductor holder for corrugated sheet roofs (DEHNQUICK), St/tZn
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5 and profile 8, angled unit
Material of roof conductor holder: St/tZn
Type of conductor holder: DEHNquick
Material of conductor holder: St/tZn
Conductor holder support Rd: 6-10 mm
Conductor leading: fixed

Brand: DEHN
Type: DLH DQ 6.10 WPRO5 8 STTZN
Part No.: 202015
or equivalent.

Certificates



Technical data

Material of roof conductor holder St/tZn
Material of conductor holder St/tZn
Conductor holder support Rd 6-10 mm
Conductor leading fixed

Product 202015 was added to Notepad.

Product 202015 was added to the cart.


For corrugated sheet roofing profile 5 and profile 8 with DEHNquick

For installing ridge conductors and conductors on the roof surface, angled design.

1 Product

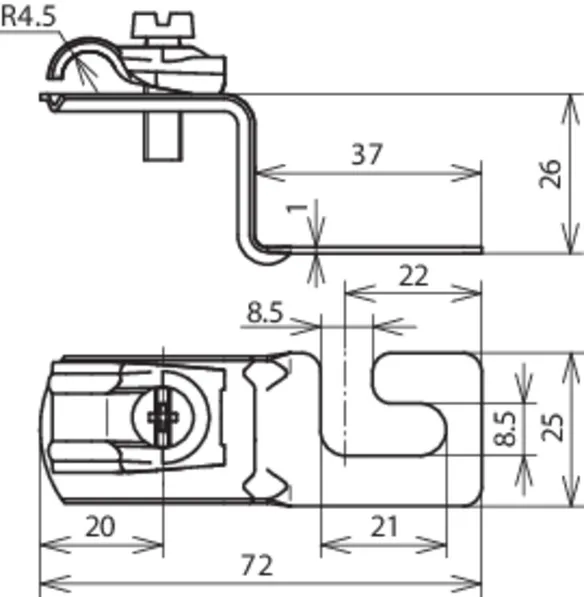

Part No. 202906 DLH DQ 6.10 WPRO5 8 V2A

GTIN 4013364022102, Customs tariff No. (EU): 85389099, Gross weight: 34.20 g, PU: 50.00 pc(s)


Images

Additional information

Roof conductor holder for corrugated sheet roofs (DEHNQUICK), StSt
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5 and profile 8, angled unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNquick
Material of conductor holder: StSt
Conductor holder support Rd: 6-10 mm
Conductor leading: fixed

Brand: DEHN
Type: DLH DQ 6.10 WPRO5 8 V2A
Part No.: 202906
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Material of conductor holder StSt
Conductor holder support Rd 6-10 mm
Conductor leading fixed

Product 202906 was added to Notepad.

Product 202906 was added to the cart.


For corrugated sheet roofing profile 5 and profile 8 with DEHNgrip

For installing ridge conductors and conductors on the roof surface, straight design.

1 Product

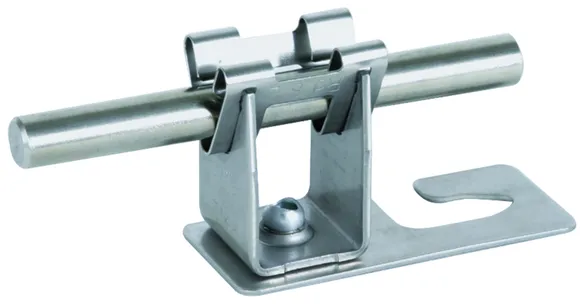

Part No. 206339 DLH DG 8 H20 WPRO5 8 V2A

GTIN 4013364047730, Customs tariff No. (EU): 85389099, Gross weight: 29.00 g, PU: 50.00 pc(s)


Images

Additional information

Roof conductor holder for corrugated sheet roofs (DEHNgrip), StSt
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5 and profile 8, straight unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor holder support Rd: 8 mm
Conductor leading: loose

Brand: DEHN
Type: DLH DG 8 H20 WPRO5 8 V2A
Part No.: 206339
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Conductor leading loose
Standard EN 62561-4

Product 206339 was added to Notepad.

Product 206339 was added to the cart.


For corrugated sheet roofing profile 5 and profile 8 with DEHNsnap

For installing ridge conductors and conductors on the roof surface, straight design.

2 Products

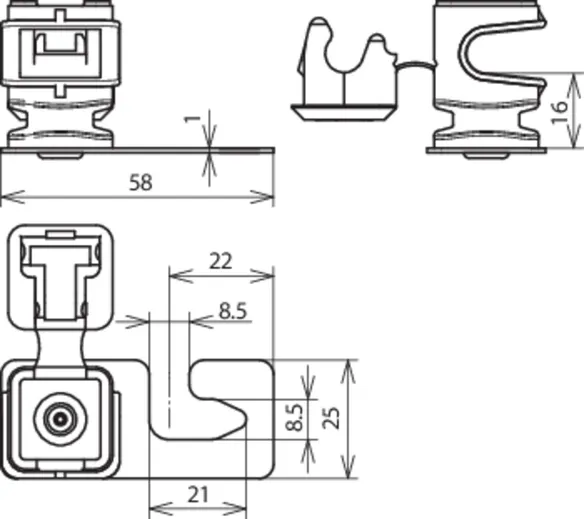

Part No. 204906 DLH DS 8 H16 WPRO5 8 GR V2A

GTIN 4013364028456, Customs tariff No. (EU): 85389099, Gross weight: 21.00 g, PU: 50.00 pc(s)


Images

Additional information

Roof conductor holder for corrugated sheet roofs (DEHNsnap), grey, StSt
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5 and profile 8, straight unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNsnap
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor holder support Rd: 8 mm
Conductor leading: loose

Brand: DEHN
Type: DLH DS 8 H16 WPRO5 8 GR V2A
Part No.: 204906
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey
Conductor holder support Rd 8 mm
Conductor leading loose

Product 204906 was added to Notepad.

Product 204906 was added to the cart.

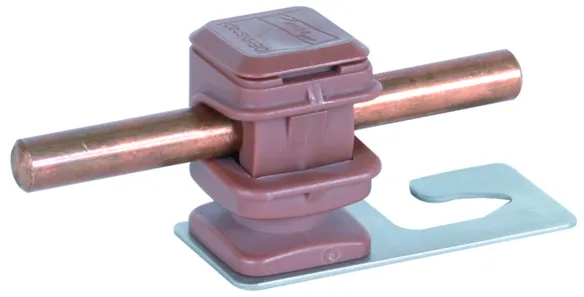

Part No. 204916 DLH DS 8 H16 WPRO5 8 BR V2A

GTIN 4013364030565, Customs tariff No. (EU): 85389099, Gross weight: 20.80 g, PU: 50.00 pc(s)


Images

Additional information

Roof conductor holder for corrugated sheet roofs (DEHNsnap), brown, StSt
Roof conductor holder for corrugated roof sheetings for installation of ridge conductors and conductors
on the roof surface
For corrugated roof sheetings, profile 5 and profile 8, straight unit
Material of roof conductor holder: StSt
Type of conductor holder: DEHNsnap
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor holder support Rd: 8 mm
Conductor leading: loose

Brand: DEHN
Type: DLH DS 8 H16 WPRO5 8 BR V2A
Part No.: 204916
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown
Conductor holder support Rd 8 mm
Conductor leading loose

Product 204916 was added to Notepad.

Product 204916 was added to the cart.
