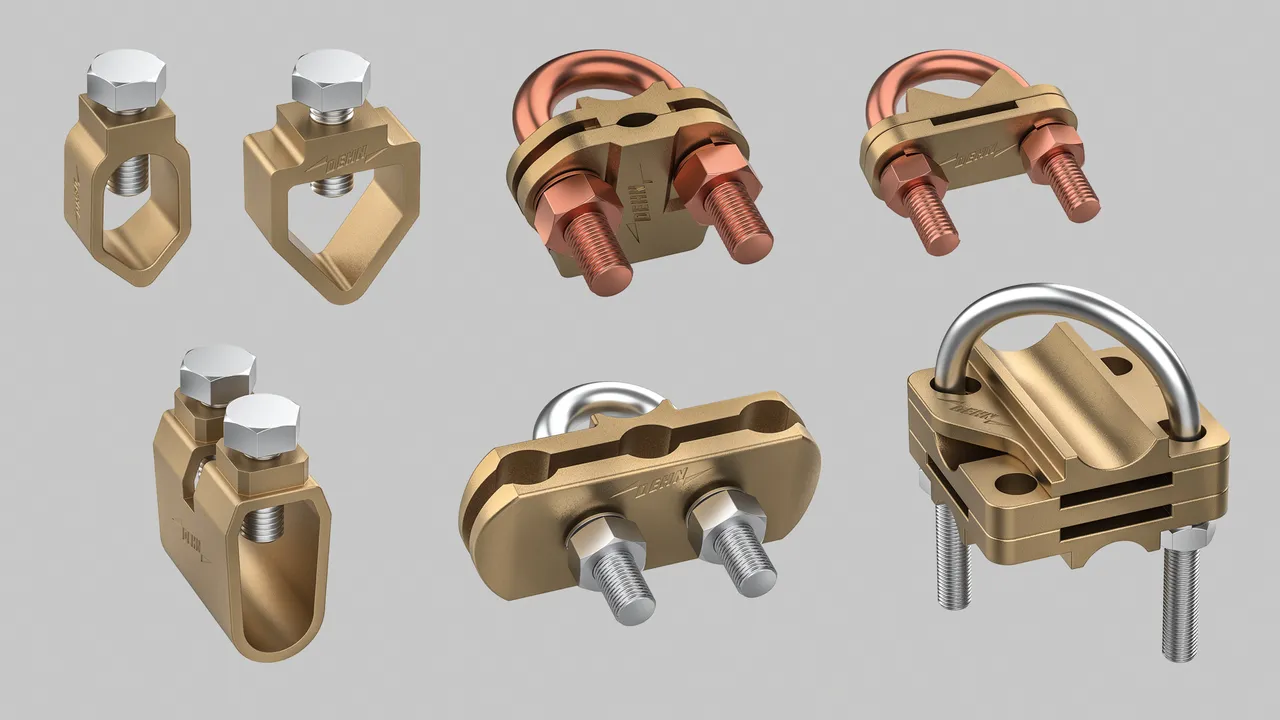

Earth Rod to Conductor Clamps

Earth Rod Clamps are used for interconnecting various sizes of earth rods with stranded cables and flat condutors.
The Clamps have a high resistance to corrosion and show high mechanical strength to ensure a lasting connection.

Earth Rods to Stranded Conductors

4 Products

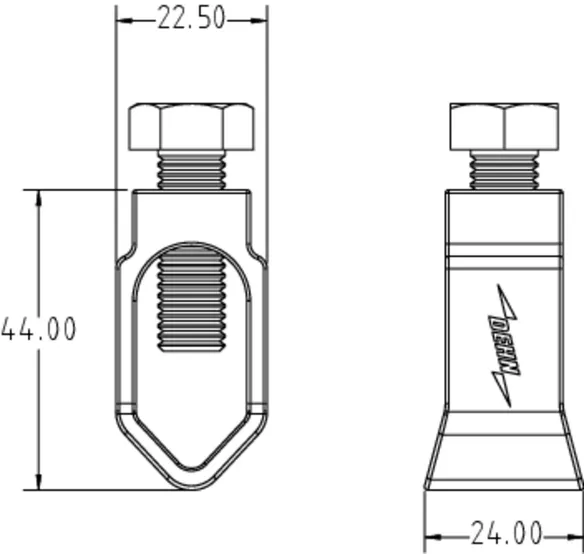

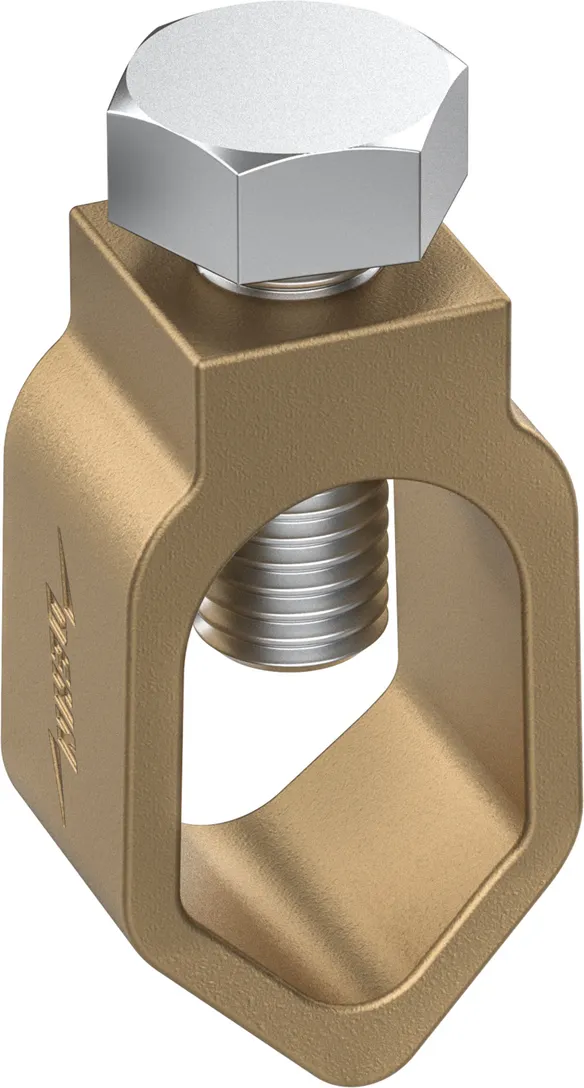

Part No. 138136 ERCC ERSC 14.2.16/16.95 HCA

GTIN 4013364475854, Customs tariff No. (EU): 85389000, Gross weight: 70.00 g, PU: 20.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 16 mm / 16 - 95 mm²
Clamp Fixings Hex Head Bolt M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 12 Nm
Dimensions (l x w x h) 25.5 x 24 x 44 mm
Standards IEC / EN / BS EN 62561-1
Classification Class N
Lightning current carrying capability (10/350 μs) &
Note: M10 x 25mm Phosphor Bronze (Bolt) can be supplied upon request.

Product 138136 was added to Notepad.

Go to Notepad

Product 138136 was added to the cart.

Go to Web-Shop

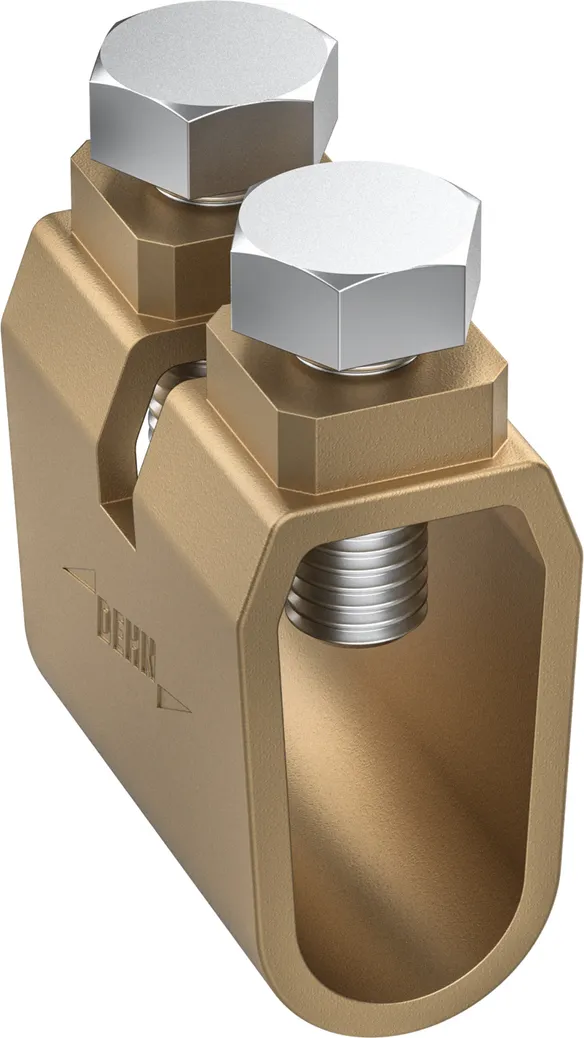

Part No. 138134 ERCC ERSC 14.2.16/95.150 HCA

GTIN 4013364519237, Customs tariff No. (EU): 85389000, Gross weight: 180.00 g, PU: 10.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 16 mm / 95 - 150 mm²
Clamp Fixings Hex Head Bolt M10 x 2 Nos
Material of Clamp Fixings Stainless Steel
Tightening Torque 12 Nm
Dimensions (l x w x h) 26 x 46 x 51 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: M10 x 25mm Phosphor Bronze (Bolt) can be supplied upon request.

Product 138134 was added to Notepad.

Go to Notepad

Product 138134 was added to the cart.

Go to Web-Shop

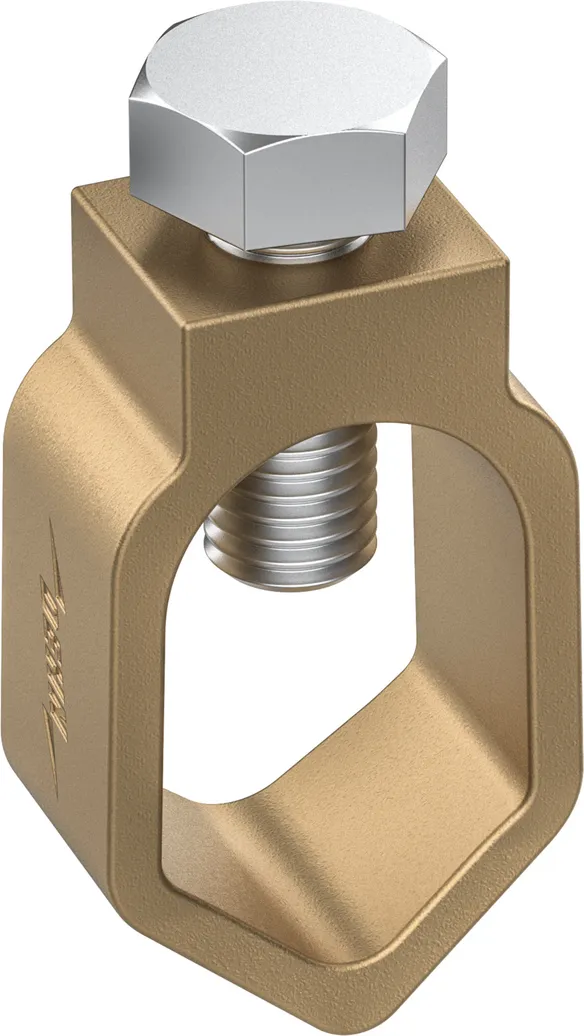

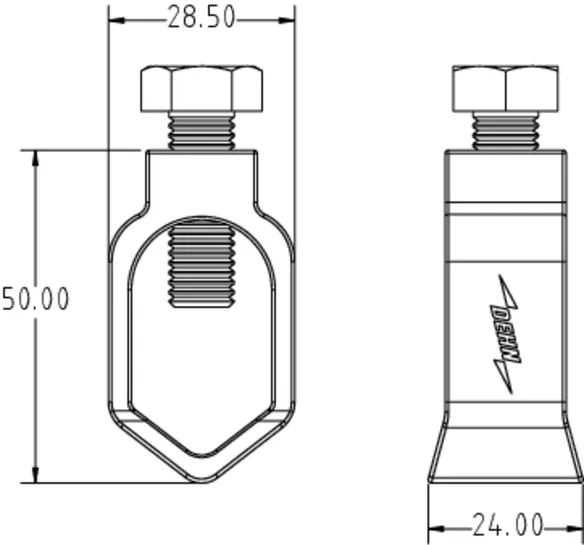

Part No. 138137 ERCC ERSC 17.2.20/16.95 HCA

GTIN 4013364475861, Customs tariff No. (EU): 85389000, Gross weight: 100.00 g, PU: 20.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 17.2 - 20 mm / 16 - 95 mm²
Clamp Fixings Hex Head Bolt M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 12 Nm
Dimensions (l x w x h) 28.5 x 24 x 50 mm
Standards IEC / EN / BS EN 62561-1
Classification Class N
Lightning current carrying capability (10/350 μs) &
Note: M10 x 25mm Phosphor Bronze (Bolt) can be supplied upon request.

Product 138137 was added to Notepad.

Go to Notepad

Product 138137 was added to the cart.

Go to Web-Shop

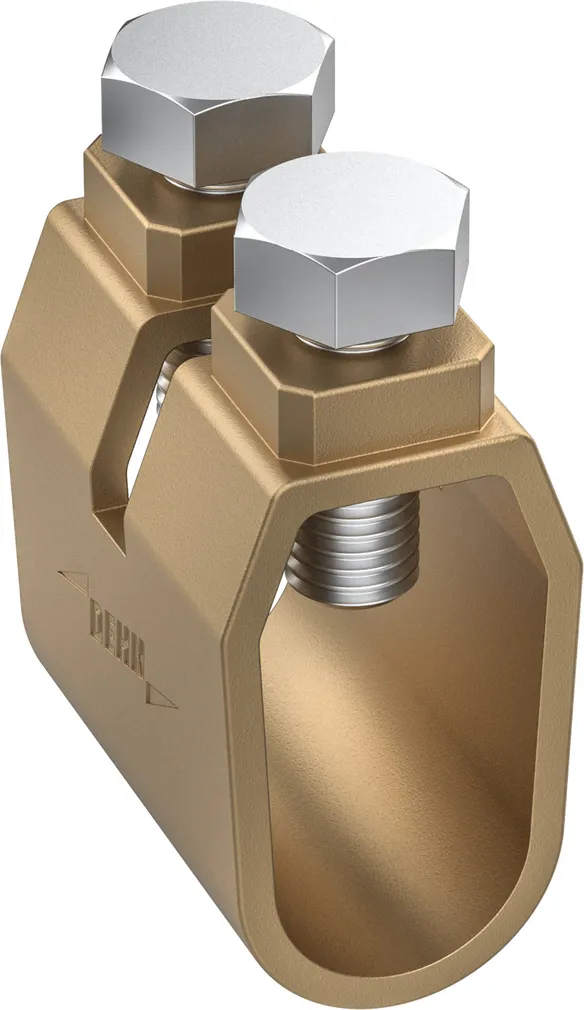

Part No. 138135 ERCC ERSC 17.2.20/95.150 HCA

GTIN 4013364519244, Customs tariff No. (EU): 85389000, Gross weight: 190.00 g, PU: 10.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 17.2 - 20 mm / 95 - 150 mm²
Clamp Fixings Hex Head Bolt M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 12 Nm
Dimensions (l x w x h) 29 x 46 x 54 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: M10 x 25mm Phosphor Bronze (Bolt) can be supplied upon request.

Product 138135 was added to Notepad.

Go to Notepad

Product 138135 was added to the cart.

Go to Web-Shop

U-Bolt Clamps for Earth Rods to Stranded Conductors

7 Products

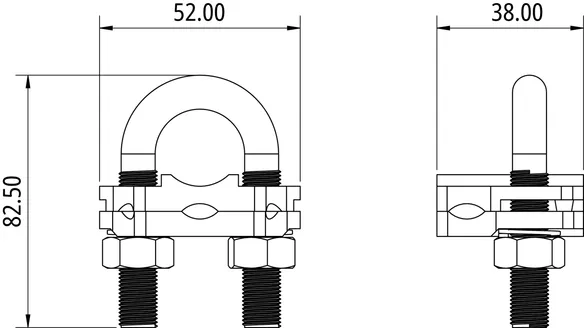

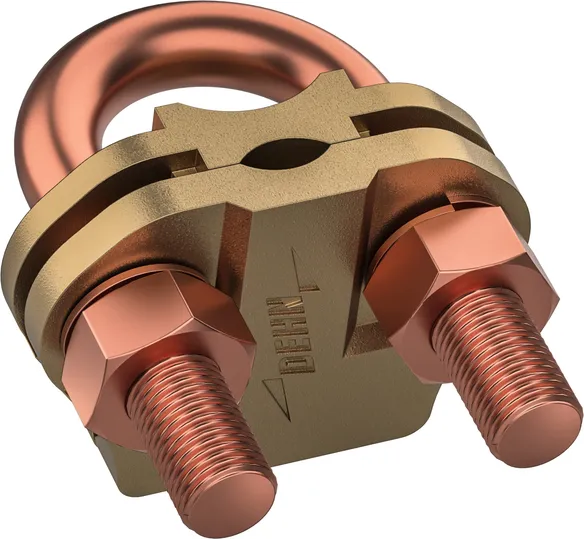

Part No. 138164 UBC ERRBSC 12.20/16.70 HCA CU

GTIN 4013364519077, Customs tariff No. (EU): 85389000, Gross weight: 220.00 g, PU: 8.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 16 - 70 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 16 - 70 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 15 Nm
Dimensions (l x w x h) 82.5 x 52 x 38 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138164 was added to Notepad.

Go to Notepad

Product 138164 was added to the cart.

Go to Web-Shop

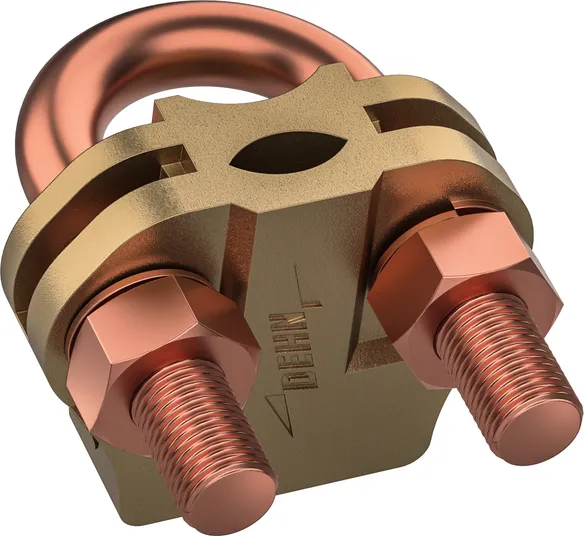

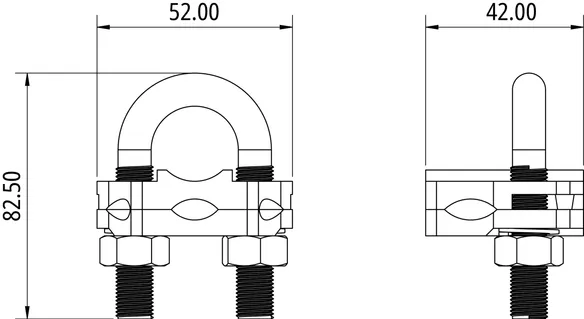

Part No. 138165 UBC ERRBSC 12.20/70.150 HCA CU

GTIN 4013364519084, Customs tariff No. (EU): 85389000, Gross weight: 240.00 g, PU: 8.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 70 - 150 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 70 - 150 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Dimensions (l x w x h) 82.5 x 52 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138165 was added to Notepad.

Go to Notepad

Product 138165 was added to the cart.

Go to Web-Shop

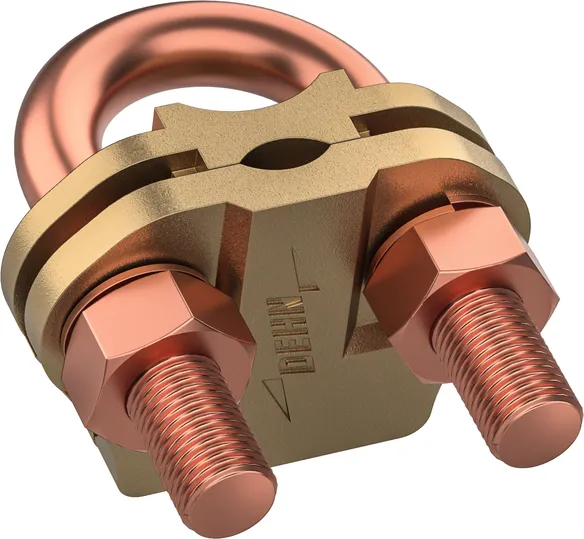

Part No. 138166 UBC ERRBSC 12.20/150.300 HCA CU

GTIN 4013364519091, Customs tariff No. (EU): 85389000, Gross weight: 280.00 g, PU: 6.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 150 - 300 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 150 - 300 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Dimensions (l x w x h) 75 x 60 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138166 was added to Notepad.

Go to Notepad

Product 138166 was added to the cart.

Go to Web-Shop

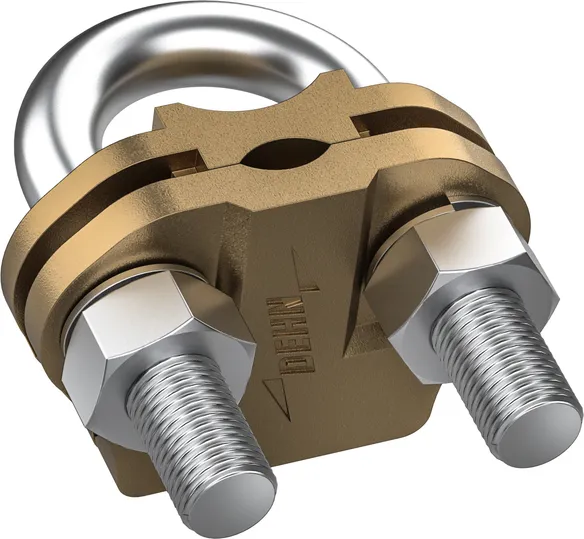

Part No. 138170 UBC ERRBSC 12.20/16.70 HCA

GTIN 4013364519107, Customs tariff No. (EU): 85389000, Gross weight: 210.00 g, PU: 8.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 16 - 70 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 16 - 70 mm²
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 82.5 x 52 x 38 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138170 was added to Notepad.

Go to Notepad

Product 138170 was added to the cart.

Go to Web-Shop

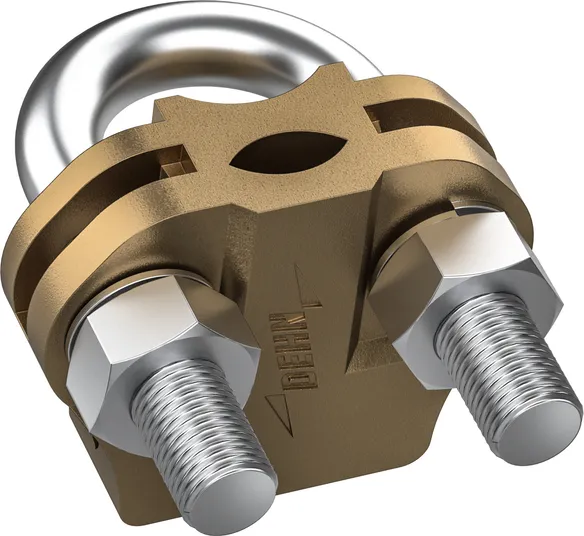

Part No. 138171 UBC ERRBSC 12.20/70.150 HCA

GTIN 4013364519114, Customs tariff No. (EU): 85389000, Gross weight: 230.00 g, PU: 8.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 70 - 150 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 70 - 150 mm²
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 82.5 x 52 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138171 was added to Notepad.

Go to Notepad

Product 138171 was added to the cart.

Go to Web-Shop

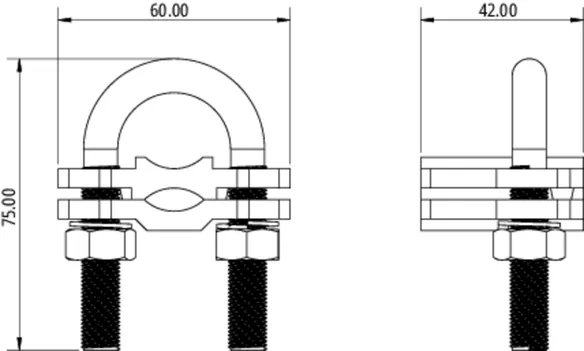

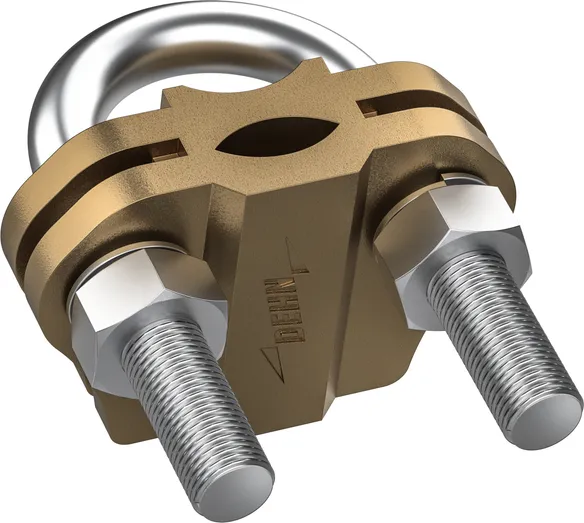

Part No. 138172 UBC ERRBSC 12.20/150.300 HCA

GTIN 4013364519121, Customs tariff No. (EU): 85389000, Gross weight: 270.00 g, PU: 6.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 150 - 300 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 150 - 300 mm²
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 75 x 60 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138172 was added to Notepad.

Go to Notepad

Product 138172 was added to the cart.

Go to Web-Shop

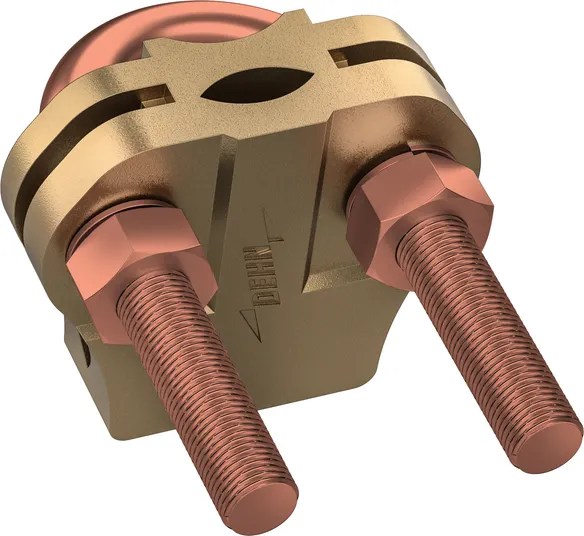

Part No. 138177 UBC ERRBSC 12.25/70.300 HCA CU

GTIN 4013364519138, Customs tariff No. (EU): 85389000, Gross weight: 370.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 25 mm / 70 - 300 mm²
Clamping range Rebar / Stranded cable 12 - 25 mm / 70 - 300 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138177 was added to Notepad.

Go to Notepad

Product 138177 was added to the cart.

Go to Web-Shop

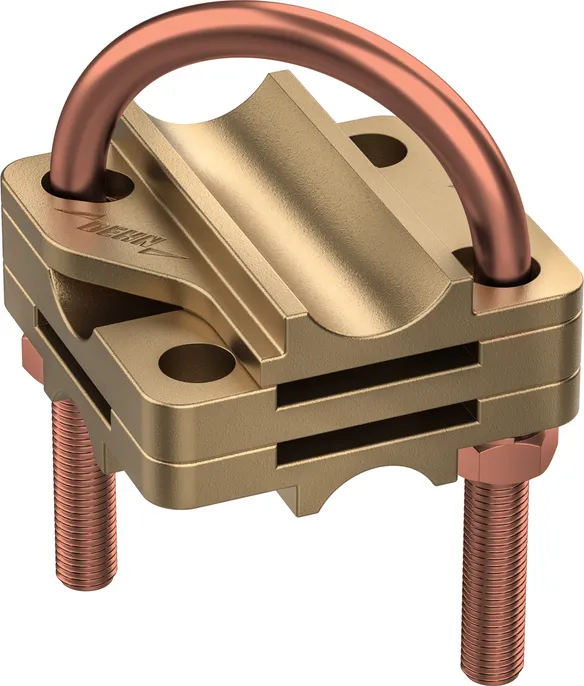

U-Bolt Clamp Earth Rods to Multi-Stranded Conductors

Expected to be available for delivery in Q2/2025!

1 Product

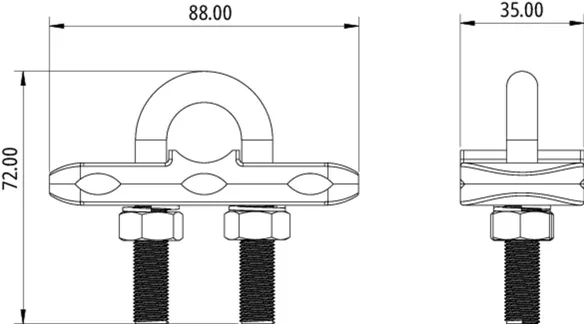

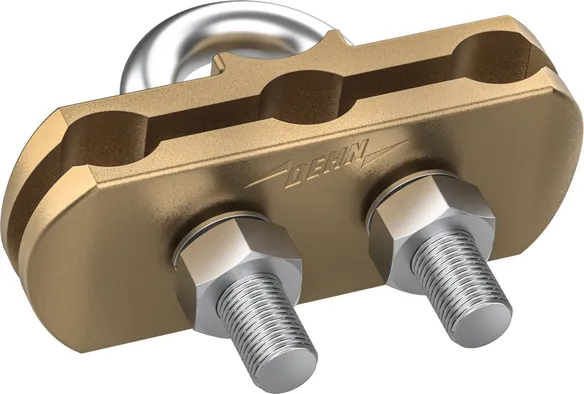

Part No. 138283 UBC ERSC 14.2.20/35.150 HCA

GTIN 4013364519190, Customs tariff No. (EU): 85389000, Gross weight: 308.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 3 x (35 - 150 mm²)
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 12 Nm
Dimensions (l x w x h) 88 x 35 x 72 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138283 was added to Notepad.

Go to Notepad

Product 138283 was added to the cart.

Go to Web-Shop

Earth Rods to Flat Conductors

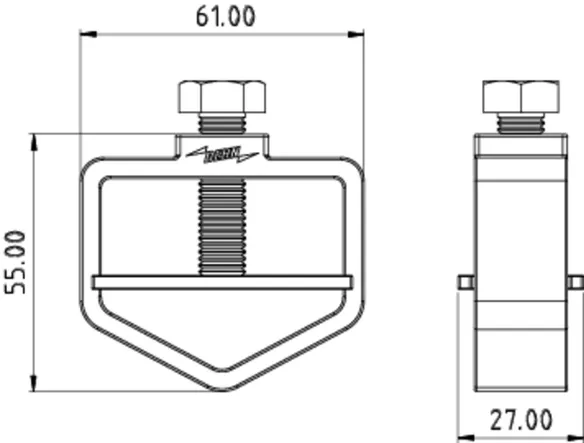

138152 is expected to be available for delivery in Q2/2025!

3 Products

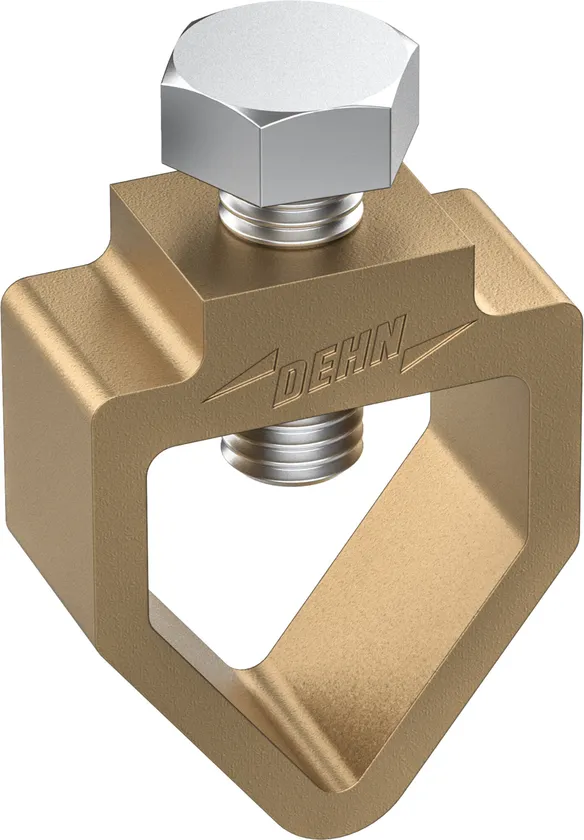

Part No. 138150 ERCC ERFL 14.2.20/25X3 HCA

GTIN 4013364298156, Customs tariff No. (EU): 85389000, Gross weight: 90.00 g, PU: 100.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Fl 14.2 - 20 mm / 25 x 3 mm
Clamp Fixings Hex Head Bolt M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 15 Nm
Dimensions (l x w x h) 46 x 36.5 x 17.5 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138150 was added to Notepad.

Go to Notepad

Product 138150 was added to the cart.

Go to Web-Shop

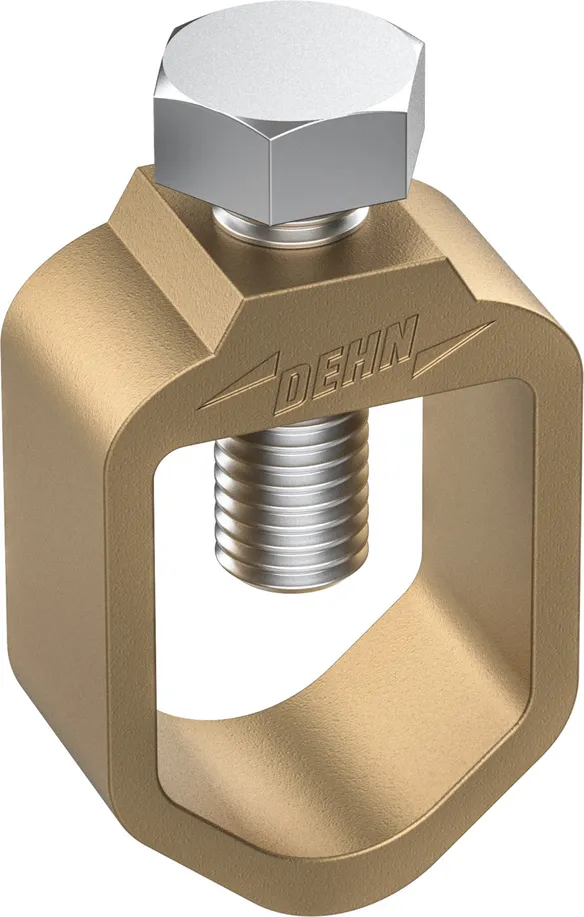

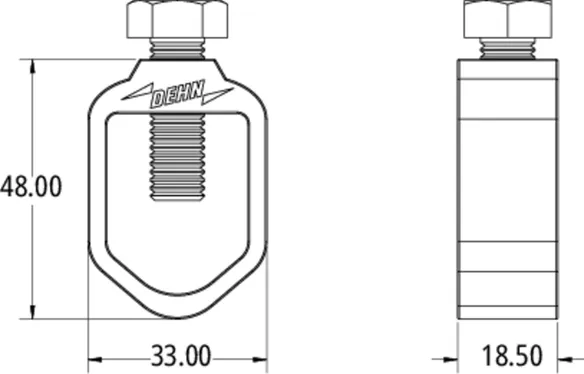

Part No. 138151 ERCC ERFL 14.2.20/25X9 HCA

GTIN 4013364528253, Customs tariff No. (EU): 85389000, Gross weight: 100.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Fl 14.2 - 20 mm / 25 x 3 mm (3 nos)
Clamp Fixings Hex Head Bolt M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 15 Nm
Dimensions (l x w x h) 48 x 33 x 18.5 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138151 was added to Notepad.

Go to Notepad

Product 138151 was added to the cart.

Go to Web-Shop

Part No. 138152 ERCC ERFL 14.2.20/25.50X3.6 HCA

GTIN 4013364534995, Customs tariff No. (EU): 85389000, Gross weight: 210.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Fl 14.2 - 20 mm / W (30-50) x T (2-6) mm
Clamp Fixings Hex Head Bolt M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 15 Nm
Dimensions (l x w x h) 61 x 55 x 20 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138152 was added to Notepad.

Go to Notepad

Product 138152 was added to the cart.

Go to Web-Shop

U-Bolt Clamps for Earth Rods to Flat Conductors

138265 is expected to be available for delivery in Q2/2025!

3 Products

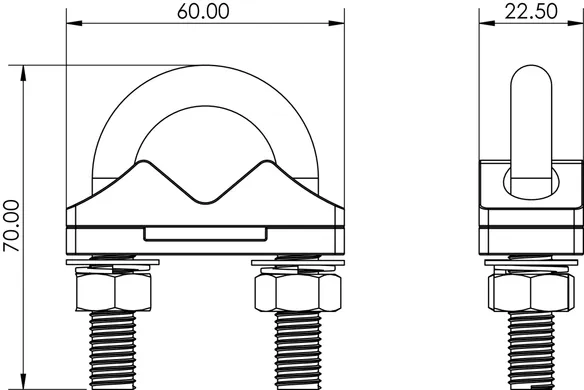

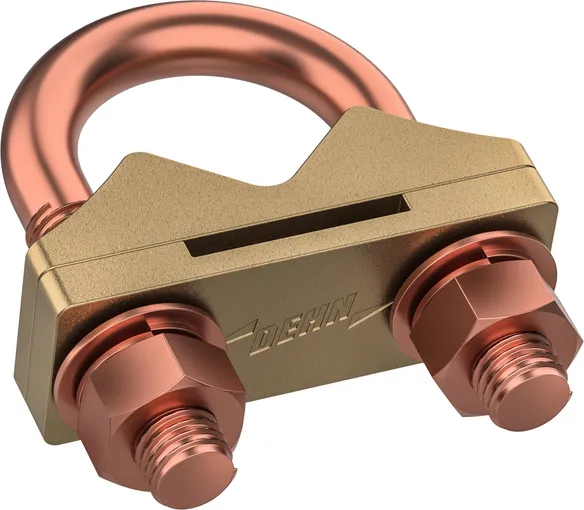

Part No. 138148 UBC FLER 25X3/16.25 HCA CU

GTIN 4013364300507, Customs tariff No. (EU): 85389000, Gross weight: 230.00 g, PU: 50.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Fl / Rod 25 x 3 / 16 - 25 mm
Clamping range Fl / Rebar 25 x 3 / 16 - 25 mm
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Dimensions (l x w x h) 60 x 22.5 x 70 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: For Single Plate U-Bolt application - Stranded cables crimped using appropriate cable lugs may be connected by removing the bottom plate and fixed directly to the top plate using the clamp fixings.

Product 138148 was added to Notepad.

Go to Notepad

Product 138148 was added to the cart.

Go to Web-Shop

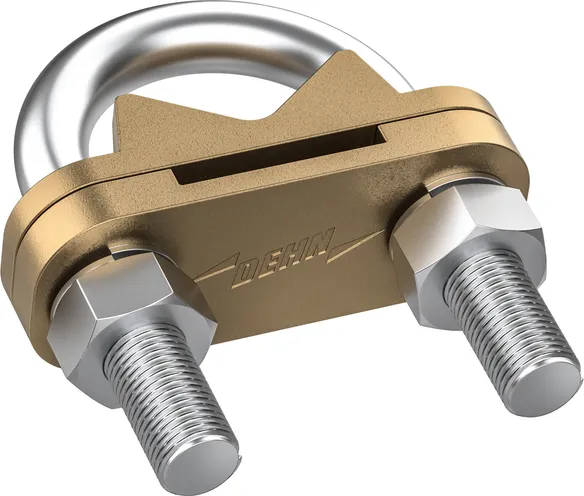

Part No. 138261 UBC FLERRB 25X3/12.25 HCA

GTIN 4013364519015, Customs tariff No. (EU): 85389000, Gross weight: 190.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Fl / Rod 25 x 3 / 14.2 - 25 mm
Clamping range Fl / Rebar 25 x 3 / 12 - 25 mm
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 62 x 25 x 70 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: For Single Plate U-Bolt application - Stranded cables crimped using appropriate cable lugs may be connected by removing the bottom plate and fixed directly to the top plate using the clamp fixings.

Product 138261 was added to Notepad.

Go to Notepad

Product 138261 was added to the cart.

Go to Web-Shop

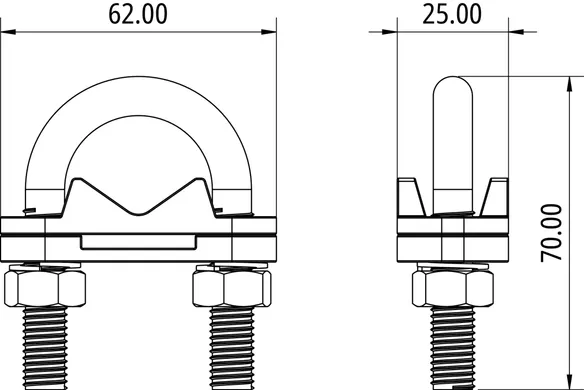

Part No. 138265 UBC FLERRB 25X3/12.25 HCA CU

GTIN 4013364519046, Customs tariff No. (EU): 85389000, Gross weight: 210.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Fl / Rod 25 x 3 / 14.2 - 25 mm
Clamping range Fl / Rebar 25 x 3 / 12 - 25 mm
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 15 Nm
Dimensions (l x w x h) 62 x 25 x 70 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: For Single Plate U-Bolt application - Stranded cables crimped using appropriate cable lugs may be connected by removing the bottom plate and fixed directly to the top plate using the clamp fixings.

Product 138265 was added to Notepad.

Go to Notepad

Product 138265 was added to the cart.

Go to Web-Shop

Multipurpose Earth Rod Clamp

Expected to be available for delivery in Q2/2025!

1 Product

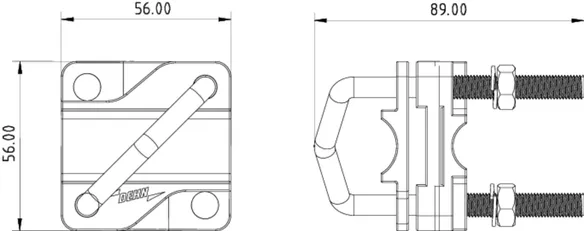

Part No. 138284 MUBC FLERSC 25X3.6/14.2.20/50.150 HCA

GTIN 4013364519206, Customs tariff No. (EU): 85389000, Gross weight: 432.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Fl / Fl 14.2 - 20 mm / 25 x 3-6 mm / 25 x 3-6 mm
Clamping range Rod / Fl / Stranded cable 14.2 - 20 mm / 25 x 3-6 mm / 50 - 150 mm²
Clamping range Rod / Stranded cable / Stranded cable 14.2 - 20 mm / 50 - 150 mm² / 50 - 150 mm²
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 56 x 56 x 89 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138284 was added to Notepad.

Go to Notepad

Product 138284 was added to the cart.

Go to Web-Shop
back to top
