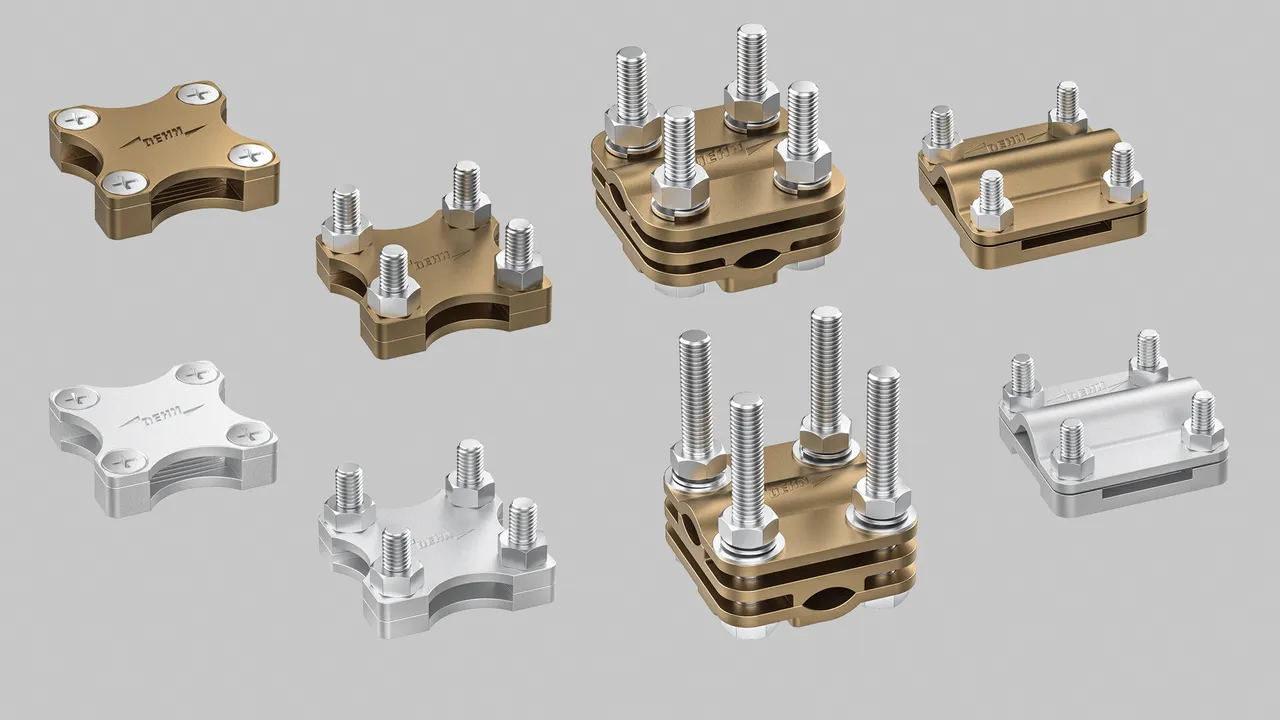

Square Conductor Clamps

Square Tape and Cable Clamps for interconnecting various sizes of flat and stranded conductors in parallel, cross, and T connection arrangements to form a continuous network. The Multipurpose Square Conductor Clamps can be used for interconnecting various sizes of flat, round and stranded conductors in parallel, cross, and T connection arrangements.
The clamps are equipped with countersunk hole for fixing the clamp to structural surfaces. The clamps have a high resistance to corrosion and show high mechanical strength to ensure a lasting connection.


Square Tape Clamps

Square Tape Clamps for interconnecting flat tapes in parallel, cross, and T connection arrangements to form a continuous network.

118208 and 118218 expected to be available for delivery in Q2/2025.

5 Products

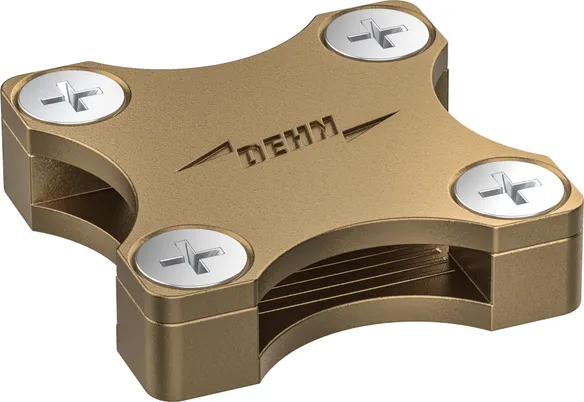

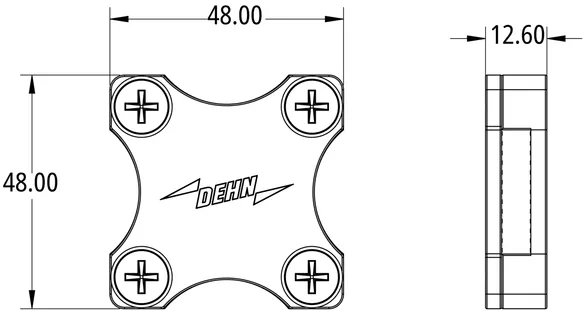

Part No. 118202 STC BCU FL 25X3 HCA

GTIN 4013364476271, Customs tariff No. (EU): 85389000, Gross weight: 120.00 g, PU: 15.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Bare Copper
Clamping range Fl / Fl 25 x 3 / 25 x 3 mm
Material of Clamp Fixings Stainless Steel
Tightening Torque 6 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 118202 was added to Notepad.

Go to Notepad

Product 118202 was added to the cart.

Go to Web-Shop

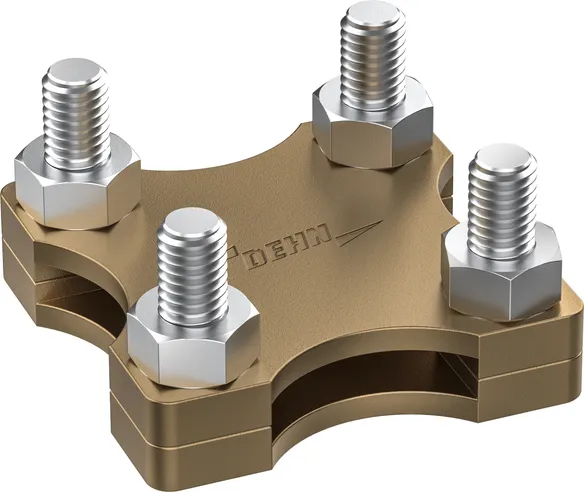

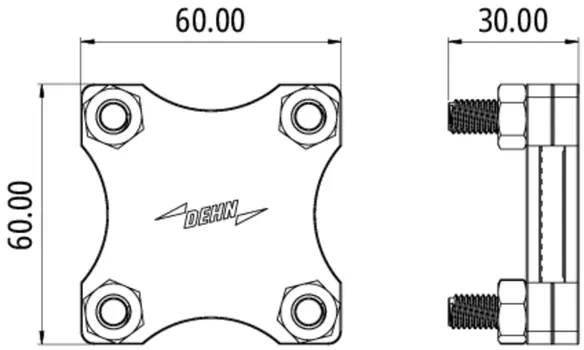

Part No. 118208 STC BCU FL 20.31X2.5.6 HCA

GTIN 4013364497382, Customs tariff No. (EU): 85389000, Gross weight: 230.00 g, PU: 50.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Bare Copper
Clamping range Fl / Fl W (20 - 31 mm) x T (2.5 - 6 mm) / W (20 - 31 mm) x T (2.5 - 6 mm)
Material of Clamp Fixings Stainless Steel
Tightening Torque 6 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 118208 was added to Notepad.

Go to Notepad

Product 118208 was added to the cart.

Go to Web-Shop

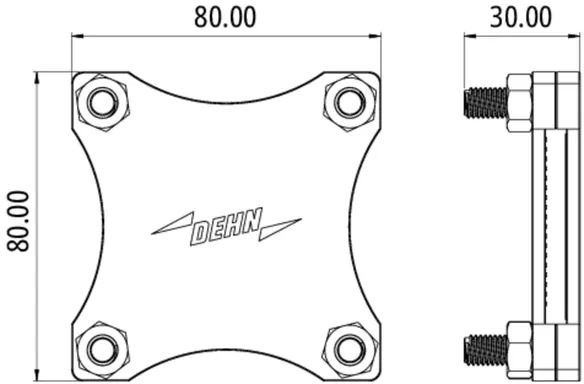

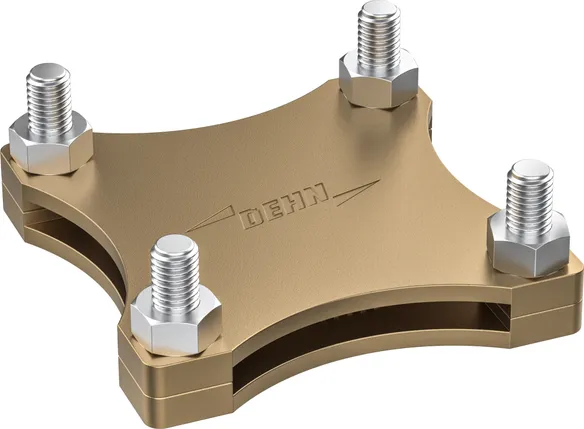

Part No. 118219 STC BCU FL 40.50X2.5.6 HCA

GTIN 4013364476301, Customs tariff No. (EU): 85389000, Gross weight: 400.00 g, PU: 50.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Bare Copper
Clamping range Fl / Fl W (40 - 50 mm) x T (2.5 - 6 mm) / W (40 - 50 mm) x T (2.5 - 6 mm)
Material of Clamp Fixings Stainless Steel
Tightening Torque 6 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 118219 was added to Notepad.

Go to Notepad

Product 118219 was added to the cart.

Go to Web-Shop

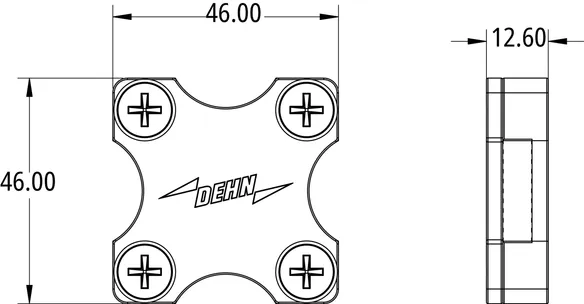

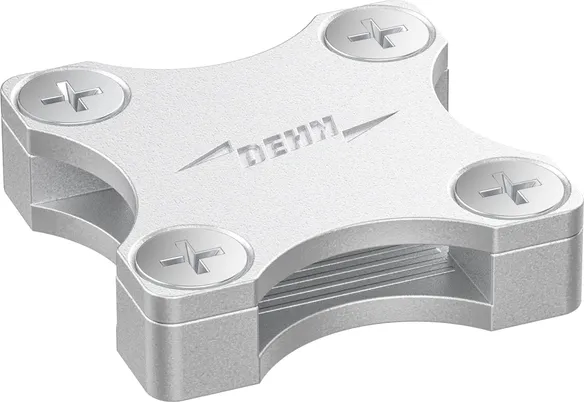

Part No. 118209 STC BAL FL 25X3 ALA

GTIN 4013364357464, Customs tariff No. (EU): 85389000, Gross weight: 50.00 g, PU: 15.00 pc(s)

Images

Additional information



Technical data

Material Aluminium Alloy
Conductor Material Bare Aluminium
Clamping range Fl / Fl 25 x 3 / 25 x 3 mm
Material of Clamp Fixings Stainless Steel
Tightening Torque 6 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 118209 was added to Notepad.

Go to Notepad

Product 118209 was added to the cart.

Go to Web-Shop

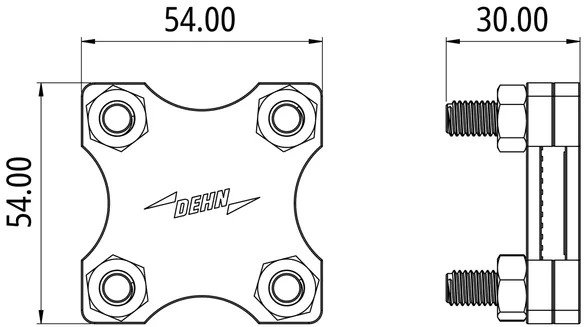

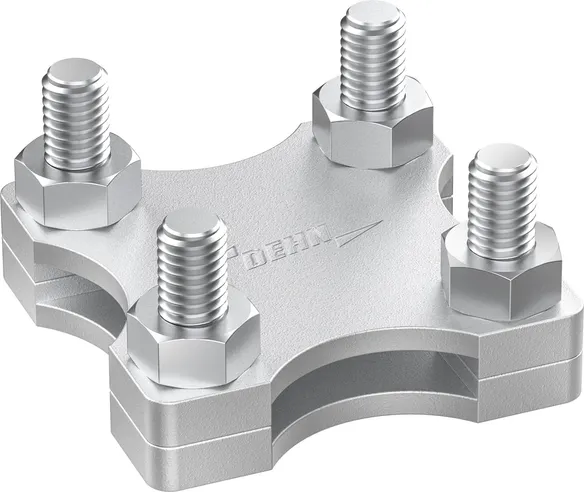

Part No. 118218 STC BAL FL 25X3.6 ALA

GTIN 4013364497528, Customs tariff No. (EU): 85389000, Gross weight: 104.00 g, PU: 50.00 pc(s)

Images

Additional information



Technical data

Material Aluminium Alloy
Conductor Material Bare Aluminium
Clamping range Fl / Fl W (25 mm) x T (3 - 6 mm) / W (25 mm) x T (3 - 6 mm)
Material of Clamp Fixings Stainless Steel
Tightening Torque 6 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 118218 was added to Notepad.

Go to Notepad

Product 118218 was added to the cart.

Go to Web-Shop

Square Cable Clamps

Square Cable Clamps for interconnecting stranded cables in cross and T connection arrangements to form a continuous network. The Clamps have a high resistance to corrosion and show high mechanical strength to ensure a lasting connection.

118628 and 118635 are expected to be available for delivery in Q2/2025.

3 Products

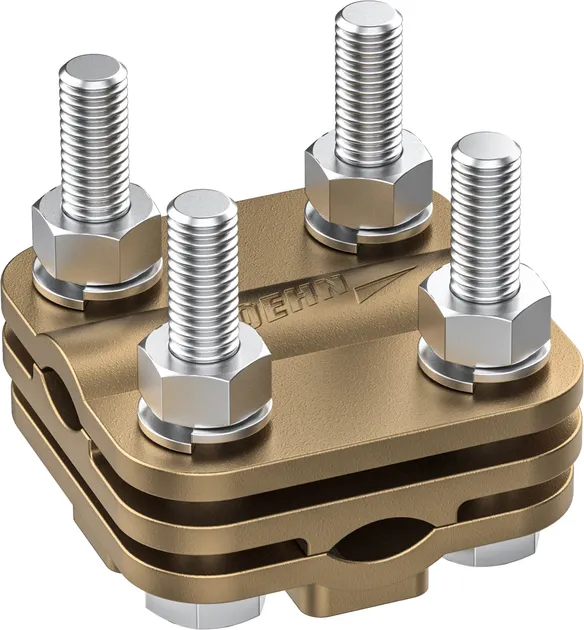

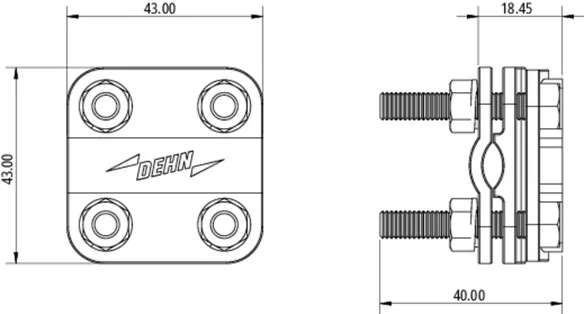

Part No. 118628 SCC BCCU SC 16.70 HCA

GTIN 4013364536241, Customs tariff No. (EU): 85389000, Gross weight: 190.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Clamping range Stranded cable / Stranded cable 16 - 70 mm² / 16 - 70 mm²
Material of Clamp Fixings Stainless Steel
Tightening Torque 12 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: Clamp can be used as a conductor holder for stranded PVC covered cables

Product 118628 was added to Notepad.

Go to Notepad

Product 118628 was added to the cart.

Go to Web-Shop

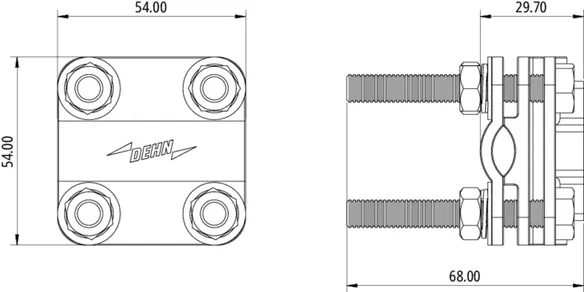

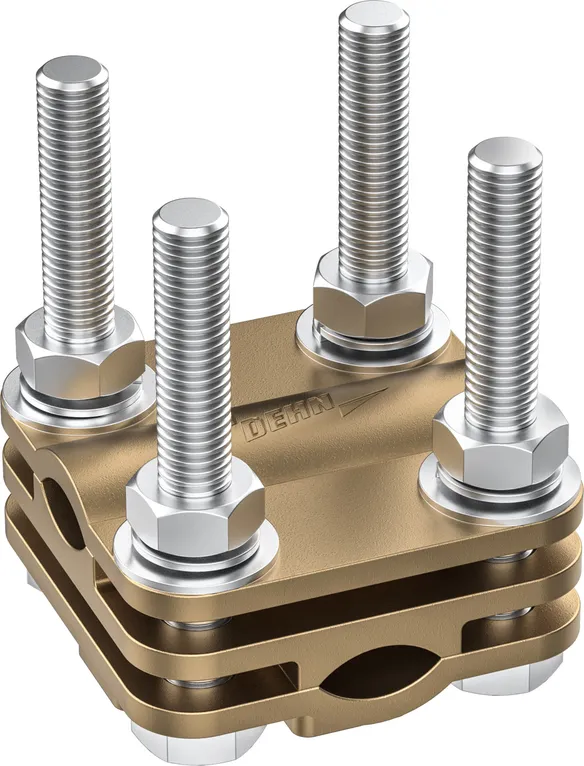

Part No. 118634 SCC BCCU SC 35.150 HCA

GTIN 4013364497535, Customs tariff No. (EU): 85389000, Gross weight: 408.00 g, PU: 10.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Clamping range Stranded cable / Stranded cable 35 - 150 mm² / 35 - 150 mm²
Material of Clamp Fixings Stainless Steel
Tightening Torque 12 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: Clamp can be used as a conductor holder for stranded PVC covered cables

Product 118634 was added to Notepad.

Go to Notepad

Product 118634 was added to the cart.

Go to Web-Shop

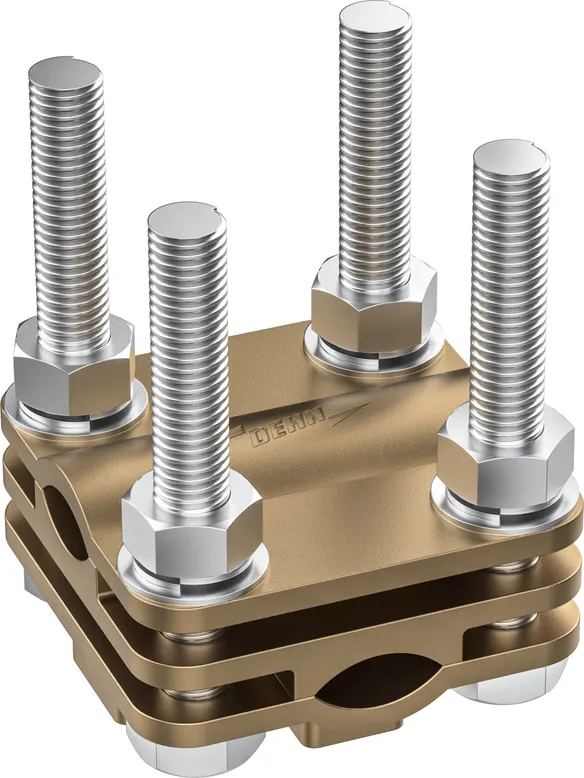

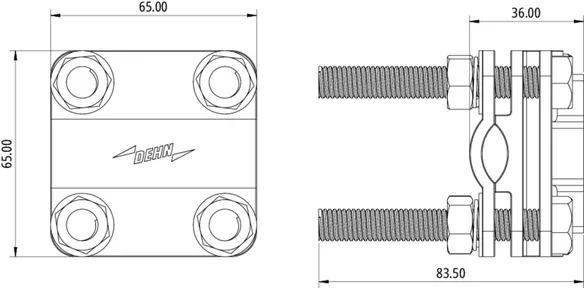

Part No. 118635 SCC BCCU SC 70.300 HCA

GTIN 4013364497542, Customs tariff No. (EU): 85389000, Gross weight: 760.00 g, PU: 10.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Clamping range Stranded cable / Stranded cable 70 - 300 mm² / 70 - 300 mm²
Material of Clamp Fixings Stainless Steel
Tightening Torque 12 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: Clamp can be used as a conductor holder for stranded PVC covered cables

Product 118635 was added to Notepad.

Go to Notepad

Product 118635 was added to the cart.

Go to Web-Shop

Multipurpose Square Conductor Clamps

Square Conductor Clamps for interconnecting various sizes of flat, round and stranded conductors in parallel, cross, and T connection arrangements to form a continuous network. Equipped with a countersunk hole for fixing the clamp to structural surfaces. The Clamps have a high resistance to corrosion and show high mechanical strength to ensure a lasting connection.

2 Products

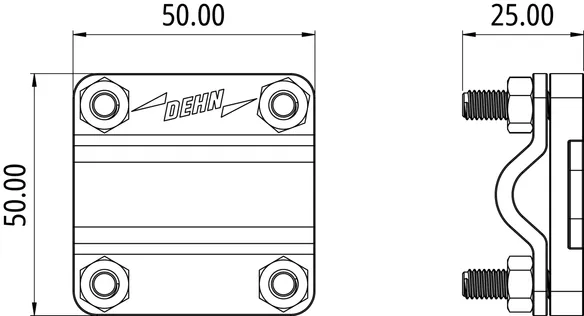

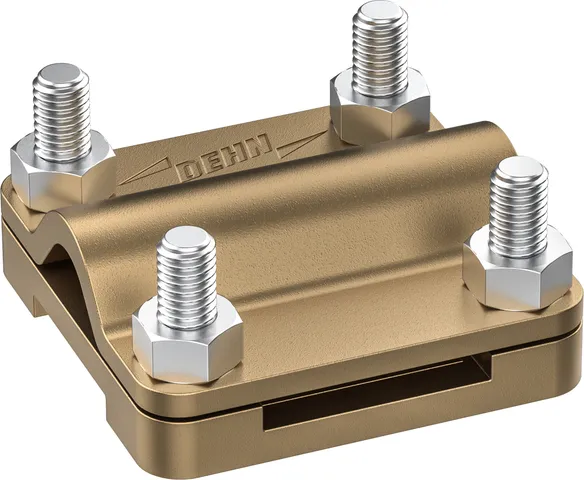

Part No. 118606 STRCC FLRDSC 25X3/8.10-50.120 HCA

GTIN 4013364497689, Customs tariff No. (EU): 85389000, Gross weight: 190.00 g, PU: 12.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Clamping range Fl / Rd 25 x 3 mm / 8-10 mm
Clamping range Fl / Stranded cable 25 x 3 mm / 50 - 120 mm²
Material of Clamp Fixings Stainless Steel
Tightening Torque 6 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 118606 was added to Notepad.

Go to Notepad

Product 118606 was added to the cart.

Go to Web-Shop

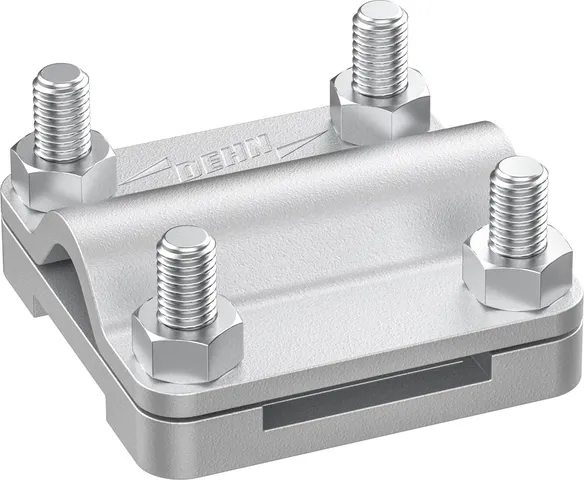

Part No. 118620 STRCC FLRDSC 25X3/8.10-50.120 ALA

GTIN 4013364497702, Customs tariff No. (EU): 85389000, Gross weight: 80.00 g, PU: 12.00 pc(s)

Images

Additional information



Technical data

Material Aluminium Alloy
Conductor Material Aluminium
Clamping range Fl / Rd 25 x 3 mm / 8-10 mm
Clamping range Fl / Stranded cable 25 x 3 mm / 50 - 120 mm²
Material of Clamp Fixings Stainless Steel
Tightening Torque 6 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 118620 was added to Notepad.

Go to Notepad

Product 118620 was added to the cart.

Go to Web-Shop
