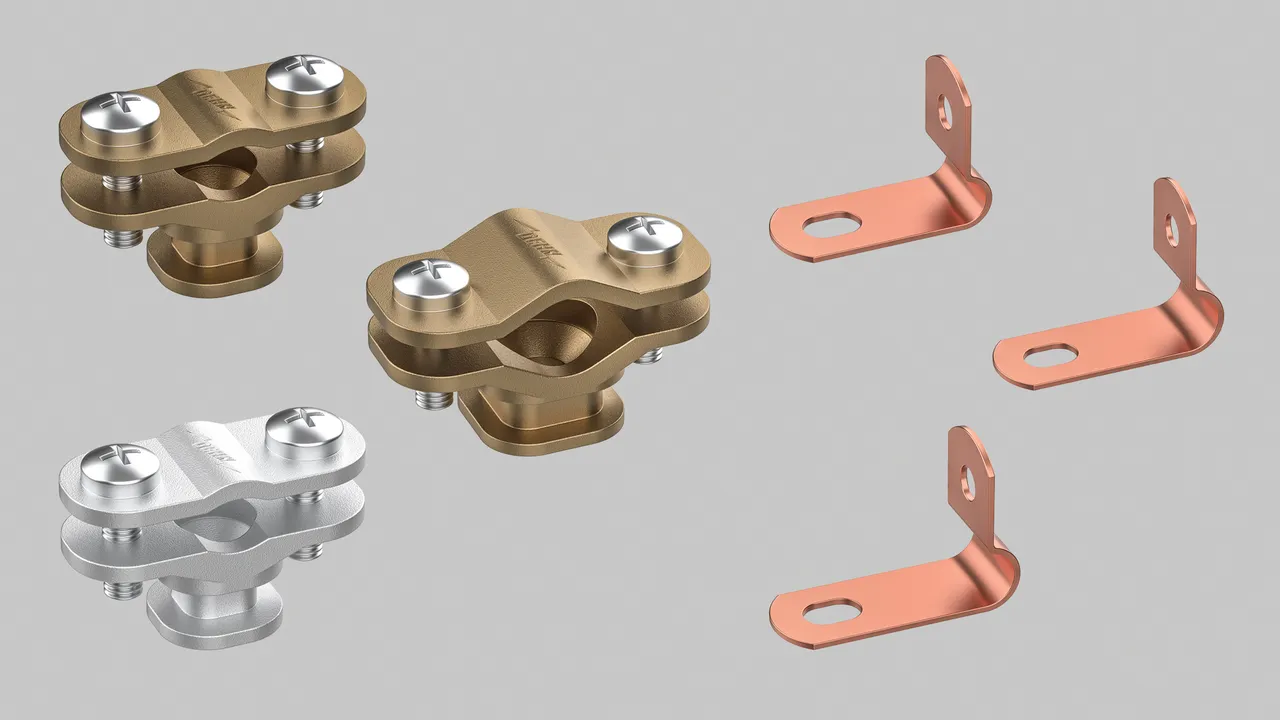

Round Conductor Holders

Round Conductor holders used for securing bare and PVC covered solid round and stranded cable conductors to building surfaces.

Round Conductor Holders

Holders for bare and PVC covered solid round and cable conductors.

118165 is expected to be available for delivery in Q2/2025.

4 Products

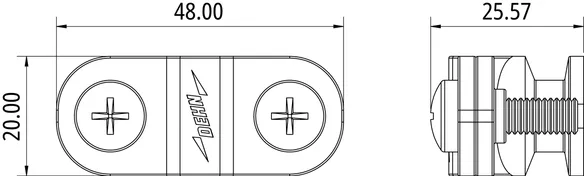

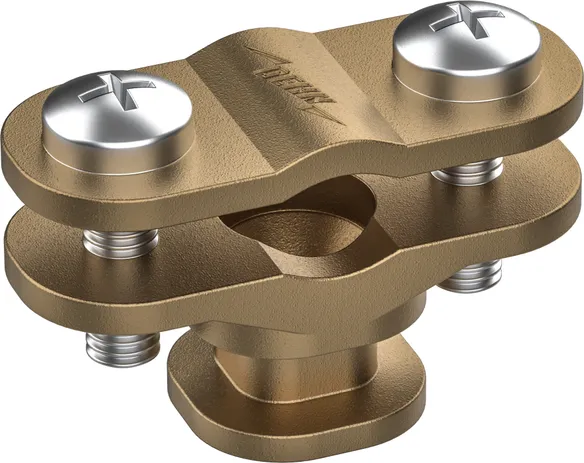

Part No. 118162 RCH BCCU 8.10/16.70 HCA

GTIN 4013364497139, Customs tariff No. (EU): 85389000, Gross weight: 70.00 g, PU: 50.00 pc(s)

Images

Additional information

Technical data

Material	High Copper Alloy
Conductor Material	Bare and PVC covered copper
Clamping range (Stranded / Cable)	16 - 70 mm²
Clamping range Rd	8 - 10 mm
Tightening Torque	6 Nm
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor

Material	High Copper Alloy
Conductor Material	Bare and PVC covered copper
Clamping range (Stranded / Cable)	16 - 70 mm²
Clamping range Rd	8 - 10 mm
Clamping screw	PH M6 x 2 Nos
Material of screw	Stainless Steel
Tightening Torque	6 Nm
Recommended Fixings	Countersunk Wood Screws 1 ½” No. 10 and No 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	48 x 20 x 25.5 mm
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor
Assembly instructions	Refer instructions (2180)

Product 118162 was added to Notepad.

Go to Notepad

Product 118162 was added to the cart.

Go to Web-Shop

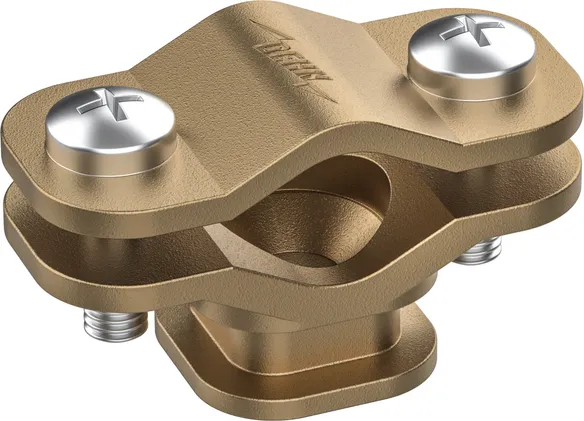

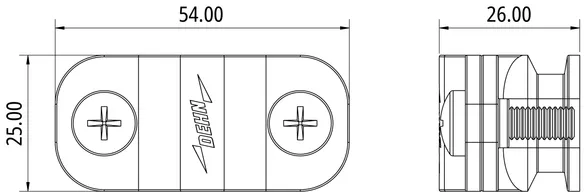

Part No. 118163 RCH BCCU 70.150 HCA

GTIN 4013364497177, Customs tariff No. (EU): 85389000, Gross weight: 95.00 g, PU: 50.00 pc(s)

Images

Additional information

Technical data

Material	High Copper Alloy
Conductor Material	Bare and PVC covered copper
Clamping range (Stranded / Cable)	70 - 150 mm²
Tightening Torque	6 Nm
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor

Material	High Copper Alloy
Conductor Material	Bare and PVC covered copper
Clamping range (Stranded / Cable)	70 - 150 mm²
Clamping screw	PH M6 x 2 Nos
Material of screw	Stainless Steel
Tightening Torque	6 Nm
Recommended Fixings	Countersunk Wood Screws 1 ½” No. 12 and No 12 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	54 x 25 x 26 mm
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor
Assembly instructions	Refer instructions (2180)

Product 118163 was added to Notepad.

Go to Notepad

Product 118163 was added to the cart.

Go to Web-Shop

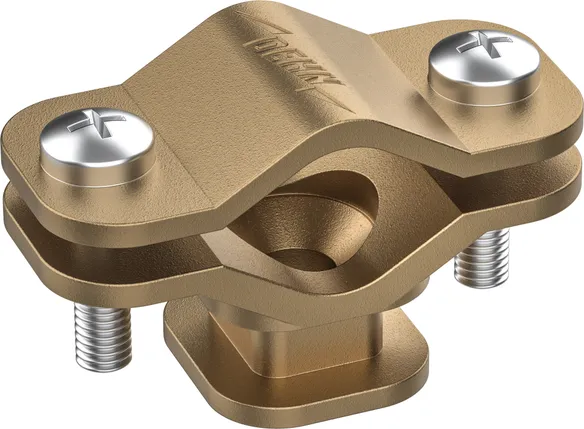

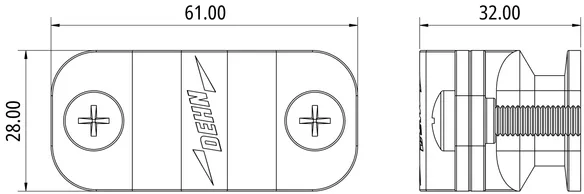

Part No. 118164 RCH BCCU 150.300 HCA

GTIN 4013364497184, Customs tariff No. (EU): 85389000, Gross weight: 125.00 g, PU: 50.00 pc(s)

Images

Additional information

Technical data

Material	High Copper Alloy
Conductor Material	Bare and PVC covered copper
Clamping range (Stranded / Cable)	150 - 300 mm²
Tightening Torque	6 Nm
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor

Material	High Copper Alloy
Conductor Material	Bare and PVC covered copper
Clamping range (Stranded / Cable)	150 - 300 mm²
Clamping screw	PH M6 x 2 Nos
Material of screw	Stainless Steel
Tightening Torque	6 Nm
Recommended Fixings	Countersunk Wood Screws 1 ½” No. 12 and No 12 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	61 x 28 x 32 mm
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor
Assembly instructions	Refer instructions (2180)

Product 118164 was added to Notepad.

Go to Notepad

Product 118164 was added to the cart.

Go to Web-Shop

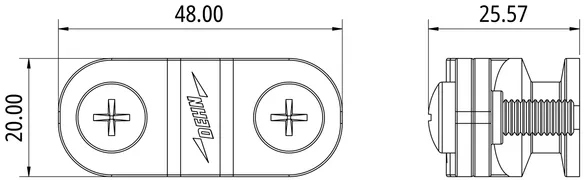

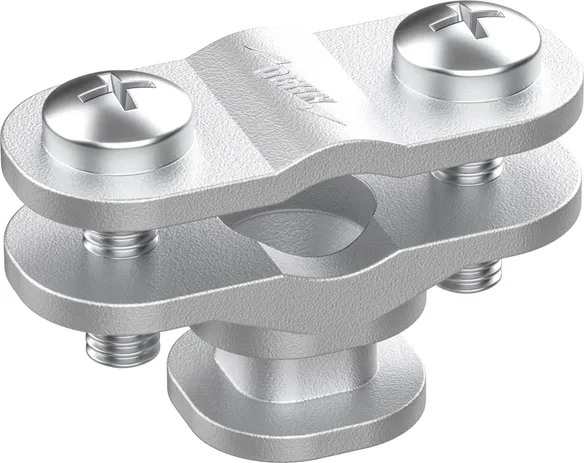

Part No. 118165 RCH BCCU 8.10/16.70 ALA

GTIN 4013364357822, Customs tariff No. (EU): 85389000, Gross weight: 28.00 g, PU: 50.00 pc(s)

Images

Additional information

Technical data

Material	Aluminium Alloy
Conductor Material	Bare and PVC covered aluminium
Clamping range Rd	8 - 10 mm
Tightening Torque	2 Nm
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor

Material	Aluminium Alloy
Conductor Material	Bare and PVC covered aluminium
Clamping range Rd	8 - 10 mm
Clamping screw	PH M6 x 2 Nos
Material of screw	Stainless Steel
Tightening Torque	2 Nm
Recommended Fixings	Countersunk Wood Screws 1 ½” No. 10 and No 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	48 x 20 x 25.5 mm
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor
Assembly instructions	Refer instructions (2180)

Product 118165 was added to Notepad.

Go to Notepad

Product 118165 was added to the cart.

Go to Web-Shop

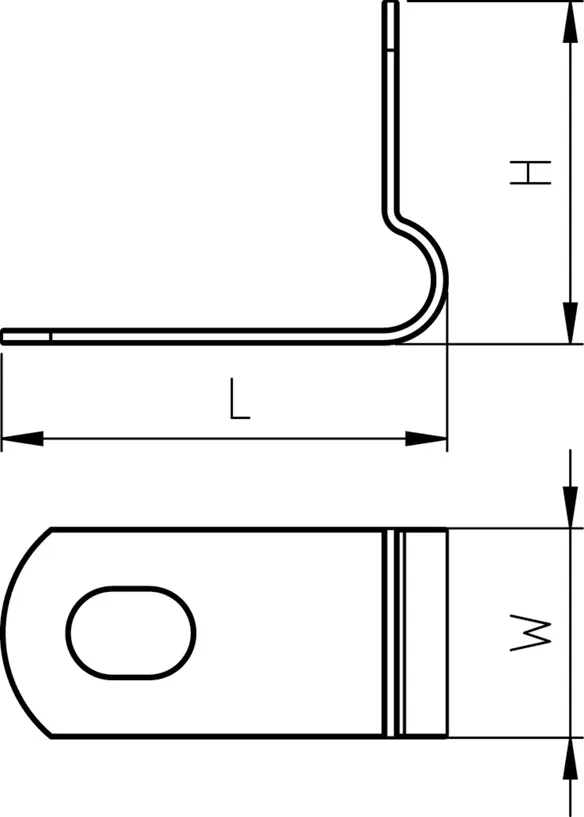

Stranded Cable Clips

These cable clips are an easy way to secure the stranded and solid round copper conductors to the building surface.

Expected to be available for delivery in Q2/2025.

4 Products

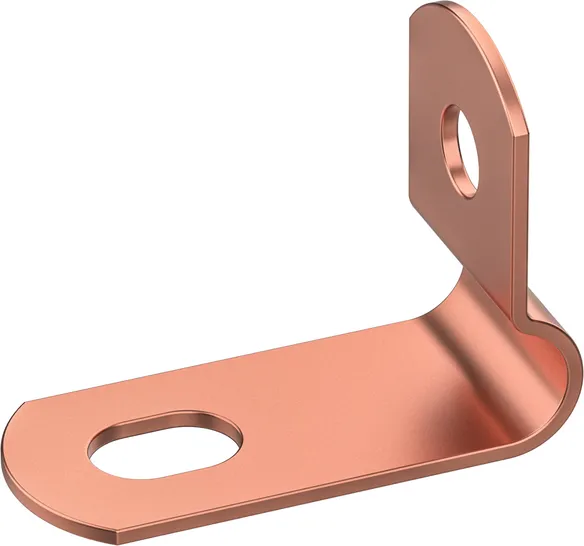

Part No. 117165 SCC BCU 50 CU

GTIN 4013364498242, Customs tariff No. (EU): 85389000, Gross weight: 10.00 g, PU: 50.00 pc(s)

Images

Additional information

Technical data

Material	Copper
Conductor Material	Bare Copper
Clamping range (Stranded / Cable)	50 mm²
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor

Material	Copper
Conductor Material	Bare Copper
Clamping range (Stranded / Cable)	50 mm²
Recommended Fixings	1x Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	35 x 17 x 27 mm
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor
Assembly instructions	Refer instructions (2299)

Product 117165 was added to Notepad.

Go to Notepad

Product 117165 was added to the cart.

Go to Web-Shop

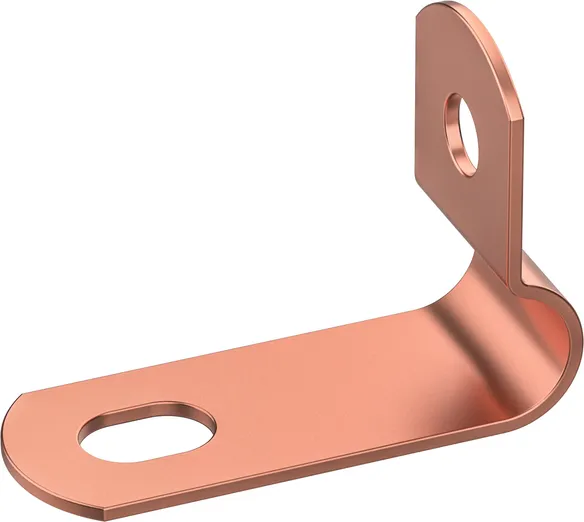

Part No. 117166 SCC BCU 70 CU

GTIN 4013364498259, Customs tariff No. (EU): 85389000, Gross weight: 10.00 g, PU: 50.00 pc(s)

Images

Additional information

Technical data

Material	Copper
Conductor Material	Bare Copper
Clamping range (Stranded / Cable)	70 mm²
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor

Material	Copper
Conductor Material	Bare Copper
Clamping range (Stranded / Cable)	70 mm²
Recommended Fixings	1x Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	40 x 17 x 27 mm
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor
Assembly instructions	Refer instructions (2299)

Product 117166 was added to Notepad.

Go to Notepad

Product 117166 was added to the cart.

Go to Web-Shop

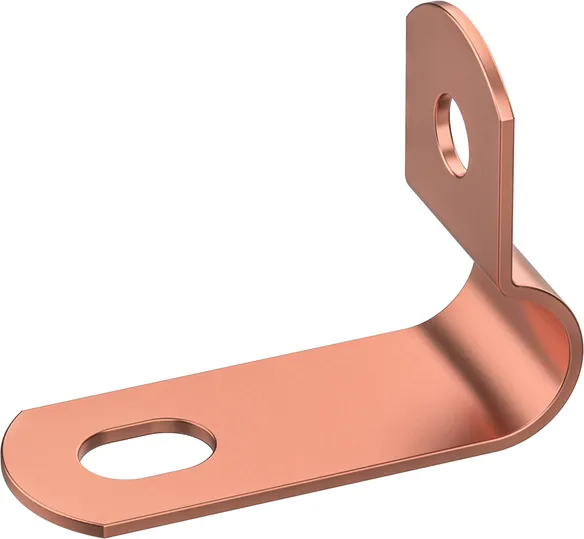

Part No. 117185 SCC CCU 50 CU

GTIN 4013364498174, Customs tariff No. (EU): 85389000, Gross weight: 10.00 g, PU: 50.00 pc(s)

Images

Additional information

Technical data

Material	Copper
Conductor Material	PVC Covered Copper
Clamping range (Stranded / Cable)	50 mm²
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor

Material	Copper
Conductor Material	PVC Covered Copper
Clamping range (Stranded / Cable)	50 mm²
Recommended Fixings	1x Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	40 x 17 x 30 mm
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor
Assembly instructions	Refer instructions (2299)

Product 117185 was added to Notepad.

Go to Notepad

Product 117185 was added to the cart.

Go to Web-Shop

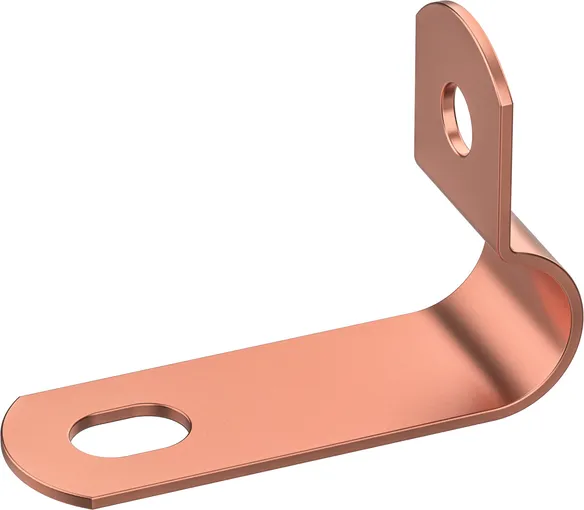

Part No. 117186 SCC CCU 70 CU

GTIN 4013364498181, Customs tariff No. (EU): 85389000, Gross weight: 13.00 g, PU: 50.00 pc(s)

Images

Additional information

Technical data

Material	Copper
Conductor Material	PVC Covered Copper
Clamping range (Stranded / Cable)	70 mm²
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor

Material	Copper
Conductor Material	PVC Covered Copper
Clamping range (Stranded / Cable)	70 mm²
Recommended Fixings	1x Countersunk Wood Screws 1 ½” x 10 and No 10 Wall Plugs (To be Purchased Separately)
Dimensions (l x w x h)	46 x 17 x 32 mm
Standards	IEC / EN / BS EN 62561-4
Classification	Metallic, With screws, Clamp the conductor
Assembly instructions	Refer instructions (2299)

Product 117186 was added to Notepad.

Go to Notepad

Product 117186 was added to the cart.

Go to Web-Shop
