Earth Rod Seals
:quality(98)/dehn-international.com/store/f/52917357/HDVORSCHAU/138315_16-9.jpg)
:quality(98)/dehn-international.com/store/f/52917357/HDVORSCHAU/138315_16-9.jpg)

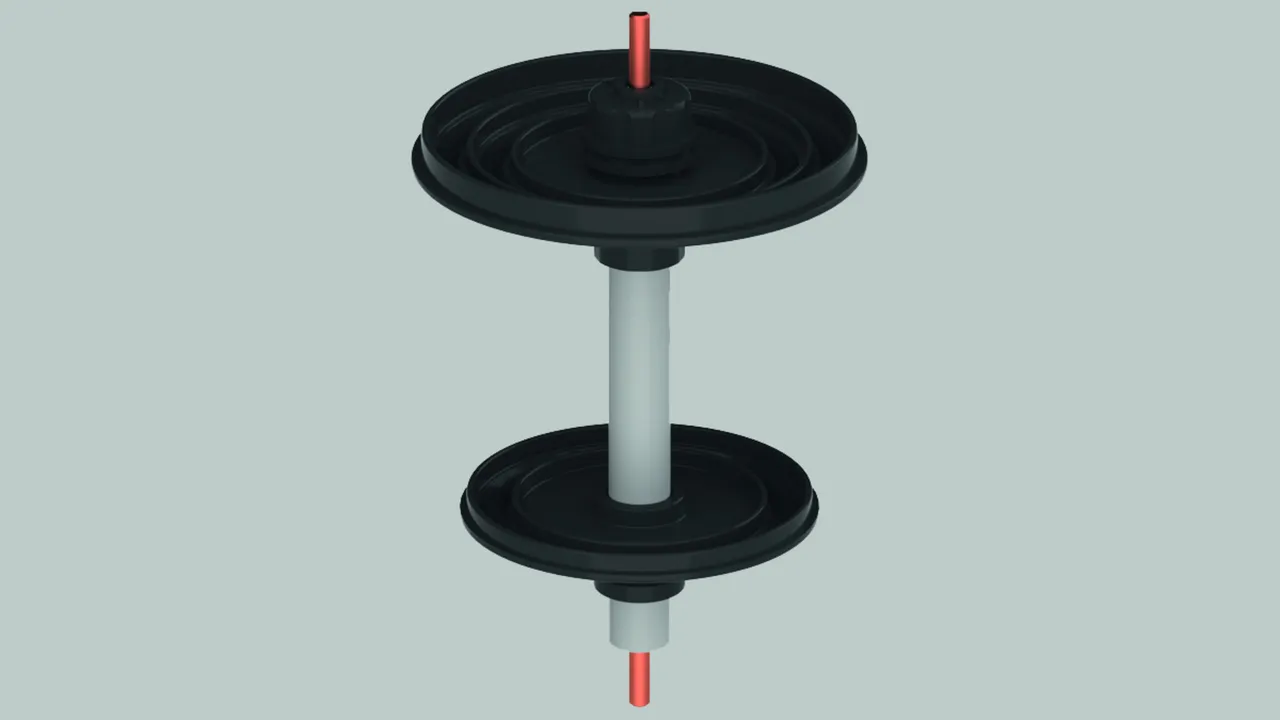

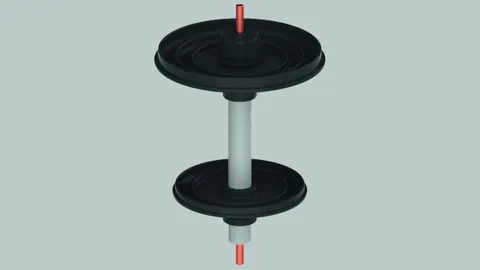

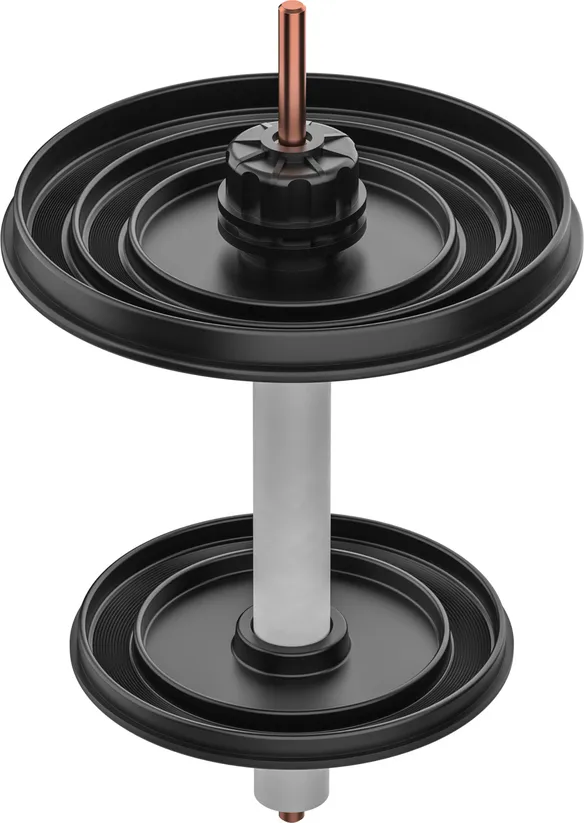

Part No. 138315 ER SEAL 2FLANGE 5/8"PL
GTIN 4013364300415, Customs tariff No. (EU): 85389000, Gross weight: 2.70 kg, PU: 1.00 pc(s)
:quality(98)/dehn-international.com/store/f/52917360/HDVORSCHAU/Earth%20Rod%20Seal.jpg)
:quality(98)/dehn-international.com/store/f/52917360/HDVORSCHAU/Earth%20Rod%20Seal.jpg)
:quality(98)/dehn-international.com/store/f/52917361/HDVORSCHAU/Earth%20Rod%20Seal%20CAD%20Image-Model.jpg)
:quality(98)/dehn-international.com/store/f/52917361/HDVORSCHAU/Earth%20Rod%20Seal%20CAD%20Image-Model.jpg)
Technical data
| Material | High density Polyethylene |
| Rod Diameter | 14.2 mm |
| Rod type | 5/8" Copper Bonded Earth Rod |
| Dimensions (Ø x h) | 366 x 1280 mm |
| Tube Dimensions (Ø x h) | 50 x 1200 mm |
| Standards | IEC / EN / BS EN 62561-5 |
| Assembly instructions | Refer Instructions (2211) |
| Note : Earth Rod to be purchased separately. | |
Part No. 138316 ER SEAL 2FLANGE 3/4"PL
GTIN 4013364300408, Customs tariff No. (EU): 85389000, Gross weight: 2.70 kg, PU: 1.00 pc(s)
:quality(98)/dehn-international.com/store/f/52917363/HDVORSCHAU/Earth%20Rod%20Seal.jpg)
:quality(98)/dehn-international.com/store/f/52917363/HDVORSCHAU/Earth%20Rod%20Seal.jpg)
:quality(98)/dehn-international.com/store/f/52917364/HDVORSCHAU/Earth%20Rod%20Seal%20CAD%20Image-Model.jpg)
:quality(98)/dehn-international.com/store/f/52917364/HDVORSCHAU/Earth%20Rod%20Seal%20CAD%20Image-Model.jpg)
Technical data
| Material | High density Polyethylene |
| Rod Diameter | 17.2 mm |
| Rod type | 3/4" Copper Bonded Earth Rod |
| Dimensions (Ø x h) | 366 x 1280 mm |
| Tube Dimensions (Ø x h) | 50 x 1200 mm |
| Standards | IEC / EN / BS EN 62561-5 |
| Assembly instructions | Refer Instructions (2211) |
| Note : Earth Rod to be purchased separately. | |
Part No. 138320 ER SEAL 2FLANGE 15 PL
GTIN 4013364300392, Customs tariff No. (EU): 85389000, Gross weight: 2.70 kg, PU: 1.00 pc(s)
:quality(98)/dehn-international.com/store/f/52917366/HDVORSCHAU/Earth%20Rod%20Seal.jpg)
:quality(98)/dehn-international.com/store/f/52917366/HDVORSCHAU/Earth%20Rod%20Seal.jpg)
:quality(98)/dehn-international.com/store/f/52917367/HDVORSCHAU/Earth%20Rod%20Seal%20CAD%20Image-Model.jpg)
:quality(98)/dehn-international.com/store/f/52917367/HDVORSCHAU/Earth%20Rod%20Seal%20CAD%20Image-Model.jpg)
Technical data
| Material | High density Polyethylene |
| Rod Diameter | 15 mm |
| Rod type | Copper / Nickel plated copper |
| Dimensions (Ø x h) | 366 x 1280 mm |
| Tube Dimensions (Ø x h) | 50 x 1200 mm |
| Standards | IEC / EN / BS EN 62561-5 |
| Assembly instructions | Refer Instructions (2211) |
| Note : Earth Rod to be purchased separately. | |
Part No. 138321 ER SEAL 2FLANGE 16 PL
GTIN 4013364300385, Customs tariff No. (EU): 85389000, Gross weight: 2.70 kg, PU: 1.00 pc(s)
:quality(98)/dehn-international.com/store/f/52917369/HDVORSCHAU/Earth%20Rod%20Seal.jpg)
:quality(98)/dehn-international.com/store/f/52917369/HDVORSCHAU/Earth%20Rod%20Seal.jpg)
:quality(98)/dehn-international.com/store/f/52917370/HDVORSCHAU/Earth%20Rod%20Seal%20CAD%20Image-Model.jpg)
:quality(98)/dehn-international.com/store/f/52917370/HDVORSCHAU/Earth%20Rod%20Seal%20CAD%20Image-Model.jpg)
Technical data
| Material | High density Polyethylene |
| Rod Diameter | 16 mm |
| Rod type | Copper / Nickel plated copper / Stainless steel |
| Dimensions (Ø x h) | 366 x 1280 mm |
| Tube Dimensions (Ø x h) | 50 x 1200 mm |
| Standards | IEC / EN / BS EN 62561-5 |
| Assembly instructions | Refer Instructions (2211) |
| Note : Earth Rod to be purchased separately. | |
Part No. 138322 ER SEAL 2FLANGE 20 PL
GTIN 4013364300378, Customs tariff No. (EU): 85389000, Gross weight: 2.70 kg, PU: 1.00 pc(s)
:quality(98)/dehn-international.com/store/f/52917372/HDVORSCHAU/Earth%20Rod%20Seal.jpg)
:quality(98)/dehn-international.com/store/f/52917372/HDVORSCHAU/Earth%20Rod%20Seal.jpg)
:quality(98)/dehn-international.com/store/f/52917373/HDVORSCHAU/Earth%20Rod%20Seal%20CAD%20Image-Model.jpg)
:quality(98)/dehn-international.com/store/f/52917373/HDVORSCHAU/Earth%20Rod%20Seal%20CAD%20Image-Model.jpg)
Technical data
| Material | High density Polyethylene |
| Rod Diameter | 20 mm |
| Rod type | Copper / Nickel plated copper / Stainless steel |
| Dimensions (Ø x h) | 366 x 1280 mm |
| Tube Dimensions (Ø x h) | 50 x 1200 mm |
| Standards | IEC / EN / BS EN 62561-5 |
| Assembly instructions | Refer Instructions (2211) |
| Note : Earth Rod to be purchased separately. | |
