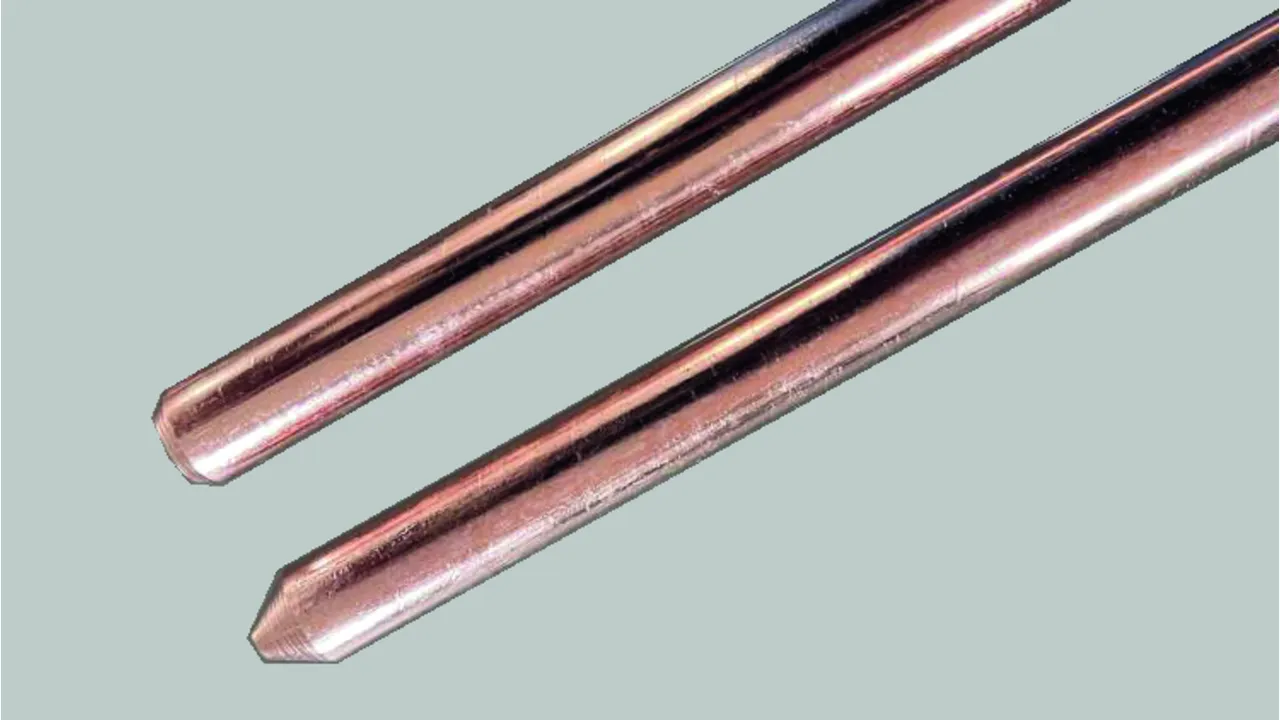

镀铜 CN 接地棒，端部无螺纹

由低碳高强度钢制成，表面镀有 99.9% 的纯铜，厚度至少为 254 µm。

A - 直径 14.2 mm

接地棒符合 IEC 62561-2 标准，用于安装引下线和变电站的接地系统。5/8" 型，无螺纹。

2 Products

Part No. 614024 ER 14.2 2400 ST CU

GTIN 6942299508826, Customs tariff No. (EU): , Gross weight: 3.01 kg, PU: 1.00 件

Images

Additional information



Technical data

材料 St / Cu
等级符合 GB/T 699 标准 20
棒材长度 (l1) 2400 mm
直径 Ø 14.2 mm
铜镀层 ≥ 0.25 mm
电阻率 ≤ 11.5x10-8 Ωm
相对电导率 ≥ 15 %
一致性 ≤ 0.10 mm
测试标准 IEC 62561-2
认证 UL

Product 614024 was added to Notepad.

Go to Notepad

Product 614024 was added to the cart.

Go to Web-Shop

Part No. 614030 ER 14.2 3000 ST CU

GTIN 6942299508833, Customs tariff No. (EU): , Gross weight: 3.76 kg, PU: 1.00 件

Images

Additional information



Technical data

材料 St / Cu
等级符合 GB/T 699 标准 20
棒材长度 (l1) 3000 mm
直径 Ø 14.2 mm
铜镀层 ≥ 0.25 mm
电阻率 ≤ 11.5x10-8 Ωm
相对电导率 ≥ 15 %
一致性 ≤ 0.10 mm
测试标准 IEC 62561-2
认证 UL

Product 614030 was added to Notepad.

Go to Notepad

Product 614030 was added to the cart.

Go to Web-Shop

B - 直径 17.2 mm

接地棒符合 IEC 62561-2 标准，用于安装引下线和变电站的接地系统。3/4" 型，无螺纹。

2 Products

Part No. 617024 ER 17.2 2400 ST CU

GTIN 6942299508840, Customs tariff No. (EU): , Gross weight: 4.41 kg, PU: 1.00 件

Images

Additional information



Technical data

材料 St / Cu
等级符合 GB/T 699 标准 20
棒材长度 (l1) 2400 mm
直径 Ø 17.2 mm
铜镀层 ≥ 0.25 mm
电阻率 ≤ 11.5x10-8 Ωm
相对电导率 ≥ 15 %
一致性 ≤ 0.10 mm
测试标准 IEC 62561-2
认证 UL

Product 617024 was added to Notepad.

Go to Notepad

Product 617024 was added to the cart.

Go to Web-Shop

Part No. 617030 ER 17.2 3000 ST CU

GTIN 6942299508857, Customs tariff No. (EU): , Gross weight: 5.51 kg, PU: 1.00 件

Images

Additional information



Technical data

材料 St / Cu
等级符合 GB/T 699 标准 20
棒材长度 (l1) 3000 mm
直径 Ø 17.2 mm
铜镀层 ≥ 0.25 mm
电阻率 ≤ 11.5x10-8 Ωm
相对电导率 ≥ 15 %
一致性 ≤ 0.10 mm
测试标准 IEC 62561-2
认证 UL

Product 617030 was added to Notepad.

Go to Notepad

Product 617030 was added to the cart.

Go to Web-Shop
