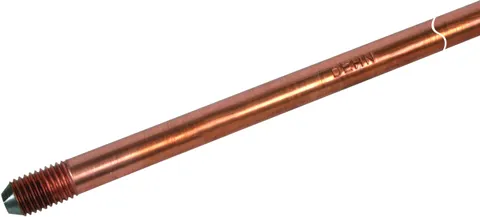

铜覆钢接地棒

由低碳高强度钢制造，并覆盖厚度超过250微米的99.9%纯电解铜。
电解工艺使得螺纹上铜的厚度也能保证，确保了螺纹的抗腐蚀性。螺纹符合ANSI/ASME B1.1-2003。
可通过专用连接器对接地棒进行接续，使用方便。连接可以使用螺栓夹具或放热焊接。
部分产品通过UL认证。

A型

接地棒，根据标准IEC 62561-2，用于引下线和变电站的接地系统建立。带5/8" UNC-2A螺纹。

4 Products

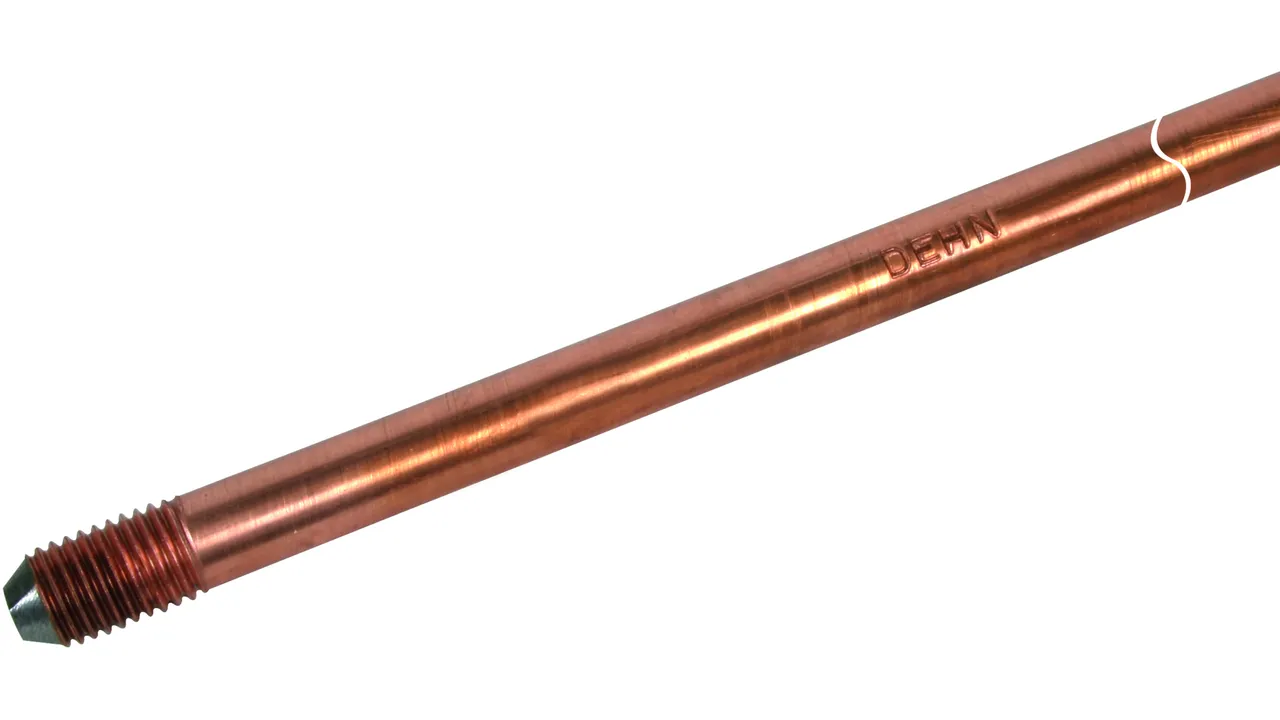

Part No. 614120 ER 14.2 1200 5/8" ST CU

GTIN 4013364241435, Customs tariff No. (EU): , Gross weight: 1.53 kg, PU: 1.00 件

Images

Additional information



Technical data

材料 铜覆钢 St / Cu
接地棒长度 (l1) 1200 mm
直径 14.2 mm
螺纹规格 5/8" UNC-2A
铜层 0.25 mm
标准 依据IEC / EN 62561-2测试

Product 614120 was added to Notepad.

Go to Notepad

Product 614120 was added to the cart.

Go to Web-Shop

Part No. 614150 ER 14.2 1500 5/8" ST CU

GTIN 4013364241527, Customs tariff No. (EU): , Gross weight: 1.85 kg, PU: 1.00 件

Images

Additional information



Technical data

材料 铜覆钢 St / Cu
接地棒长度 (l1) 1500 mm
直径 14.2 mm
螺纹规格 5/8" UNC-2A
铜层 0.25 mm
标准 依据IEC / EN 62561-2测试

Product 614150 was added to Notepad.

Go to Notepad

Product 614150 was added to the cart.

Go to Web-Shop

Part No. 614240 ER 14.2 2400 5/8" ST CU

GTIN 4013364241596, Customs tariff No. (EU): , Gross weight: 3.00 kg, PU: 1.00 件

Images

Additional information

Certificates



Technical data

材料 铜覆钢 St / Cu
接地棒长度 (l1) 2400 mm
直径 14.2 mm
螺纹规格 5/8" UNC-2A
铜层 0.25 mm
标准 依据IEC / EN 62561-2, UL 467测试

Product 614240 was added to Notepad.

Go to Notepad

Product 614240 was added to the cart.

Go to Web-Shop

Part No. 614300 ER 14.2 3000 5/8" ST CU

GTIN 4013364241657, Customs tariff No. (EU): , Gross weight: 3.80 kg, PU: 1.00 件

Images

Additional information

Certificates



Technical data

材料 铜覆钢 St / Cu
接地棒长度 (l1) 3000 mm
直径 14.2 mm
螺纹规格 5/8" UNC-2A
铜层 0.25 mm
标准 依据IEC / EN 62561-2, UL 467测试

Product 614300 was added to Notepad.

Go to Notepad

Product 614300 was added to the cart.

Go to Web-Shop

B型

接地棒，根据标准IEC 62561-2，用于引下线和变电站的接地系统建立。带3/4" UNC-2A螺纹。

3 Products

Part No. 617150 ER 17.2 1500 3/4" ST CU

GTIN 4013364241701, Customs tariff No. (EU): , Gross weight: 2.73 kg, PU: 1.00 件

Images

Additional information



Technical data

材料 铜覆钢 St / Cu
接地棒长度 (l1) 1500 mm
直径 17.2 mm
螺纹规格 3/4" UNC-2A
铜层 0.25 mm
标准 依据IEC / EN 62561-2测试

Product 617150 was added to Notepad.

Go to Notepad

Product 617150 was added to the cart.

Go to Web-Shop

Part No. 617180 ER 17.2 1800 3/4" ST CU

GTIN 4013364470934, Customs tariff No. (EU): , Gross weight: 3.33 kg, PU: 1.00 件

Images

Additional information



Technical data

材料 铜覆钢 St / Cu
接地棒长度 (l1) 1800 mm
直径 17.2 mm
螺纹规格 3/4" UNC-2A
铜层 0.25 mm
标准 依据IEC / EN 62561-2测试

Product 617180 was added to Notepad.

Go to Notepad

Product 617180 was added to the cart.

Go to Web-Shop

Part No. 617240 ER 17.2 2400 3/4" ST CU

GTIN 4013364241718, Customs tariff No. (EU): , Gross weight: 4.35 kg, PU: 1.00 件

Images

Additional information

Certificates



Technical data

材料 铜覆钢 St / Cu
接地棒长度 (l1) 2400 mm
直径 17.2 mm
螺纹规格 3/4" UNC-2A
铜层 0.25 mm
标准 依据IEC / EN 62561-2, UL 467测试

Product 617240 was added to Notepad.

Go to Notepad

Product 617240 was added to the cart.

Go to Web-Shop
