Háromlábú állványok támasztócsövekhez oldalsó nyílás nélkül

Special design for HVI Conductor installed inside / outside of the supporting tube, with double cleat for connection of 2x Rd 8-10 mm.

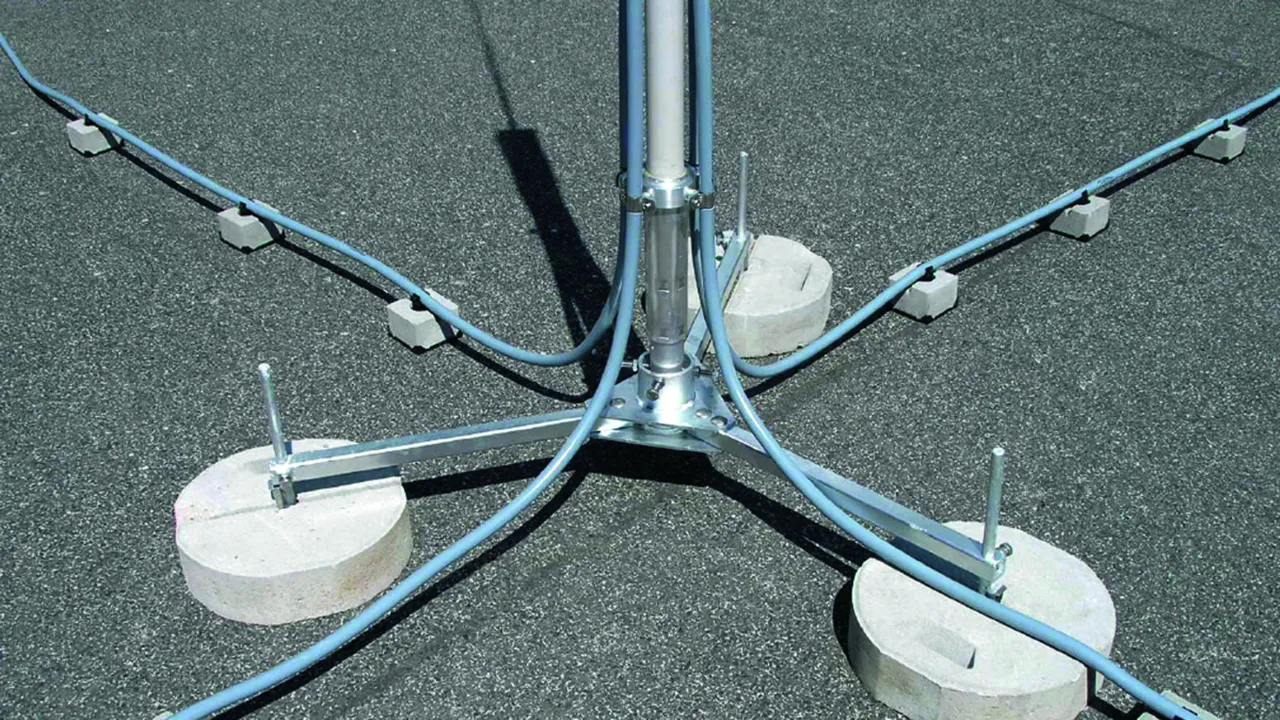

For keeping the bending radius of the HVI Conductor (installed inside of the supporting tube) at the bottom of the tripod, two concrete bases must be put under and one on top of the brace.
Adjustable to the roof inclination up to max. 10°.

The stackable concrete base (Part No. 102 010) and the support plate (Part No. 102 050) have to be ordered separately.

Note: Information on the compatibility of materials of roof conductor holders as well as support plates with roof elements can be requested from DEHN.

Kicsi háromlábó állvány

Suitable for the HVI Conductor installed inside of the supporting tube.

1 Product

Part No. 105390

GTIN , Customs tariff No. (EU): , Gross weight: , PU:

Images

Additional information



Technical data

Material of tripod <TRANSLATION_PLACEHOLDER>
Support 50 mm
Radius 600 mm
Space required for tripod 1400 x 1200 mm

Product 105390 was added to Notepad.

Go to Notepad

Product 105390 was added to the cart.

Go to Web-Shop

Nagy háromlábú állvány

Suitable for the HVI Conductor installed outside of the supporting tube.

1 Product

Part No. 105391

GTIN , Customs tariff No. (EU): , Gross weight: , PU:

Images

Additional information



Technical data

Material of tripod <TRANSLATION_PLACEHOLDER>
Support 50 mm
Radius 1450 mm
Space required for tripod 2900 x 2500 mm

Product 105391 was added to Notepad.

Go to Notepad

Product 105391 was added to the cart.

Go to Web-Shop

<TRANSLATION_PLACEHOLDER>

1 Product

Part No. 105490

GTIN , Customs tariff No. (EU): , Gross weight: , PU:

Images

Additional information



Technical data

Material of tripod <TRANSLATION_PLACEHOLDER>
Support 50 mm
Radius 600 mm
Space required for tripod 1200 x 1200 mm

Product 105490 was added to Notepad.

Go to Notepad

Product 105490 was added to the cart.

Go to Web-Shop

<TRANSLATION_PLACEHOLDER>

1 Product

Part No. 105491

GTIN , Customs tariff No. (EU): , Gross weight: , PU:

Images

Additional information



Technical data

Material of tripod <TRANSLATION_PLACEHOLDER>
Support 50 mm
Radius 1450 mm
Space required for tripod 2400 x 2400 mm

Product 105491 was added to Notepad.

Go to Notepad

Product 105491 was added to the cart.

Go to Web-Shop

<TRANSLATION_PLACEHOLDER>

<TRANSLATION_PLACEHOLDER>

1 Product

Part No. 105351 DBS KB D40.50 RA620 STTZN

GTIN 4013364238916, Customs tariff No. (EU): 85389099, Gross weight: 11.50 kg, PU: 1.00 db.

Images

Additional information

Tripod for HVI Conductors, small, St/tZn
Tripod for HVI Conductors installed inside the supporting tube
Special type for supporting tubes (length of 3200 mm).
In order to keep the bending radius of the HVI Conductor at the bottom of the tripod,
put 2 concrete bases under and one on top of the brace.
Adjustable to roof inclinations up to max. 10° without additional fixing on structural elements.
The stackable concrete base (Part No. 102 010) and the support plate (Part No. 102 050) have to be ordered separately.
Tripods are dimensioned according to Eurocode.
Material of tripod: St/tZn
Support: 40 / 50 mm
Radius: 620 mm
Quantity of concrete bases: 3-12 blocks 17 kg each
Space required for tripod: 1300 x 1450 mm

Gyártó: DEHN
Típus: DBS KB D40.50 RA620 STTZN
Cikksz.: 105351
vagy egyenértékű.



Technical data

Material of tripod St/tZn
Support 40 / 50 mm
Radius 620 mm
Quantity of concrete bases 3-12 blocks 17 kg each
Space required for tripod 1300 x 1450 mm

Product 105351 was added to Notepad.

Go to Notepad

Product 105351 was added to the cart.

Go to Web-Shop

<TRANSLATION_PLACEHOLDER>

<TRANSLATION_PLACEHOLDER>

1 Product

Part No. 105201 DBS KB D40.50 RA1435 STTZN

GTIN 4013364095915, Customs tariff No. (EU): 85389099, Gross weight: 17.23 kg, PU: 1.00 db.

Images

Additional information

Tripod for HVI Conductors, St/tZn
Tripod for HVI Conductors installed inside the supporting tube
Special type for supporting tubes (length of 4700 mm).
In order to keep the bending radius of the HVI Conductor at the bottom of the tripod,
2 concrete bases are installed below and one above the limb.
Adjustable to roof inclinations up to max. 10° without additional fixing on structural elements.
The stackable concrete base (Part No. 102 010) and the support plate (Part No. 102 050) have to be ordered separately.
Tripods are dimensioned according to Eurocode.
Material of tripod: St/tZn
Support: 40 / 50 mm
Radius: 1435 mm
Quantity of concrete bases: 3-12 blocks 17 kg each
Space required for tripod: 2520 x 2860 mm

Gyártó: DEHN
Típus: DBS KB D40.50 RA1435 STTZN
Cikksz.: 105201
vagy egyenértékű.



Technical data

Material of tripod St/tZn
Support 40 / 50 mm
Radius 1435 mm
Quantity of concrete bases 3-12 blocks 17 kg each
Space required for tripod 2520 x 2860 mm

Product 105201 was added to Notepad.

Go to Notepad

Product 105201 was added to the cart.

Go to Web-Shop
