Rögzítőelemek támasztócsövekhez

Wall Mounting Bracket adjustable from 150-200 mm

1 Product

Part No. 105344 WB D40.50 V150.200 V2A

GTIN 4013364147300, Customs tariff No. (EU): 85389099, Gross weight: 1.52 kg, PU: 1.00 db.

Images

Additional information

Support for air-termination rods D40 and DEHNcon-H, adjustable
Support for air-termination rods D40 and DEHNcon-H
for fastening of air-termination rods D40 or supporting tubes
on structures or walls
adjustable from 150-200 mm
Material of bracket: StSt
Clamping range Rd: 8-10 mm
Clamping range of supporting tube: 40-50 mm
Wall distance: 150-200 mm
Dimension of plate: 120 x 120 x 4 mm
Fixing : [4x] 12 x 26 mm
Standard: EN 62561-1

Gyártó: DEHN
Típus: WB D40.50 V150.200 V2A
Cikksz.: 105344
vagy egyenértékű.

Certificates



Technical data

Material of bracket StSt
Clamping range Rd 8-10 mm
Clamping range of supporting tube 40-50 mm
Wall distance 150-200 mm
Dimension of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm
Standard EN 62561-1

Product 105344 was added to Notepad.

Go to Notepad

Product 105344 was added to the cart.

Go to Web-Shop

Wall Mounting Bracket adjustable from 230-1300 mm

3 Products

Part No. 105343 WB D40.50 V400.700 STTZN V2A

GTIN 4013364118515, Customs tariff No. (EU): 85389099, Gross weight: 3.60 kg, PU: 1.00 db.

Images

Additional information

Bracket for air-termination rods D40 and DEHNcon-H with adjustment range
Support for air-termination rods D40 and DEHNcon-H
for fixing air-termination rods D40 or supporting tubes to the superstructure to be protected or on the wall
adjusting range 400-700 mm
DEHNGEPRUEFT: Nem
Material of bracket: St/tZn / StSt
Clamping range of supporting tube: 40-50 mm
Wall distance: 400-700 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing: [4x] 12 x 26 mm

Gyártó: DEHN
Típus: WB D40.50 V400.700 STTZN V2A
Cikksz.: 105343
vagy egyenértékű.

Certificates



Technical data

Material of bracket St/tZn / StSt
Clamping range of supporting tube 40-50 mm
Wall distance 400-700 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm

Product 105343 was added to Notepad.

Go to Notepad

Product 105343 was added to the cart.

Go to Web-Shop

Part No. 105349 WB D40.50 V700.1300 STTZN V2A

GTIN 4013364288614, Customs tariff No. (EU): 85389099, Gross weight: 5.80 kg, PU: 1.00 db.

Images

Additional information


DEHNGEPRUEFT: Nem
Material of bracket: St/tZn / StSt
Clamping range of supporting tube: 40-50 mm
Wall distance: 700-1300 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing: [4x] 12 x 26 mm

Gyártó: DEHN
Típus: WB D40.50 V700.1300 STTZN V2A
Cikksz.: 105349
vagy egyenértékű.

Certificates



Technical data

Material of bracket St/tZn / StSt
Clamping range of supporting tube 40-50 mm
Wall distance 700-1300 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm

Product 105349 was added to Notepad.

Go to Notepad

Product 105349 was added to the cart.

Go to Web-Shop

Part No. 105347 WB D40.50 V230.400 STTZN V2A

GTIN 4013364278554, Customs tariff No. (EU): 85389099, Gross weight: 2.42 kg, PU: 1.00 db.

Images

Additional information


DEHNGEPRUEFT: Nem
Material of bracket: St/tZn / StSt
Clamping range of supporting tube: 40-50 mm
Wall distance: 230-400 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing: [4x] 12 x 26 mm

Gyártó: DEHN
Típus: WB D40.50 V230.400 STTZN V2A
Cikksz.: 105347
vagy egyenértékű.

Certificates



Technical data

Material of bracket St/tZn / StSt
Clamping range of supporting tube 40-50 mm
Wall distance 230-400 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm

Product 105347 was added to Notepad.

Go to Notepad

Product 105347 was added to the cart.

Go to Web-Shop

Fixing Clamp with Tensioning Strap

1 Product

Part No. 105361 BS D50 DS30 SB50.300 V2A

GTIN 4013364102033, Customs tariff No. (EU): 85389099, Gross weight: 385.00 g, PU: 1.00 db.

Images

Additional information

Fixing clamp with tensioning strap, StSt
Fixing clamp with tensioning strap for fixing supporting tubes on construction elements, e.g. antenna masts
With additional spacer (30 mm) to adjust supports of e.g. sector antennas at the mast
DEHNGEPRUEFT: Nem
Material of clip: StSt
Clamping range of supporting tube: 50 mm
Clamping range of pipe Ø: 50-300 mm
Material of tensioning strap: StSt
Dimensions of strap: 25 x 0.3 mm
Length of spacer: 30 mm

Gyártó: DEHN
Típus: BS D50 DS30 SB50.300 V2A
Cikksz.: 105361
vagy egyenértékű.



Technical data

Material of clip StSt
Clamping range of supporting tube 50 mm
Clamping range of pipe Ø 50-300 mm
Material of tensioning strap StSt
Dimensions of strap (w x d) 25 x 0.3 mm
Length of spacer 30 mm

Product 105361 was added to Notepad.

Go to Notepad

Product 105361 was added to the cart.

Go to Web-Shop

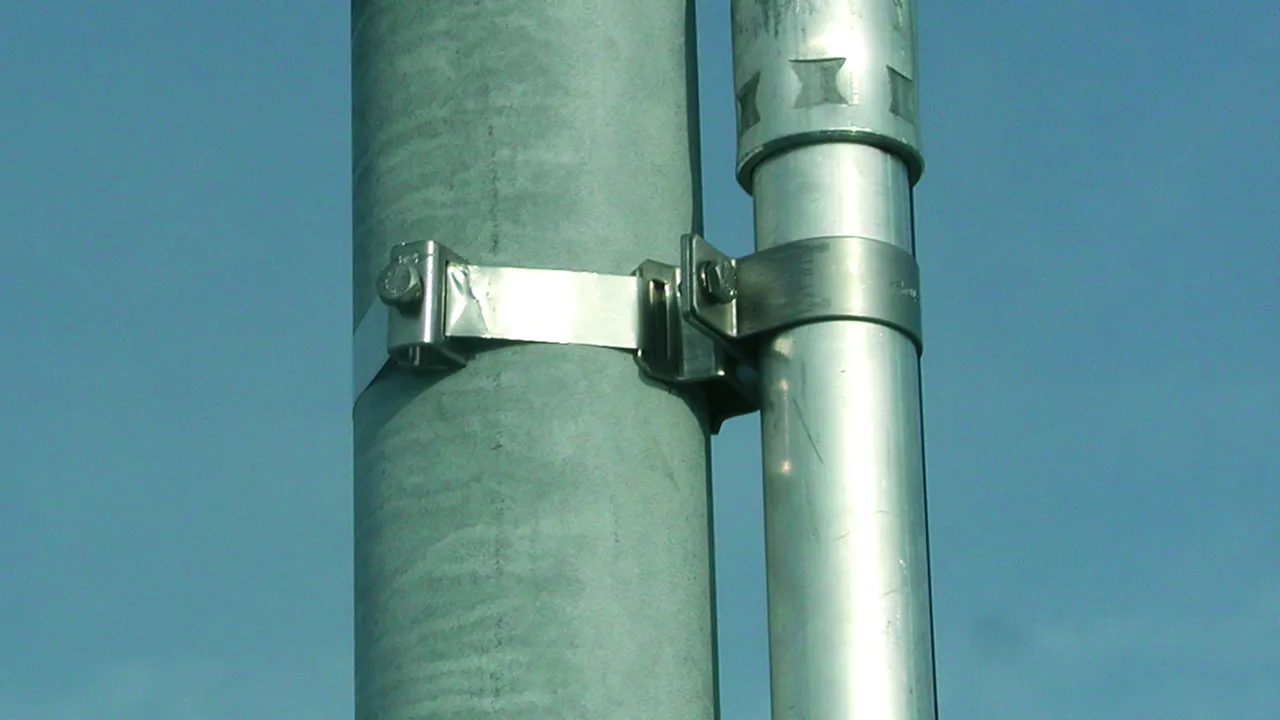

Fixing Clamp with Tensioning Strap

1 Product

Part No. 105360 BS D50 SB50.300 V2A

GTIN 4013364099777, Customs tariff No. (EU): 85389099, Gross weight: 357.50 g, PU: 1.00 db.

Images

Additional information

Fixing clamp with tensioning strap, StSt
Fixing clamp with tensioning strap for fixing of the supporting tubes on construction elements, e.g. antenna masts
DEHNGEPRUEFT: Nem
Material of clip: StSt
Clamping range of supporting tube: 50 mm
Clamping range of pipe Ø: 50-300 mm
Material of tensioning strap: StSt
Dimensions of strap: 25 x 0.3 mm

Gyártó: DEHN
Típus: BS D50 SB50.300 V2A
Cikksz.: 105360
vagy egyenértékű.



Technical data

Material of clip StSt
Clamping range of supporting tube 50 mm
Clamping range of pipe Ø 50-300 mm
Material of tensioning strap StSt
Dimensions of strap (w x d) 25 x 0.3 mm

Product 105360 was added to Notepad.

Go to Notepad

Product 105360 was added to the cart.

Go to Web-Shop

Wall Mounting Bracket for Horizontal Flat Mounting

1 Product

Part No. 105340 WB D50 WA V2A

GTIN 4013364098794, Customs tariff No. (EU): 85389099, Gross weight: 617.80 g, PU: 1.00 db.

Images

Additional information

Mounting bracket, StSt
Mounting bracket for fastening of supporting tubes on structures or walls
Wall mounting bracket for horizontal mounting
DEHNGEPRUEFT: Nem
Material: StSt
Clamping range of supporting tube: 50 mm
Wall / corner distance: 80 mm
Dimensions of fixing: 320 mm
Fixing: [8x] Ø5.1 / [4x] 11 x 20 mm

Gyártó: DEHN
Típus: WB D50 WA V2A
Cikksz.: 105340
vagy egyenértékű.



Technical data

Material StSt
Clamping range of supporting tube 50 mm
Wall / corner distance 80 mm
Dimensions of fixing 320 mm
Fixing [8x] Ø5.1 / [4x] 11 x 20 mm

Product 105340 was added to Notepad.

Go to Notepad

Product 105340 was added to the cart.

Go to Web-Shop

Fixing Clamp with Tensioning Strap

1 Product

Part No. 105362 BS D50 DS90 SB50.300 V2A

GTIN 4013364110496, Customs tariff No. (EU): 85389099, Gross weight: 466.90 g, PU: 1.00 db.

Images

Additional information

Fixing clamp with tensioning strap with long spacer, StSt
Fixing clamp with tensioning strap for fixing supporting tubes on structures
e.g. antenna support tubes
with additional spacer (95 mm)
for adjusting e.g. sector antenna supports to the mast
DEHNGEPRUEFT: Nem
Material of clip: StSt
Clamping range of supporting tube: 50 mm
Clamping range of pipe Ø: 50-300 mm
Material of tensioning strap: StSt
Dimensions of strap: 25 x 0.3 mm
Length of spacer: 95 mm

Gyártó: DEHN
Típus: BS D50 DS90 SB50.300 V2A
Cikksz.: 105362
vagy egyenértékű.



Technical data

Material of clip StSt
Clamping range of supporting tube 50 mm
Clamping range of pipe Ø 50-300 mm
Material of tensioning strap StSt
Dimensions of strap (w x d) 25 x 0.3 mm
Length of spacer 95 mm

Product 105362 was added to Notepad.

Go to Notepad

Product 105362 was added to the cart.

Go to Web-Shop

Wall Mounting Bracket for Horizontal Angled Mounting

1 Product

Part No. 105341 EB D50 WA V2A

GTIN 4013364098800, Customs tariff No. (EU): 85389099, Gross weight: 606.60 g, PU: 1.00 db.

Images

Additional information

Mounting bracket, StSt
Angled mounting bracket for fastening of supporting tubes on structures or walls
DEHNGEPRUEFT: Nem
Material: StSt
Clamping range of supporting tube: 50 mm
Wall / corner distance: 80 mm
Dimensions of fixing: 152 mm
Fixing: [8x] Ø5.1 / [4x] 11 x 20 mm

Gyártó: DEHN
Típus: EB D50 WA V2A
Cikksz.: 105341
vagy egyenértékű.



Technical data

Material StSt
Clamping range of supporting tube 50 mm
Wall / corner distance 80 mm
Dimensions of fixing 152 mm
Fixing [8x] Ø5.1 / [4x] 11 x 20 mm

Product 105341 was added to Notepad.

Go to Notepad

Product 105341 was added to the cart.

Go to Web-Shop

Railing Clamp

1 Product

Part No. 105354 BS D40.50 D48.60 V2A

GTIN 4013364098725, Customs tariff No. (EU): 85389099, Gross weight: 637.00 g, PU: 5.00 db.

Images

Additional information

Support for air-termination rods D40 and DEHNcon-H
Railing clamp StSt for fixing of supporting tubes or air-termination rods D40
at construction elements, e.g. railing pipes
DEHNGEPRUEFT: Igen
Material: StSt
Clamping range of pipe Ø: 48-60 mm (11/2-2'')
Clamping range of supporting tube: 40-50 mm

Gyártó: DEHN
Típus: BS D40.50 D48.60 V2A
Cikksz.: 105354
vagy egyenértékű.

Certificates



Technical data

Material StSt
Clamping range of pipe Ø 48-60 mm (11/2-2'')
Clamping range of supporting tube 40-50 mm

Product 105354 was added to Notepad.

Go to Notepad

Product 105354 was added to the cart.

Go to Web-Shop

Railing Clamp

2 Products

Part No. 105356 BS D40.50 4K20.50 V2A

GTIN 4013364098749, Customs tariff No. (EU): 85389099, Gross weight: 582.20 g, PU: 5.00 db.

Images

Additional information

Rail clamp for square hollow profiles, StSt
Railing clamp for fixing of supporting tubes at construction elements
For square hollow profiles
DEHNGEPRUEFT: Nem
Material: StSt
Clamping range of square profile: 20 x 20 to 50 x 50 mm
Clamping range of supporting tube: 40-50 mm

Gyártó: DEHN
Típus: BS D40.50 4K20.50 V2A
Cikksz.: 105356
vagy egyenértékű.



Technical data

Material StSt
Clamping range of square profile 20 x 20 to 50 x 50 mm
Clamping range of supporting tube 40-50 mm

Product 105356 was added to Notepad.

Go to Notepad

Product 105356 was added to the cart.

Go to Web-Shop

Part No. 105376 BS D40.50 4K60.120 V2A

GTIN 4013364115545, Customs tariff No. (EU): 85389099, Gross weight: 684.40 g, PU: 1.00 db.

Predecessor

Images

Additional information

Railing clamp for square hollow profiles, StSt
Railing clamp for fixing of supporting tubes at construction elements
For square hollow profiles
DEHNGEPRUEFT: Nem
Material: StSt
Clamping range of square profile: 60 x 120 mm
Clamping range of supporting tube: 40-50 mm

Gyártó: DEHN
Típus: BS D40.50 4K60.120 V2A
Cikksz.: 105376
vagy egyenértékű.



Technical data

Material StSt
Clamping range of square profile 60 x 120 mm
Clamping range of supporting tube 40-50 mm

Product 105376 was added to Notepad.

Go to Notepad

Product 105376 was added to the cart.

Go to Web-Shop

Wall Mounting Bracket for Vertical Mounting

2 Products

Part No. 105348 WB D40.50 SE WA110 V2A

GTIN 4013364287013, Customs tariff No. (EU): 85389099, Gross weight: 540.00 g, PU: 1.00 db.

Images

Additional information


DEHNGEPRUEFT: Nem
Material of bracket: StSt
Fixing: [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range of supporting tube: 40-50 mm
Wall distance: 110 mm

Gyártó: DEHN
Típus: WB D40.50 SE WA110 V2A
Cikksz.: 105348
vagy egyenértékű.

Certificates



Technical data

Material of bracket StSt
Fixing [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range of supporting tube 40-50 mm
Wall distance 110 mm

Product 105348 was added to Notepad.

Go to Notepad

Product 105348 was added to the cart.

Go to Web-Shop

Part No. 105342 WB D40.50 SE WA46 V2A

GTIN 4013364111141, Customs tariff No. (EU): 85389099, Gross weight: 514.00 g, PU: 1.00 db.

Images

Additional information

Bracket for air-termination rods D40 and DEHNcon-H, StSt, vertical mounting
Support for air-termination rods D40 and DEHNcon-H for fixing air-termination rods D40 or supporting tubes to the structure to be protected or on the wall
DEHNGEPRUEFT: Nem
Material of bracket: StSt
Fixing: [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range of supporting tube: 40-50 mm
Wall distance: 46 mm

Gyártó: DEHN
Típus: WB D40.50 SE WA46 V2A
Cikksz.: 105342
vagy egyenértékű.

Certificates



Technical data

Material of bracket StSt
Fixing [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range of supporting tube 40-50 mm
Wall distance 46 mm

Product 105342 was added to Notepad.

Go to Notepad

Product 105342 was added to the cart.

Go to Web-Shop

Railing Clamp

1 Product

Part No. 105355 BS D40.50 D70.90 V2A

GTIN 4013364098732, Customs tariff No. (EU): 85389099, Gross weight: 713.20 g, PU: 1.00 db.

Images

Additional information

Railing clamp for pipes, StSt
Railing clamp for fixing of supporting tubes or air-termination rods D40
at construction elements, e.g. railing pipes
DEHNGEPRUEFT: Nem
Material: StSt
Clamping range of pipe Ø: 70-90 mm (2 1/4-3'')
Clamping range of supporting tube: 40-50 mm

Gyártó: DEHN
Típus: BS D40.50 D70.90 V2A
Cikksz.: 105355
vagy egyenértékű.

Certificates



Technical data

Material StSt
Clamping range of pipe Ø 70-90 mm (2 1/4-3'')
Clamping range of supporting tube 40-50 mm

Product 105355 was added to Notepad.

Go to Notepad

Product 105355 was added to the cart.

Go to Web-Shop
back to top
