Testeur de tension PHE III

En toute sécurité - Vérifier absence de tension
  • Indication fiable
  • Manipulation aisée
  • Economie de coût et de transport

Details

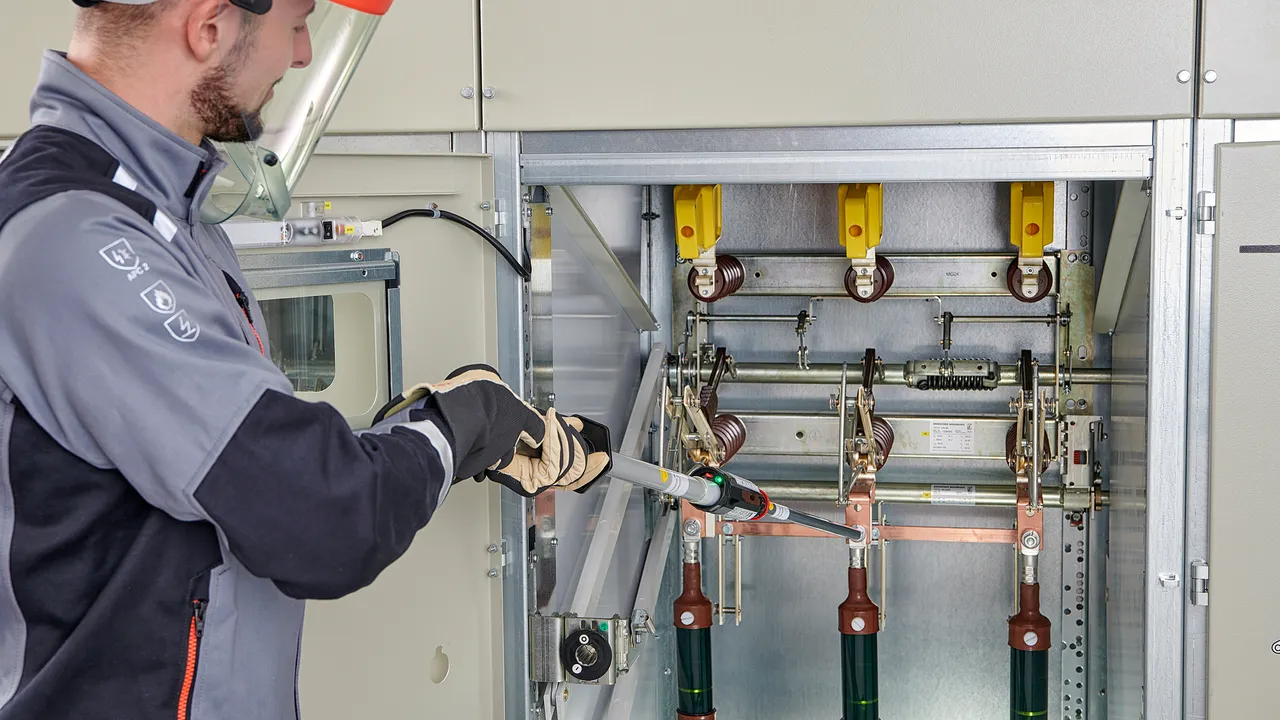

Test avec un électrode visée.
lorem ipsum
Accouplement de l'extension de poignée HV STK et la perche isolante IS PHE STK.
lorem ipsum
Test avec électrode intégrée
lorem ipsum
Accouplement universel pour l'inclinaison du testeur de tension.
lorem ipsum
lorem ipsum

Tension nominale jusqu'à 30 kV / 50 Hz, filetage M12

Catégorie "S" pour appareillages et lignes aériennes

5 Products

Part No. 767703 PHE3 3 S

GTIN 4013364070899, Customs tariff No. (EU): 90303370, Gross weight: 1.71 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 3 kV
Longueur totale (lG ) 1080 mm
Profondeur (IO ) 285 mm

Product 767703 was added to Notepad.

Go to Notepad

Product 767703 was added to the cart.

Go to Web-Shop

Part No. 767706 PHE3 6 S

GTIN 4013364070837, Customs tariff No. (EU): 90303370, Gross weight: 1.71 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 6 kV
Longueur totale (lG ) 1080 mm
Profondeur (IO ) 285 mm

Product 767706 was added to Notepad.

Go to Notepad

Product 767706 was added to the cart.

Go to Web-Shop

Part No. 767710 PHE3 10 S

GTIN 4013364070851, Customs tariff No. (EU): 90303370, Gross weight: 1.71 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 10 kV
Longueur totale (lG ) 1080 mm
Profondeur (IO ) 285 mm

Product 767710 was added to Notepad.

Go to Notepad

Product 767710 was added to the cart.

Go to Web-Shop

Part No. 767720 PHE3 20 S

GTIN 4013364070844, Customs tariff No. (EU): 90303370, Gross weight: 1.89 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 20 kV
Longueur totale (lG ) 1230 mm
Profondeur (IO ) 435 mm

Product 767720 was added to Notepad.

Go to Notepad

Product 767720 was added to the cart.

Go to Web-Shop

Part No. 767730 PHE3 30 S

GTIN 4013364070813, Customs tariff No. (EU): 90303370, Gross weight: 1.83 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 30 kV
Longueur totale (lG ) 1415 mm
Profondeur (IO ) 620 mm

Product 767730 was added to Notepad.

Go to Notepad

Product 767730 was added to the cart.

Go to Web-Shop

Plage de tension nominale jusqu'à 30 kV / 50 Hz, filetage M12

Catégorie "S" pour appareillages et lignes aériennes

3 Products

Part No. 767711 PHE3 3 10 S

GTIN 4013364070820, Customs tariff No. (EU): 90303370, Gross weight: 1.86 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 3 ... 10 kV
Longueur totale (lG ) 1415 mm
Profondeur (IO ) 620 mm

Product 767711 was added to Notepad.

Go to Notepad

Product 767711 was added to the cart.

Go to Web-Shop

Part No. 767721 PHE3 6 20 S

GTIN 4013364070868, Customs tariff No. (EU): 90303370, Gross weight: 1.93 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 6 ... 20 kV
Longueur totale (lG ) 1575 mm
Profondeur (IO ) 780 mm

Product 767721 was added to Notepad.

Go to Notepad

Product 767721 was added to the cart.

Go to Web-Shop

Part No. 767731 PHE3 10 30 S

GTIN 4013364070875, Customs tariff No. (EU): 90303370, Gross weight: 1.99 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 10 ... 30 kV
Longueur totale (lG ) 1675 mm
Profondeur (IO ) 880 mm

Product 767731 was added to Notepad.

Go to Notepad

Product 767731 was added to the cart.

Go to Web-Shop

Plage de tension nominale jusqu'à 30 kV / 50 Hz, filetage M12, commutable

Le sélecteur de tension nominale a 2 positions de commutation pour chaque plage de tension. Une mise en fonctionnement est seulement possible, pour des raisons de sécurité avec le réglage le plus sensible de 3 ... 10 kV. Dans la position de commutation respective du commutateur vient en prise et est ainsi protégé contre toute modification involontaire. La commutation se fait via un interrupteur Reed.

Catégorie "S" pour les appareillages et les lignes aériennes.

1 Product

Part No. 767733 PHE3 U 3 30 S

GTIN 4013364070882, Customs tariff No. (EU): 90303370, Gross weight: 1.99 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 3 ... 10 / 10 ... 30 kV
Longueur totale (lG ) 1675 mm
Profondeur (IO ) 880 mm

Product 767733 was added to Notepad.

Go to Notepad

Product 767733 was added to the cart.

Go to Web-Shop

Tension nominale 25 kV / 50 Hz

Pour lignes aériennes des chemins de fer électrique
Catégorie "S" pour les système monophasé avec mise à la terre d'un coté

1 Product

Part No. 767125 PHE3 25 S 50 1P

GTIN 4013364130319, Customs tariff No. (EU): 90303370, Gross weight: 1.96 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 25 kV
Longueur totale (lG ) 1680 mm
Profondeur (IO ) 880 mm

Product 767125 was added to Notepad.

Go to Notepad

Product 767125 was added to the cart.

Go to Web-Shop

Tension nominale jusqu'à 30 kV / 50 Hz, accouplement engrenage

Catégorie "S" pour appareilages et lignes aériennes

5 Products

Part No. 767903 PHE3 3 S ZK

GTIN 4013364134737, Customs tariff No. (EU): 90303370, Gross weight: 1692.00 g, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 3 kV
Longueur totale (lG ) 1150 mm
Profondeur (IO ) 285 mm

Product 767903 was added to Notepad.

Go to Notepad

Product 767903 was added to the cart.

Go to Web-Shop

Part No. 767906 PHE3 6 S ZK

GTIN 4013364134744, Customs tariff No. (EU): 90303370, Gross weight: 1692.00 g, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 6 kV
Longueur totale (lG ) 1150 mm
Profondeur (IO ) 285 mm

Product 767906 was added to Notepad.

Go to Notepad

Product 767906 was added to the cart.

Go to Web-Shop

Part No. 767910 PHE3 10 S ZK

GTIN 4013364134751, Customs tariff No. (EU): 90303370, Gross weight: 1692.00 g, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 10 kV
Longueur totale (lG ) 1150 mm
Profondeur (IO ) 285 mm

Product 767910 was added to Notepad.

Go to Notepad

Product 767910 was added to the cart.

Go to Web-Shop

Part No. 767920 PHE3 20 S ZK

GTIN 4013364134768, Customs tariff No. (EU): 90303370, Gross weight: 1.80 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 20 kV
Longueur totale (lG ) 1300 mm
Profondeur (IO ) 435 mm

Product 767920 was added to Notepad.

Go to Notepad

Product 767920 was added to the cart.

Go to Web-Shop

Part No. 767930 PHE3 30 S ZK

GTIN 4013364134775, Customs tariff No. (EU): 90303370, Gross weight: 1.87 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 30 kV
Longueur totale (lG ) 1485 mm
Profondeur (IO ) 620 mm

Product 767930 was added to Notepad.

Go to Notepad

Product 767930 was added to the cart.

Go to Web-Shop

Plage de tension jusqu'à 30 kV / 50 Hz, accouplement engrenage

Catégorie "S" pour appareillages et lignes aériennes

3 Products

Part No. 767941 PHE3 3 10 S ZK

GTIN 4013364134782, Customs tariff No. (EU): 90303370, Gross weight: 1.87 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 3 ... 10 kV
Longueur totale (lG ) 1485 mm
Profondeur (IO ) 620 mm

Product 767941 was added to Notepad.

Go to Notepad

Product 767941 was added to the cart.

Go to Web-Shop

Part No. 767951 PHE3 6 20 S ZK

GTIN 4013364134799, Customs tariff No. (EU): 90303370, Gross weight: 1.96 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 6 ... 20 kV
Longueur totale (lG ) 1645 mm
Profondeur (IO ) 780 mm

Product 767951 was added to Notepad.

Go to Notepad

Product 767951 was added to the cart.

Go to Web-Shop

Part No. 767961 PHE3 10 30 S ZK

GTIN 4013364134805, Customs tariff No. (EU): 90303370, Gross weight: 2.02 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 10 ... 30 kV
Longueur totale (lG ) 1745 mm
Profondeur (IO ) 880 mm

Product 767961 was added to Notepad.

Go to Notepad

Product 767961 was added to the cart.

Go to Web-Shop

Plage de tension nominale jusqu'à 36 kV / 50 Hz, accouplement engrenage, commutable

Le sélecteur de tension nominale a 2 positions de commutation pour chaque plage de tension. La mise en service est, pour des raisons de sécurité possible seulement dans la position la plus sensible (3 ... 10 kV ou 6 ... 20 kV). Dans la position de commutation respective du commutateur vient en prise et est ainsi protégé contre toute modification involontaire. La commutation se fait via un interrupteur Reed sans usure.

Catégorie "S" pour appareillages et les lignes aériennes.

2 Products

Part No. 767960 PHE3 U 3 30 S ZK

GTIN 4013364134812, Customs tariff No. (EU): 90303370, Gross weight: 2.02 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 3 ... 10 / 10 ... 30 kV
Longueur totale (lG ) 1745 mm
Profondeur (IO ) 880 mm

Product 767960 was added to Notepad.

Go to Notepad

Product 767960 was added to the cart.

Go to Web-Shop

Part No. 767944 PHE3 U 6 36 S SN7728

GTIN 4013364277731, Customs tariff No. (EU): 90303370, Gross weight: 2.16 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 6 ... 20 / 20 ... 36 kV
Longueur totale (lG ) 1745 mm
Profondeur (IO ) 880 mm

Product 767944 was added to Notepad.

Go to Notepad

Product 767944 was added to the cart.

Go to Web-Shop

Plage de tension nominal jusqu'à 30 kV / 50 Hz, lot de test, filetage M12

Avec deux pointes de test de catégorie "S" pour appareillages et lignes aériennes et catégorie "L" pour lignes aériennes.

2 Products

Part No. 767740 PHE3 6 20 SL

GTIN 4013364071063, Customs tariff No. (EU): 90303370, Gross weight: 2.15 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 6 ... 20 kV
Longueur totale (lG ) 1575 / 980 mm
Profondeur (IO ) 780 / 185 mm

Product 767740 was added to Notepad.

Go to Notepad

Product 767740 was added to the cart.

Go to Web-Shop

Part No. 767750 PHE3 10 30 SL

GTIN 4013364071070, Customs tariff No. (EU): 90303370, Gross weight: 2.21 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 10 ... 30 kV
Longueur totale (lG ) 1675 / 980 mm
Profondeur (IO ) 880 / 185 mm

Product 767750 was added to Notepad.

Go to Notepad

Product 767750 was added to the cart.

Go to Web-Shop

Plage de tension jusqu'à 30 kV / 50 Hz, lot de test, accouplement engrenage

Avec deux pointes de test de catégorie "S" pour appareillage et ligne aérienne et catégorie "L" pour ligne aérienne.

2 Products

Part No. 767940 PHE3 6 20 SL ZK

GTIN 4013364134829, Customs tariff No. (EU): 90303370, Gross weight: 2.09 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 6 ... 20 kV
Longueur totale (lG ) 1650 / 1050 mm
Profondeur (IO ) 780 / 185 mm

Product 767940 was added to Notepad.

Go to Notepad

Product 767940 was added to the cart.

Go to Web-Shop

Part No. 767950 PHE3 10 30 SL ZK

GTIN 4013364134836, Customs tariff No. (EU): 90303370, Gross weight: 2.14 kg, PU: 1.00 pièce(s)

Images

Additional information

Certificates



Technical data

Tension nominale (UN ) 10 ... 30 kV
Longueur totale (lG ) 1750 / 1050 mm
Profondeur (IO ) 880 / 185 mm

Product 767950 was added to Notepad.

Go to Notepad

Product 767950 was added to the cart.

Go to Web-Shop
