Earthing Pipe with Drilling Spiral

With drilling spiral for earthing of mobile objects such as vehicles, power generators, etc.
Detachable turning handle.

Consisting of:
– Turning handle (Part No. 462 058
military name VG 96953 T10 AB001
stock No. 5975-12-133-7084)

– Earthing pipe (Part No. 462 060
military name VG 96953 T10 AA001
stock No. 5975-12-133-7271)

– Clamping body with knurled screw (Part No. 644 099
military name VG 96953 T10 AC001
stock No. 5975-12-399-5493)

1 Product

Part No. 644000 ERO BSP ASSM10 1000 STTZN

GTIN 4013364030268, Customs tariff No. (EU): 85369095, Gross weight: 4.45 kg, PU: 1.00 pc(s)


Images

Additional information

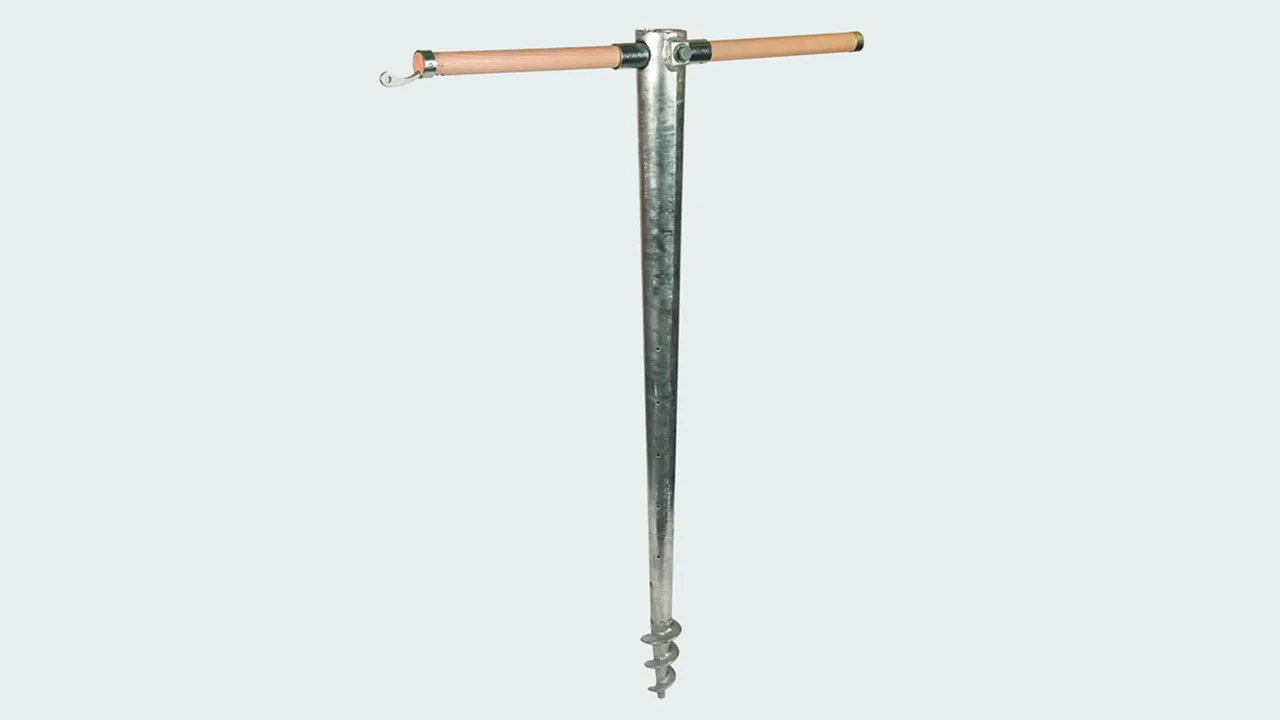

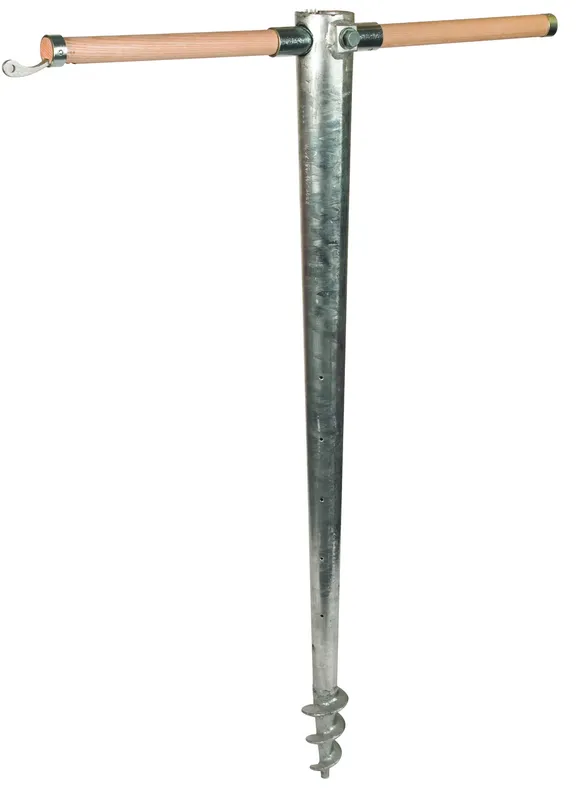

Earthing pipe with drilling spiral, St/tZn, 1000 mm long
Earthing pipe with drilling spiral for earthing mobile objects, e.g. vehicles, power generators, etc.; with removable handle
Material: St/tZn
Length: 1000 mm

Brand: DEHN
Type: ERO BSP ASSM10 1000 STTZN
Part No.: 644000
or equivalent.

Certificates

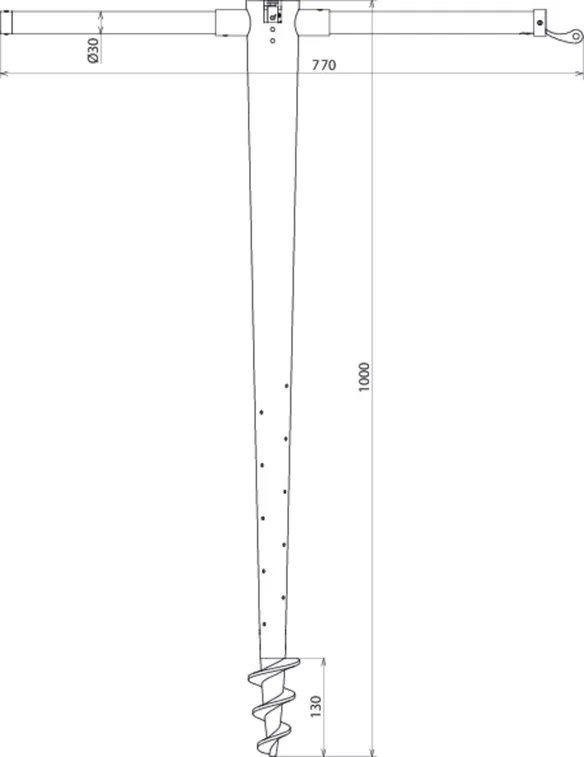

Technical data

Material St/tZn
Length 1000 mm
Screw di M10 x 35 mm
