Connection Clamps for Steel Girders

Heavy design; for connection to steel constructions.

Vertical design, with clamping piece

Lengthwise or crosswise connection with clamping piece.

4 Products

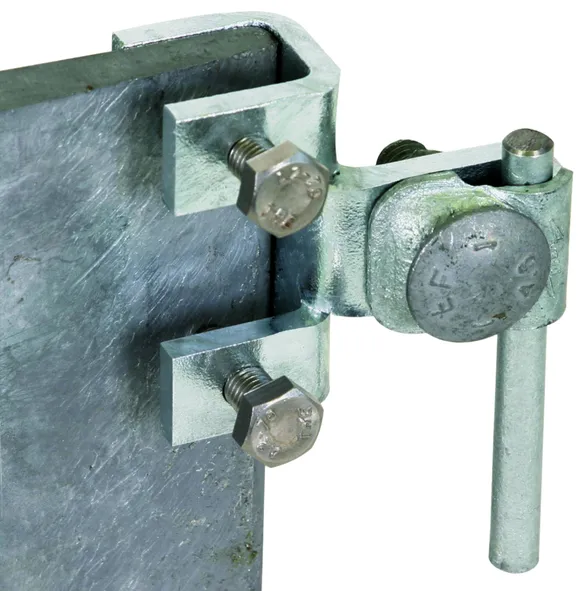

Part No. 372110 AK 6.10 KB S KBF3 18 STTZN

GTIN 4013364119055, Customs tariff No. (EU): 85359000, Gross weight: 287.60 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, vertical, with clamping piece, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF3 18 STTZN
Part No.: 372110
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372110 was added to Notepad.

Product 372110 was added to the cart.

Part No. 372119 AK 6.10 KB S KBF3 18 V2A

GTIN 4013364119178, Customs tariff No. (EU): 85359000, Gross weight: 282.00 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, vertical, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF3 18 V2A
Part No.: 372119
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372119 was added to Notepad.

Product 372119 was added to the cart.

Part No. 372140 AK 6.10 KB S KBF18 35 STTZN

GTIN 4013364119086, Customs tariff No. (EU): 85359000, Gross weight: 340.20 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, vertical, with clamping piece, St/tZn
Conneciton clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF18 35 STTZN
Part No.: 372140
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372140 was added to Notepad.

Product 372140 was added to the cart.

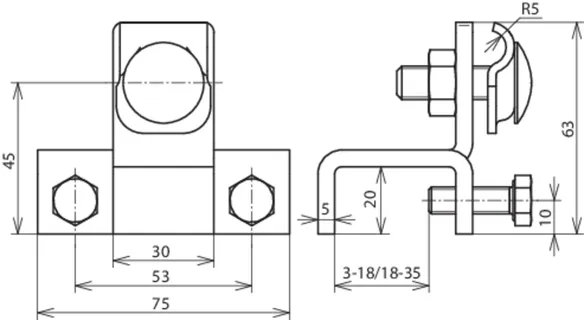

Part No. 372149 AK 6.10 KB S KBF18 35 V2A

GTIN 4013364119208, Customs tariff No. (EU): 85359000, Gross weight: 331.10 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, vertical, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF18 35 V2A
Part No.: 372149
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372149 was added to Notepad.

Product 372149 was added to the cart.

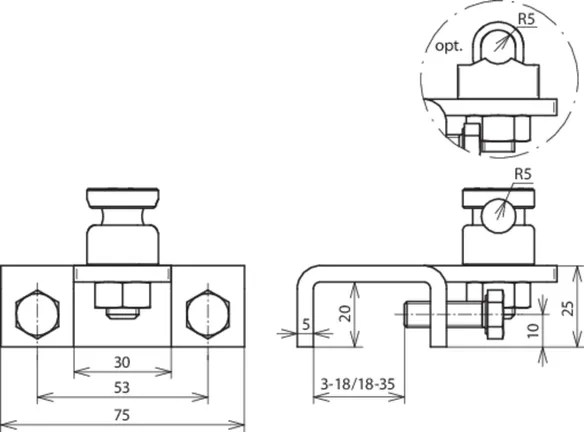

Horizontal design, with clamping piece

Lengthwise or crosswise connection with clamping piece.

4 Products

Part No. 372210 AK 6.10 KB W KBF3 18 STTZN

GTIN 4013364119116, Customs tariff No. (EU): 85359000, Gross weight: 288.40 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, horizontal, with clamping piece, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF3 18 STTZN
Part No.: 372210
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372210 was added to Notepad.

Product 372210 was added to the cart.

Part No. 372219 AK 6.10 KB W KBF3 18 V2A

GTIN 4013364119239, Customs tariff No. (EU): 85359000, Gross weight: 282.90 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, horizontal, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF3 18 V2A
Part No.: 372219
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372219 was added to Notepad.

Product 372219 was added to the cart.

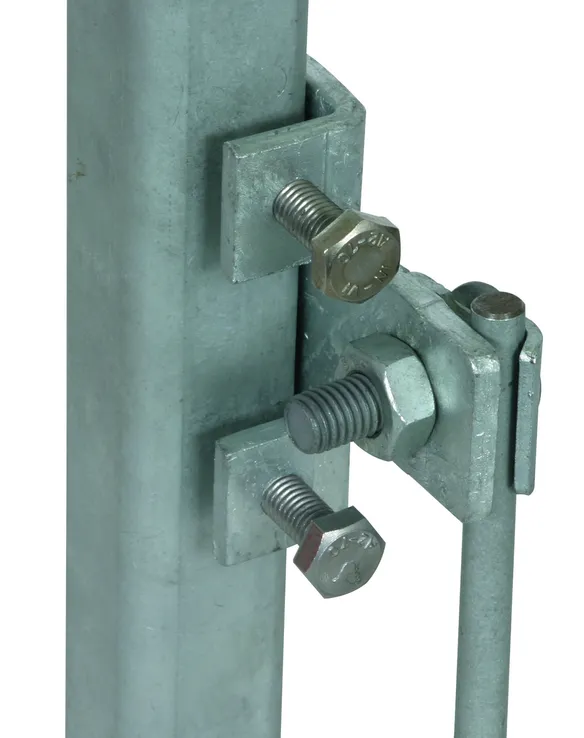

Part No. 372240 AK 6.10 KB W KBF18 35 STTZN

GTIN 4013364119147, Customs tariff No. (EU): 85359000, Gross weight: 339.50 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, horizontal, with clamping piece, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF18 35 STTZN
Part No.: 372240
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372240 was added to Notepad.

Product 372240 was added to the cart.

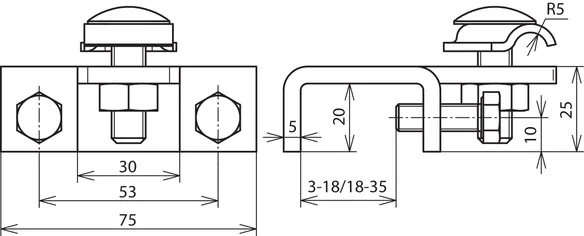

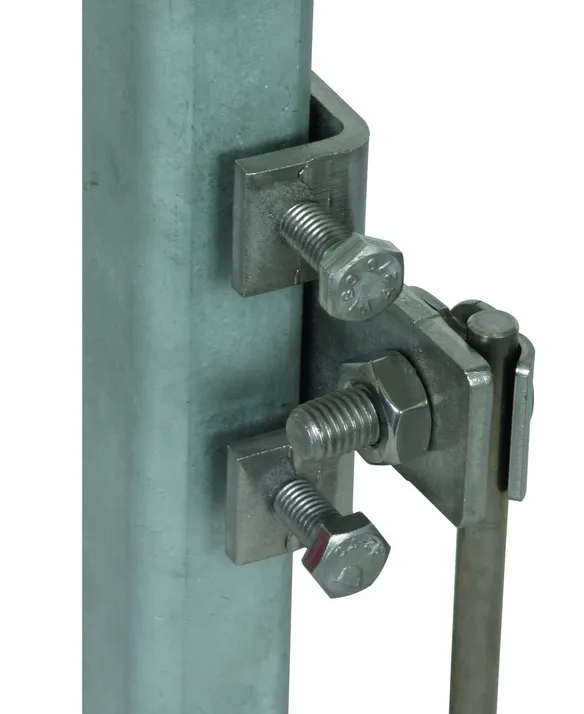

Part No. 372249 AK 6.10 KB W KBF18 35 V2A

GTIN 4013364119260, Customs tariff No. (EU): 85359000, Gross weight: 330.90 g, PU: 1.00 pc(s)


Images

Additional information

Connection clamps for steel girders, horizontal, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF18 35 V2A
Part No.: 372249
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372249 was added to Notepad.

Product 372249 was added to the cart.


Vertical design, with KS connector

Lengthwise or crosswise connection with KS connector.

4 Products

Part No. 372120 AK 7.10 KSV S KBF3 18 STTZN

GTIN 4013364119062, Customs tariff No. (EU): 85359000, Gross weight: 292.30 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, vertical, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV S KBF3 18 STTZN
Part No.: 372120
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp St/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372120 was added to Notepad.

Product 372120 was added to the cart.

Part No. 372129 AK 6.10 KSV S KBF3 18 V2A

GTIN 4013364119185, Customs tariff No. (EU): 85359000, Gross weight: 280.00 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, vertical, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV S KBF3 18 V2A
Part No.: 372129
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372129 was added to Notepad.

Product 372129 was added to the cart.

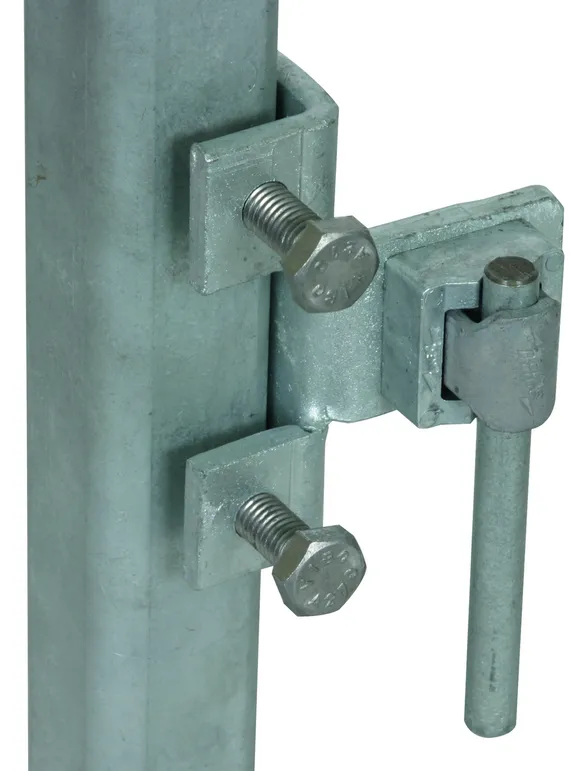

Part No. 372150 AK 7.10 KSV S KBF18 35 STTZN

GTIN 4013364119093, Customs tariff No. (EU): 85359000, Gross weight: 343.60 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, vertical, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV S KBF18 35 STTZN
Part No.: 372150
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp St/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372150 was added to Notepad.

Product 372150 was added to the cart.

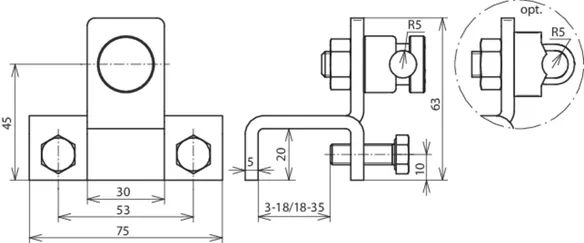

Part No. 372159 AK 6.10 KSV S KBF18 35 V2A

GTIN 4013364119215, Customs tariff No. (EU): 85359000, Gross weight: 337.80 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, vertical, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV S KBF18 35 V2A
Part No.: 372159
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372159 was added to Notepad.

Product 372159 was added to the cart.


Horizontal design, with KS connector

Lengthwise or crosswise connection with KS connector.

4 Products

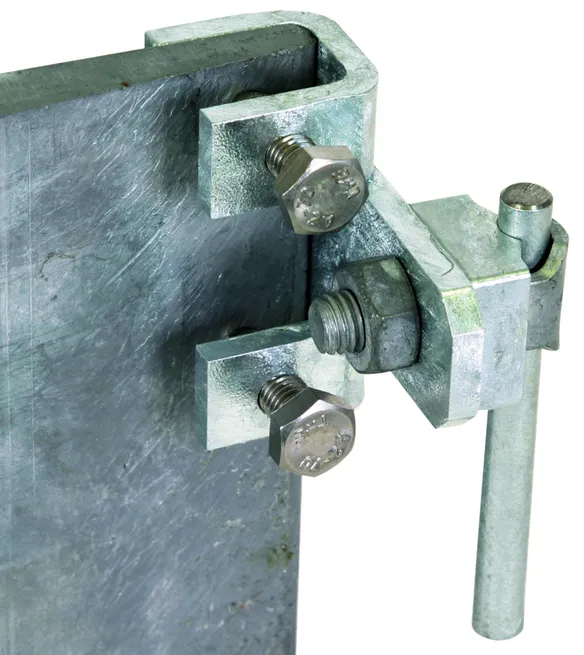

Part No. 372220 AK 7.10 KSV W KBF3 18 STTZN

GTIN 4013364119123, Customs tariff No. (EU): 85359000, Gross weight: 292.40 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, horizontal, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV W KBF3 18 STTZN
Part No.: 372220
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp St/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372220 was added to Notepad.

Product 372220 was added to the cart.

Part No. 372229 AK 6.10 KSV W KBF3 18 V2A

GTIN 4013364119246, Customs tariff No. (EU): 85359000, Gross weight: 287.90 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, horizontal, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV W KBF3 18 V2A
Part No.: 372229
or equivalent.

Certificates



Technical data

Clamping range 3-18 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372229 was added to Notepad.

Product 372229 was added to the cart.

Part No. 372250 AK 7.10 KSV W KBF18 35 STTZN

GTIN 4013364119154, Customs tariff No. (EU): 85359000, Gross weight: 342.60 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, horizontal, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV W KBF18 35 STTZN
Part No.: 372250
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp St/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372250 was added to Notepad.

Product 372250 was added to the cart.

Part No. 372259 AK 6.10 KSV W KBF18 35 V2A

GTIN 4013364119277, Customs tariff No. (EU): 85359000, Gross weight: 335.80 g, PU: 25.00 pc(s)


Images

Additional information

Connection clamps for steel girders, horizontal, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV W KBF18 35 V2A
Part No.: 372259
or equivalent.

Certificates



Technical data

Clamping range 18-35 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 372259 was added to Notepad.

Product 372259 was added to the cart.


back to top
