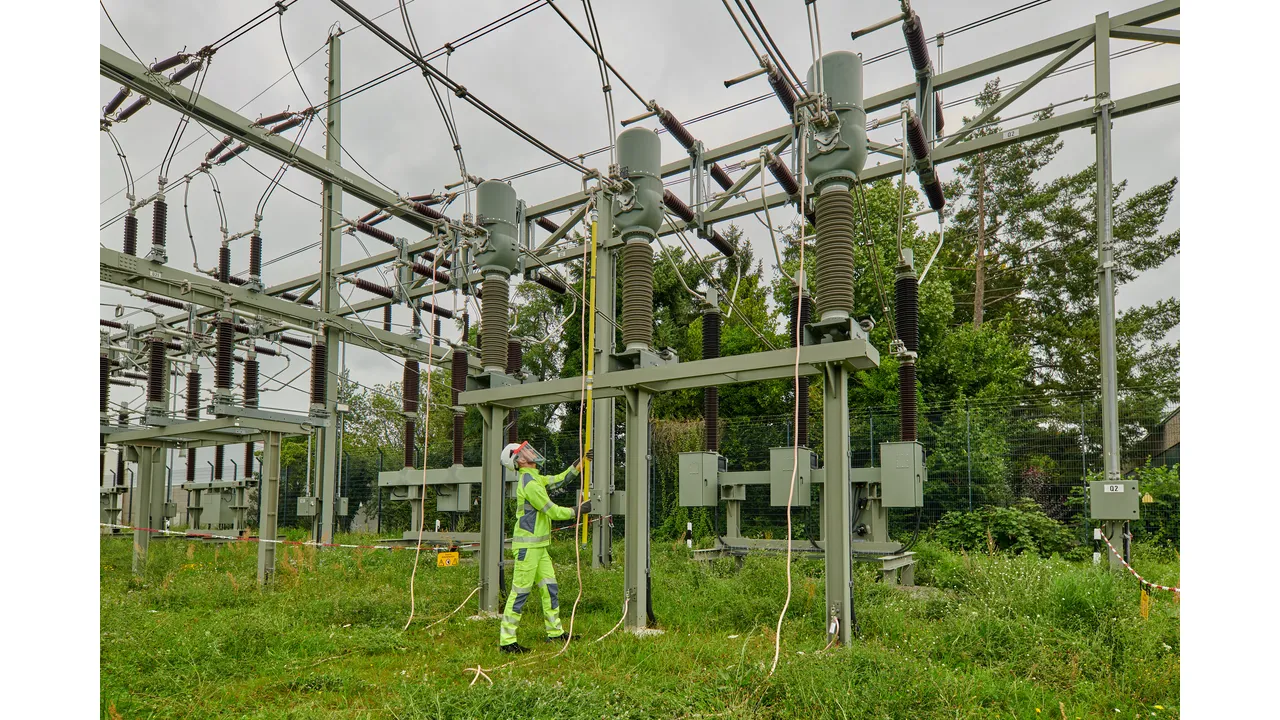

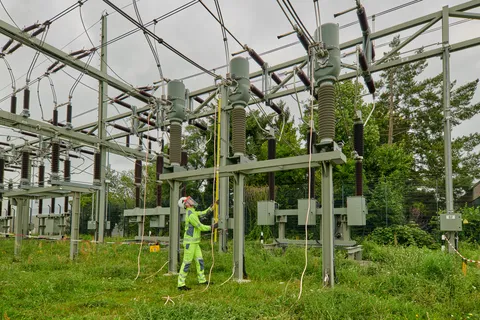

架空线路的接地棒

  • 适合室外使用
  • 坚固的铝制锥形联轴器
  • 可实现的总长度达 6000 mm
  • 伸缩杆可通过星形手柄进行无级调节
  • 适合相位螺旋夹和带 T 型长轴的夹具

Details

带环眼（铝制/橡胶）的端头部件，或用于延长手柄（带铝制/橡胶环眼）的插接式联轴器。
lorem ipsum
在螺旋接合和啮合的作用下，坚固的铝制螺旋联轴器可以完成强力锁紧的连接。
lorem ipsum
接地棒带有铝制锥形联轴器，用于符合 DIN 48087 标准的长主轴夹具。
lorem ipsum
可锁定的调节环
锥体上有一个调节环，其功能如下：
– “打开”位置：将夹具固定后，可以将接地棒拔出。
- “关闭”位置：即使夹具被固定，接地棒和夹具仍然保持牢固的连接。
lorem ipsum
接地棒（可延长）的负荷值。
lorem ipsum

伸缩式，带 T 型套筒

2 Products

Part No. 769400 ESTC SQL 4000

GTIN 4013364080881, Customs tariff No. (EU): 820559, Gross weight: 4.42 kg, PU: 1.00 件

Images

Additional information



Technical data

总长度 (lG max / IG min ) 4015 / 2180 mm
手柄长度 (IH ) 1400 mm
允许的最大头部负荷 (lG max / IG min ) 10 / 20 kg
直径 43 mm

Product 769400 was added to Notepad.

Go to Notepad

Product 769400 was added to the cart.

Go to Web-Shop

Part No. 769500 ESTC SQL 5000

GTIN 4013364080904, Customs tariff No. (EU): 820559, Gross weight: 5.02 kg, PU: 1.00 件

Images

Additional information



Technical data

总长度 (lG max / IG min ) 5015 / 2680 mm
手柄长度 (IH ) 1900 mm
允许的最大头部负荷 (lG max / IG min ) 10 / 20 kg
直径 43 mm

Product 769500 was added to Notepad.

Go to Notepad

Product 769500 was added to the cart.

Go to Web-Shop

伸缩式，带 T 型套筒和插接式联轴器

1 Product

Part No. 769300 ESTC SQL STK 3000

GTIN 4013364080867, Customs tariff No. (EU): 820559, Gross weight: 3.80 kg, PU: 1.00 件

Images

Additional information



Technical data

总长度 (lG max / IG min ) 3015 / 1760 mm
手柄长度 (IH ) 900 mm
允许的最大头部负荷 (lG max / IG min ) 10 / 20 kg
直径 43 mm

Product 769300 was added to Notepad.

Go to Notepad

Product 769300 was added to the cart.

Go to Web-Shop

多件式，头部件

端头部件带铝制卡口式联轴器和铝制螺旋联轴器。

1 Product

Part No. 769503 EST KS SQL 1500

GTIN 4013364003996, Customs tariff No. (EU): 820559, Gross weight: 2.39 kg, PU: 1.00 件

Images

Additional information



Technical data

总长度 (lG ) 1600 mm
允许的最大头部负荷 20 kg
直径 43 mm

Product 769503 was added to Notepad.

Go to Notepad

Product 769503 was added to the cart.

Go to Web-Shop
