接地固定点

  • 用于连接符合 DIN 48088-2 标准的接地连接插座或接地连接板
  • 用于焊接或拧紧接地连接件（带翼形螺母或翼形螺钉）的接地侧连接
  • 带 M12 或 M16 螺纹销的连接件
  • M12 或 M16 内螺纹

Details

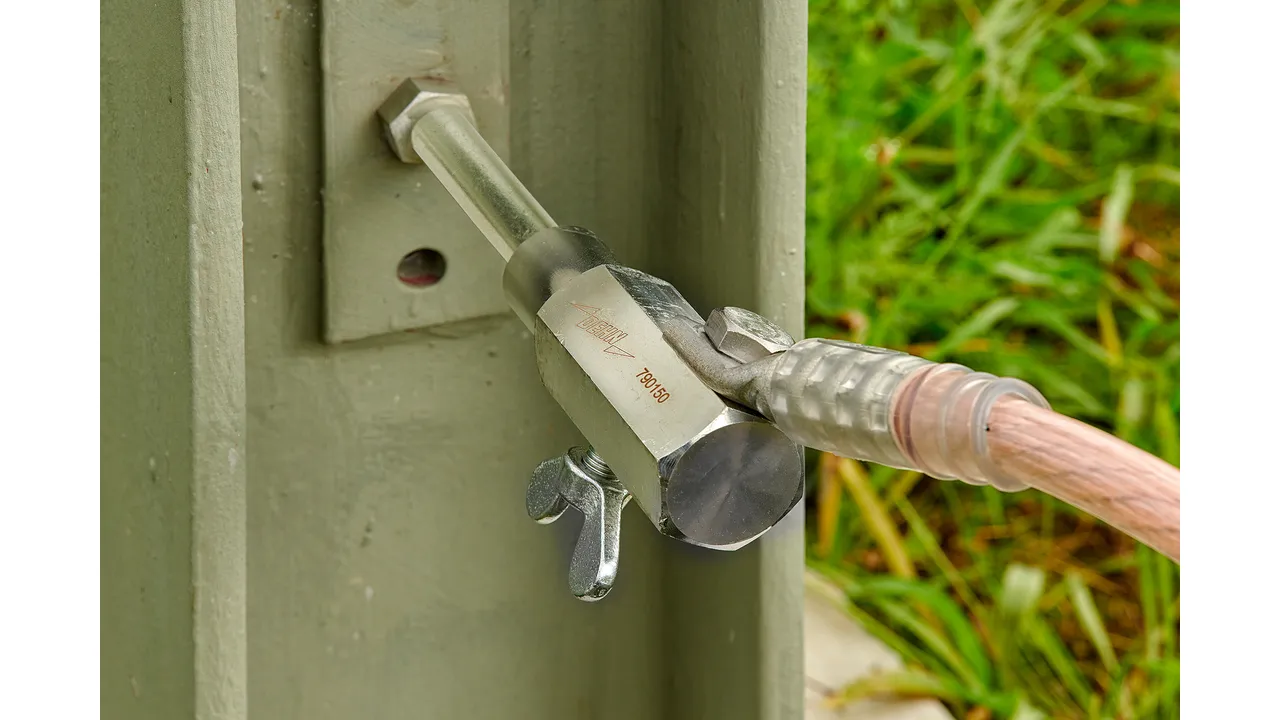

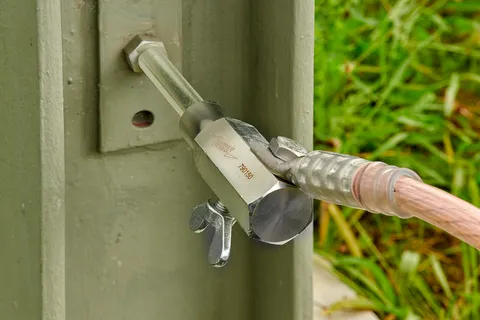

用 M12 螺纹销将接地连接件拧紧在接地的设备部件上。
lorem ipsum

环形槽固定点，带螺纹销和螺母

2 Products

Part No. 790251 EFP 16 RN M12 35 SSM

GTIN 4013364089501, Customs tariff No. (EU): 853590, Gross weight: 248.00 g, PU: 1.00 件

Images

Additional information



Technical data

尺寸 M12 x 35 mm
直径 16 mm
扳手开口宽度 22 mm
最大铜绞线截面 150 mm²
最大短路电流 Ik 0.5 秒 42.0*) kA
最大短路电流 Ik 1 秒 29.6*) kA
材料 黄铜 (CuNi2Si)/镀锡
螺纹销材料 不锈钢 A2-70
螺母材料 DIN 985-M12-8/镀锌
*) 适用于电缆长度大于 4000 mm 的接地和短路装置：26.5 kA/0.5 s (18.7 kA/1 s)

Product 790251 was added to Notepad.

Go to Notepad

Product 790251 was added to the cart.

Go to Web-Shop

Part No. 790261 EFP 16 RN M16 45 SSM

GTIN 4013364089525, Customs tariff No. (EU): 853590, Gross weight: 277.00 g, PU: 1.00 件

Images

Additional information



Technical data

尺寸 M16 x 45 mm
直径 16 mm
扳手开口宽度 22 mm
最大铜绞线截面 150 mm²
最大短路电流 Ik 0.5 秒 42.0*) kA
最大短路电流 Ik 1 秒 29.6*) kA
材料 黄铜 (CuNi2Si)/镀锡
螺纹销材料 不锈钢 A2-70
螺母材料 DIN 985-M16-8/镀锌
*) 适用于电缆长度大于 4000 mm 的接地和短路装置：26.5 kA/0.5 s (18.7 kA/1 s)

Product 790261 was added to Notepad.

Go to Notepad

Product 790261 was added to the cart.

Go to Web-Shop

环形槽固定点，带内螺纹

2 Products

Part No. 790250 EFP 16 RN M12

GTIN 4013364089495, Customs tariff No. (EU): 853590, Gross weight: 193.00 g, PU: 1.00 件

Images

Additional information



Technical data

尺寸 M12
直径 16 mm
扳手开口宽度 22 mm
最大铜绞线截面 150 mm²
最大短路电流 Ik 0.5 秒 42.0*) kA
最大短路电流 Ik 1 秒 29.6*) kA
材料 黄铜 (CuNi2Si)/镀锡
*) 适用于电缆长度大于 4000 mm 的接地和短路装置：26.5 kA/0.5 s (18.7 kA/1 s)

Product 790250 was added to Notepad.

Go to Notepad

Product 790250 was added to the cart.

Go to Web-Shop

Part No. 790260 EFP 16 RN M16

GTIN 4013364089518, Customs tariff No. (EU): 853590, Gross weight: 180.00 g, PU: 1.00 件

Images

Additional information



Technical data

尺寸 M16
直径 16 mm
扳手开口宽度 22 mm
最大铜绞线截面 150 mm²
最大短路电流 Ik 0.5 秒 42.0*) kA
最大短路电流 Ik 1 秒 29.6*) kA
材料 黄铜 (CuNi2Si)/镀锡
*) 适用于电缆长度大于 4000 mm 的接地和短路装置：26.5 kA/0.5 s (18.7 kA/1 s)

Product 790260 was added to Notepad.

Go to Notepad

Product 790260 was added to the cart.

Go to Web-Shop

用于焊接的连接件，带螺纹销

1 Product

Part No. 705501 AS SCHW M12 25

GTIN 4013364003927, Customs tariff No. (EU): 853590, Gross weight: 157.20 g, PU: 1.00 件

Images

Additional information



Technical data

尺寸 M12 x 25 mm
材料 镀锌钢

Product 705501 was added to Notepad.

Go to Notepad

Product 705501 was added to the cart.

Go to Web-Shop
