球固定点

  • 适用于按照 DIN 43673-1 标准紧固母线连接件
  • 自锁螺母
  • 无屑成型内螺纹 M12 或 M16
  • M12 或 M16 螺纹销

Details

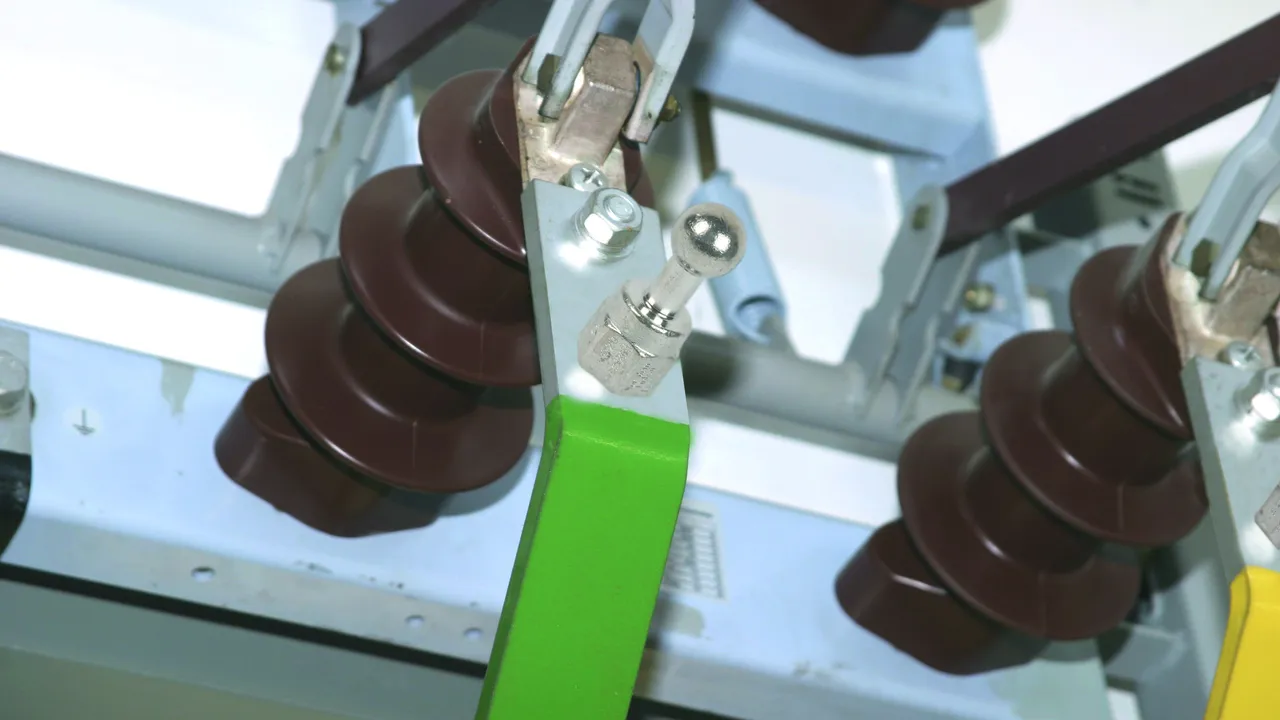

球固定点呈角度设计。
lorem ipsum

倾斜，带连接接头

1 Product

Part No. 706300 KFP 20 S AL 12

GTIN 4013364003675, Customs tariff No. (EU): 853590, Gross weight: 129.00 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 20 mm
孔径 12.5 mm
尺寸 45 x 30 x 9 mm
最大铜绞线截面 50 mm²
最大短路电流 Ik 0.5 秒 14.0 kA
最大短路电流 Ik 1 秒 9.9 kA

Product 706300 was added to Notepad.

Go to Notepad

Product 706300 was added to the cart.

Go to Web-Shop

竖直，带螺纹销和自锁螺母

3 Products

Part No. 754235 KFP 20 M12 35 SSM

GTIN 4013364004221, Customs tariff No. (EU): 853590, Gross weight: 183.70 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 20 mm
尺寸 M12 x 35 mm
扳手开口宽度 24 mm
最大铜绞线截面 120 mm²
最大短路电流 Ik 0.5 秒 33.5 kA
最大短路电流 Ik 1 秒 23.7 kA

Product 754235 was added to Notepad.

Go to Notepad

Product 754235 was added to the cart.

Go to Web-Shop

Part No. 755225 KFP 25 M12 25 SSM

GTIN 4013364004498, Customs tariff No. (EU): 853590, Gross weight: 265.00 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 25 mm
尺寸 M12 x 25 mm
扳手开口宽度 27 mm
最大铜绞线截面 150 mm²
最大短路电流 Ik 0.5 秒 42.0 kA
最大短路电流 Ik 1 秒 29.6 kA

Product 755225 was added to Notepad.

Go to Notepad

Product 755225 was added to the cart.

Go to Web-Shop

Part No. 755247 KFP 25 M12 45 SN7125

GTIN 4013364133327, Customs tariff No. (EU): 853590, Gross weight: 278.00 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 25 mm
尺寸 M12 x 45 mm
扳手开口宽度 27 mm
最大铜绞线截面 150 mm²
最大短路电流 Ik 0.5 秒 42.0 kA
最大短路电流 Ik 1 秒 29.6 kA

Product 755247 was added to Notepad.

Go to Notepad

Product 755247 was added to the cart.

Go to Web-Shop

竖直，带内螺纹

5 Products

Part No. 754205 KFP 20 M10

GTIN 4013364097865, Customs tariff No. (EU): 853590, Gross weight: 136.60 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 20 mm
尺寸 M10
扳手开口宽度 24 mm
最大铜绞线截面 120 mm²
最大短路电流 Ik 0.5 秒 33.5 kA
最大短路电流 Ik 1 秒 23.7 kA

Product 754205 was added to Notepad.

Go to Notepad

Product 754205 was added to the cart.

Go to Web-Shop

Part No. 754200 KFP 20 M12

GTIN 4013364004207, Customs tariff No. (EU): 853590, Gross weight: 131.30 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 20 mm
尺寸 M12
扳手开口宽度 24 mm
最大铜绞线截面 120 mm²
最大短路电流 Ik 0.5 秒 33.5 kA
最大短路电流 Ik 1 秒 23.7 kA

Product 754200 was added to Notepad.

Go to Notepad

Product 754200 was added to the cart.

Go to Web-Shop

Part No. 754600 KFP 20 M16

GTIN 4013364004214, Customs tariff No. (EU): 853590, Gross weight: 116.00 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 20 mm
尺寸 M16
扳手开口宽度 24 mm
最大铜绞线截面 120 mm²
最大短路电流 Ik 0.5 秒 33.5 kA
最大短路电流 Ik 1 秒 23.7 kA

Product 754600 was added to Notepad.

Go to Notepad

Product 754600 was added to the cart.

Go to Web-Shop

Part No. 755200 KFP 25 M12

GTIN 4013364000087, Customs tariff No. (EU): 853590, Gross weight: 220.00 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 25 mm
尺寸 M12
扳手开口宽度 27 mm
最大铜绞线截面 150 mm²
最大短路电流 Ik 0.5 秒 42.0 kA
最大短路电流 Ik 1 秒 29.6 kA

Product 755200 was added to Notepad.

Go to Notepad

Product 755200 was added to the cart.

Go to Web-Shop

Part No. 755600 KFP 25 M16

GTIN 4013364000094, Customs tariff No. (EU): 853590, Gross weight: 204.00 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 25 mm
尺寸 M16
扳手开口宽度 27 mm
最大铜绞线截面 150 mm²
最大短路电流 Ik 0.5 秒 42.0 kA
最大短路电流 Ik 1 秒 29.6 kA

Product 755600 was added to Notepad.

Go to Notepad

Product 755600 was added to the cart.

Go to Web-Shop

45° 角，带内螺纹

4 Products

Part No. 706200 KFP 20 W45 M12

GTIN 4013364004276, Customs tariff No. (EU): 853590, Gross weight: 172.40 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 20 mm
尺寸 M12
扳手开口宽度 24 mm
最大铜绞线截面 70 mm²
最大短路电流 Ik 0.5 秒 19.5 kA
最大短路电流 Ik 1 秒 13.8 kA

Product 706200 was added to Notepad.

Go to Notepad

Product 706200 was added to the cart.

Go to Web-Shop

Part No. 706600 KFP 20 W45 M16

GTIN 4013364004283, Customs tariff No. (EU): 853590, Gross weight: 158.40 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 20 mm
尺寸 M16
扳手开口宽度 24 mm
最大铜绞线截面 70 mm²
最大短路电流 Ik 0.5 秒 19.5 kA
最大短路电流 Ik 1 秒 13.8 kA

Product 706600 was added to Notepad.

Go to Notepad

Product 706600 was added to the cart.

Go to Web-Shop

Part No. 756200 KFP 25 W45 M12

GTIN 4013364004313, Customs tariff No. (EU): 853590, Gross weight: 357.20 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 25 mm
尺寸 M12
扳手开口宽度 27 mm
最大铜绞线截面 95 mm²
最大短路电流 Ik 0.5 秒 26.5 kA
最大短路电流 Ik 1 秒 18.7 kA

Product 756200 was added to Notepad.

Go to Notepad

Product 756200 was added to the cart.

Go to Web-Shop

Part No. 756600 KFP 25 W45 M16

GTIN 4013364004320, Customs tariff No. (EU): 853590, Gross weight: 356.00 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 25 mm
尺寸 M16
扳手开口宽度 27 mm
最大铜绞线截面 95 mm²
最大短路电流 Ik 0.5 秒 26.5 kA
最大短路电流 Ik 1 秒 18.7 kA

Product 756600 was added to Notepad.

Go to Notepad

Product 756600 was added to the cart.

Go to Web-Shop

90° 角，带螺纹销和自锁螺母

1 Product

Part No. 757245 KFP 25 W90 M12 45SSM

GTIN 4013364004429, Customs tariff No. (EU): 853590, Gross weight: 454.40 g, PU: 1.00 件

Images

Additional information



Technical data

球固定点 Ø 25 mm
尺寸 M12 x 45 mm
扳手开口宽度 27 mm
最大铜绞线截面 95 mm²
最大短路电流 Ik 0.5 秒 26.5 kA
最大短路电流 Ik 1 秒 18.7 kA

Product 757245 was added to Notepad.

Go to Notepad

Product 757245 was added to the cart.

Go to Web-Shop
