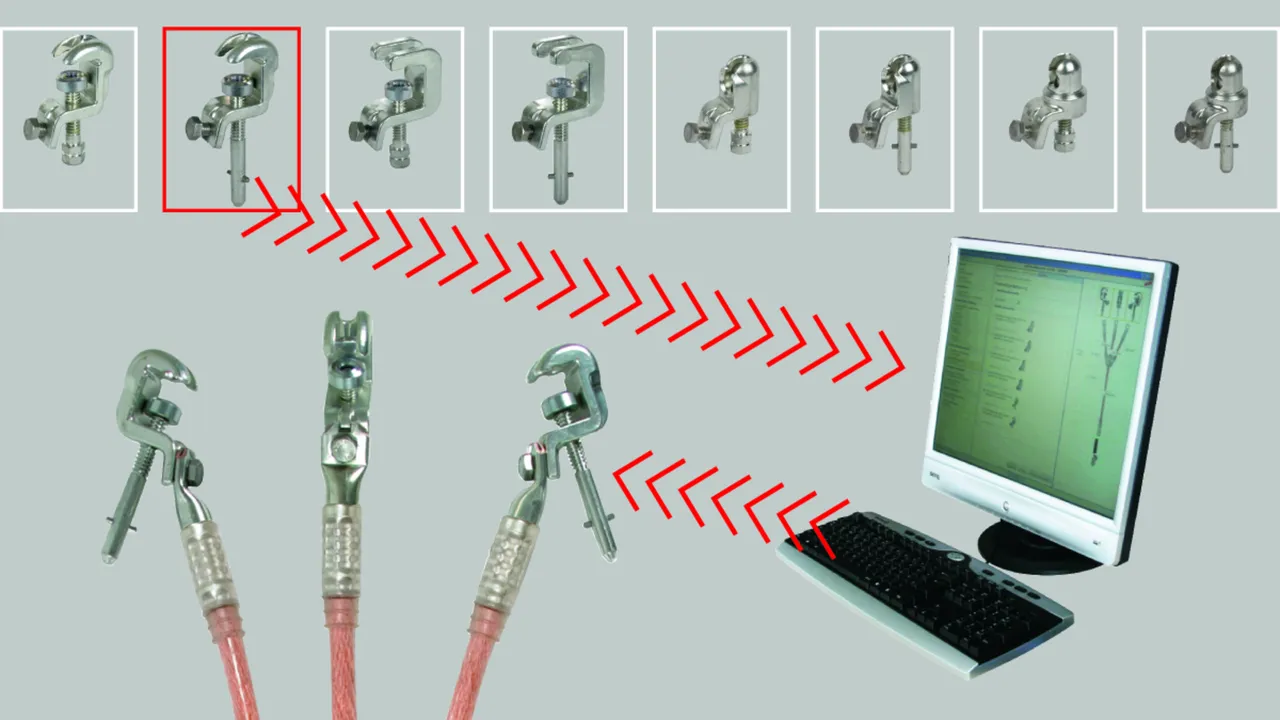

接地和短路配置器：简单在线配置

  • 直接在线选择合适的接地和短路装置
  • 接地和短路装置有明确的激光标记
  • 个性化配置
  • 在后台进行永久合理性检查
  • 用户界面易于操作
  • 通过型号、之前的商品号或通过产品配置功能开始进行配置

Details

lorem ipsum
lorem ipsum

Further information

Similar topics

三极，截面相同，带球头帽

... 简单配置 ...

4 Products

Part No. VGJD2QX EKV3+1 16 G VGJD2QX

GTIN 4013364165373, Customs tariff No. (EU): 853590, Gross weight: 3.12 kg, PU: 1.00 件

Images

Additional information



Technical data

相侧连接 KKH 20 SK
接地侧连接 EAS EK FM 12
适合球固定点 Ø 20 mm
铜绞线截面 16 mm2
最大短路电流 Ik 0.5 秒 4.5 kA
最大短路电流 Ik 1 秒 3.2 kA

Product VGJD2QX was added to Notepad.

Go to Notepad

Product VGJD2QX was added to the cart.

Go to Web-Shop

Part No. VRDSN66 EKV3+1 25 G VRDSN66

GTIN 4013364163669, Customs tariff No. (EU): 853590, Gross weight: 3.44 kg, PU: 1.00 件

Images

Additional information



Technical data

相侧连接 KKH 20 SK
接地侧连接 EAS EK FM 12
适合球固定点 Ø 20 mm
铜绞线截面 25 mm2
最大短路电流 Ik 0.5 秒 7.0 kA
最大短路电流 Ik 1 秒 4.9 kA

Product VRDSN66 was added to Notepad.

Go to Notepad

Product VRDSN66 was added to the cart.

Go to Web-Shop

Part No. V3WJMYY EKV3+1 35 G V3WJMYY

GTIN 4013364163676, Customs tariff No. (EU): 853590, Gross weight: 3.81 kg, PU: 1.00 件

Images

Additional information



Technical data

相侧连接 KKH 20 SK
接地侧连接 EAS EK FM 12
适合球固定点 Ø 20 mm
铜绞线截面 35 mm2
最大短路电流 Ik 0.5 秒 10.0 kA
最大短路电流 Ik 1 秒 6.9 kA

Product V3WJMYY was added to Notepad.

Go to Notepad

Product V3WJMYY was added to the cart.

Go to Web-Shop

Part No. VU8P6LE EKV3+1 50 G VU8P6LE

GTIN 4013364165380, Customs tariff No. (EU): 853590, Gross weight: 4.53 kg, PU: 1.00 件

Images

Additional information



Technical data

相侧连接 KKH 20 SK
接地侧连接 EAS EK FM 12
适合球固定点 Ø 20 mm
铜绞线截面 50 mm2
最大短路电流 Ik 0.5 秒 14.0 kA
最大短路电流 Ik 1 秒 9.9 kA

Product VU8P6LE was added to Notepad.

Go to Notepad

Product VU8P6LE was added to the cart.

Go to Web-Shop
