Wskaźnik napięcia PHE - zestaw

Easy and safe testing

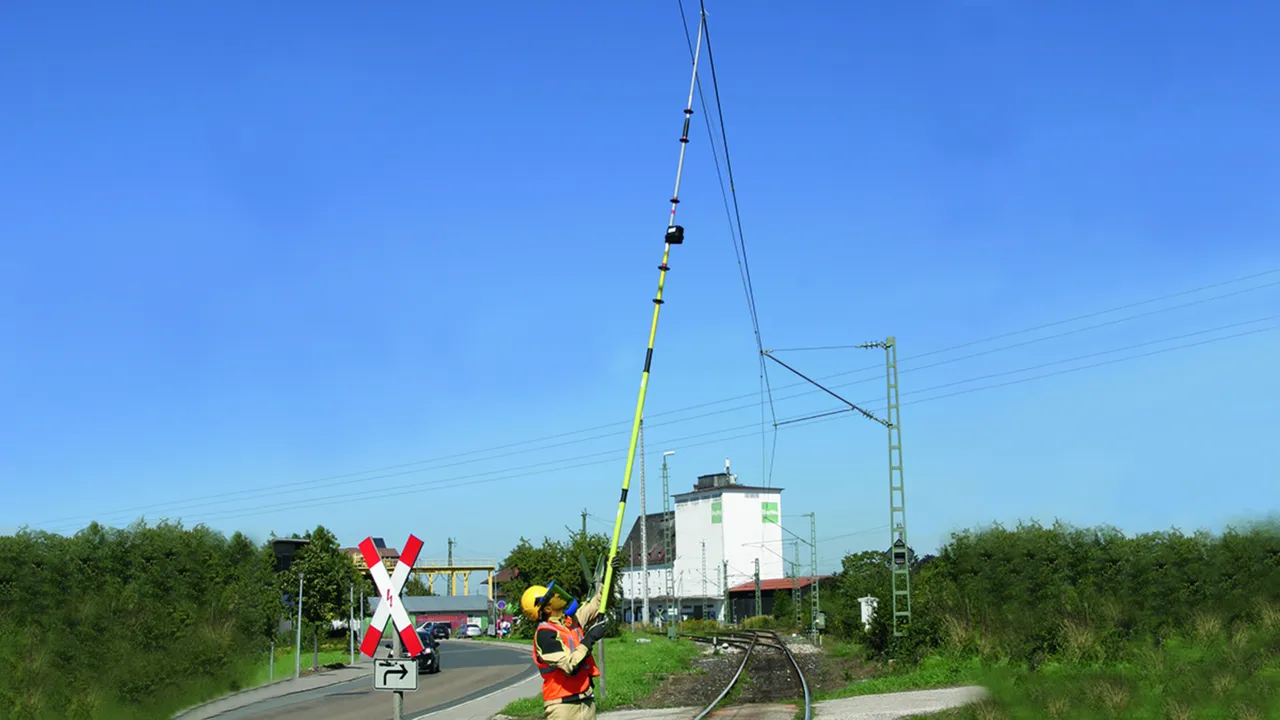

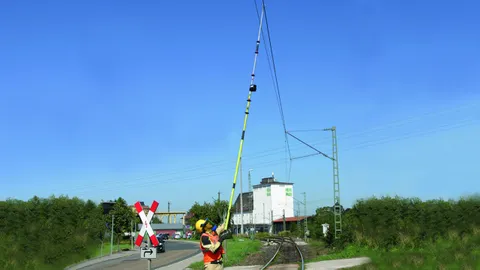

For overhead contact lines of electric railways
Cost-effective / space-saving transport
Easy to use due to simple plug-in system

Details

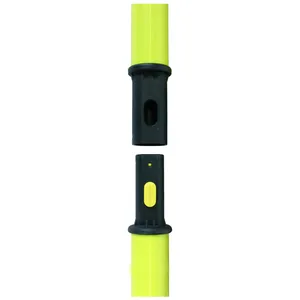

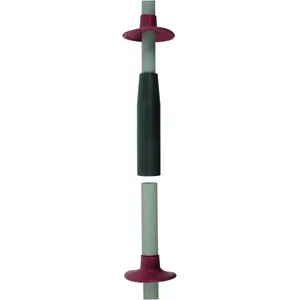

Insulating stick with anti-rotation plug-in coupling

lorem ipsum — Insulating stick with anti-rotation plug-in coupling

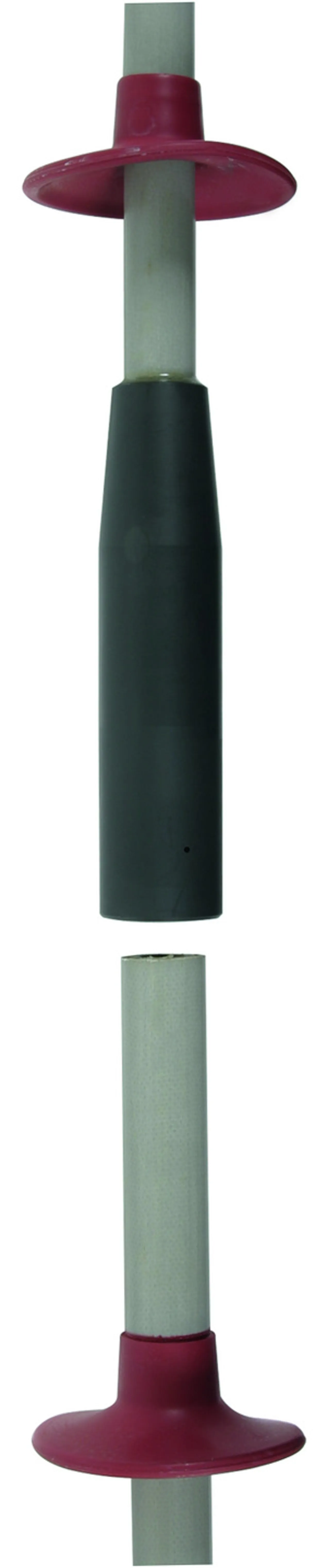

Two-part test prod with robust threaded coupling (six-part kit for transport in motor vehicles)

lorem ipsum — Two-part test prod with robust threaded coupling (six-part kit for transport in motor vehicles)

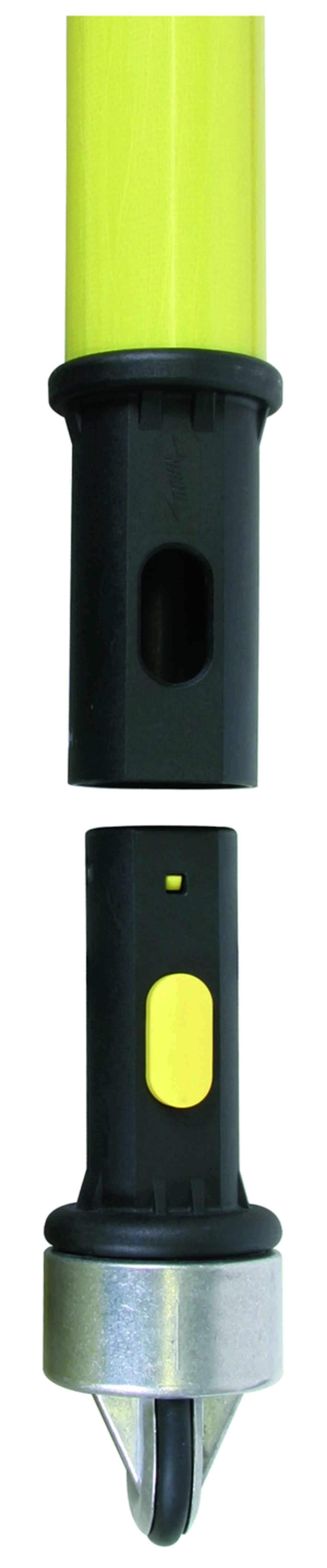

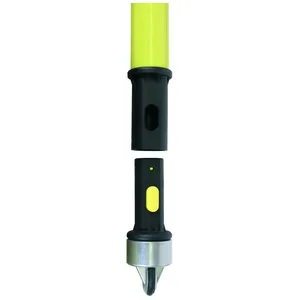

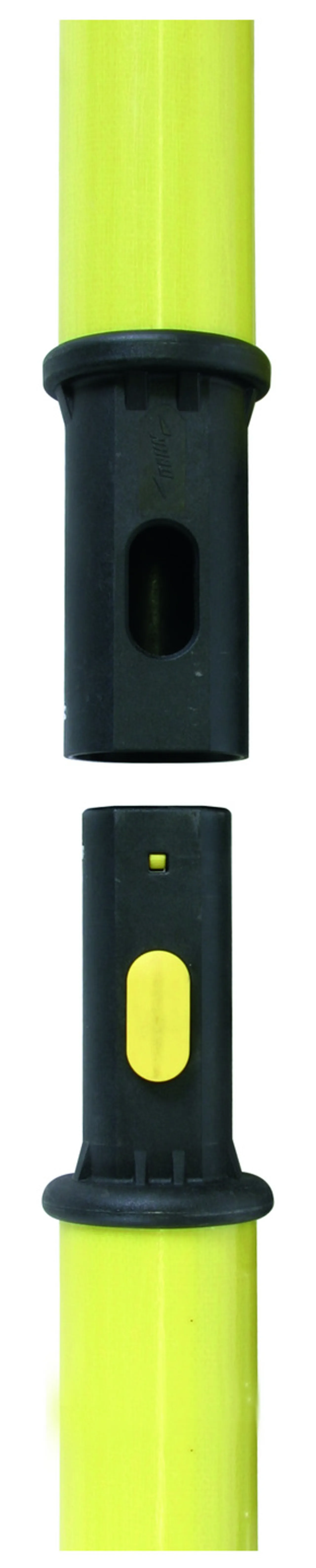

End fitting with plug-in coupling and non-slip eye

lorem ipsum — End fitting with plug-in coupling and non-slip eye

lorem ipsum

Napięcie znamionowe 15 kV / 16,7 Hz

Detachable (four elements).

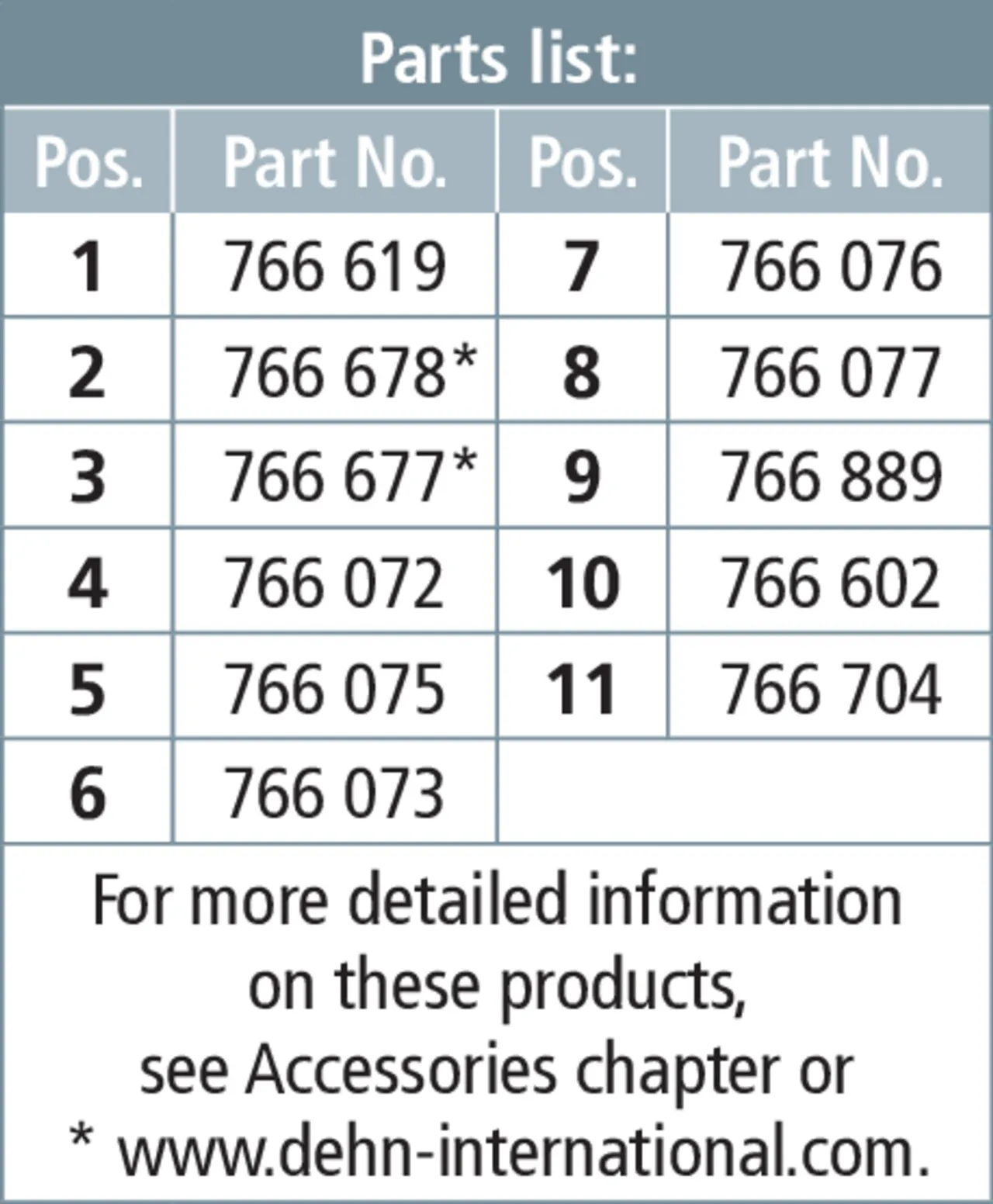

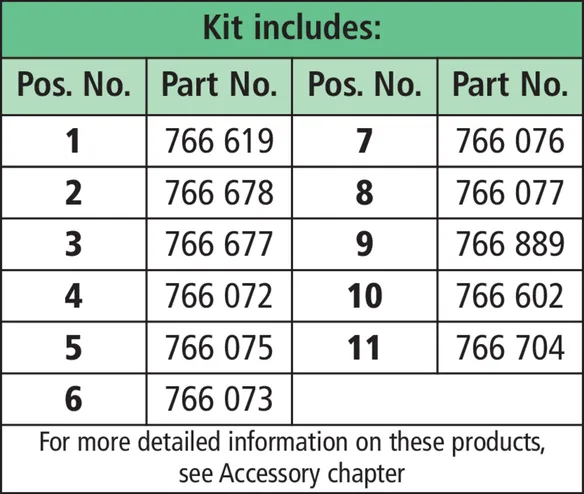

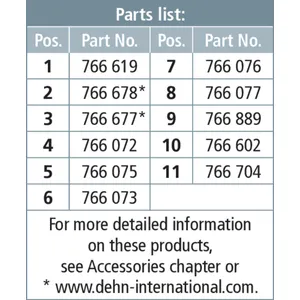

1 Product

Part No. 766616 PHE 15 16.7 4T TA

GTIN 4013364126091, Customs tariff No. (EU): 90303370, Gross weight: 5.09 kg, PU: 1.00 szt.

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	15 kV
Frequency	16.7 Hz
Total length (l_G )	4890 mm
Insertion depth (I_O )	1675 mm
DB drawing No.	3 Ebgw 02.51
DB material No.	237 129

Nominal voltage (U_N )	15 kV
Frequency	16.7 Hz
Total length (l_G )	4890 mm
Insulating clearance (l_I )	685 mm
Insertion depth (I_O )	1675 mm
Length of the prod	1900 mm
Length of the operating stick (with hand guard)	640 mm
Length of the operating stick (end fitting)	2530 mm
DB drawing No.	3 Ebgw 02.51
DB material No.	237 129
Standard	DIN VDE 0681-6
Design	Complete
For use at	_
For	Outdoor installations
Application	Overhead contact lines of electric railways
Version	Single-pole
Indication	Visual
Self-testing element	Yes
Battery	Lithium
Material (test electrode)	St/gal Zn
Material (test prod)	Glass-fibre reinforced polyester tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
