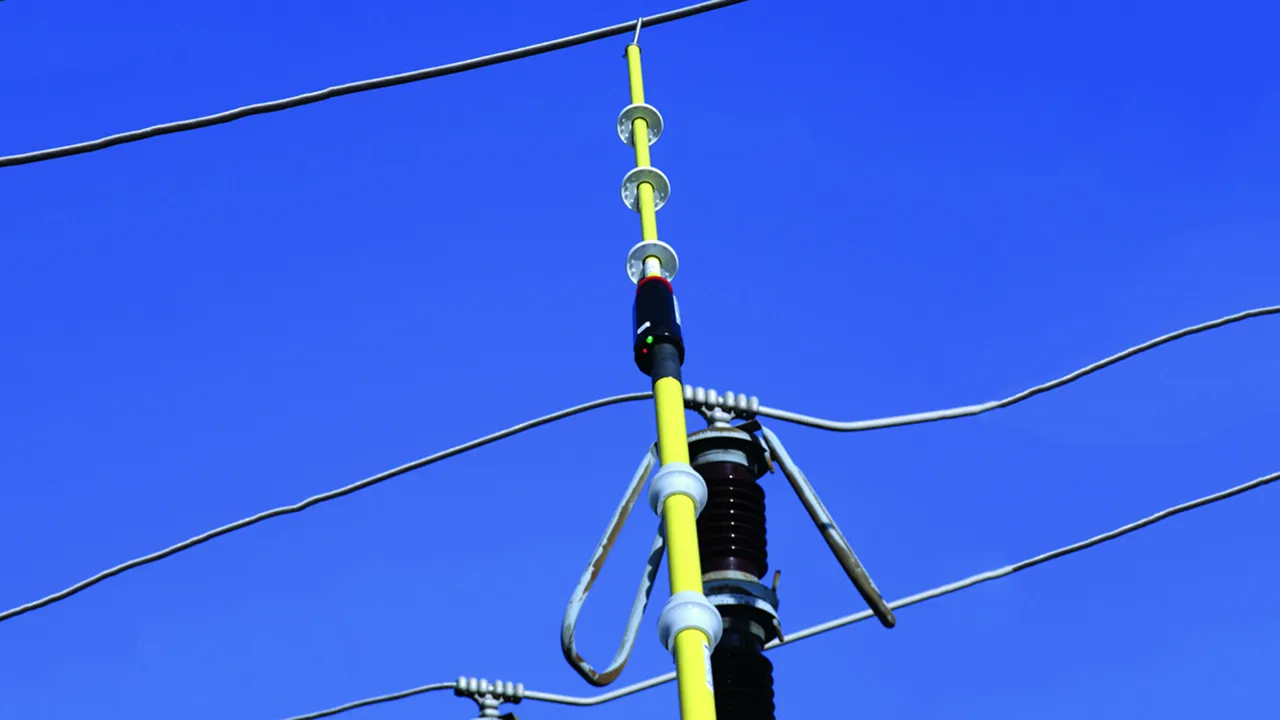

Wskaźnik napięcia PHE III - zestaw

Safe verification of isolation from supply voltage

Reliable indication
Easy to use
Multi-purpose kit
Cost-effective / space-saving transport

Details

Napięcie znamionowe 20 kV / 50 Hz

Category "S" for switchgear installations and overhead lines.

1 Product

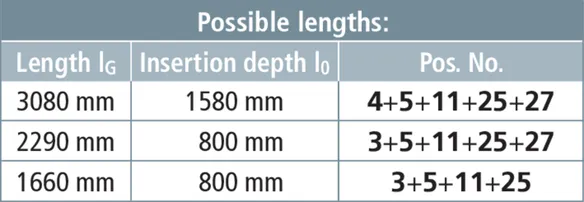

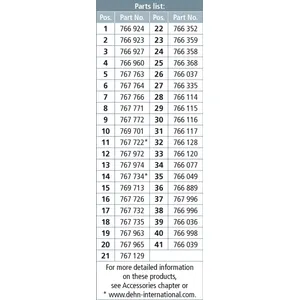

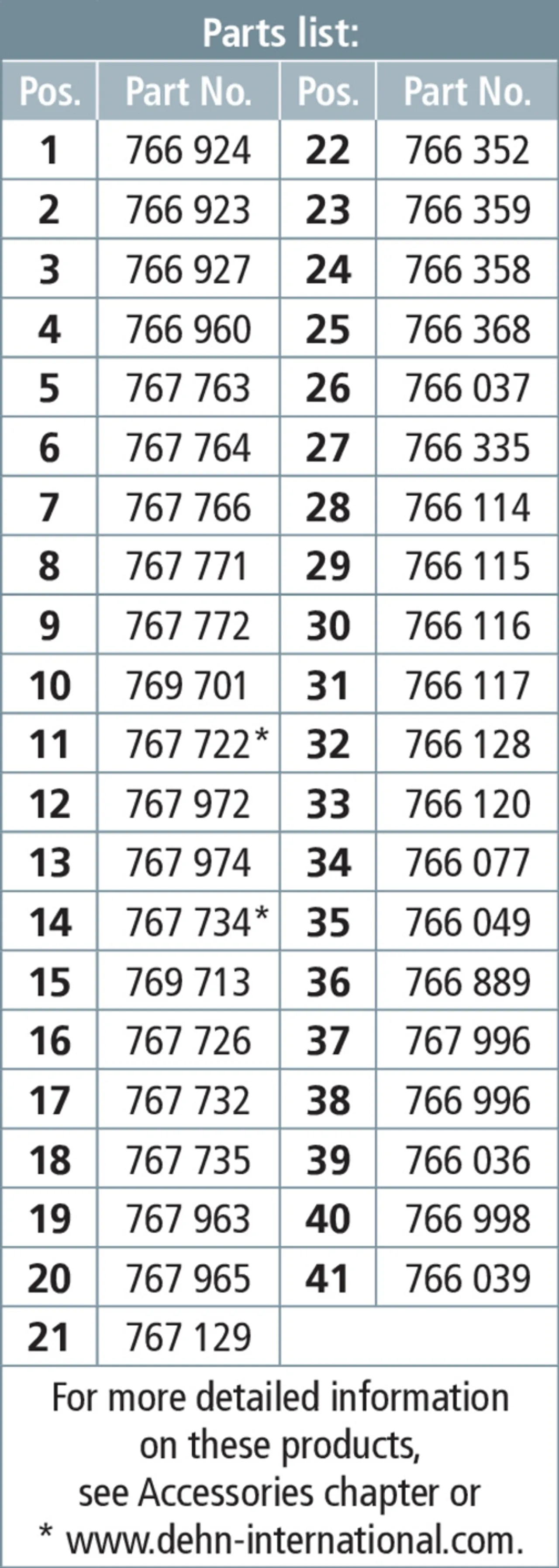

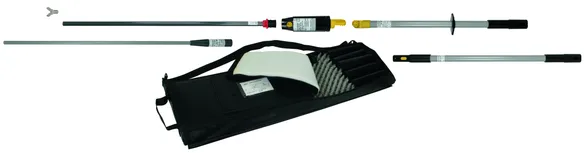

Part No. 767724 PHE3S 20 S ZK

GTIN 4013364125902, Customs tariff No. (EU): 90303370, Gross weight: 4.22 kg, PU: 1.00 szt.

Images

Additional information

Certificates

Technical data

Nominal voltage (U_N )	20 kV

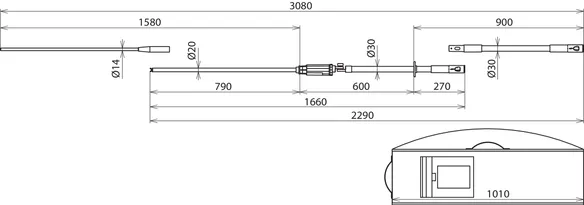

Total length (l_{G max} )	3080 mm
Insertion depth (I_{O max} )	1580 mm

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_{G max} )	3080 mm
Insertion depth (I_{O max} )	1580 mm
Standard (indicator with test prod)	EN/IEC 61243-1 (DIN VDE 0682-411)
Standard (universal gear coupling)	EN/IEC 60832 (DIN VDE 0682-211)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767724 was added to Notepad.

Go to Notepad

Product 767724 was added to the cart.

Go to Web-Shop

Napięcie znamionowe 20 kV / 50 Hz

Category "L" for overhead lines.

1 Product

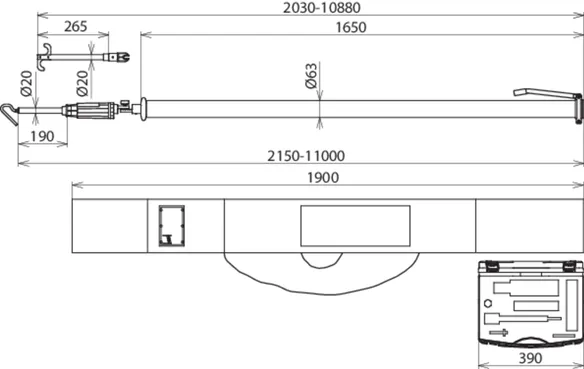

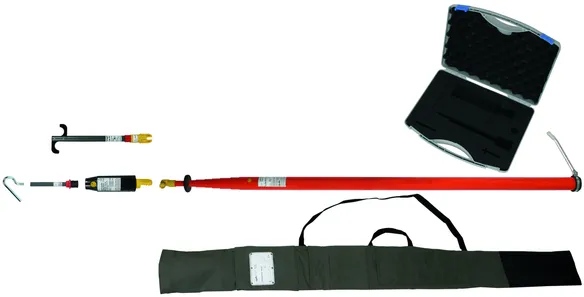

Part No. 767725 PHE3S 20 L ZK

GTIN 4013364125919, Customs tariff No. (EU): 90303370, Gross weight: 9.10 kg, PU: 1.00 szt.

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	20 kV
Total length (l_{G max}/ I_{G min} )	11000 / 2150 mm
Insertion depth (I_O )	190 mm

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	L
Total length (l_{G max}/ I_{G min} )	11000 / 2150 mm
Insertion depth (I_O )	190 mm
Standard (indicator with test prod)	EN/IEC 61243-1 (DIN VDE 0682-411)
Standard (universal gear coupling)	EN/IEC 60832 (DIN VDE 0682-211)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767725 was added to Notepad.

Go to Notepad

Product 767725 was added to the cart.

Go to Web-Shop

Zakres napięcia znamionowego 60 ... 110 kV / 50 Hz

Kategoria „S” do rozdzielnic i linii napowietrznych.

2 Products

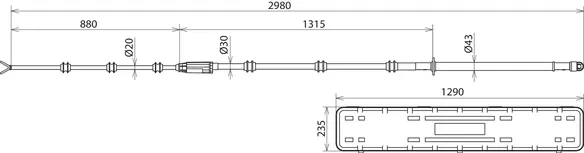

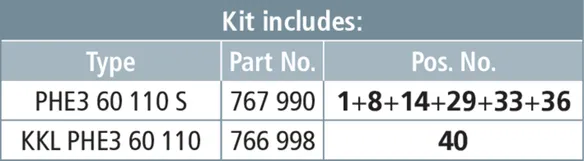

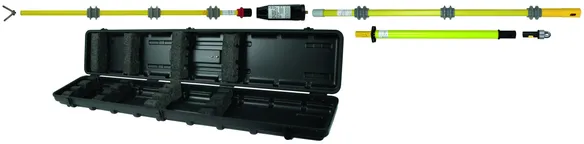

Part No. 767980 PHE3S2 60 110 S

GTIN 4013364125926, Customs tariff No. (EU): 90303370, Gross weight: 6.98 kg, PU: 1.00 szt.

Predecessor

Images

Additional information

Certificates

Technical data

Nominal voltage (U_N )	60 ... 110 kV
Total length (I_G )	2980 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	60 ... 110 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (I_G )	2980 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767980 was added to Notepad.

Go to Notepad

Product 767980 was added to the cart.

Go to Web-Shop

Part No. 767990 PHE3 60 110 S

GTIN 4013364135956, Customs tariff No. (EU): 90303370, Gross weight: 3.48 kg, PU: 1.00 szt.

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	60 ... 110 kV
Total length (I_G )	2980 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	60 ... 110 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (I_G )	2980 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767990 was added to Notepad.

Go to Notepad

Product 767990 was added to the cart.

Go to Web-Shop

Zakres napięcia znamionowego 60 ... 110 kV / 50 Hz, kodowany

Special test prod and indicator are mutually coded, i.e. no other test prod fits mechanically for the used indicator. Thus confusion of test prods is avoided.

Category "S" for switchgear installations and overhead lines as coded type.

1 Product

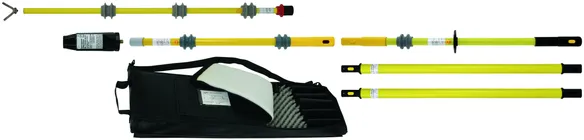

Part No. 769712 PHE3S60 110S CSN7774

GTIN 4013364242517, Customs tariff No. (EU): 90303370, Gross weight: 7.23 kg, PU: 1.00 szt.

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	60 ... 110 kV

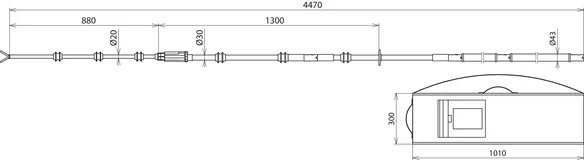

Total length (l_{G max}/ I_{G min} )	4470 / 2840 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	60 ... 110 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_{G max}/ I_{G min} )	4470 / 2840 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	complete
For use at	_
For	indoor and outdoor installations
Application	switchgear installations and overhead lines
Design	single-pole
Indication	acoustic and visual
Self-testing element	yes
Material (test electrode)	copper alloy/gal Sn
Material (test prod)	glass-fibre reinforced epoxy resin tube
Material (indicator)	plastic, fully insulated
Material (insulating stick)	glass-fibre reinforced polyester tube

Product 769712 was added to Notepad.

Go to Notepad

Product 769712 was added to the cart.

Go to Web-Shop

Zakres napięcia znamionowego 110 ... 132 kV / 50 i 16,7 Hz

For 50 Hz three-phase systems and 16.7 Hz centre-earthed monophase traction power lines.
Range does not have to be switched.

Category "S"

1 Product

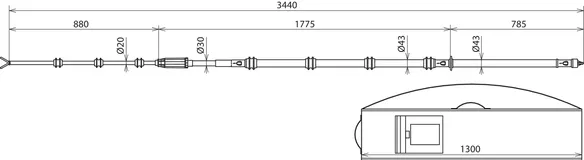

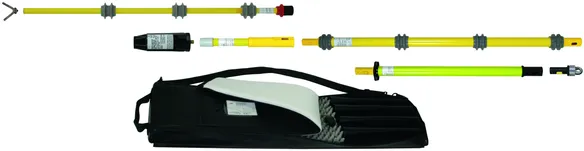

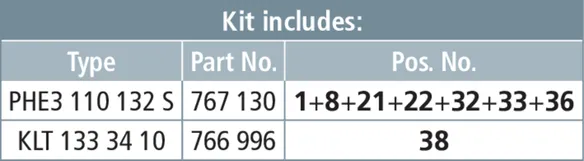

Part No. 767131 PHE3S 110 132 S

GTIN 4013364139411, Customs tariff No. (EU): 90303370, Gross weight: 6.20 kg, PU: 1.00 szt.

Images

Additional information

Certificates

Technical data

Nominal voltage (U_N )	110 ... 132 kV
Total length (I_G )	3440 mm
Insertion depth (I_O )	880 mm
DB drawing No.	3 Eku 710 001
DB material No.	01 101 358

Nominal voltage (U_N )	110 ... 132 kV
Type of voltage	a.c.
Frequency	50 and 16.7 Hz
Category	S
Total length (I_G )	3440 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	For indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
DB drawing No.	3 Eku 710 001
DB material No.	01 101 358

Product 767131 was added to Notepad.

Go to Notepad

Product 767131 was added to the cart.

Go to Web-Shop

Napięcie znamionowe 66 kV / 16,7 Hz

Kategoria „S” do jednostronnie uziemionych instalacji jednofazowych

1 Product

Part No. 769714 PHE3 66 16.7S SN7705

GTIN 4013364246768, Customs tariff No. (EU): 90303370, Gross weight: 3.76 kg, PU: 1.00 szt.

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	66 kV
Total length (I_G )	2980 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	66 kV
Type of voltage	a.c.
Frequency	16,7 Hz
Category	S
Total length (I_G )	2980 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Instalacje na zewnątrz
Application	Górna sieć jezdna kolei elektrycznych
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 769714 was added to Notepad.

Go to Notepad

Product 769714 was added to the cart.

Go to Web-Shop
