Rivelatore di tensione PHE III

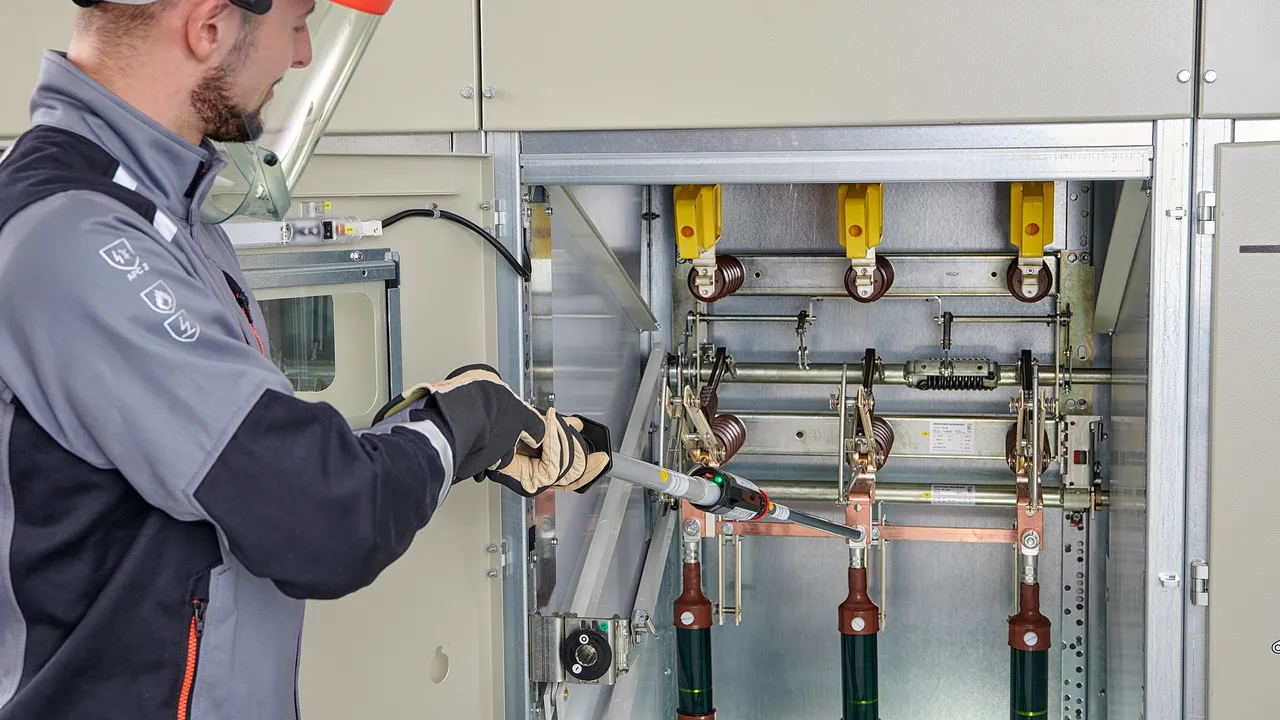

Rivelazione sicura dell'assenza tensione
  • rivelazione sicura dell'indicazione
  • facile utilizzo
  • trasporto economico ed ingombro ridotto

Details

lorem ipsum

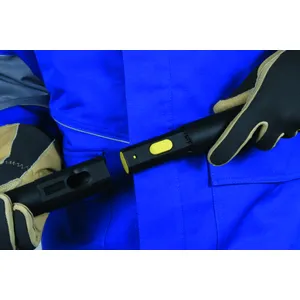

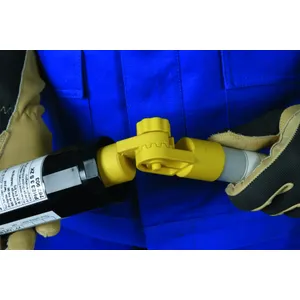

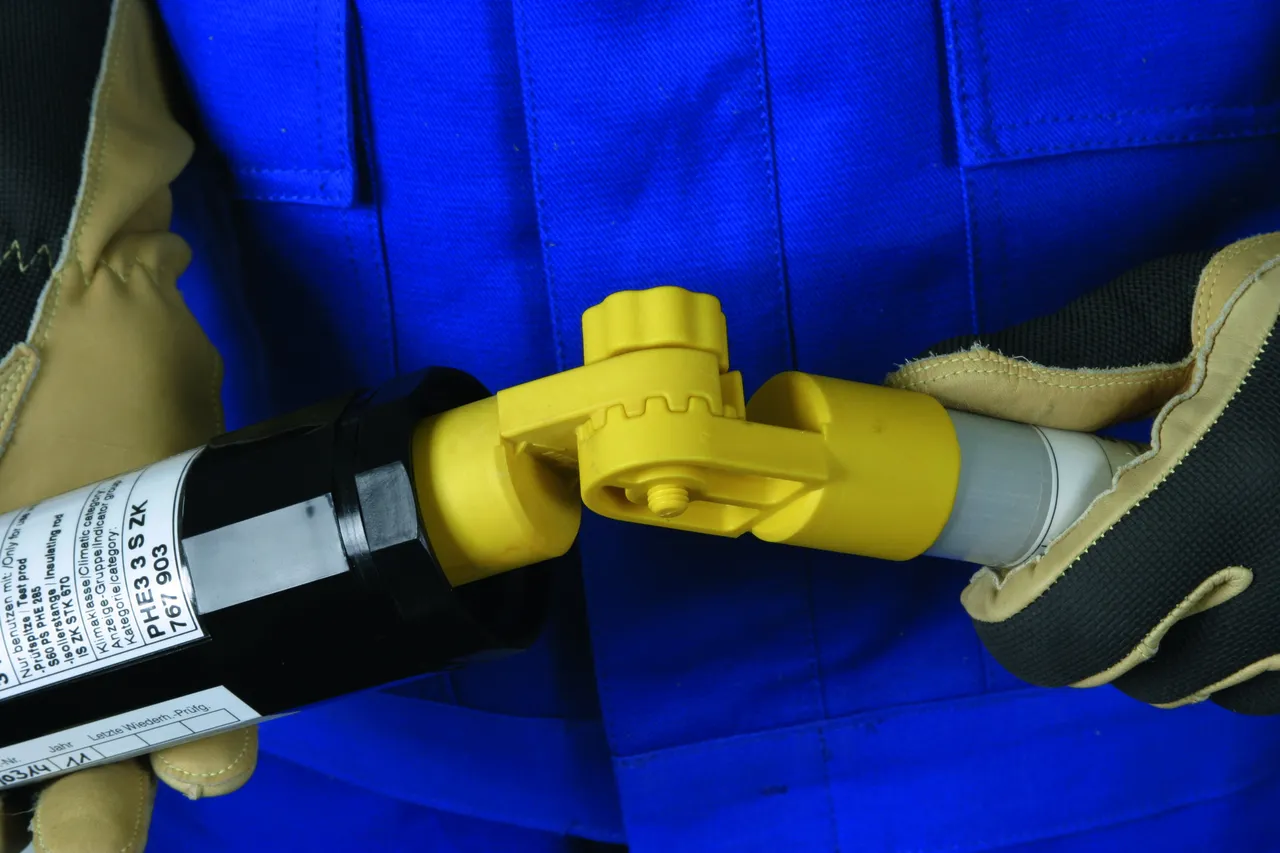

Snodo a scatti universale per l'angolazione del rivelatore di tensione.
lorem ipsum

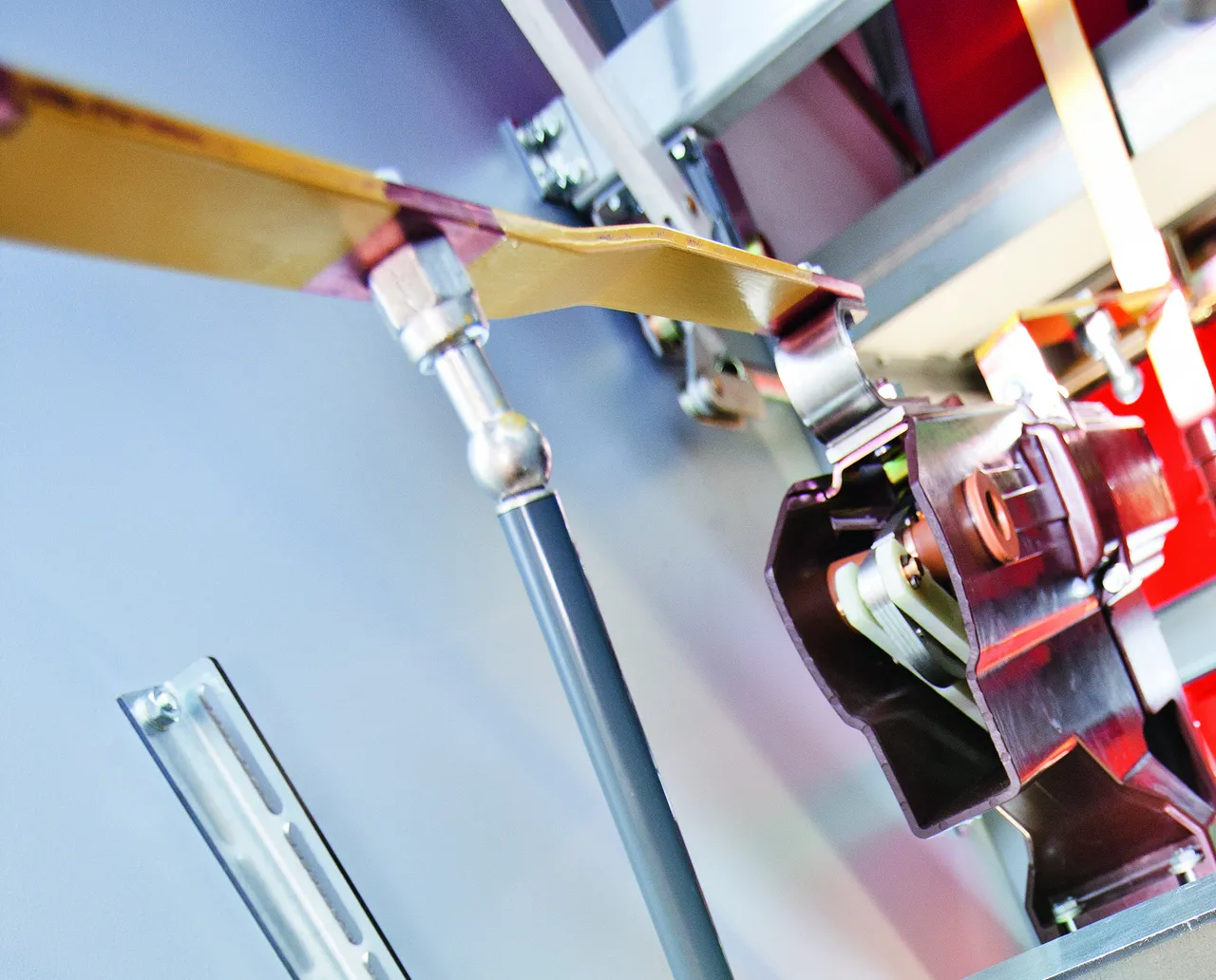

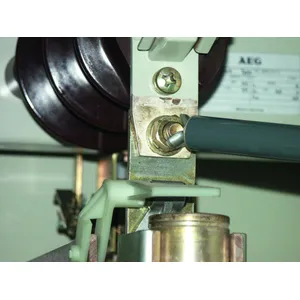

Prova con elettrodo integrato.
lorem ipsum

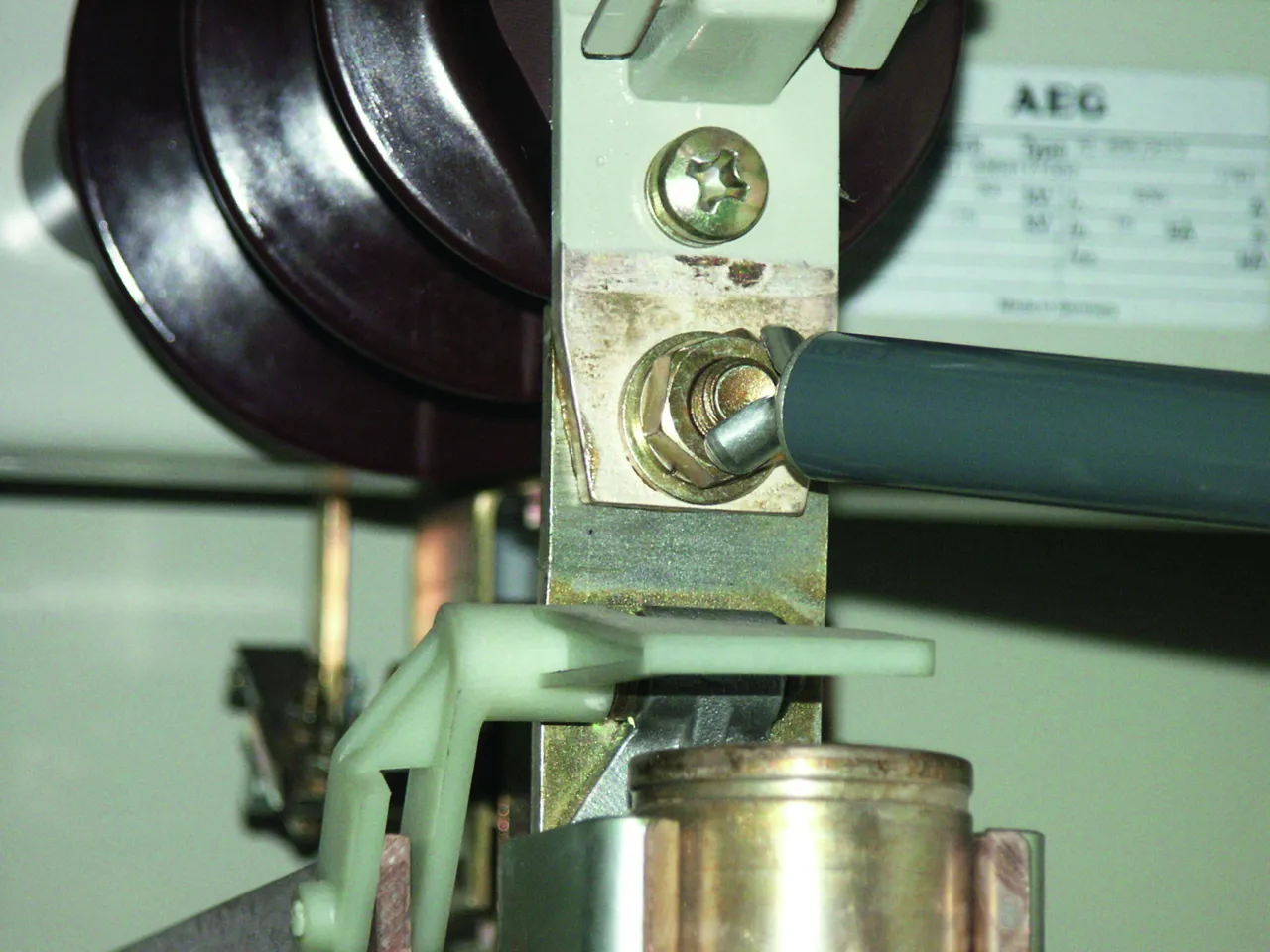

Prova con elettrodo a "V" avvitato.
lorem ipsum

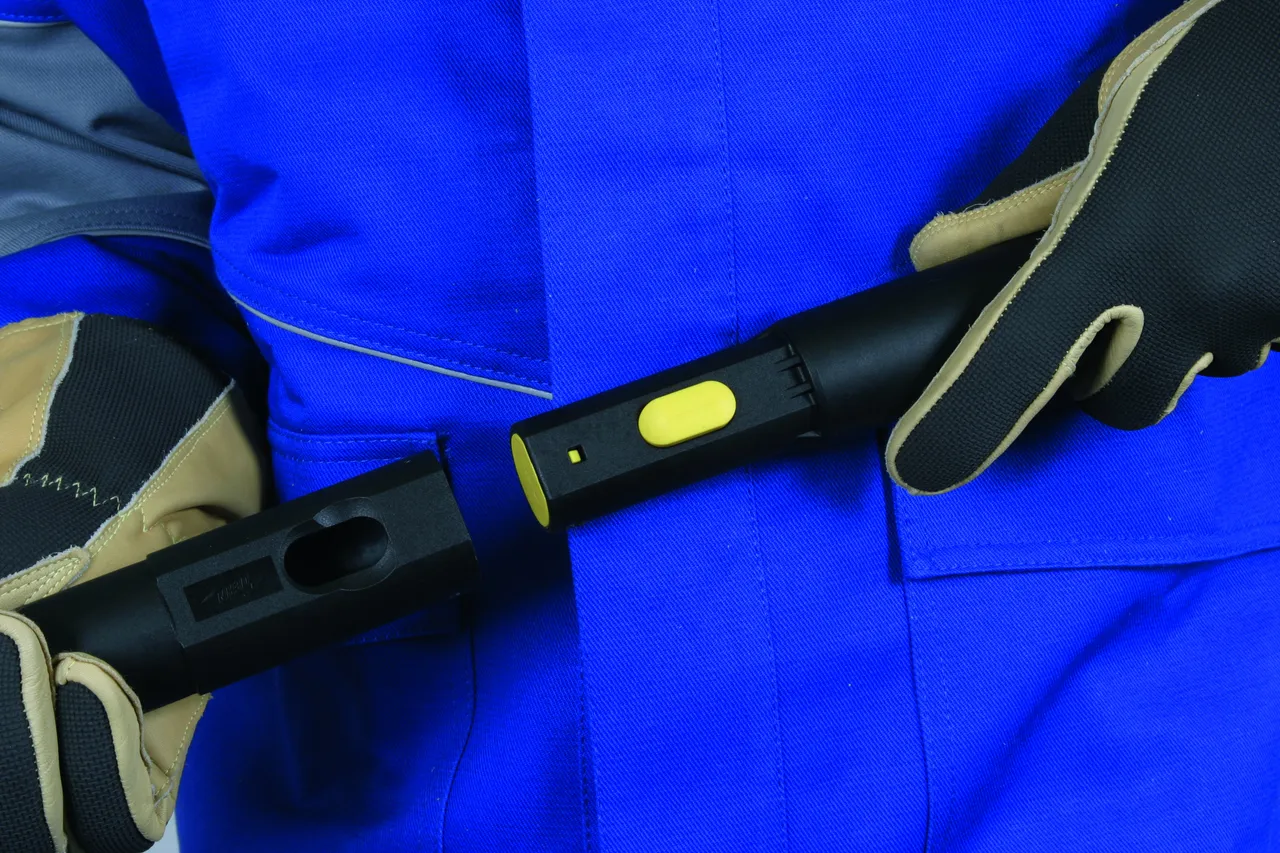

Innesto della prolunga del fioretto di manovra HV STK e del fioretto isolante IS PHE STK.
lorem ipsum

Tensione nominale fino a 30 kV / 50 Hz, filetto M12

Categoria "S" per impianti di commutazione e linee aeree.

5 Products

Part No. 767703 PHE3 3 S

GTIN 4013364070899, Customs tariff No. (EU): 90303370, Gross weight: 1.71 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

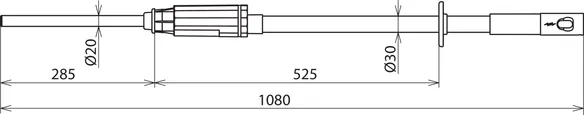

Tensione nominale (UN ) 3 kV
Lunghezza totale (lG ) 1080 mm
Immersione (IO ) 285 mm

Product 767703 was added to Notepad.

Go to Notepad

Product 767703 was added to the cart.

Go to Web-Shop

Part No. 767706 PHE3 6 S

GTIN 4013364070837, Customs tariff No. (EU): 90303370, Gross weight: 1.71 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 6 kV
Lunghezza totale (lG ) 1080 mm
Immersione (IO ) 285 mm

Product 767706 was added to Notepad.

Go to Notepad

Product 767706 was added to the cart.

Go to Web-Shop

Part No. 767710 PHE3 10 S

GTIN 4013364070851, Customs tariff No. (EU): 90303370, Gross weight: 1.71 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 10 kV
Lunghezza totale (lG ) 1080 mm
Immersione (IO ) 285 mm

Product 767710 was added to Notepad.

Go to Notepad

Product 767710 was added to the cart.

Go to Web-Shop

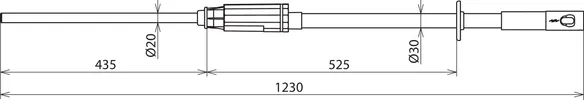

Part No. 767720 PHE3 20 S

GTIN 4013364070844, Customs tariff No. (EU): 90303370, Gross weight: 1.89 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 20 kV
Lunghezza totale (lG ) 1230 mm
Immersione (IO ) 435 mm

Product 767720 was added to Notepad.

Go to Notepad

Product 767720 was added to the cart.

Go to Web-Shop

Part No. 767730 PHE3 30 S

GTIN 4013364070813, Customs tariff No. (EU): 90303370, Gross weight: 1.83 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 30 kV
Lunghezza totale (lG ) 1415 mm
Immersione (IO ) 620 mm

Product 767730 was added to Notepad.

Go to Notepad

Product 767730 was added to the cart.

Go to Web-Shop

Campo di tensione nominale fino a 30 kV / 50 Hz, filetto M12

Categoria "S" per impianti di commutazione e linee aeree.

3 Products

Part No. 767711 PHE3 3 10 S

GTIN 4013364070820, Customs tariff No. (EU): 90303370, Gross weight: 1.86 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 3 ... 10 kV
Lunghezza totale (lG ) 1415 mm
Immersione (IO ) 620 mm

Product 767711 was added to Notepad.

Go to Notepad

Product 767711 was added to the cart.

Go to Web-Shop

Part No. 767721 PHE3 6 20 S

GTIN 4013364070868, Customs tariff No. (EU): 90303370, Gross weight: 1.93 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 6 ... 20 kV
Lunghezza totale (lG ) 1575 mm
Immersione (IO ) 780 mm

Product 767721 was added to Notepad.

Go to Notepad

Product 767721 was added to the cart.

Go to Web-Shop

Part No. 767731 PHE3 10 30 S

GTIN 4013364070875, Customs tariff No. (EU): 90303370, Gross weight: 1.99 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 10 ... 30 kV
Lunghezza totale (lG ) 1675 mm
Immersione (IO ) 880 mm

Product 767731 was added to Notepad.

Go to Notepad

Product 767731 was added to the cart.

Go to Web-Shop

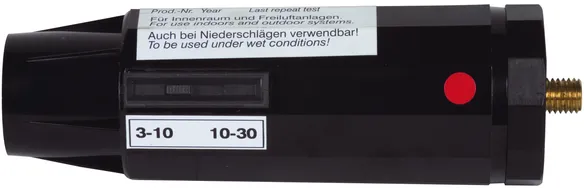

Campo di tensione nominale fino a 30 kV / 50 Hz, filleto M12, commutabile

Il commutatore della tensione nominale ha due posizioni per ciascun campo di tensione. L’accensione è per motivi di sicurezza solo possibile nella posizione più sensibile 3 ... 10 kV. Nella rispettiva posizione l’interruttore commuttatore innesta ed è protetto contro lo spostamento non voluto. La commutazione avviene tramite un interruttore magnetico, privo di usura (interruttore reed).

Categoria "S" per impianti di commutazione e linee aeree.

1 Product

Part No. 767733 PHE3 U 3 30 S

GTIN 4013364070882, Customs tariff No. (EU): 90303370, Gross weight: 1.99 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 3 ... 10 / 10 ... 30 kV
Lunghezza totale (lG ) 1675 mm
Immersione (IO ) 880 mm

Product 767733 was added to Notepad.

Go to Notepad

Product 767733 was added to the cart.

Go to Web-Shop

Tensione nominale 25 kV / 50 Hz

Per le linee di contatto aereo delle ferrovie elettrificate.
Categoria "S" per impianti unipolari di terra unici.

1 Product

Part No. 767125 PHE3 25 S 50 1P

GTIN 4013364130319, Customs tariff No. (EU): 90303370, Gross weight: 1.96 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 25 kV
Lunghezza totale (lG ) 1680 mm
Immersione (IO ) 880 mm

Product 767125 was added to Notepad.

Go to Notepad

Product 767125 was added to the cart.

Go to Web-Shop

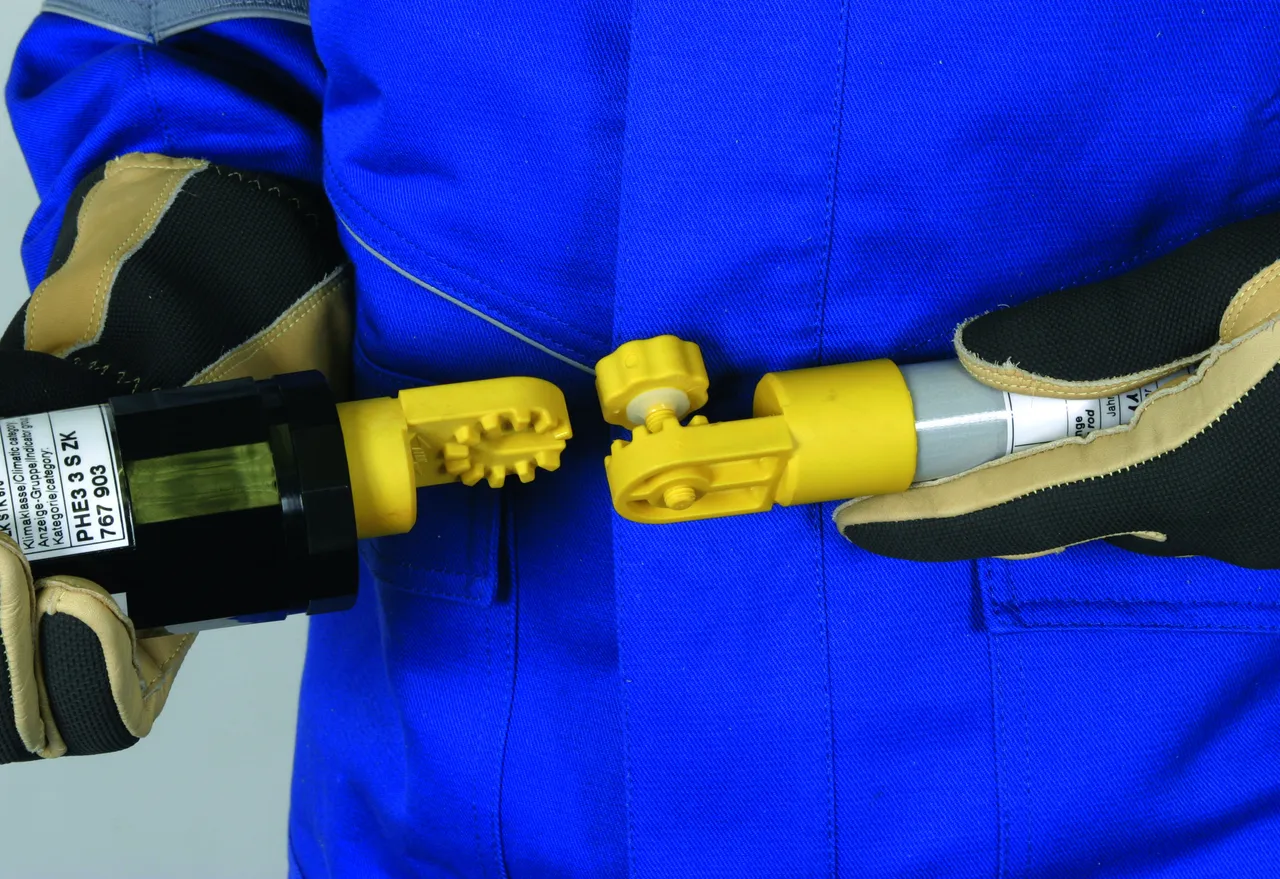

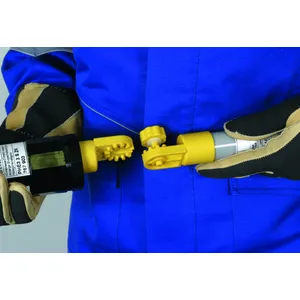

Tensione nominale fino a 30 kV / 50 Hz, innesto a denti

Categoria "S" per impianti di commutazione e linee aeree.

5 Products

Part No. 767903 PHE3 3 S ZK

GTIN 4013364134737, Customs tariff No. (EU): 90303370, Gross weight: 1692.00 g, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

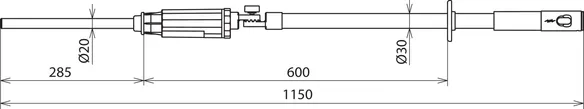

Tensione nominale (UN ) 3 kV
Lunghezza totale (lG ) 1150 mm
Immersione (IO ) 285 mm

Product 767903 was added to Notepad.

Go to Notepad

Product 767903 was added to the cart.

Go to Web-Shop

Part No. 767906 PHE3 6 S ZK

GTIN 4013364134744, Customs tariff No. (EU): 90303370, Gross weight: 1692.00 g, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 6 kV
Lunghezza totale (lG ) 1150 mm
Immersione (IO ) 285 mm

Product 767906 was added to Notepad.

Go to Notepad

Product 767906 was added to the cart.

Go to Web-Shop

Part No. 767910 PHE3 10 S ZK

GTIN 4013364134751, Customs tariff No. (EU): 90303370, Gross weight: 1692.00 g, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 10 kV
Lunghezza totale (lG ) 1150 mm
Immersione (IO ) 285 mm

Product 767910 was added to Notepad.

Go to Notepad

Product 767910 was added to the cart.

Go to Web-Shop

Part No. 767920 PHE3 20 S ZK

GTIN 4013364134768, Customs tariff No. (EU): 90303370, Gross weight: 1.80 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 20 kV
Lunghezza totale (lG ) 1300 mm
Immersione (IO ) 435 mm

Product 767920 was added to Notepad.

Go to Notepad

Product 767920 was added to the cart.

Go to Web-Shop

Part No. 767930 PHE3 30 S ZK

GTIN 4013364134775, Customs tariff No. (EU): 90303370, Gross weight: 1.87 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 30 kV
Lunghezza totale (lG ) 1485 mm
Immersione (IO ) 620 mm

Product 767930 was added to Notepad.

Go to Notepad

Product 767930 was added to the cart.

Go to Web-Shop

Campo di tensione nominale fino a 30 kV / 50 Hz, innesto a denti

Categoria "S" per impianti di commutazione e linee aeree.

3 Products

Part No. 767941 PHE3 3 10 S ZK

GTIN 4013364134782, Customs tariff No. (EU): 90303370, Gross weight: 1.87 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 3 ... 10 kV
Lunghezza totale (lG ) 1485 mm
Immersione (IO ) 620 mm

Product 767941 was added to Notepad.

Go to Notepad

Product 767941 was added to the cart.

Go to Web-Shop

Part No. 767951 PHE3 6 20 S ZK

GTIN 4013364134799, Customs tariff No. (EU): 90303370, Gross weight: 1.96 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 6 ... 20 kV
Lunghezza totale (lG ) 1645 mm
Immersione (IO ) 780 mm

Product 767951 was added to Notepad.

Go to Notepad

Product 767951 was added to the cart.

Go to Web-Shop

Part No. 767961 PHE3 10 30 S ZK

GTIN 4013364134805, Customs tariff No. (EU): 90303370, Gross weight: 2.02 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 10 ... 30 kV
Lunghezza totale (lG ) 1745 mm
Immersione (IO ) 880 mm

Product 767961 was added to Notepad.

Go to Notepad

Product 767961 was added to the cart.

Go to Web-Shop

Campo di tensione nominale fino a 36 kV / 50 Hz, innesto a denti, commutabile

Il commutatore di tensione nominale dispone di due posizioni dell'interruttore per ciascun campo di tensione. Per motivi di sicurezza l'accensione è possibile solo nella posizione più sensibile (3 ... 10 kV o 6 ... 20 kV). L'interruttore scatta nella posizione relativa e in questo modo viene protetto contro uno spostamento involontario. La commutazione avviene tramite un interruttore reed magnetico resistente all'usura.

Categoria "S" per impianti di commutazione e linee aeree.

2 Products

Part No. 767960 PHE3 U 3 30 S ZK

GTIN 4013364134812, Customs tariff No. (EU): 90303370, Gross weight: 2.02 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 3 ... 10 / 10 ... 30 kV
Lunghezza totale (lG ) 1745 mm
Immersione (IO ) 880 mm

Product 767960 was added to Notepad.

Go to Notepad

Product 767960 was added to the cart.

Go to Web-Shop

Part No. 767944 PHE3 U 6 36 S SN7728

GTIN 4013364277731, Customs tariff No. (EU): 90303370, Gross weight: 2.16 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 6 ... 20 / 20 ... 36 kV
Lunghezza totale (lG ) 1745 mm
Immersione (IO ) 880 mm

Product 767944 was added to Notepad.

Go to Notepad

Product 767944 was added to the cart.

Go to Web-Shop

Campo di tensione nominale fino a 30 kV / 50 Hz, set di prova, filetto M12

Con 2 puntali di prova della categoria “S” per impianti di commutazione e linee aeree e categoria “L” per linee aeree.

2 Products

Part No. 767740 PHE3 6 20 SL

GTIN 4013364071063, Customs tariff No. (EU): 90303370, Gross weight: 2.15 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

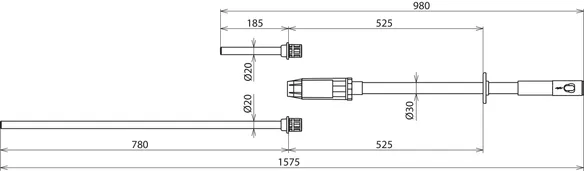

Tensione nominale (UN ) 6 ... 20 kV
Lunghezza totale (lG ) 1575 / 980 mm
Immersione (IO ) 780 / 185 mm

Product 767740 was added to Notepad.

Go to Notepad

Product 767740 was added to the cart.

Go to Web-Shop

Part No. 767750 PHE3 10 30 SL

GTIN 4013364071070, Customs tariff No. (EU): 90303370, Gross weight: 2.21 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 10 ... 30 kV
Lunghezza totale (lG ) 1675 / 980 mm
Immersione (IO ) 880 / 185 mm

Product 767750 was added to Notepad.

Go to Notepad

Product 767750 was added to the cart.

Go to Web-Shop

Campo di tensione nominale fino a 30 kV / 50 Hz, set di prova, innesto a denti

Con 2 puntali di prova della categoria "S" per impianti di commuatzione e linee aeree e catgoria "L" per linee aeree.

2 Products

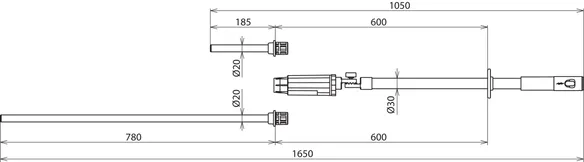

Part No. 767940 PHE3 6 20 SL ZK

GTIN 4013364134829, Customs tariff No. (EU): 90303370, Gross weight: 2.09 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 6 ... 20 kV
Lunghezza totale (lG ) 1650 / 1050 mm
Immersione (IO ) 780 / 185 mm

Product 767940 was added to Notepad.

Go to Notepad

Product 767940 was added to the cart.

Go to Web-Shop

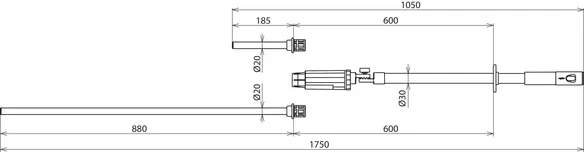

Part No. 767950 PHE3 10 30 SL ZK

GTIN 4013364134836, Customs tariff No. (EU): 90303370, Gross weight: 2.14 kg, PU: 1.00 pz.

Images

Additional information

Certificates



Technical data

Tensione nominale (UN ) 10 ... 30 kV
Lunghezza totale (lG ) 1750 / 1050 mm
Immersione (IO ) 880 / 185 mm

Product 767950 was added to Notepad.

Go to Notepad

Product 767950 was added to the cart.

Go to Web-Shop
