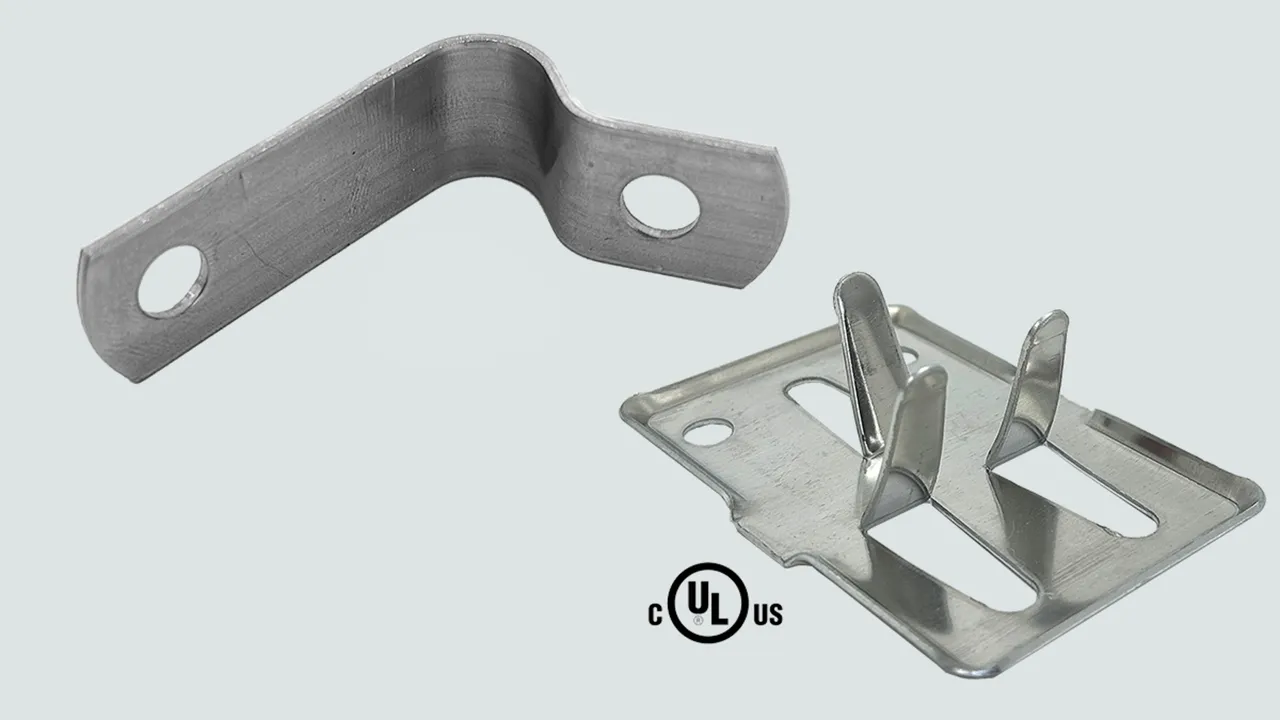

DEHNhold - Clips & Fasteners

For securing roof, bonding, down, and ground conductors to the protected structure or object.

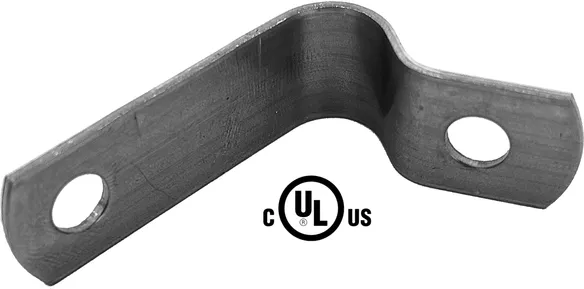

1/4 inch hole loop

1 Product

Part No. 218154 FLL 1/4'' AL

GTIN 4013364518261, Customs tariff No. (EU): 85359000, Gross weight: 0.40 OZ, PU: 100.00 pc(s)

Images

Additional information

1/4 Inch Hole Aluminum Loop

Brand: DEHN
Type: FLL 1/4'' AL
Part No.: 218154
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)

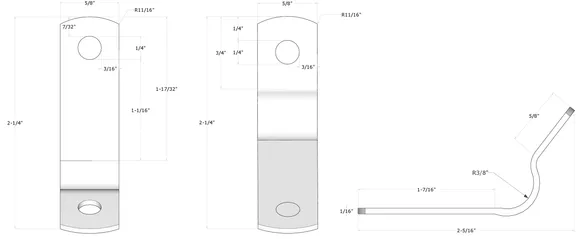

Dimensions 1-7/8 x 2-1/4 in (4.76 x 5.71 cm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 11.34 g

Product 218154 was added to Notepad.

Go to Notepad

Product 218154 was added to the cart.

Go to Web-Shop

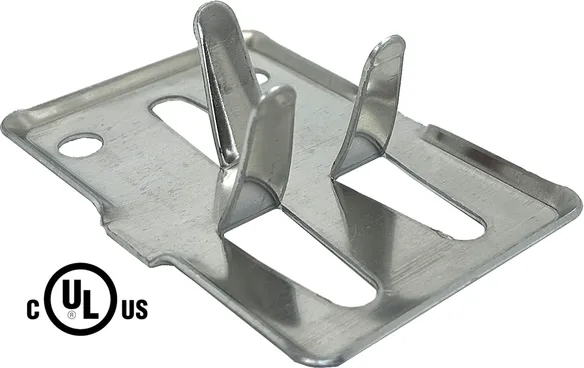

Crimp adhesive fastener

1 Product

Part No. 218155 FCL AL

GTIN 4013364518278, Customs tariff No. (EU): 85359000, Gross weight: 0.80 OZ, PU: 100.00 pc(s)

Images

Additional information

Aluminum Crimp Adhesive Fastener

Brand: DEHN
Type: FCL AL
Part No.: 218155
or equivalent.



Technical data

Material Aluminum (minimum 85%)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Clamping range stranded cable 7/16-19/32 in. (50-107 mm2)

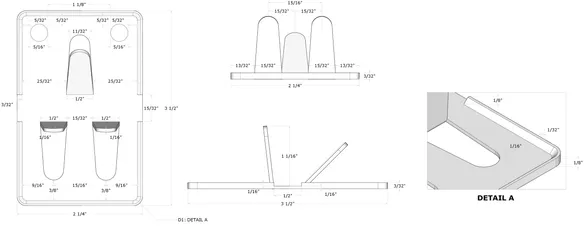

Dimensions 2-1/4 x 3-1/2 in (5.7 x 8.9 cm)
Standards UL 96
Classification Class 1 + 2
Weight (Metric) 23 g

Product 218155 was added to Notepad.

Go to Notepad

Product 218155 was added to the cart.

Go to Web-Shop
