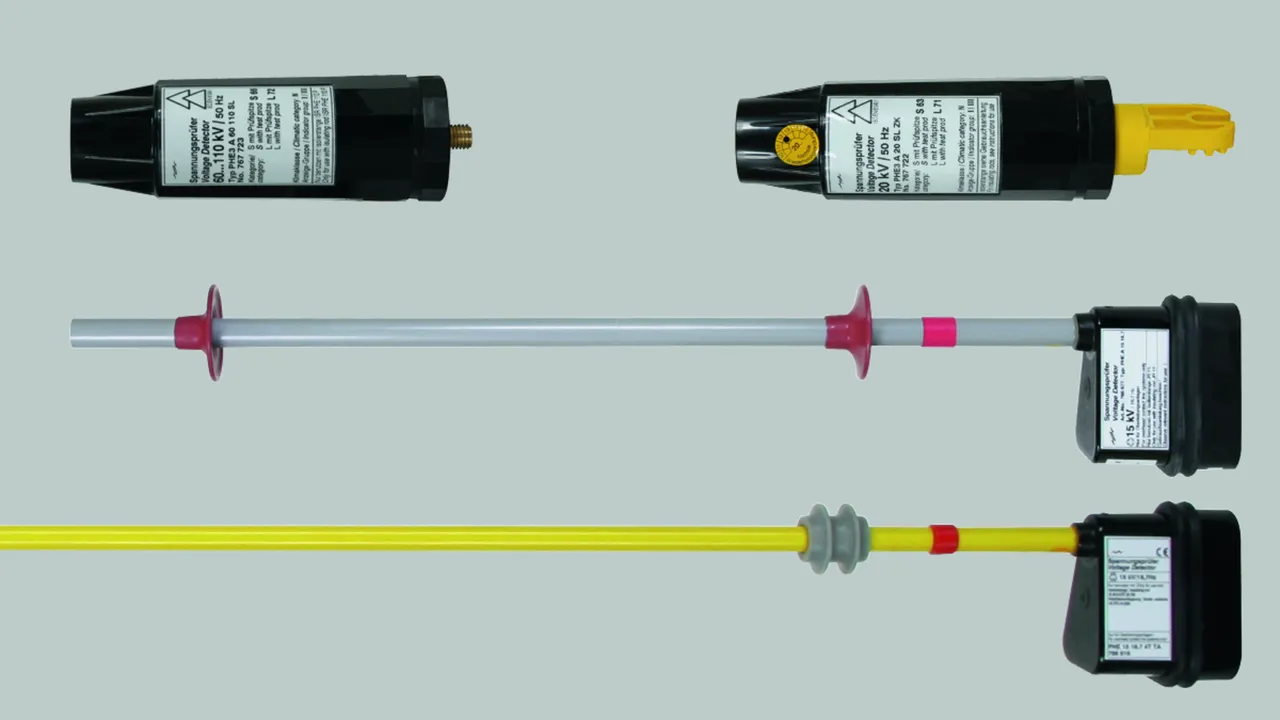

Indicators / Indicators with Test Prod

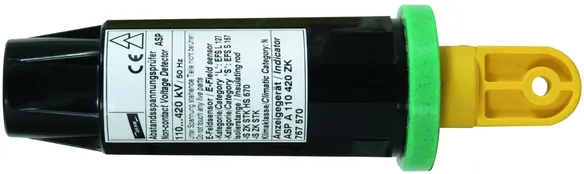

ASP, with gear coupling

4 Products

Part No. 767591 ASP A 110 420 L ZK

GTIN 4013364146785, Customs tariff No. (EU): 90309000, Gross weight: 809.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) 110 ... 420 kV
Frequency 50 Hz
Category L
Total length (lG ) 230 mm

Product 767591 was added to Notepad.

Go to Notepad

Product 767591 was added to the cart.

Go to Web-Shop

Part No. 767592 ASP A 110 420 S ZK

GTIN 4013364146792, Customs tariff No. (EU): 90309000, Gross weight: 465.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) 110 ... 420 kV
Frequency 50 Hz
Category S
Total length (lG ) 230 mm

Product 767592 was added to Notepad.

Go to Notepad

Product 767592 was added to the cart.

Go to Web-Shop

Part No. 767593 ASP A 110 420 SL ZK

GTIN 4013364146808, Customs tariff No. (EU): 90309000, Gross weight: 471.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) 110 ... 420 kV
Frequency 50 Hz
Category S / L
Total length (lG ) 230 mm

Product 767593 was added to Notepad.

Go to Notepad

Product 767593 was added to the cart.

Go to Web-Shop

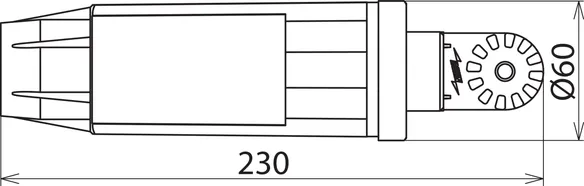

Part No. 767564 ASP A 110 132 16.7 L

GTIN 4013364143784, Customs tariff No. (EU): 90309000, Gross weight: 464.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) 110 ... 132 kV
Frequency 16.7 Hz
Category L
Total length (lG ) 230 mm

Product 767564 was added to Notepad.

Go to Notepad

Product 767564 was added to the cart.

Go to Web-Shop

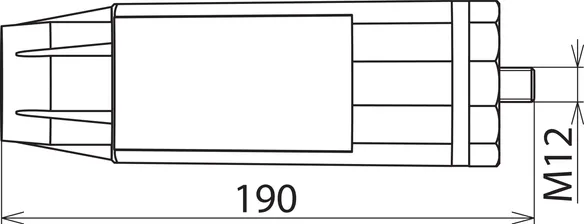

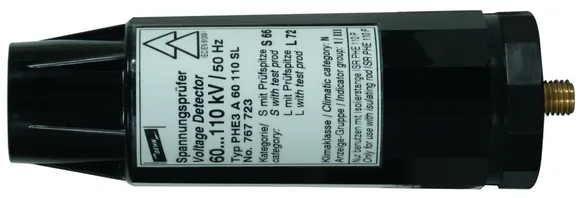

PHE III, with M12 threaded pin

3 Products

Part No. 769713 PHE3A60110SITCSN7772

GTIN 4013364242487, Customs tariff No. (EU): 90309000, Gross weight: 765.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) 60 ... 110 kV
Category S
Total length (lG ) 190 mm
Colour Black ●
Type Coded

Product 769713 was added to Notepad.

Go to Notepad

Product 769713 was added to the cart.

Go to Web-Shop

Part No. 767734 PHE3 A 60 110 S

GTIN 4013364115149, Customs tariff No. (EU): 90309000, Gross weight: 535.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) 60 ... 110 kV
Category S
Total length (lG ) 190 mm
Colour black ●

Product 767734 was added to Notepad.

Go to Notepad

Product 767734 was added to the cart.

Go to Web-Shop

Part No. 767129 PHE3 A 110 132 S

GTIN 4013364139435, Customs tariff No. (EU): 90309000, Gross weight: 400.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) 110 ... 132 kV
Category S
Total length (lG ) 190 mm
Colour Black ●

Product 767129 was added to Notepad.

Go to Notepad

Product 767129 was added to the cart.

Go to Web-Shop

PHE III, with gear coupling

1 Product

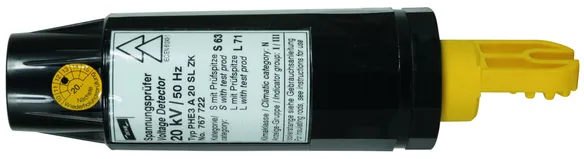

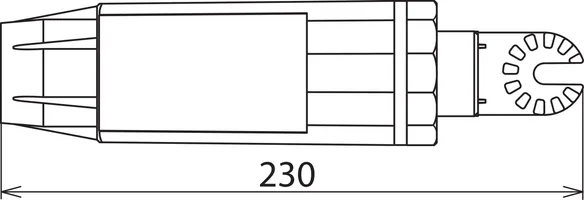

Part No. 767722 PHE3 A 20 SL ZK

GTIN 4013364113183, Customs tariff No. (EU): 90309000, Gross weight: 589.30 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) 20 kV
Category S / L
Total length (lG ) 230 mm

Product 767722 was added to Notepad.

Go to Notepad

Product 767722 was added to the cart.

Go to Web-Shop

PHE (voltage detector for overhead lines)

1 Product

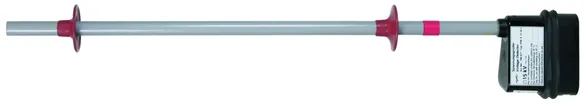

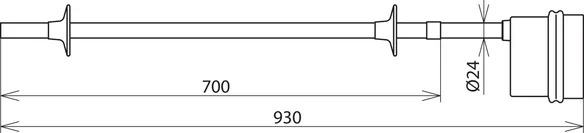

Part No. 766677 PHE A 15 16.7

GTIN 4013364120495, Customs tariff No. (EU): 90309000, Gross weight: 2.10 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) 15 kV / 16.7 Hz
Total length (lG ) 930 mm
DB drawing No. 3 Ebgw 02.53

Product 766677 was added to Notepad.

Go to Notepad

Product 766677 was added to the cart.

Go to Web-Shop

Indicator with test prod PHE (voltage detector for overhead lines)

1 Product

Part No. 766678 PHE PK 15 16.7

GTIN 4013364126107, Customs tariff No. (EU): 90309000, Gross weight: 2.30 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage (UN ) 15 kV / 16.7 Hz
Total length (lG ) 1900 mm
DB drawing No. 3 Ebgw 02.51

Product 766678 was added to Notepad.

Go to Notepad

Product 766678 was added to the cart.

Go to Web-Shop
