Beskyttelsesmodul for DEHNguard M, ... S og DEHNgap C S

  • Høj afledeevne med effektiv zinkoxidvaristor hhv. gnistgab
  • Aflederovervågning og høj sikkerhed med "Termodynamisk Kontrol"
  • Koordinerbar med andre afledere i Red/Line-serien
  • Funktions-/fejlvisning ved grøn/rød markering

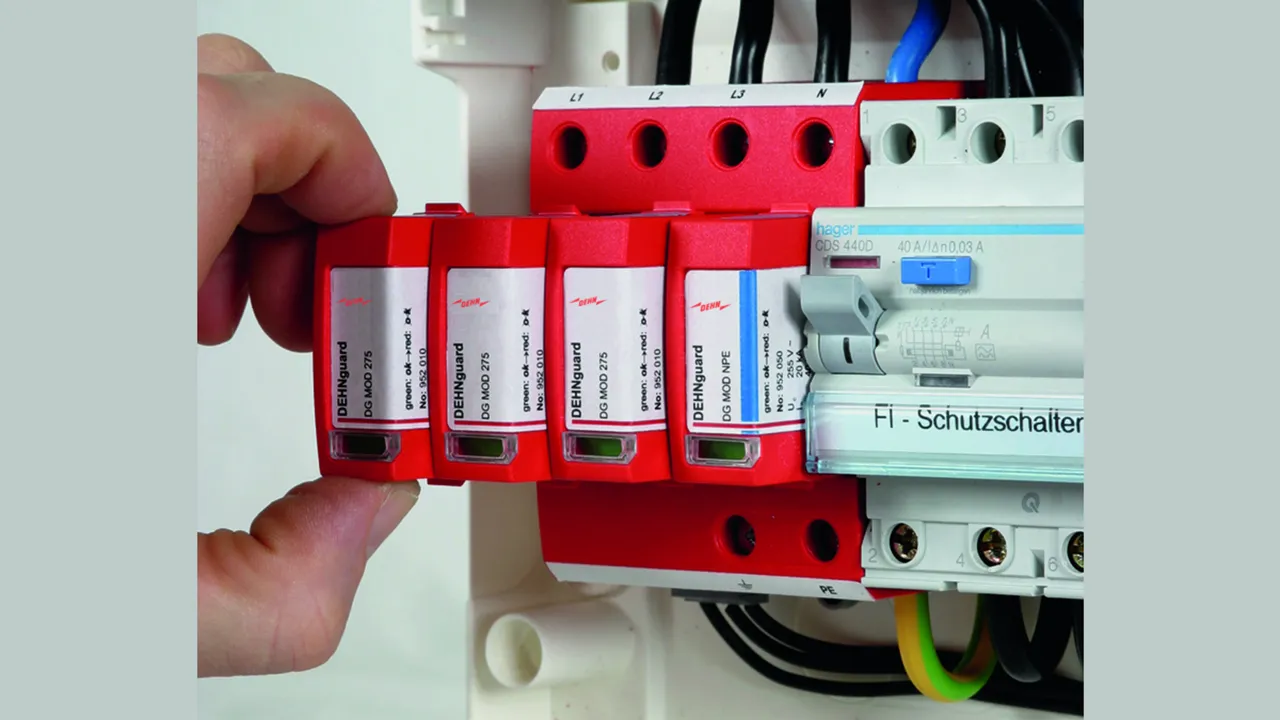

  • Beskyttelsesmoduler skiftes let uden værktøj ved at trykke på beskyttelsesmodulets udløseknapper
  • Det stikbare beskyttelsesmodul kan udskiftes uden at frakoble netspændingen eller fjerne tavleafdækningen
  • Vibrations- og stødtestet efter EN 600068-2

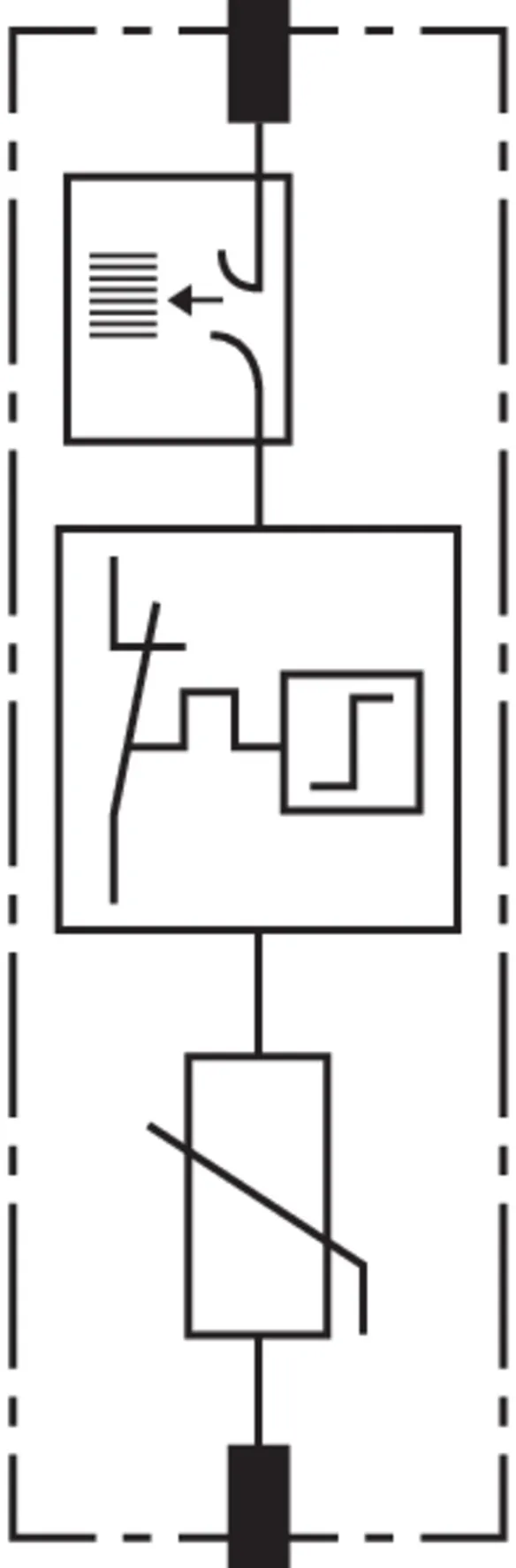

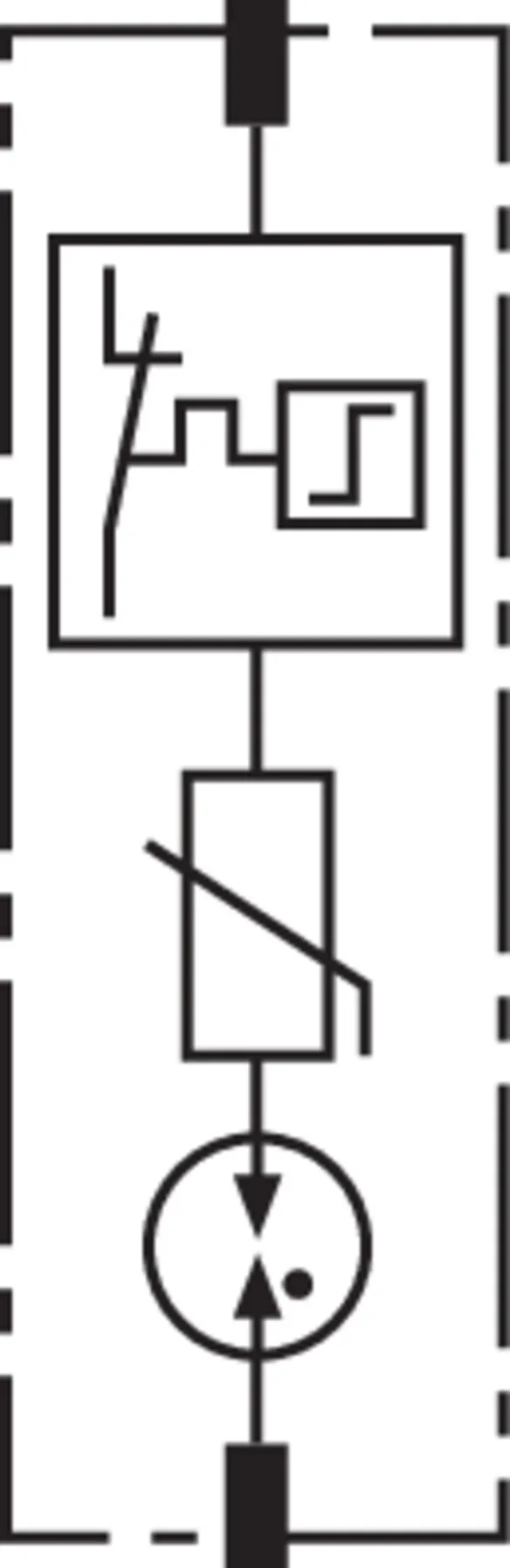

Gnistgabsbaseret beskyttelsesmodul med afbryder for DEHNguard M ACI

2 Products

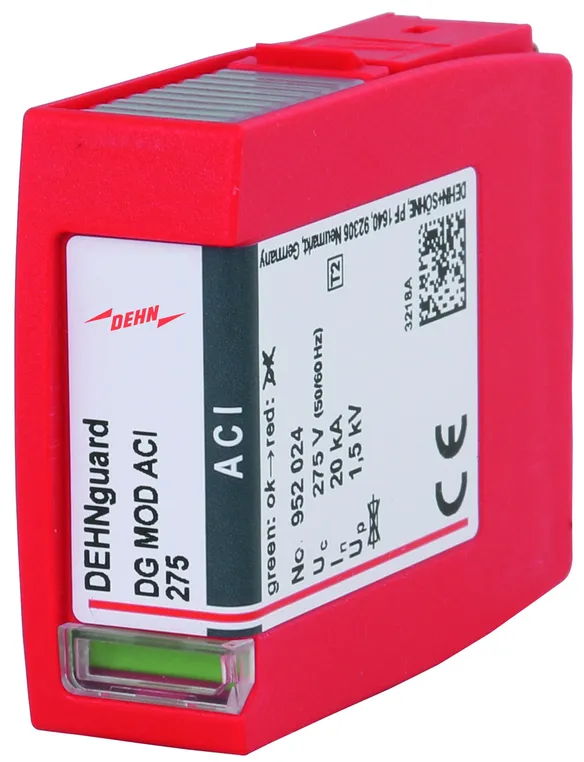

Part No. 952024 DG MOD ACI 275

GTIN 4013364377356, Customs tariff No. (EU): 85363030, Gross weight: 55.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD ACI 275
artikelnr.: 952024
eller tilsvarende

Certificates



ACI-Technology

A further development of CI technology, ACI technology consists of a switch/spark gap combination connected in series with a heavyduty varistor. This ensures the simple design and safe operation of the surge protective device. Other features are safe dimensioning, TOV withstand, a connection cross-section of only 6 mm² Cu and zero leakage current. Surge arresters with ACI technology offer maximum safety and system availability.

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. driftsspænding AC (UC ) 275 V

Product 952024 was added to Notepad.

Go to Notepad

Product 952024 was added to the cart.

Go to Web-Shop

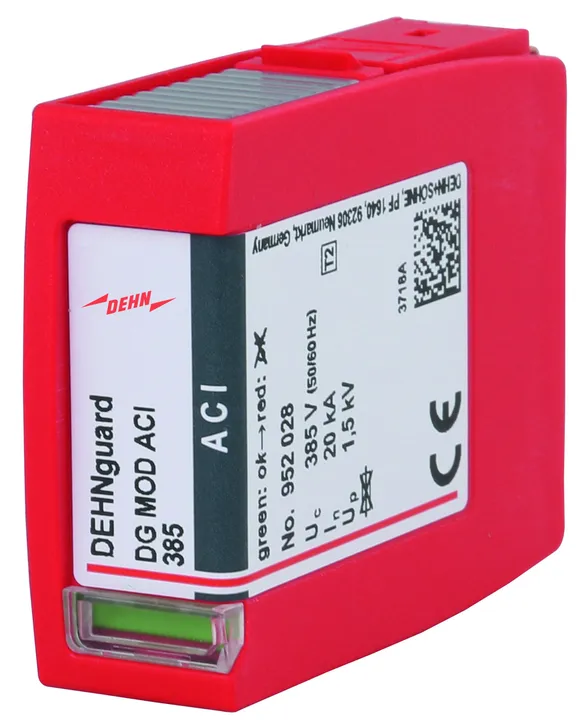

Part No. 952028 DG MOD ACI 385

GTIN 4013364387843, Customs tariff No. (EU): 85363030, Gross weight: 66.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD ACI 385
artikelnr.: 952028
eller tilsvarende



ACI-Technology

A further development of CI technology, ACI technology consists of a switch/spark gap combination connected in series with a heavyduty varistor. This ensures the simple design and safe operation of the surge protective device. Other features are safe dimensioning, TOV withstand, a connection cross-section of only 6 mm² Cu and zero leakage current. Surge arresters with ACI technology offer maximum safety and system availability.

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. driftsspænding AC (UC ) 385 V

Product 952028 was added to Notepad.

Go to Notepad

Product 952028 was added to the cart.

Go to Web-Shop

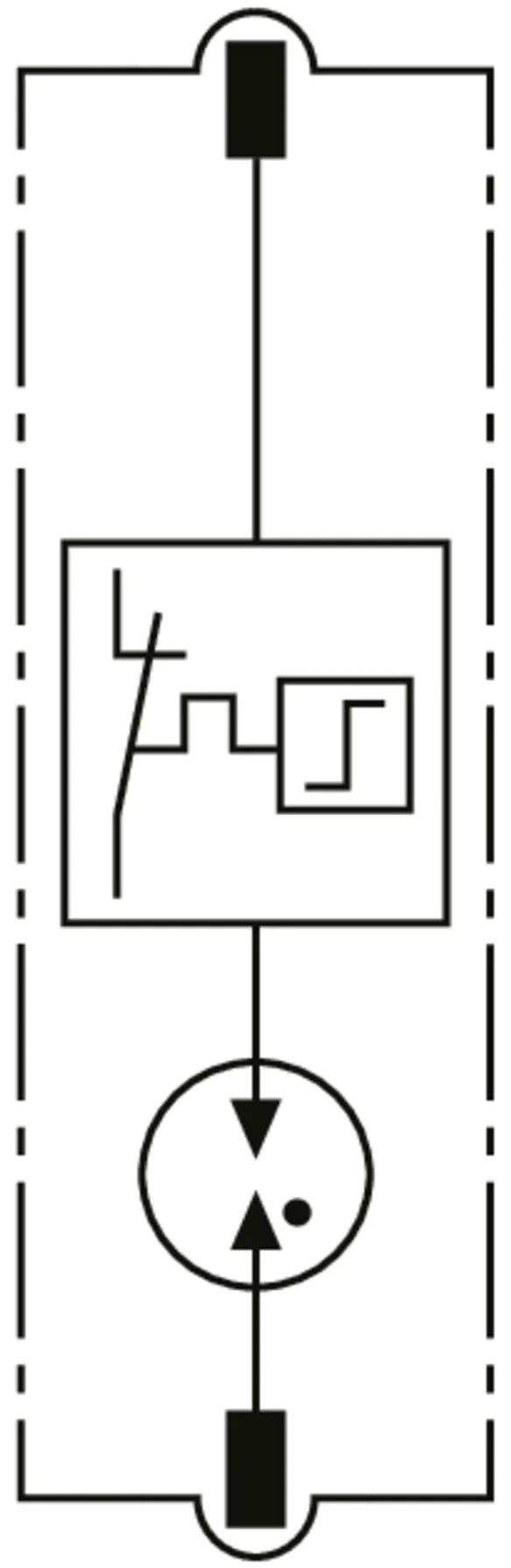

Gnistgabsbaseret beskyttelsesmodul for DEHNguard M ACI

1 Product

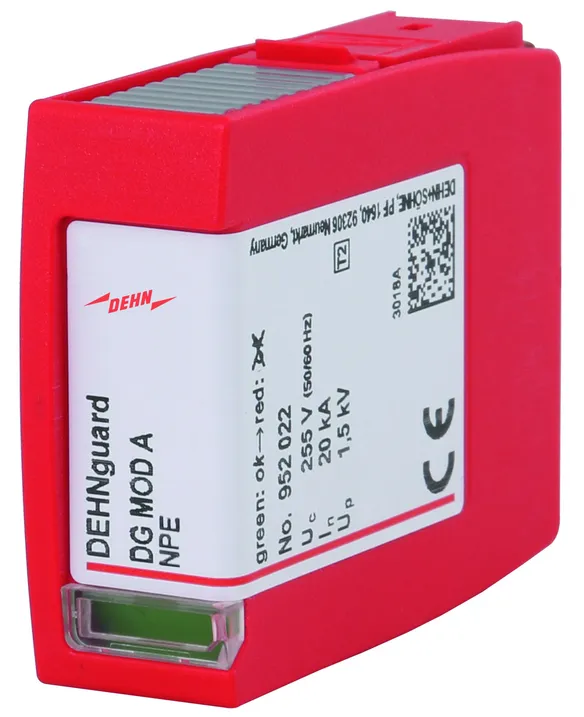

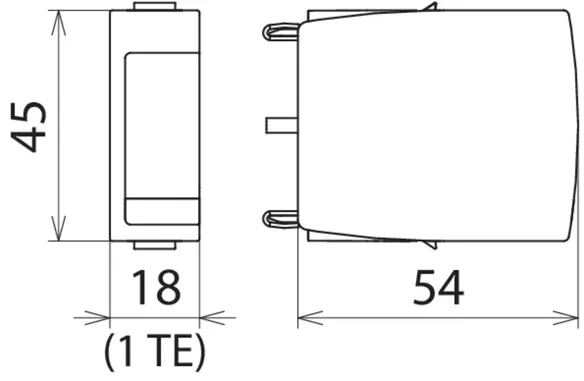

Part No. 952022 DG MOD A NPE

GTIN 4013364376533, Customs tariff No. (EU): 85363030, Gross weight: 46.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD A NPE
artikelnr.: 952022
eller tilsvarende

Certificates



ACI-Technology

A further development of CI technology, ACI technology consists of a switch/spark gap combination connected in series with a heavyduty varistor. This ensures the simple design and safe operation of the surge protective device. Other features are safe dimensioning, TOV withstand, a connection cross-section of only 6 mm² Cu and zero leakage current. Surge arresters with ACI technology offer maximum safety and system availability.

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding AC (UC ) 255 V

Product 952022 was added to Notepad.

Go to Notepad

Product 952022 was added to the cart.

Go to Web-Shop

Varistorbaseret beskyttelsesmodul for DEHNguard M CI

1 Product

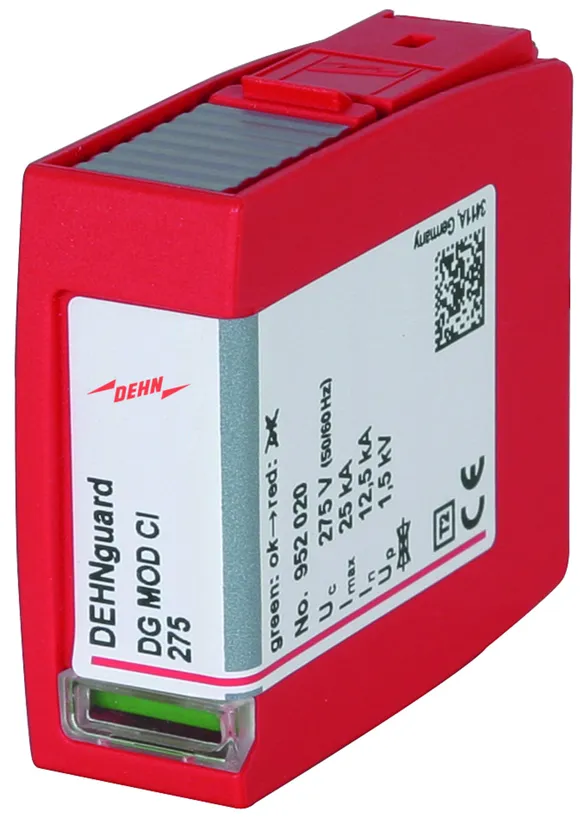

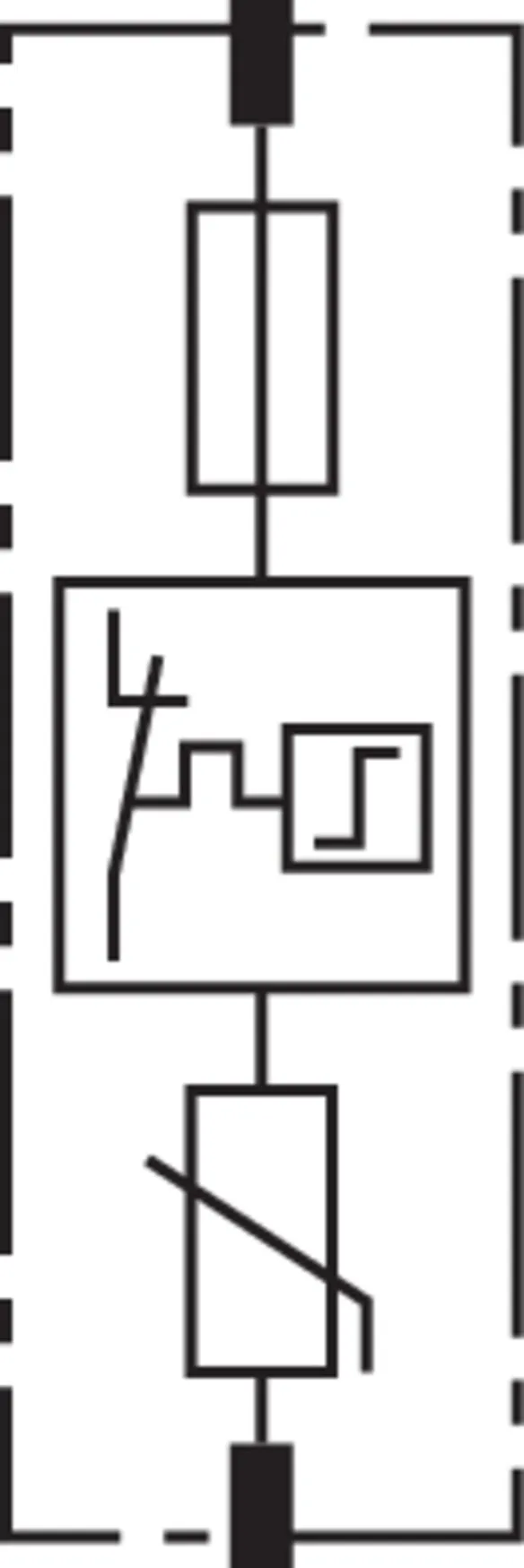

Part No. 952020 DG MOD CI 275

GTIN 4013364127784, Customs tariff No. (EU): 85363030, Gross weight: 59.30 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD CI 275
artikelnr.: 952020
eller tilsvarende

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 12,5 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 25 kA
Max. driftsspænding AC (UC ) 275 V

Product 952020 was added to Notepad.

Go to Notepad

Product 952020 was added to the cart.

Go to Web-Shop

Varistorbaseret beskyttelsesmodul for DEHNguard SE CI ...

2 Products

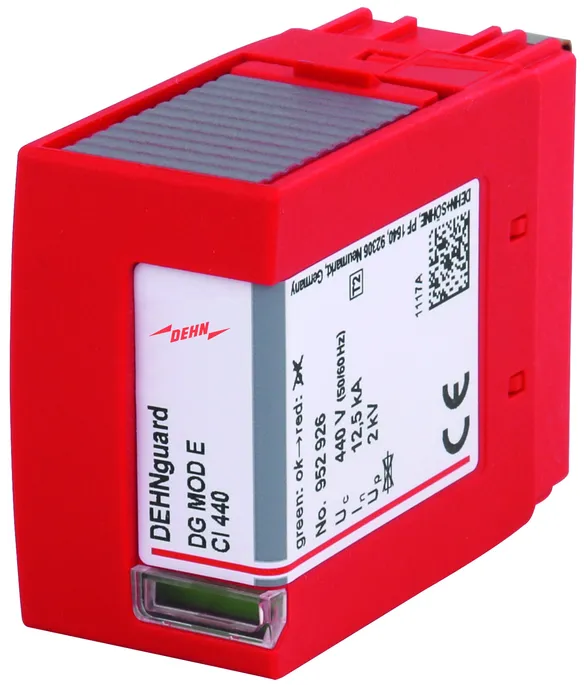

Part No. 952926 DG MOD E CI 440

GTIN 4013364322646, Customs tariff No. (EU): 85363030, Gross weight: 83.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD E CI 440
Stikbart beskyttelsesmodul til DEHNguard SE CI
Type 2-afleder i Red/Line-serien
iht. EN 61643-11
Maks. driftsspænding 440 V AC
Nominel afledningsstrøm 12,5 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD E CI 440
artikelnr.: 952926
eller tilsvarende

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 12,5 kA
Max. driftsspænding AC (UC ) 440 V
Varistorspænding (Umov ) 440 V

Product 952926 was added to Notepad.

Go to Notepad

Product 952926 was added to the cart.

Go to Web-Shop

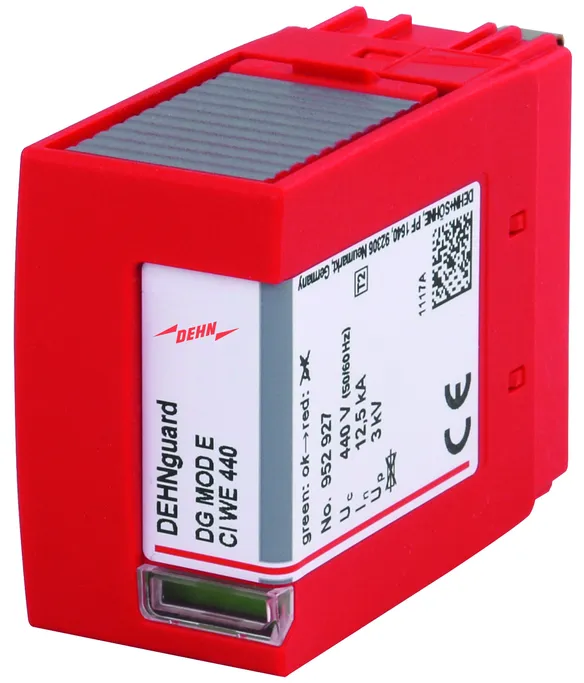

Part No. 952927 DG MOD E CI WE 440

GTIN 4013364322653, Customs tariff No. (EU): 85363030, Gross weight: 82.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD E CI WE 440
Stikbart beskyttelsesmodul til DEHNguard SE CI
Type 2-afleder i Red/Line-serien
iht. EN 61643-11
Maks. driftsspænding 440 V AC
Nominel Varistor-spænding: 750 V AC
Nominel afledningsstrøm 12,5 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD E CI WE 440
artikelnr.: 952927
eller tilsvarende

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 12,5 kA
Max. driftsspænding AC (UC ) 440 V
Varistorspænding (Umov ) 750 V

Product 952927 was added to Notepad.

Go to Notepad

Product 952927 was added to the cart.

Go to Web-Shop

Varistorbaseret beskyttelsesmodul for DEHNguard M og DEHNguard S

8 Products

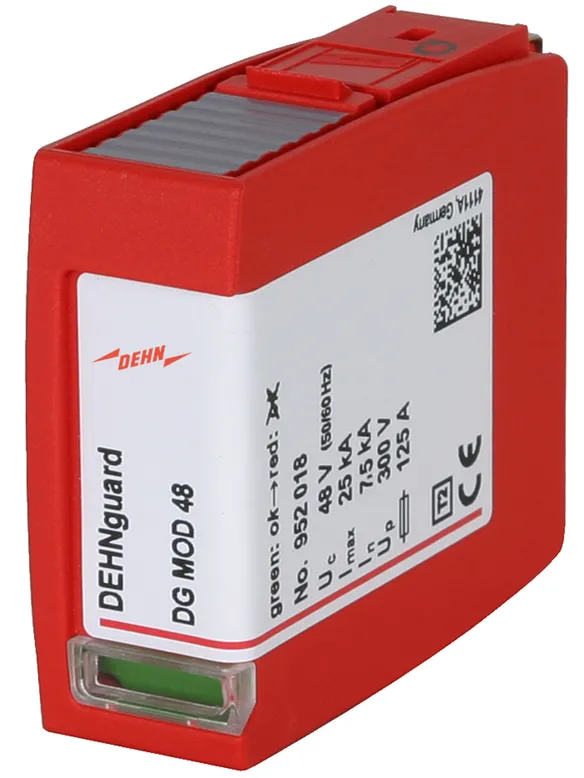

Part No. 952018 DG MOD 48

GTIN 4013364119482, Customs tariff No. (EU): 85363030, Gross weight: 43.50 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD 48
Stikbart beskyttelsesmodul til DEHNguard S ...
Type 2-afleder i Red/Line-serien
iht. EN 61643-11
Højtydende Varistor-teknologi
Maks. driftsspænding 48 V ac/60 V dc
Nominel afledningsstrøm 7,5 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD 48
artikelnr.: 952018
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 7,5 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 25 kA
Max. driftsspænding AC (UC ) 48 V

Product 952018 was added to Notepad.

Go to Notepad

Product 952018 was added to the cart.

Go to Web-Shop

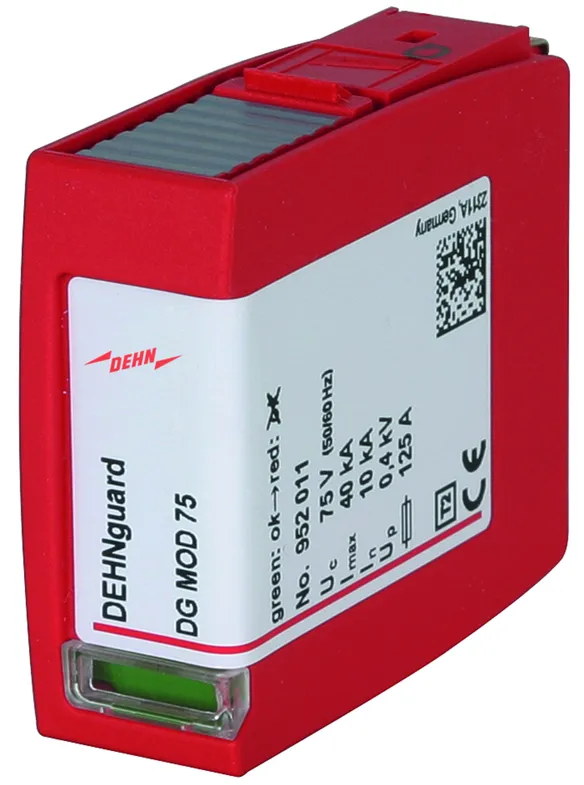

Part No. 952011 DG MOD 75

GTIN 4013364109773, Customs tariff No. (EU): 85363030, Gross weight: 39.30 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD 75
Stikbart beskyttelsesmodul til DEHNguard S ...
Type 2-afleder i Red/Line-serien
iht. EN 61643-11
Højtydende Varistor-teknologi
Maks. driftsspænding 75 V ac/100 V dc
Nominel afledningsstrøm 10 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD 75
artikelnr.: 952011
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 10 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding AC (UC ) 75 V

Product 952011 was added to Notepad.

Go to Notepad

Product 952011 was added to the cart.

Go to Web-Shop

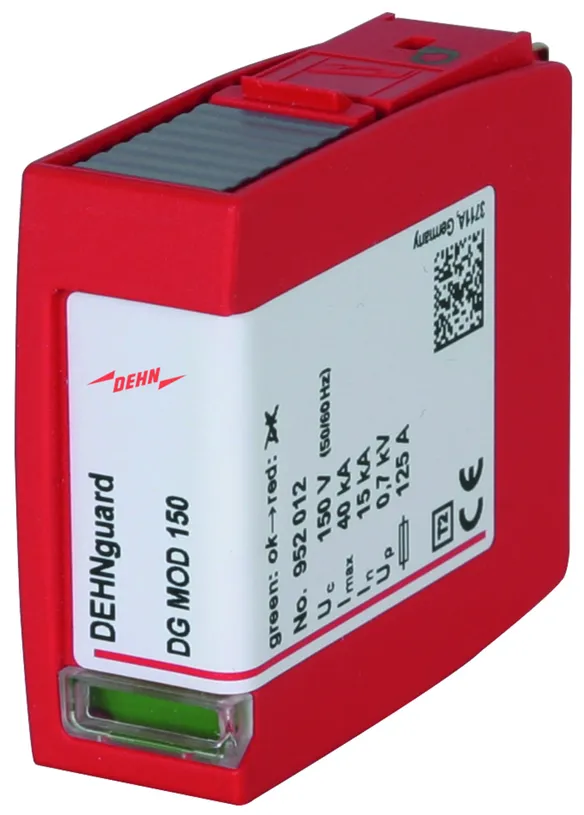

Part No. 952012 DG MOD 150

GTIN 4013364109780, Customs tariff No. (EU): 85363030, Gross weight: 42.23 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD 150
artikelnr.: 952012
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 15 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding AC (UC ) 150 V

Product 952012 was added to Notepad.

Go to Notepad

Product 952012 was added to the cart.

Go to Web-Shop

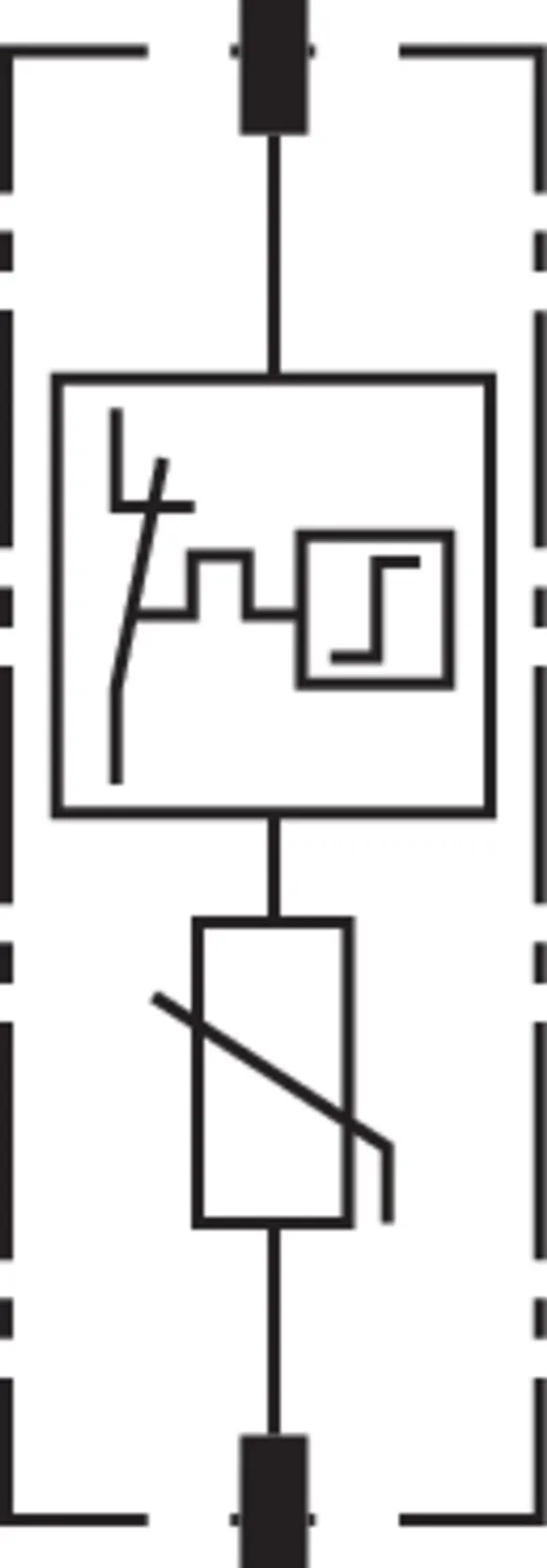

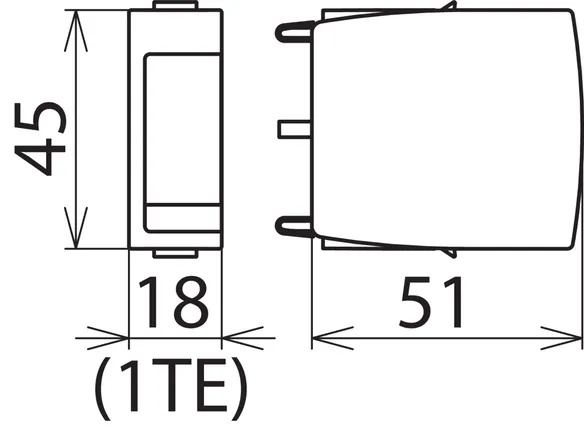

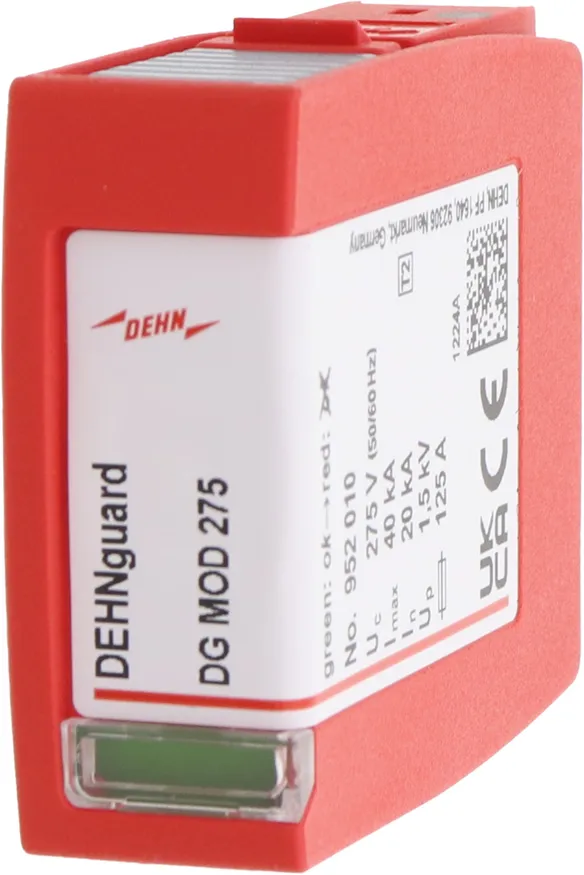

Part No. 952010 DG MOD 275

GTIN 4013364108356, Customs tariff No. (EU): 85363030, Gross weight: 49.80 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD 275
artikelnr.: 952010
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding AC (UC ) 275 V

Product 952010 was added to Notepad.

Go to Notepad

Product 952010 was added to the cart.

Go to Web-Shop

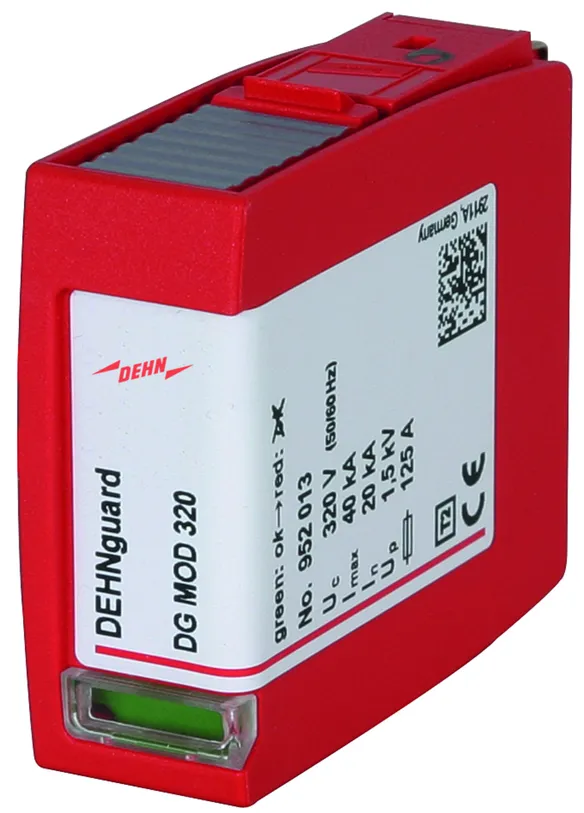

Part No. 952013 DG MOD 320

GTIN 4013364109797, Customs tariff No. (EU): 85363030, Gross weight: 52.50 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD 320
artikelnr.: 952013
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding AC (UC ) 320 V

Product 952013 was added to Notepad.

Go to Notepad

Product 952013 was added to the cart.

Go to Web-Shop

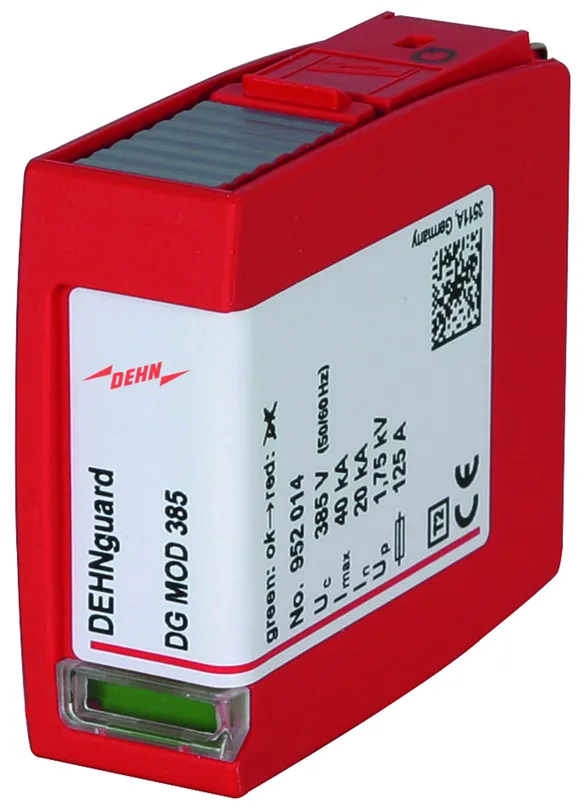

Part No. 952014 DG MOD 385

GTIN 4013364108363, Customs tariff No. (EU): 85363030, Gross weight: 56.80 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD 385
artikelnr.: 952014
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding AC (UC ) 385 V

Product 952014 was added to Notepad.

Go to Notepad

Product 952014 was added to the cart.

Go to Web-Shop

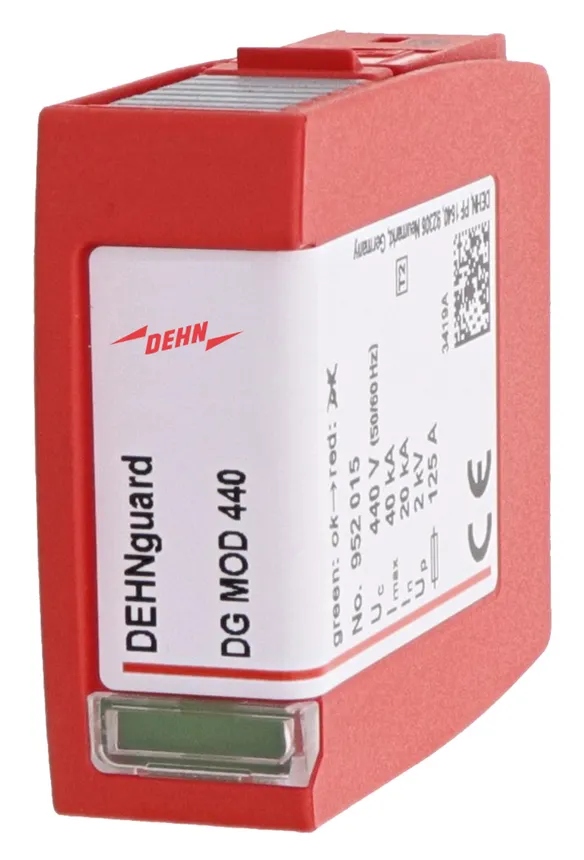

Part No. 952015 DG MOD 440

GTIN 4013364109803, Customs tariff No. (EU): 85363030, Gross weight: 60.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD 440
artikelnr.: 952015
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding AC (UC ) 440 V

Product 952015 was added to Notepad.

Go to Notepad

Product 952015 was added to the cart.

Go to Web-Shop

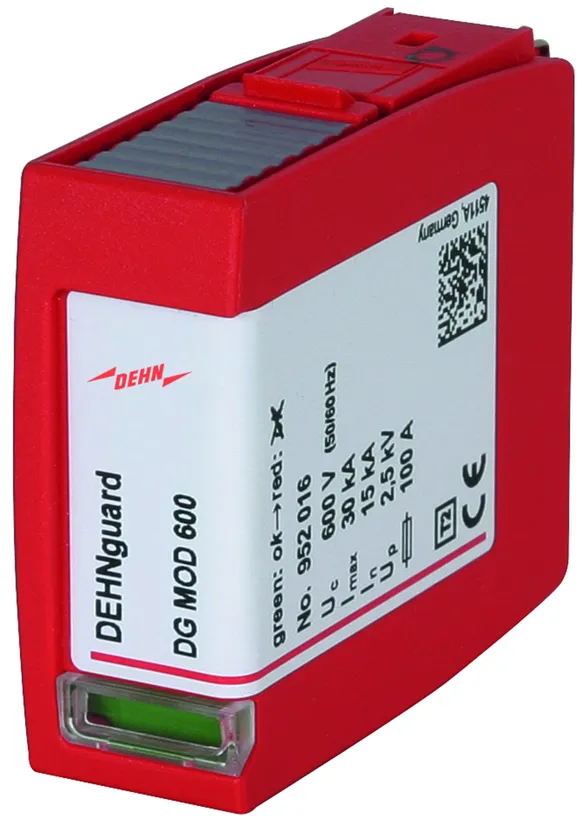

Part No. 952016 DG MOD 600

GTIN 4013364109810, Customs tariff No. (EU): 85363030, Gross weight: 70.60 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD 600
artikelnr.: 952016
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 15 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 30 kA
Max. driftsspænding AC (UC ) 600 V

Product 952016 was added to Notepad.

Go to Notepad

Product 952016 was added to the cart.

Go to Web-Shop

Varistorbaseret beskyttelsesmodul for DEHNguard M (S) WE

1 Product

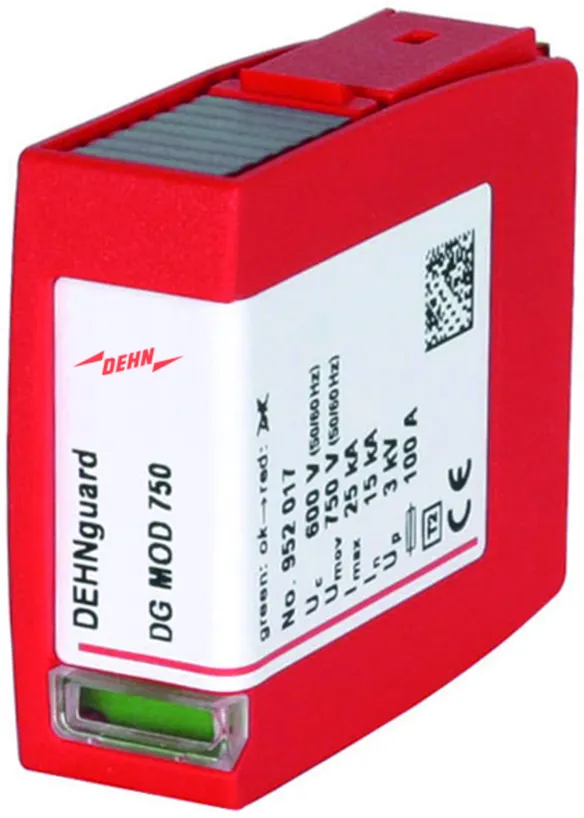

Part No. 952017 DG MOD 750

GTIN 4013364113329, Customs tariff No. (EU): 85363030, Gross weight: 69.70 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD 750
artikelnr.: 952017
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 15 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 25 kA
Max. driftsspænding AC (UC ) 600 V
Varistorspænding (Umov ) 750 V

Product 952017 was added to Notepad.

Go to Notepad

Product 952017 was added to the cart.

Go to Web-Shop

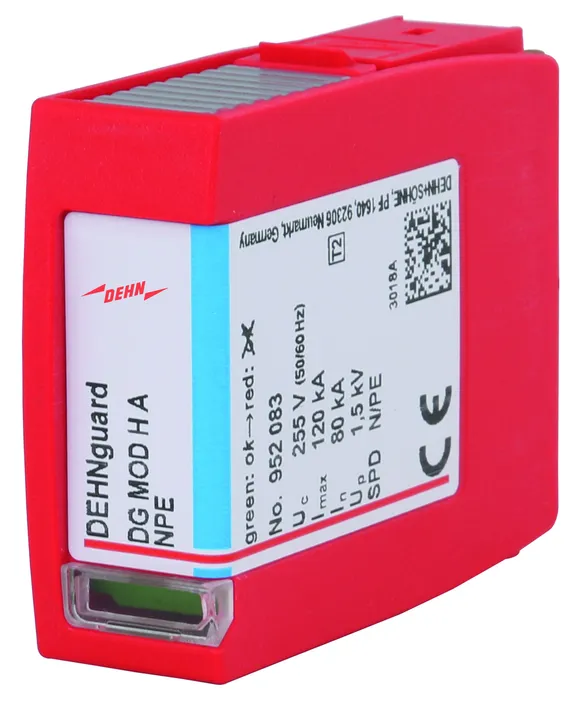

N-PE gnistgabsbaseret beskyttelsesmodul for DEHNguard M ACI

N-PE gnistgabsbaseret beskyttelsesmodul til 2- og 4-polede DEHNguard DG M TT (2P) ACI ... .

1 Product

Part No. 952083 DG MOD H A NPE

GTIN 4013364376540, Customs tariff No. (EU): 85363030, Gross weight: 55.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD H A NPE
artikelnr.: 952083
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 80 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 120 kA
Max. driftsspænding AC (UC ) 275 V

Product 952083 was added to Notepad.

Go to Notepad

Product 952083 was added to the cart.

Go to Web-Shop

N-PE gnistgabsbaseret beskyttelsesmodul for DEHNguard M H TT ...

1 Product

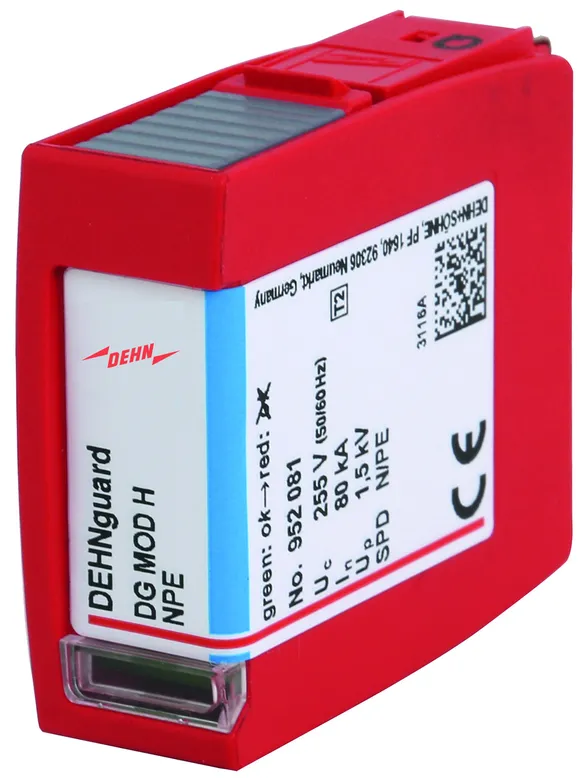

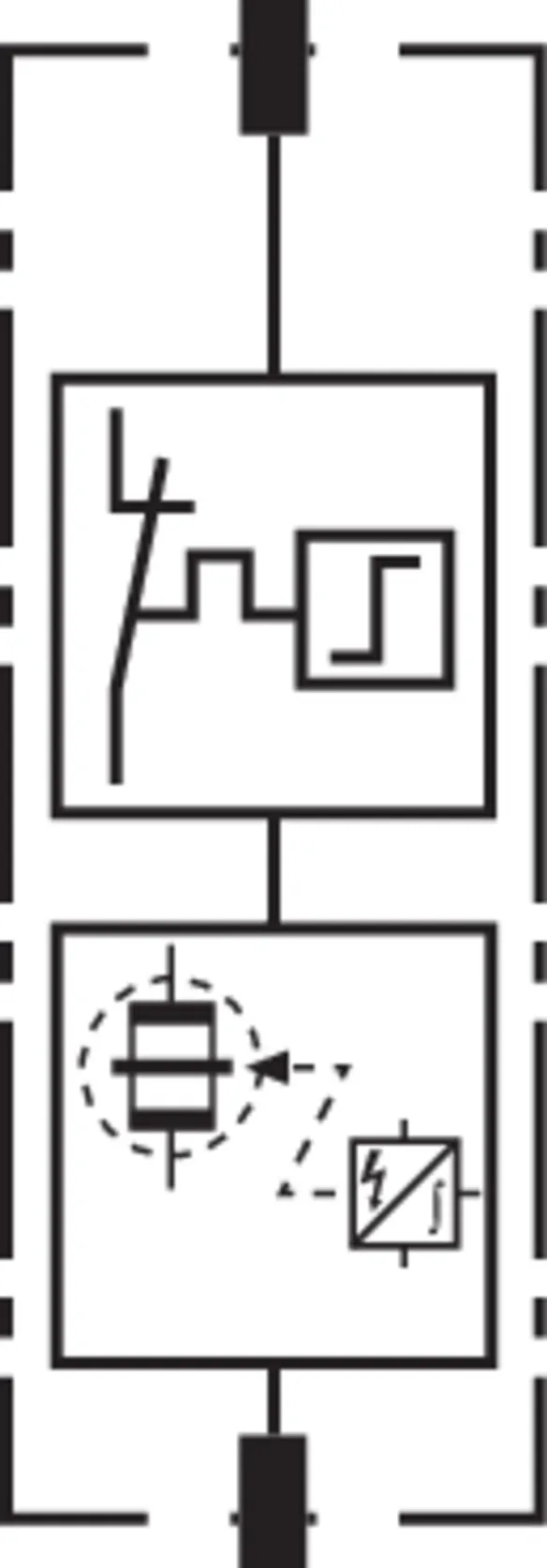

Part No. 952081 DG MOD H NPE

GTIN 4013364318182, Customs tariff No. (EU): 85363030, Gross weight: 44.50 g, PU: 1.00 Pakkestørrelse

Images

Additional information

N-PE-gnistgabsbaseret beskyttelsesmodul DG MOD H NPE
Stikbart N-PE-gnistgabsbaseret beskyttelsesmodul
til DEHNguard DG M TT ...
til type 2-N-PE-overspændingsafledere
i Red/Line-produktserien iht. EN 61643-11
Maks. driftsspænding 255 V AC
Nominel afledningsstrøm 80 kA
Maksimal afledestrøm: 120 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD H NPE
artikelnr.: 952081
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 80 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 120 kA
Max. driftsspænding AC (UC ) 255 V

Product 952081 was added to Notepad.

Go to Notepad

Product 952081 was added to the cart.

Go to Web-Shop

N-PE gnistgabsbaseret beskyttelsesmodul for DEHNguard M TT ...

1 Product

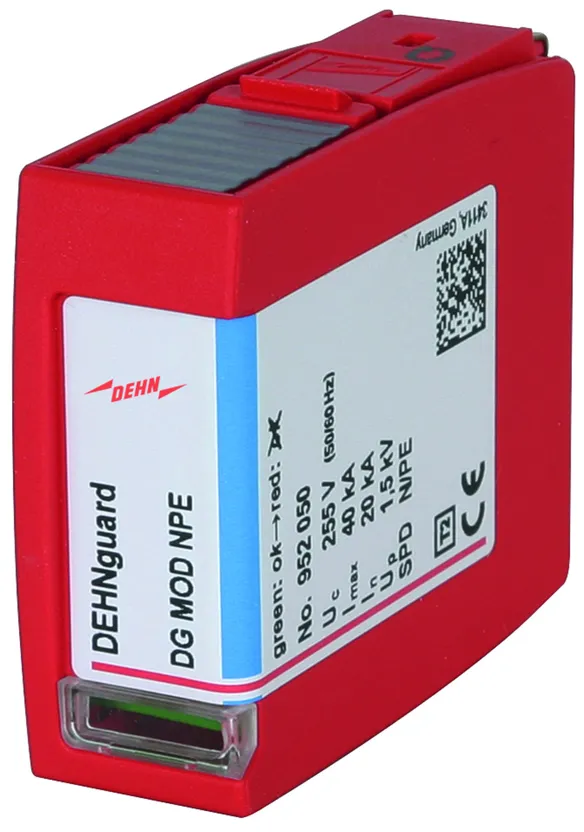

Part No. 952050 DG MOD NPE

GTIN 4013364108370, Customs tariff No. (EU): 85363030, Gross weight: 44.50 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD NPE
artikelnr.: 952050
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding AC (UC ) 255 V

Product 952050 was added to Notepad.

Go to Notepad

Product 952050 was added to the cart.

Go to Web-Shop

N-PE gnistgabsbaseret beskyttelsesmodul for DEHNgap C S

1 Product

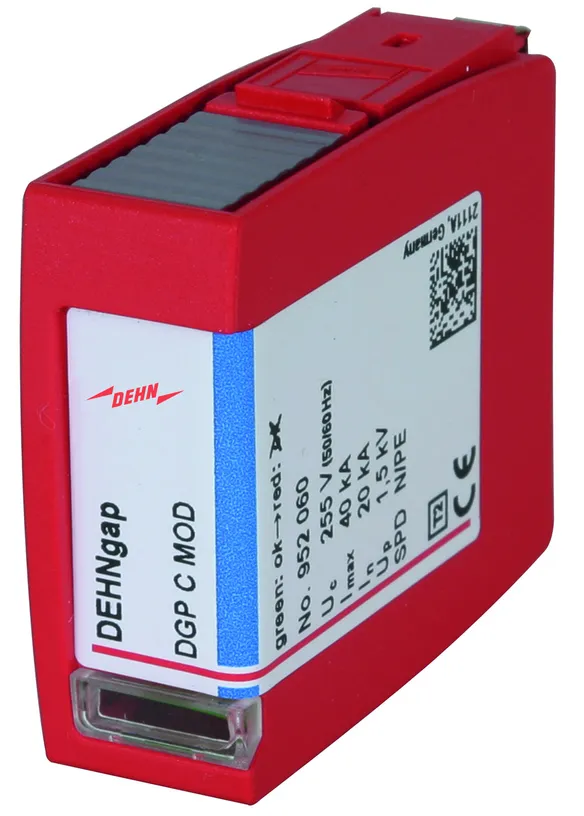

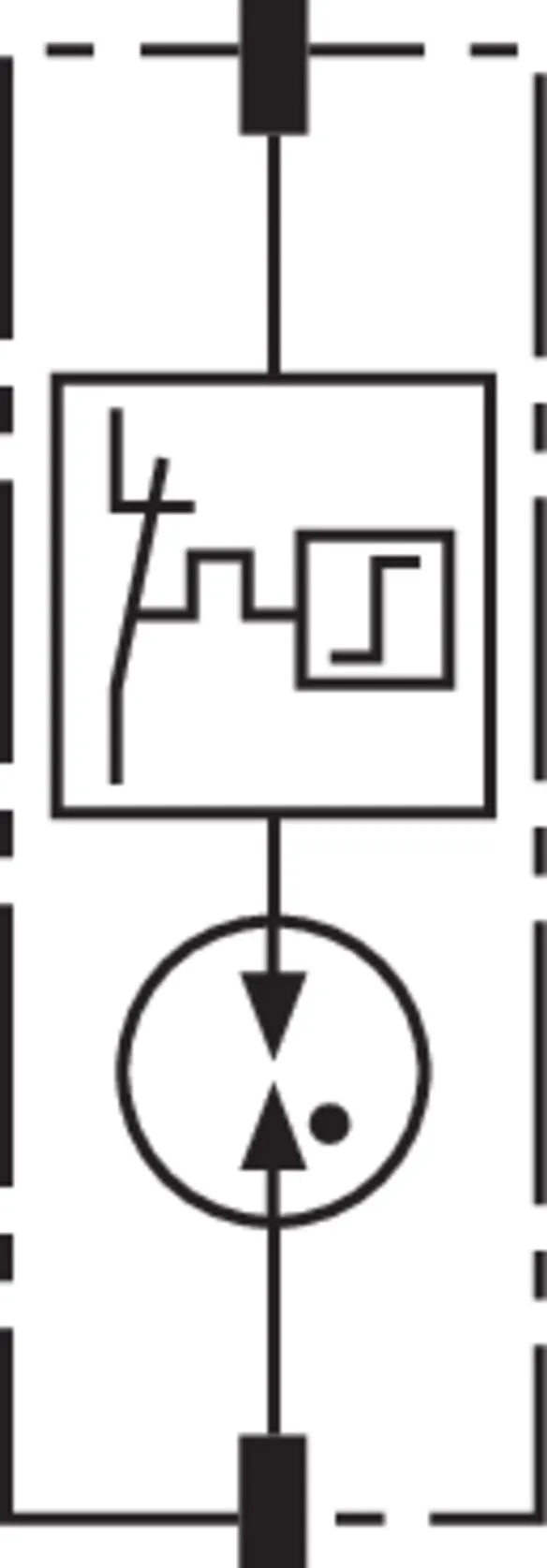

Part No. 952060 DGP C MOD

GTIN 4013364108387, Customs tariff No. (EU): 85363030, Gross weight: 44.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DGP C MOD
artikelnr.: 952060
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding AC (UC ) 255 V

Product 952060 was added to Notepad.

Go to Notepad

Product 952060 was added to the cart.

Go to Web-Shop

Varistor- og gnistgabsbaseret beskyttelsesmodul for DEHNguard S ... VA

3 Products

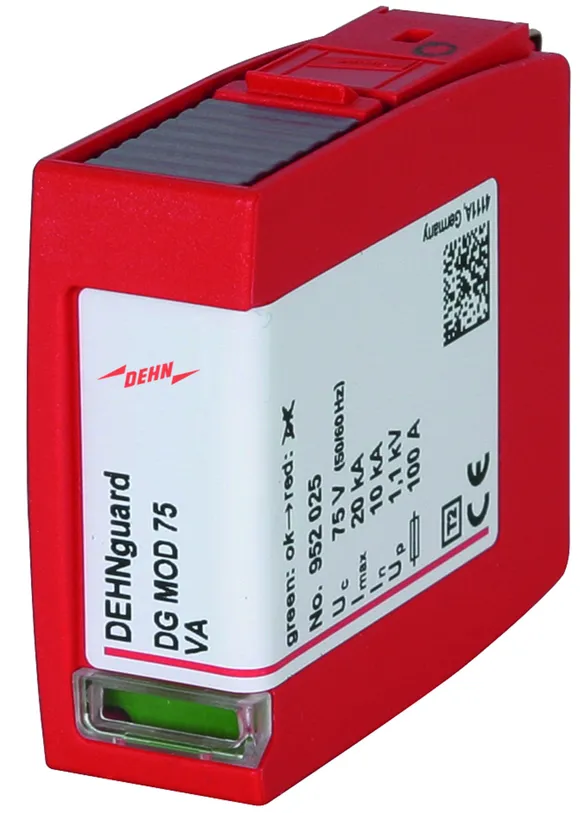

Part No. 952025 DG MOD 75 VA

GTIN 4013364127357, Customs tariff No. (EU): 85363030, Gross weight: 41.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD 75 VA
artikelnr.: 952025
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 10 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 20 kA
Max. driftsspænding AC (UC ) 75 V
Max. driftsspænding DC (UC ) 100 V

Product 952025 was added to Notepad.

Go to Notepad

Product 952025 was added to the cart.

Go to Web-Shop

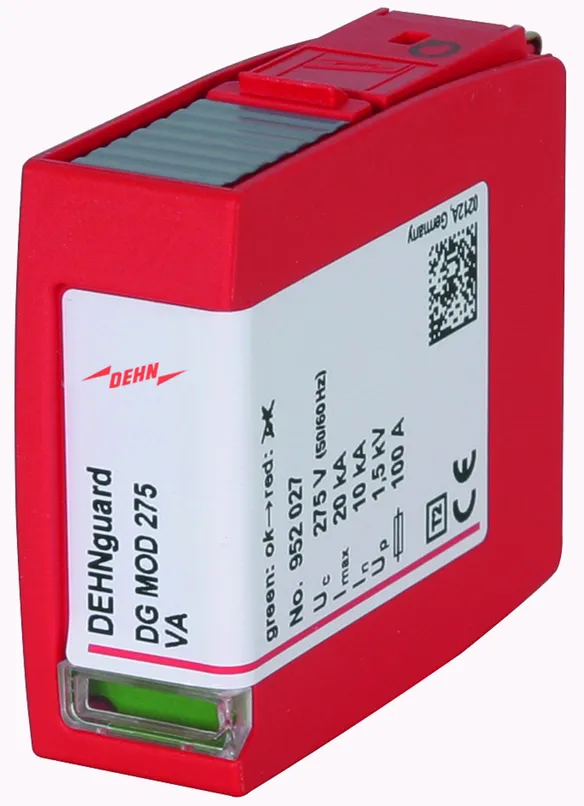

Part No. 952027 DG MOD 275 VA

GTIN 4013364127364, Customs tariff No. (EU): 85363030, Gross weight: 47.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD 275 VA
artikelnr.: 952027
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 10 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 20 kA
Max. driftsspænding AC (UC ) 275 V
Max. driftsspænding DC (UC ) 350 V

Product 952027 was added to Notepad.

Go to Notepad

Product 952027 was added to the cart.

Go to Web-Shop

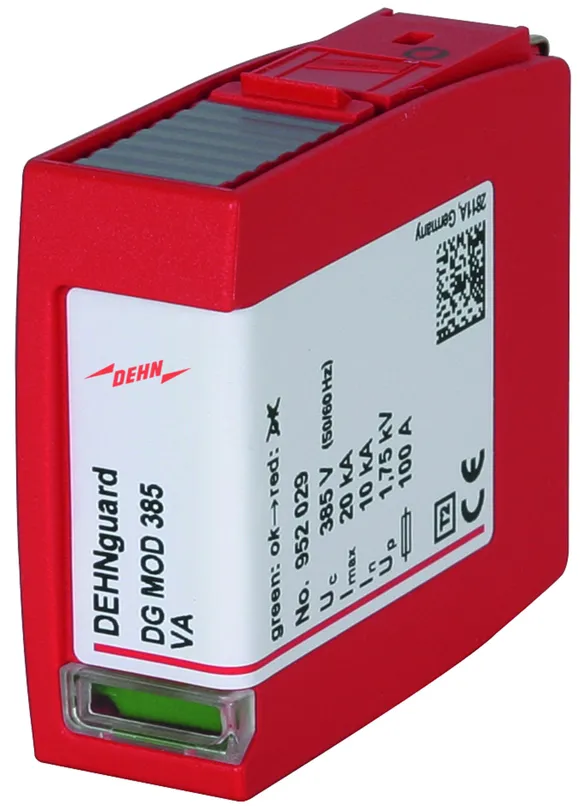

Part No. 952029 DG MOD 385 VA

GTIN 4013364127371, Customs tariff No. (EU): 85363030, Gross weight: 51.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD 385 VA
artikelnr.: 952029
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 10 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 20 kA
Max. driftsspænding AC (UC ) 385 V
Max. driftsspænding DC (UC ) 500 V

Product 952029 was added to Notepad.

Go to Notepad

Product 952029 was added to the cart.

Go to Web-Shop

Varistorbaseret beskyttelsesmodul for DEHNguard M YPV

2 Products

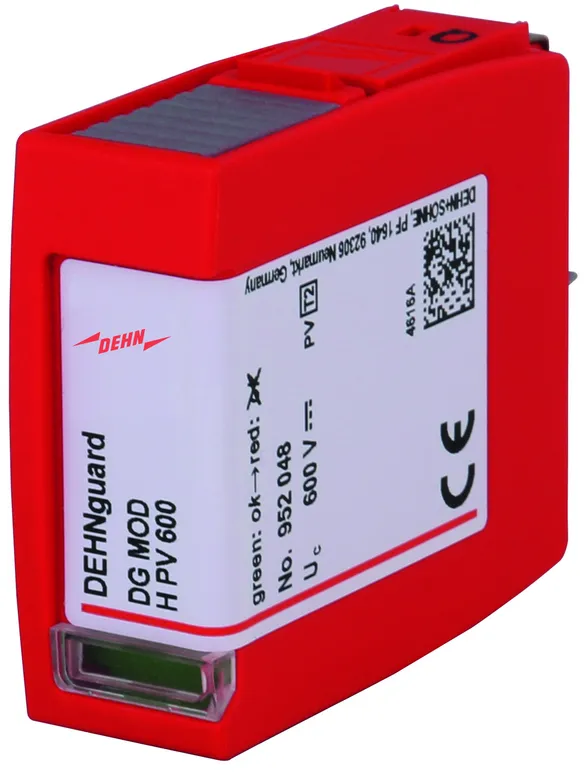

Part No. 952048 DG MOD H PV 600

GTIN 4013364327733, Customs tariff No. (EU): 85363030, Gross weight: 61.20 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD H PV 600
Stikbart beskyttelsesmodul til DEHNguard M YPV
Klassifikation type 2-afleder iht. EN 61643-31
i Red/Line – produktserien
Højtydende Varistor-teknologi
Maks. driftsspænding 585 V DC
Nominel afledningsstrøm 20 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD H PV 600
artikelnr.: 952048
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding DC (UC ) 600 V

Product 952048 was added to Notepad.

Go to Notepad

Product 952048 was added to the cart.

Go to Web-Shop

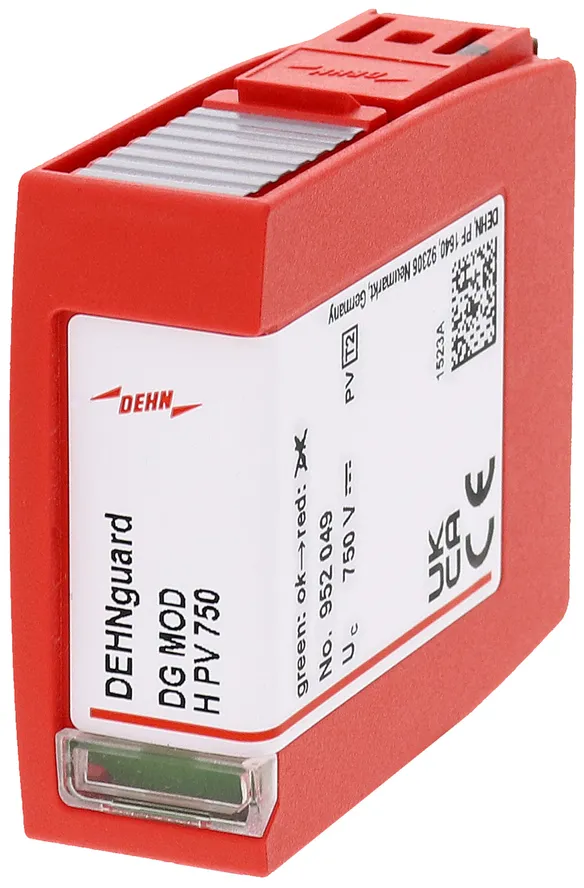

Part No. 952049 DG MOD H PV 750

GTIN 4013364327740, Customs tariff No. (EU): 85363030, Gross weight: 70.60 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD H PV 750
Stikbart beskyttelsesmodul til DEHNguard M YPV
Klassifikation type 2-afleder iht. EN 61643-31
i Red/Line – produktserien
Højtydende Varistor-teknologi
Maks. driftsspænding 750 V DC
Nominel afledningsstrøm 15 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD H PV 750
artikelnr.: 952049
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 15 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding DC (UC ) 750 V

Product 952049 was added to Notepad.

Go to Notepad

Product 952049 was added to the cart.

Go to Web-Shop

Varistorbaseret beskyttelsesmodul for DEHNguard M YPV SCI og DEHNguard S PV SCI

3 Products

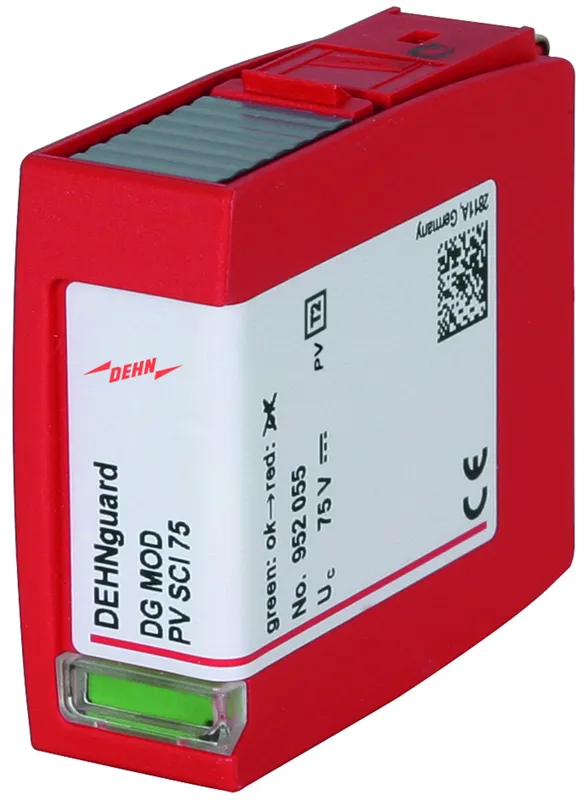

Part No. 952055 DG MOD PV SCI 75

GTIN 4013364136700, Customs tariff No. (EU): 85363030, Gross weight: 43.40 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD PV SCI 75
Stikbart beskyttelsesmodul til DEHNguard M (Y)PV SCI
Klassifikation type 2-afleder iht. EN 50539-11
i Red/Line-produktserien
Højtydende Varistor-teknologi
Kombineret skille- og kortslutningsanordning
Maks. driftsspænding 75 V DC
til solcelle-systemer op til Ucpv <= 150 V
Samlet afledningsstødstrøm: 40 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD PV SCI 75
artikelnr.: 952055
eller tilsvarende

Certificates



SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 10 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 20 kA
Max. driftsspænding DC (UC ) 75 V

Product 952055 was added to Notepad.

Go to Notepad

Product 952055 was added to the cart.

Go to Web-Shop

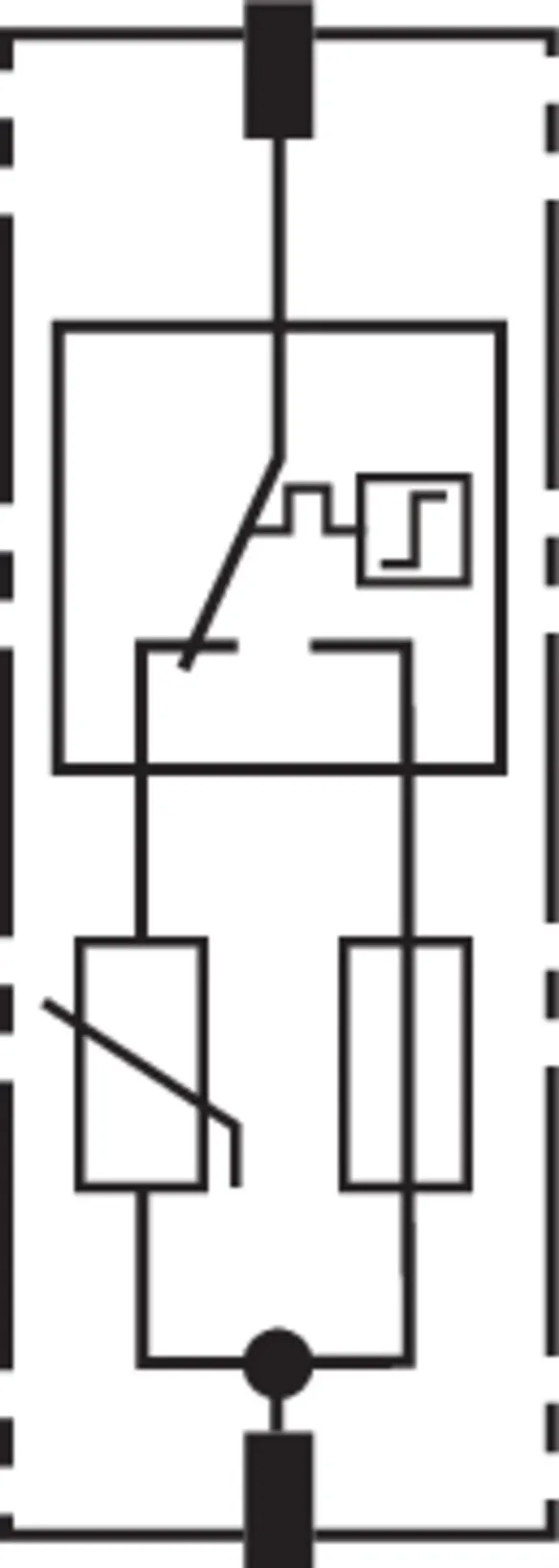

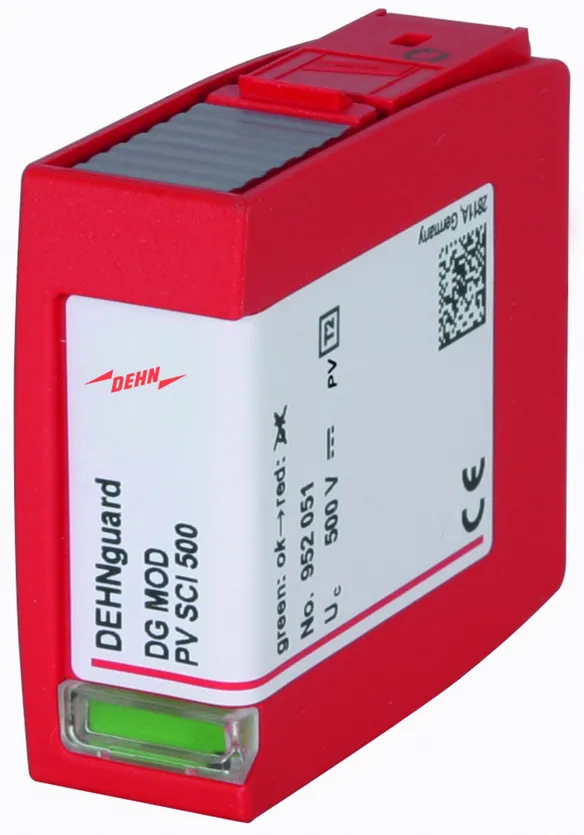

Part No. 952051 DG MOD PV SCI 500

GTIN 4013364126442, Customs tariff No. (EU): 85363030, Gross weight: 56.15 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD PV SCI 500
Stikbart beskyttelsesmodul til DEHNguard M (Y)PV SCI
Klassifikation type 2-afleder iht. EN 61643-31
i Red/Line-produktserien
Højtydende Varistor-teknologi
Kombineret skille- og kortslutningsanordning
Maks. driftsspænding 500 V DC
til solcelle-systemer indtil Ucpv <= 1000 V
Samlet afledningsstødstrøm: 40 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD PV SCI 500
artikelnr.: 952051
eller tilsvarende

Certificates



SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 12,5 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 25 kA
Max. driftsspænding DC (UC ) 500 V

Product 952051 was added to Notepad.

Go to Notepad

Product 952051 was added to the cart.

Go to Web-Shop

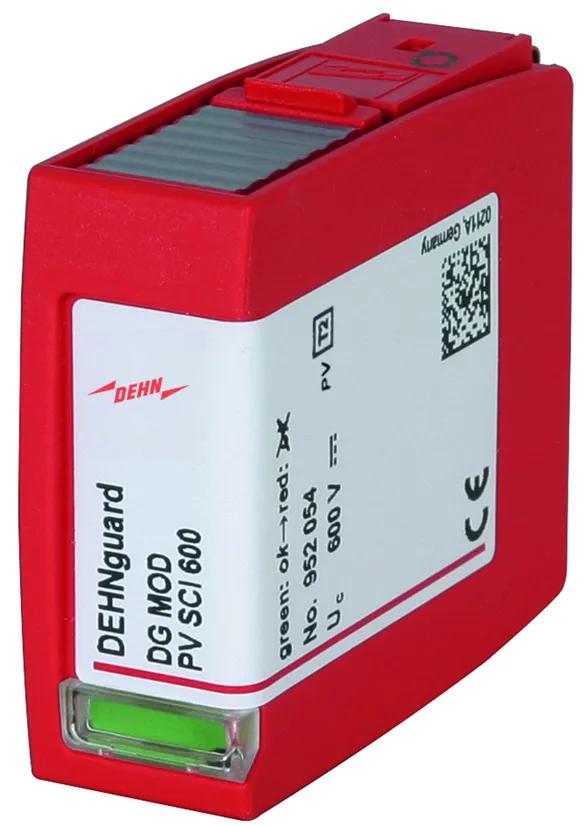

Part No. 952054 DG MOD PV SCI 600

GTIN 4013364127975, Customs tariff No. (EU): 85363030, Gross weight: 58.80 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD PV SCI 600
Stikbart beskyttelsesmodul til DEHNguard M (Y)PV SCI
Klassifikation type 2-afleder iht. EN 61643-31
i Red/Line-produktserien
Højtydende Varistor-teknologi
Kombineret skille- og kortslutningsanordning
Maks. driftsspænding 600 V DC
Maksimal PV-spænding: <= 1200 V DC
Samlet afledningsstødstrøm: 30 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD PV SCI 600
artikelnr.: 952054
eller tilsvarende

Certificates



SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 12,5 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 25 kA
Max. driftsspænding DC (UC ) 600 V

Product 952054 was added to Notepad.

Go to Notepad

Product 952054 was added to the cart.

Go to Web-Shop

Varistor-beskyttelsesmodul til DEHNguard M YPV og DEHNguard S PV

3 Products

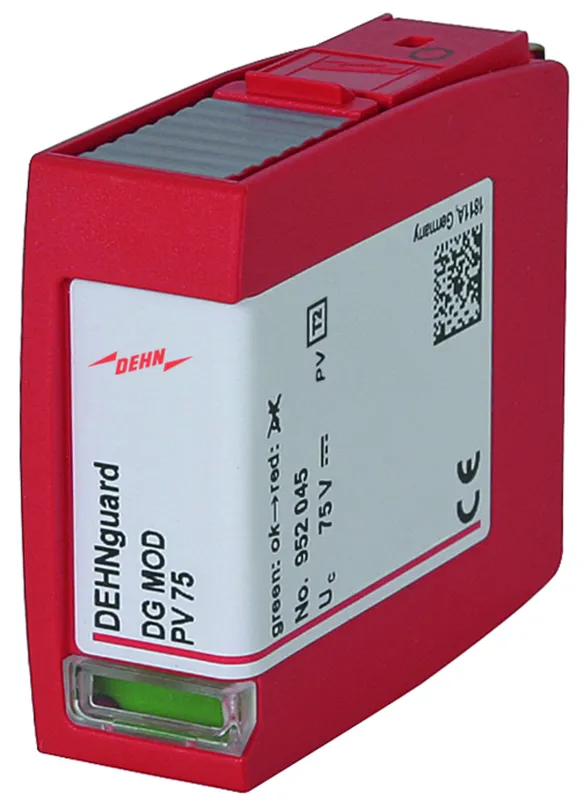

Part No. 952045 DG MOD PV 75

GTIN 4013364141827, Customs tariff No. (EU): 85363030, Gross weight: 40.20 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD PV 75
Stikbart beskyttelsesmodul til DEHNguard
M YPV SCI og S PV SCI
Klassifikation type 2-afleder iht. EN 50539-11
i Red/Line – produktserien
Højtydende Varistor-teknologi
Maks. driftsspænding 75 V DC
Nominel afledningsstrøm 10 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD PV 75
artikelnr.: 952045
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 10 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding DC (UC ) 75 V

Product 952045 was added to Notepad.

Go to Notepad

Product 952045 was added to the cart.

Go to Web-Shop

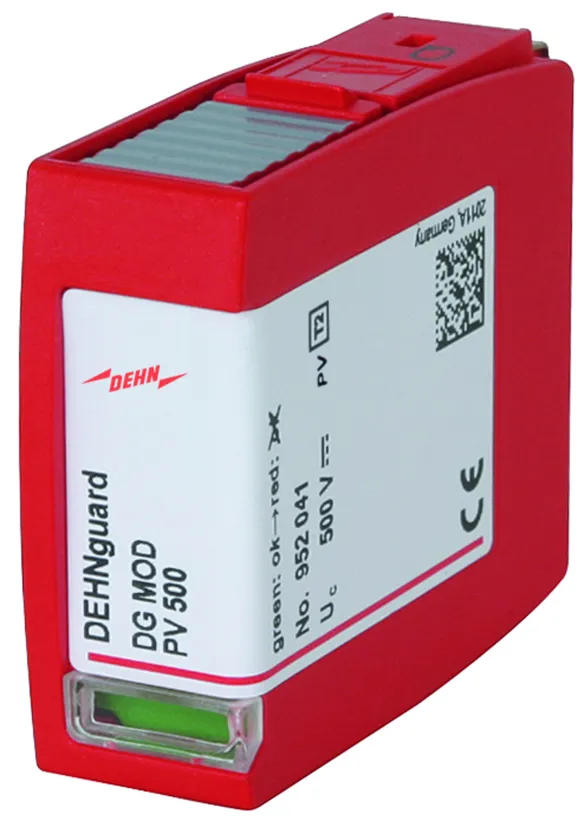

Part No. 952041 DG MOD PV 500

GTIN 4013364141841, Customs tariff No. (EU): 85363030, Gross weight: 60.19 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD PV 500
Stikbart beskyttelsesmodul til DEHNguard
M YPV SCI og S PV SCI
Klassifikation type 2-afleder iht. EN 61643-31
i Red/Line – produktserien
Højtydende Varistor-teknologi
Maks. driftsspænding 500 V DC
Nominel afledningsstrøm 20 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD PV 500
artikelnr.: 952041
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding DC (UC ) 500 V

Product 952041 was added to Notepad.

Go to Notepad

Product 952041 was added to the cart.

Go to Web-Shop

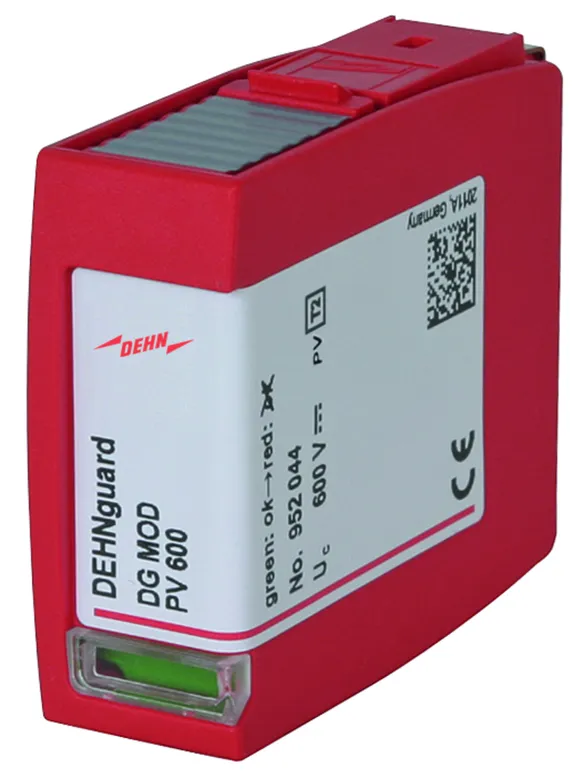

Part No. 952044 DG MOD PV 600

GTIN 4013364141858, Customs tariff No. (EU): 85363030, Gross weight: 69.49 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD PV 600
Stikbart beskyttelsesmodul til DEHNguard
M YPV SCI og S PV SCI
Klassifikation type 2-afleder iht. EN 61643-31
i Red/Line – produktserien
Højtydende Varistor-teknologi
Maks. driftsspænding 600 V DC
Nominel afledningsstrøm 15 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD PV 600
artikelnr.: 952044
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 15 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 30 kA
Max. driftsspænding DC (UC ) 600 V

Product 952044 was added to Notepad.

Go to Notepad

Product 952044 was added to the cart.

Go to Web-Shop

Varistorbaseret beskyttelsesmodul for DEHNguard ME YPV SCI og DEHNguard SE PV SCI

1 Product

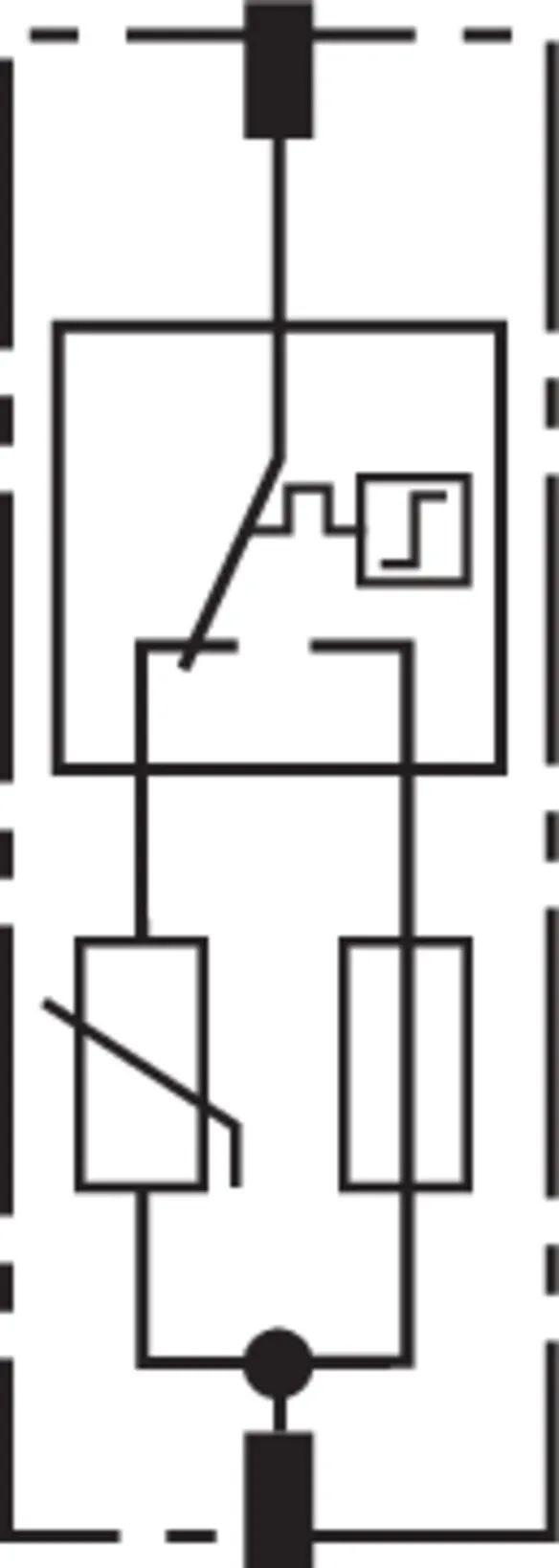

Part No. 952056 DG MOD E PV SCI 750

GTIN 4013364149106, Customs tariff No. (EU): 85363030, Gross weight: 82.70 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD E PV SCI 750
Stikbart beskyttelsesmodul til DEHNguard
ME YPV SCI og SE PV SCI
Klassifikation type 2-afleder iht. EN 50539-11
i Red/Line – produktserien
Højtydende Varistor-teknologi
Maks. driftsspænding 750 V DC
Nominel afledningsstrøm 12,5 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD E PV SCI 750
artikelnr.: 952056
eller tilsvarende

Certificates



SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 12,5 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 25 kA
Max. driftsspænding DC (UC ) 750 V

Product 952056 was added to Notepad.

Go to Notepad

Product 952056 was added to the cart.

Go to Web-Shop

Varistorbaseret beskyttelsesmodul for DEHNguard SE H ...

4 Products

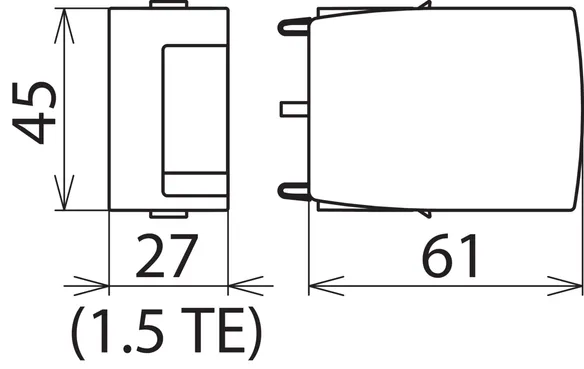

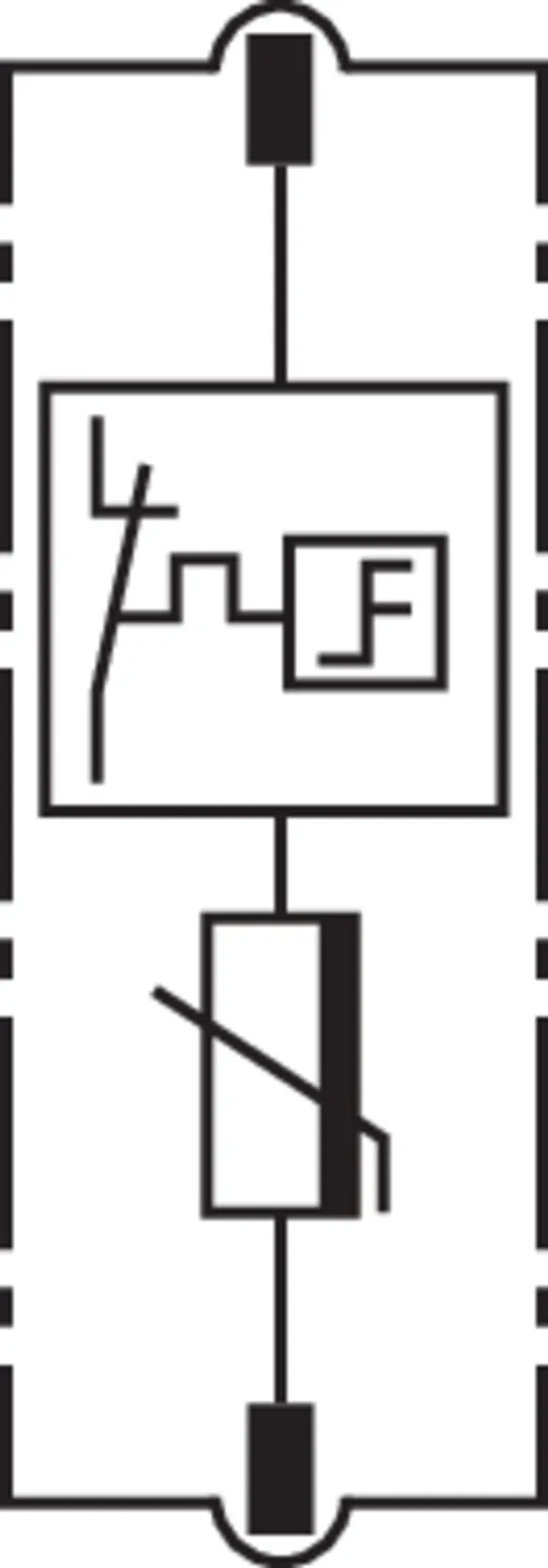

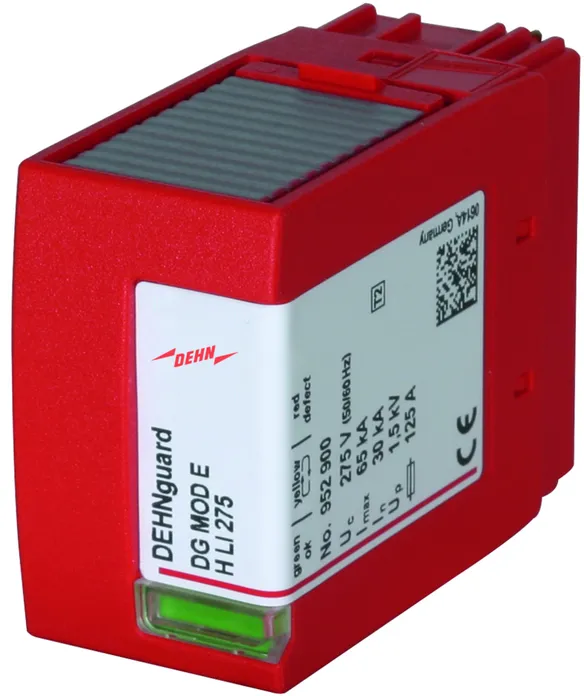

Part No. 952900 DG MOD E H LI 275

GTIN 4013364158801, Customs tariff No. (EU): 85363030, Gross weight: 90.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD E H LI 275
artikelnr.: 952900
eller tilsvarende



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 30 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 65 kA
Max. driftsspænding AC (UC ) 275 V

Product 952900 was added to Notepad.

Go to Notepad

Product 952900 was added to the cart.

Go to Web-Shop

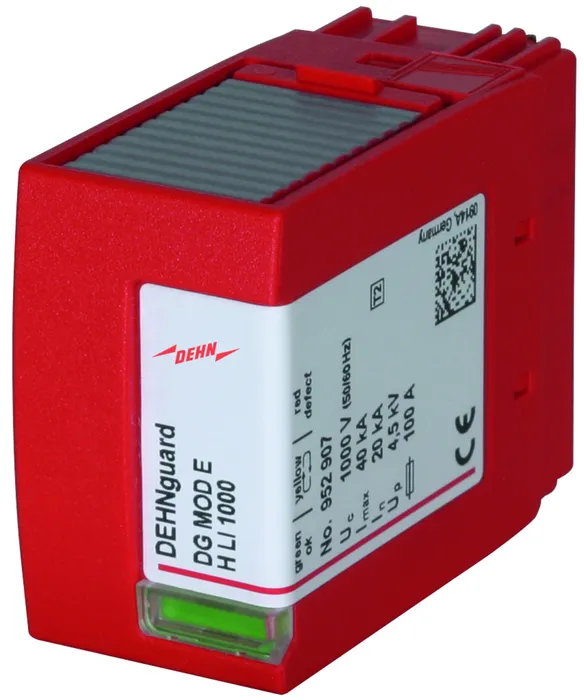

Part No. 952907 DG MOD E H LI 1000

GTIN 4013364158856, Customs tariff No. (EU): 85363030, Gross weight: 130.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD E H LI 1000
artikelnr.: 952907
eller tilsvarende



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding AC (UC ) 1000 V

Product 952907 was added to Notepad.

Go to Notepad

Product 952907 was added to the cart.

Go to Web-Shop

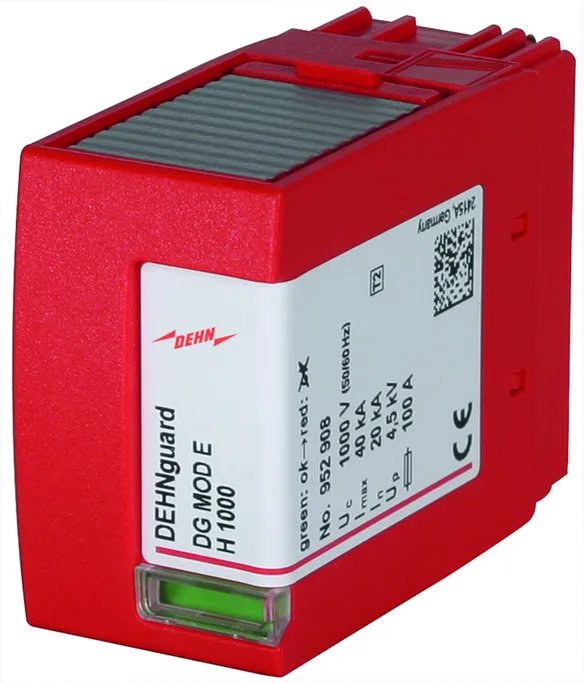

Part No. 952908 DG MOD E H 1000

GTIN 4013364264526, Customs tariff No. (EU): 85363030, Gross weight: 123.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD E H 1000
artikelnr.: 952908
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 20 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding AC (UC ) 1000 V

Product 952908 was added to Notepad.

Go to Notepad

Product 952908 was added to the cart.

Go to Web-Shop

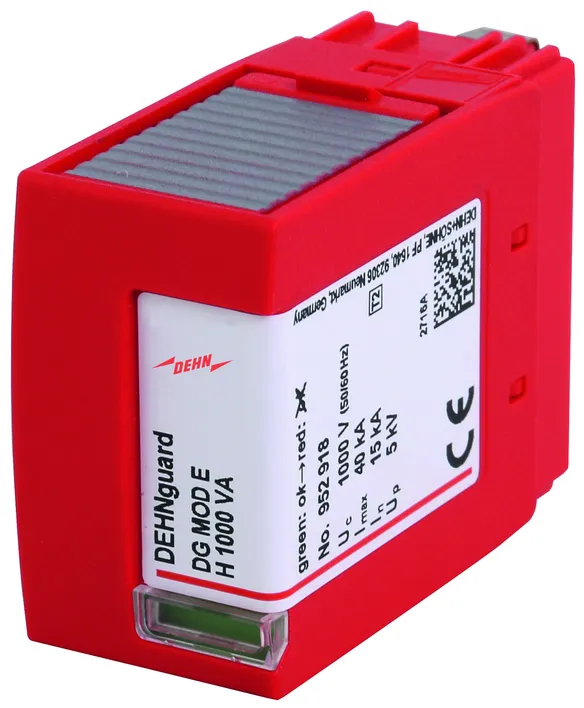

Part No. 952918 DG MOD E H 1000 VA

GTIN 4013364308336, Customs tariff No. (EU): 85363030, Gross weight: 130.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Varistor-beskyttelsesmodul DG MOD E 1000 VA
Stikbart beskyttelsesmodul til DEHNguard
SE H 1000 VA FM
Type-2-afleder iht. EN 61643-11
Højtydende Varistor-teknologi
Maks. driftsspænding 1000 V DC
Nominel afledningsstrøm 15 kA
Fejlvisning

fabrikat: DEHN
Type: DG MOD E H 1000 VA
artikelnr.: 952918
eller tilsvarende

Certificates



Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 15 kA
Max. afledestødstrøm (8/20 µs) (Imax ) 40 kA
Max. driftsspænding AC (UC ) 1000 V

Product 952918 was added to Notepad.

Go to Notepad

Product 952918 was added to the cart.

Go to Web-Shop

Varistorbaseret beskyttelsesmodul for DEHNguard SE DC

4 Products

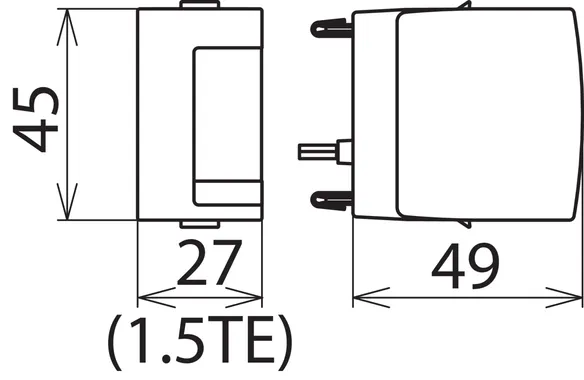

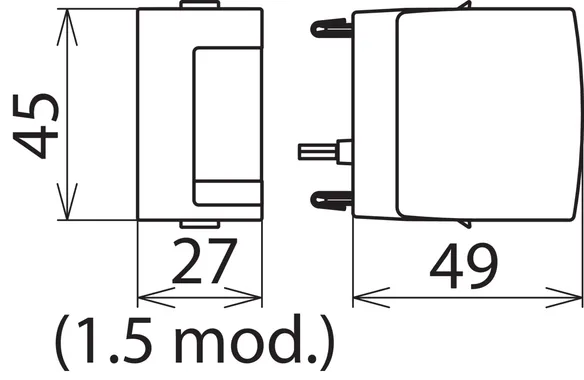

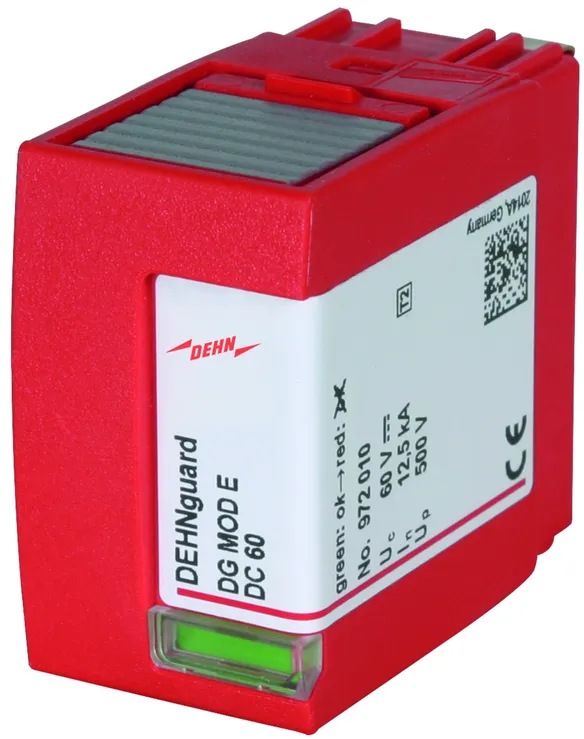

Part No. 972010 DG MOD E DC 60

GTIN 4013364158672, Customs tariff No. (EU): 85363030, Gross weight: 65.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD E DC 60
artikelnr.: 972010
eller tilsvarende

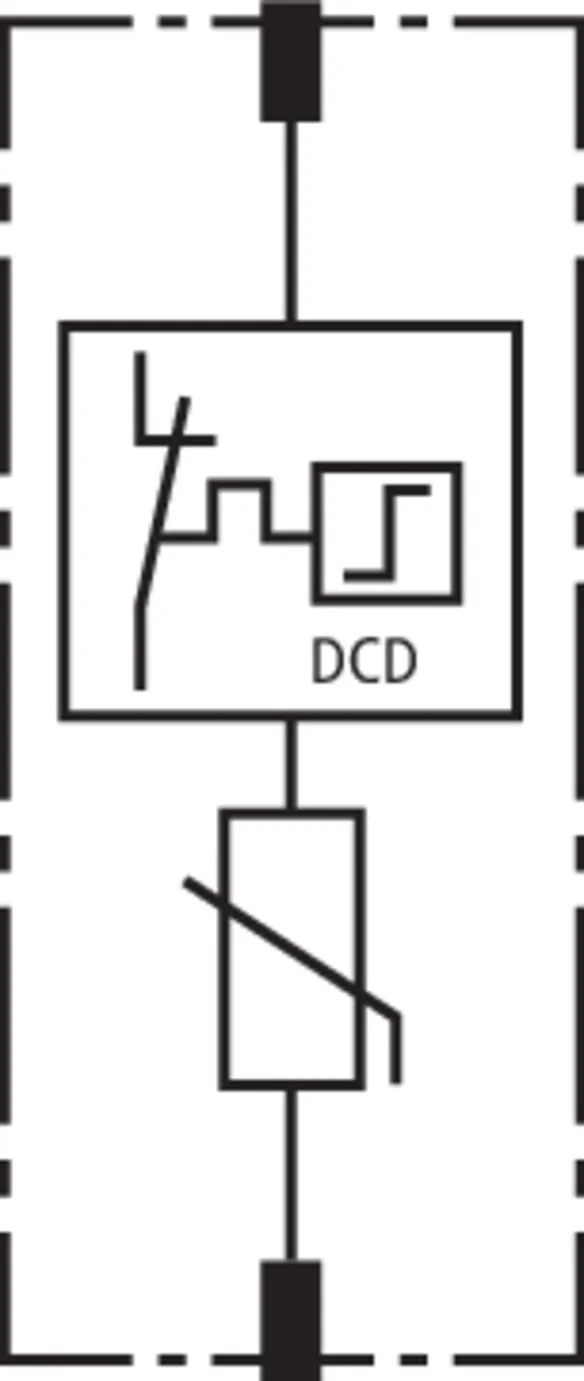

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 12,5 kA
Max. driftsspænding DC (UC ) 60 V

Product 972010 was added to Notepad.

Go to Notepad

Product 972010 was added to the cart.

Go to Web-Shop

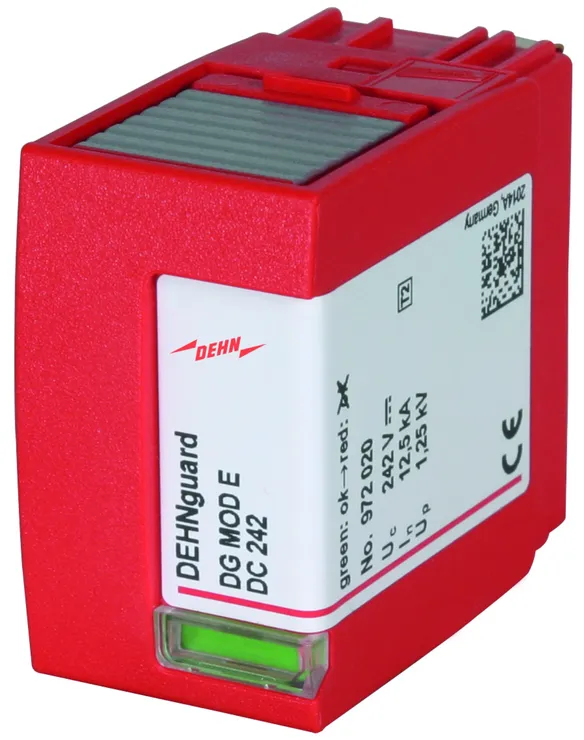

Part No. 972020 DG MOD E DC 242

GTIN 4013364158702, Customs tariff No. (EU): 85363030, Gross weight: 75.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD E DC 242
artikelnr.: 972020
eller tilsvarende

Certificates



Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 12,5 kA
Max. driftsspænding DC (UC ) 242 V

Product 972020 was added to Notepad.

Go to Notepad

Product 972020 was added to the cart.

Go to Web-Shop

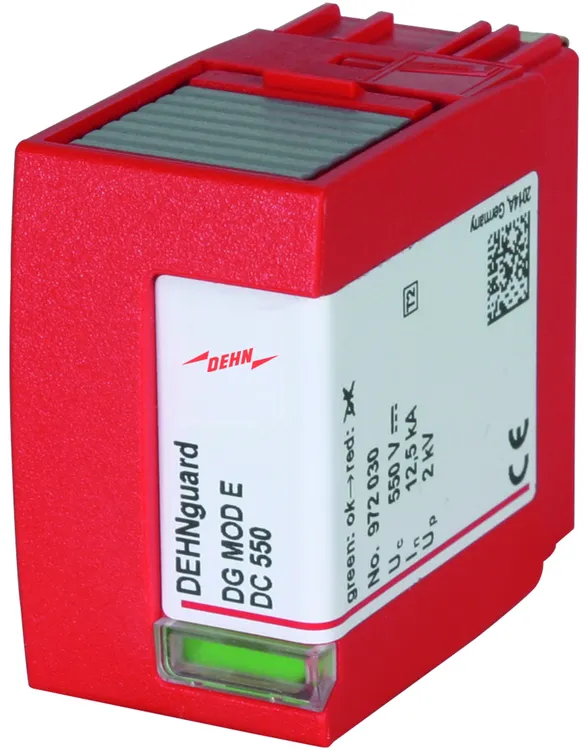

Part No. 972030 DG MOD E DC 550

GTIN 4013364158719, Customs tariff No. (EU): 85363030, Gross weight: 89.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD E DC 550
artikelnr.: 972030
eller tilsvarende

Certificates



Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 12,5 kA
Max. driftsspænding DC (UC ) 550 V

Product 972030 was added to Notepad.

Go to Notepad

Product 972030 was added to the cart.

Go to Web-Shop

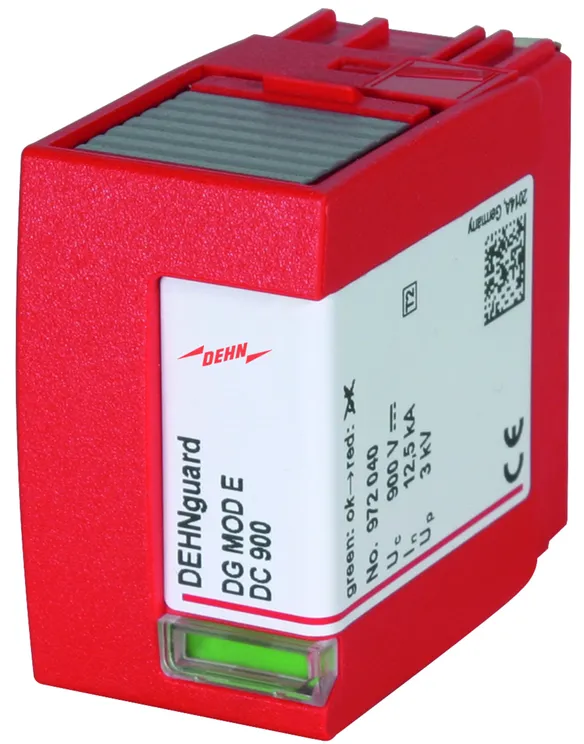

Part No. 972040 DG MOD E DC 900

GTIN 4013364158764, Customs tariff No. (EU): 85363030, Gross weight: 95.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DG MOD E DC 900
artikelnr.: 972040
eller tilsvarende

Certificates



Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

Mærkeafledestødstrøm (8/20 µs) (In ) 12,5 kA
Max. driftsspænding DC (UC ) 900 V

Product 972040 was added to Notepad.

Go to Notepad

Product 972040 was added to the cart.

Go to Web-Shop
back to top
