Beskyttelsesmodul for DEHNsecure modular

  • Gnistgabsbaseret teknologi, særligt egnet til brug i DC-anlæg
  • Funktions-/fejlindikation ved grøn/rød markering

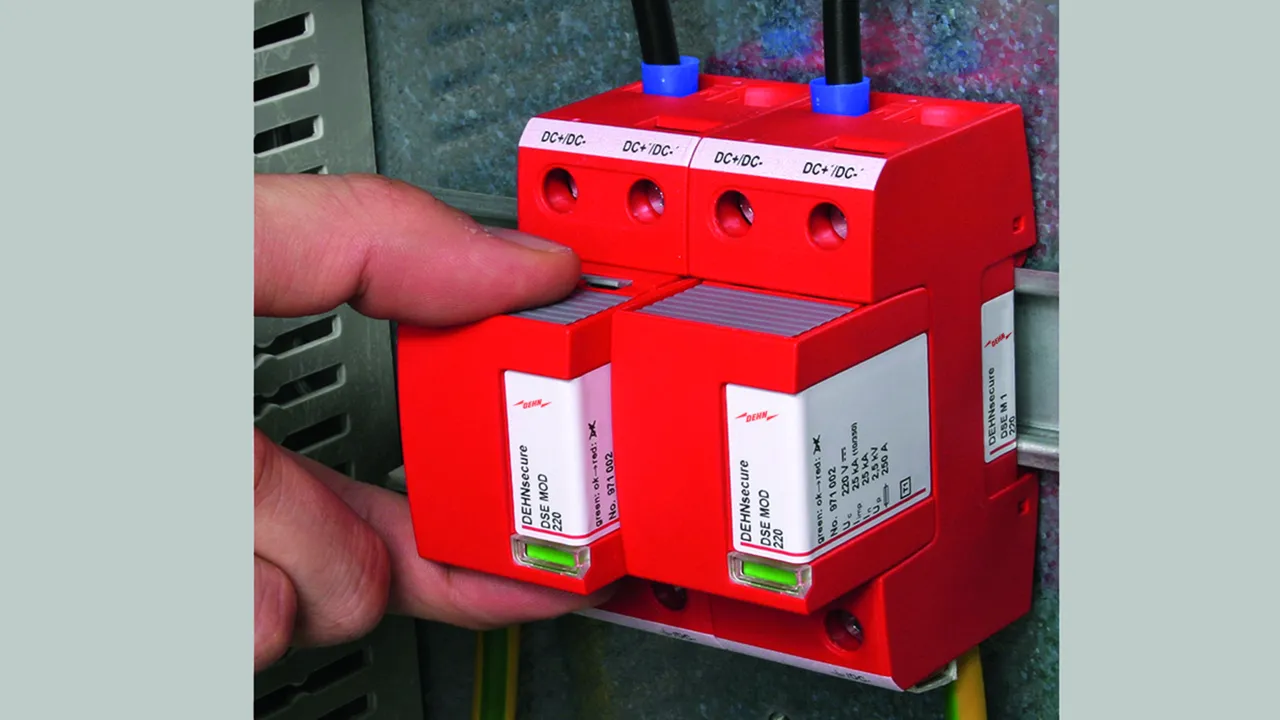

  • Beskyttelsesmoduler skiftes let uden værktøj ved at trykke på beskyttelsesmodulets udløseknapper

DSE M Gnistgabsbaseret beskyttelsesmodul

Gnistgabsbaseret beskyttelsesmodul.

3 Products

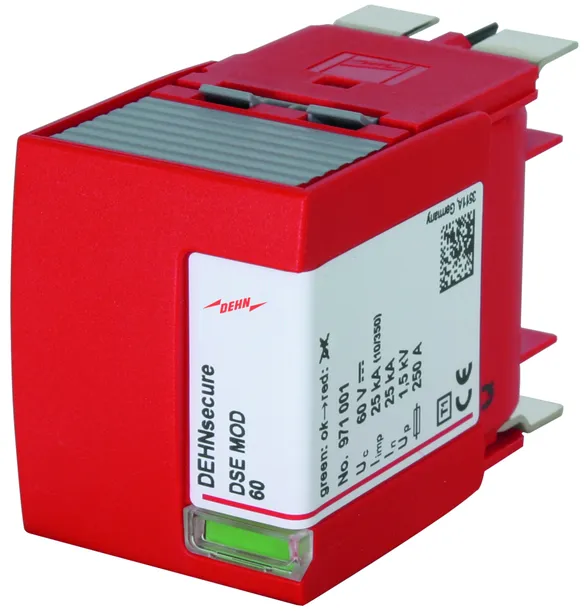

Part No. 971001 DSE MOD 60

GTIN 4013364138605, Customs tariff No. (EU): 85363090, Gross weight: 151.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Gnistgabsbaseret beskyttelsesmodul DSE MOD 60
Gnistgabsbaseret beskyttelsesmodul til enpolet,
koordineret type 1-afleder i Red/Line-
produktserien iht. EN 61643-11
Gnistgabsteknologi, velegnet til brug i
jævnstrømsanlæg
Fejlvisning
Maks. driftsspænding 60 V DC
Lynimpulsstrøm: 25 kA
Kortslutningsbæreevne ved maks. overstrømsbeskyttelse
på netsiden jævnstrøm 25 kA

fabrikat: DEHN
Type: DSE MOD 60
artikelnr.: 971001
eller tilsvarende

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Afledermærkespænding AC (UC ) 60 V
Lynstødstrøm (10/350 µs) (Iimp ) 25 kA

Product 971001 was added to Notepad.

Go to Notepad

Product 971001 was added to the cart.

Go to Web-Shop

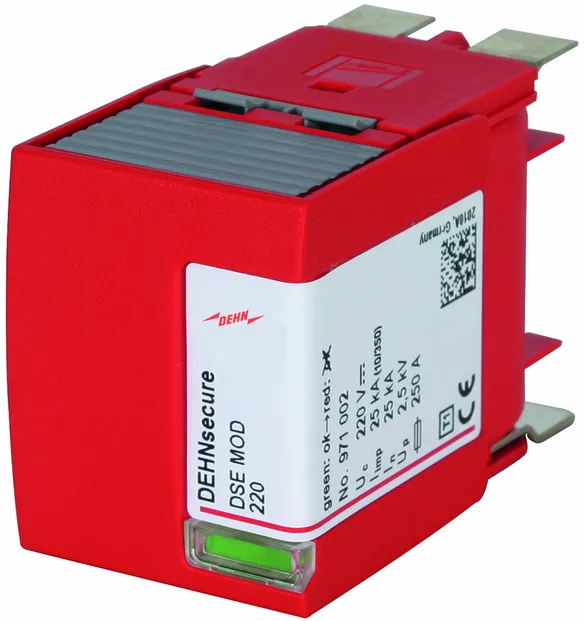

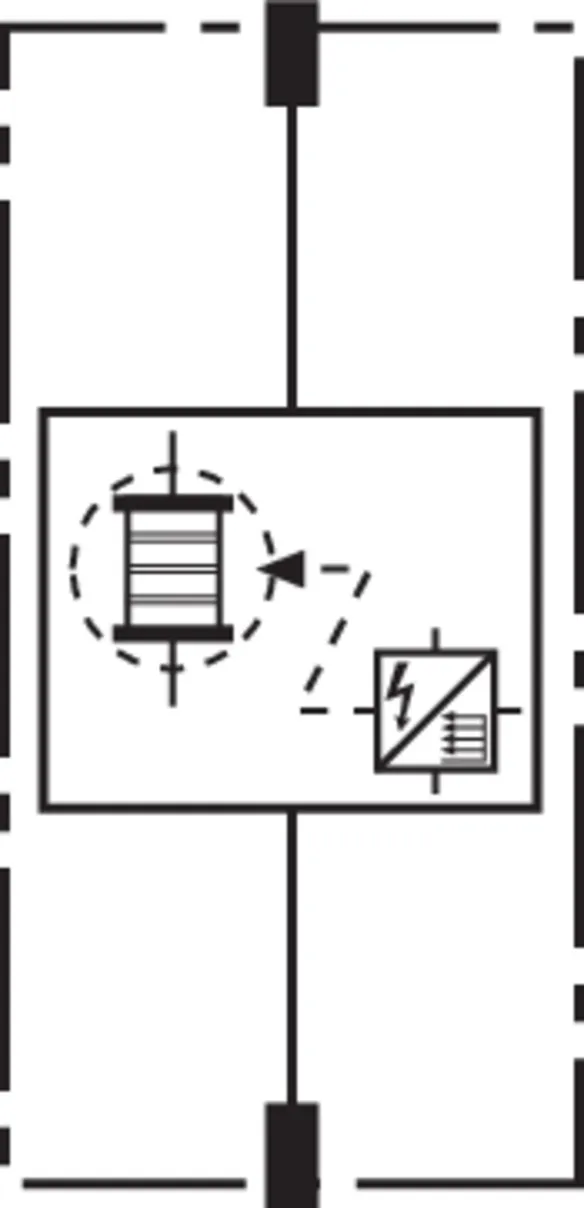

Part No. 971002 DSE MOD 220

GTIN 4013364133655, Customs tariff No. (EU): 85363090, Gross weight: 118.20 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Gnistgabsbaseret beskyttelsesmodul DSE MOD 220
Gnistgabsbaseret beskyttelsesmodul til enpolet,
koordineret type 1-afleder i Red/Line-
produktserien iht. EN 61643-11
Gnistgabsteknologi, velegnet til brug i
jævnstrømsanlæg
Fejlvisning
Maks. driftsspænding 220 V DC
Lynimpulsstrøm: 25 kA
Kortslutningsbæreevne ved maks. overstrømsbeskyttelse
på netsiden jævnstrøm 25 kA

fabrikat: DEHN
Type: DSE MOD 220
artikelnr.: 971002
eller tilsvarende

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Afledermærkespænding AC (UC ) 220 V
Lynstødstrøm (10/350 µs) (Iimp ) 25 kA

Product 971002 was added to Notepad.

Go to Notepad

Product 971002 was added to the cart.

Go to Web-Shop

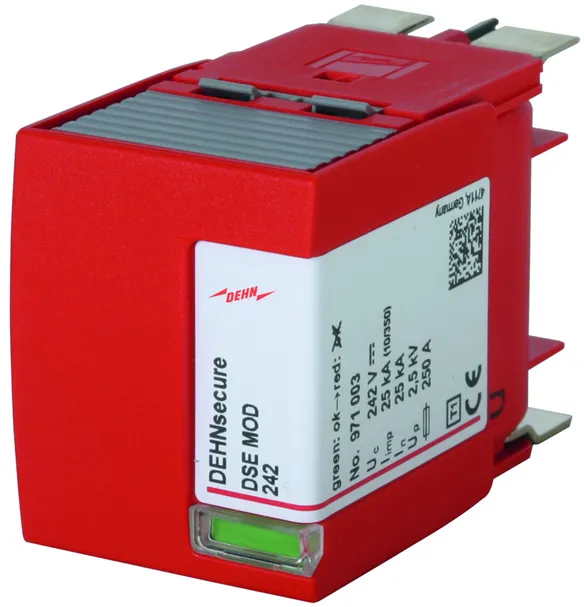

Part No. 971003 DSE MOD 242

GTIN 4013364144491, Customs tariff No. (EU): 85363090, Gross weight: 120.50 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DSE MOD 242
artikelnr.: 971003
eller tilsvarende

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Afledermærkespænding AC (UC ) 242 V
Lynstødstrøm (10/350 µs) (Iimp ) 25 kA

Product 971003 was added to Notepad.

Go to Notepad

Product 971003 was added to the cart.

Go to Web-Shop

DSE PE Gnistgabsbaseret beskyttelsesmodul

Gnistgabsbaseret beskyttelsesmodul .

1 Product

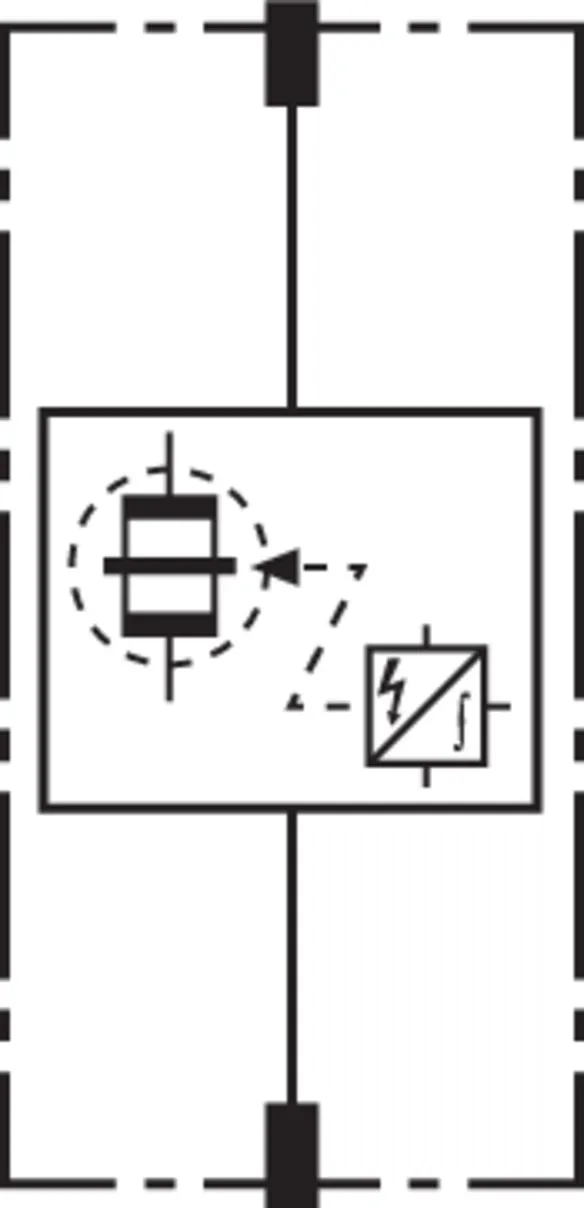

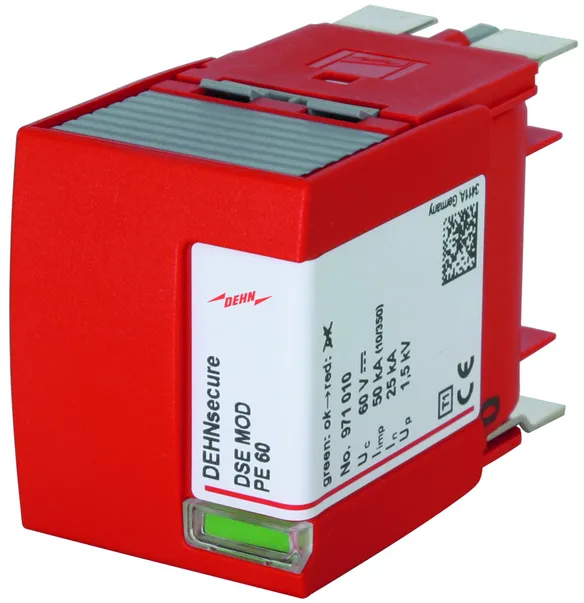

Part No. 971010 DSE MOD PE 60

GTIN 4013364138636, Customs tariff No. (EU): 85363090, Gross weight: 183.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Gnistgabsbaseret beskyttelsesmodul DSE MOD PE 60
PE-gnistgabsbaseret beskyttelsesmodul til enpolet,
koordineret type 1-afleder i Red/Line-
produktserien iht. EN 61643-11
Gnistgabsteknologi, velegnet til brug i
jævnstrømsanlæg
Fejlvisning
Maks. driftsspænding 60 V DC
Lynimpulsstrøm: 50 kA
Kortslutningsbæreevne ved maks. overstrømsbeskyttelse
på netsiden jævnstrøm 25 kA

fabrikat: DEHN
Type: DSE MOD PE 60
artikelnr.: 971010
eller tilsvarende

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Afledermærkespænding AC (UC ) 60 V
Lynstødstrøm (10/350 µs) (Iimp ) 50 kA

Product 971010 was added to Notepad.

Go to Notepad

Product 971010 was added to the cart.

Go to Web-Shop

DSE MOD 60

Gnistgabsbaseret beskyttelsesmodul

1 Product

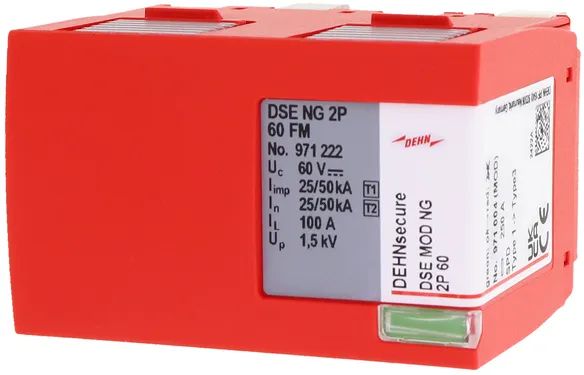

Part No. 971004 DSE MOD NG 2P 60

GTIN 4013364489530, Customs tariff No. (EU): 85363090, Gross weight: 252.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Gnistgabsbaseret beskyttelsesmodul DSE MOD NG 2P 60
til enpolet, koordineret
type 1-afleder DSE NG 2P 60 FM
i Red/Line-produktserien
iht. EN 61643-11
Gnistgabsteknologi, velegnet til brug i
jævnstrømsanlæg
Fejlvisning
Maks. driftsspænding 60 V DC
Lynimpulsstrøm: 50 kA
Kortslutningsbæreevne ved maks. overstrømsbeskyttelse
på netsiden jævnstrøm 10 kA

fabrikat: DEHN
Type: DSE MOD NG 2P 60
artikelnr.: 971004
eller tilsvarende

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Afledermærkespænding AC (UC ) 60 V
Lynstødstrøm (10/350 µs) (Iimp ) 25 kA
