Beskyttelsesmodul for DEHNbloc modular

  • Høj afledeevne pga. kraftigt slukkegnistgab
  • Maksimal driftssikkerhed pga. RADAX-Flow-følgestrømsbegrænsning
  • Funktions-/fejlvisning ved rød/grøn markering

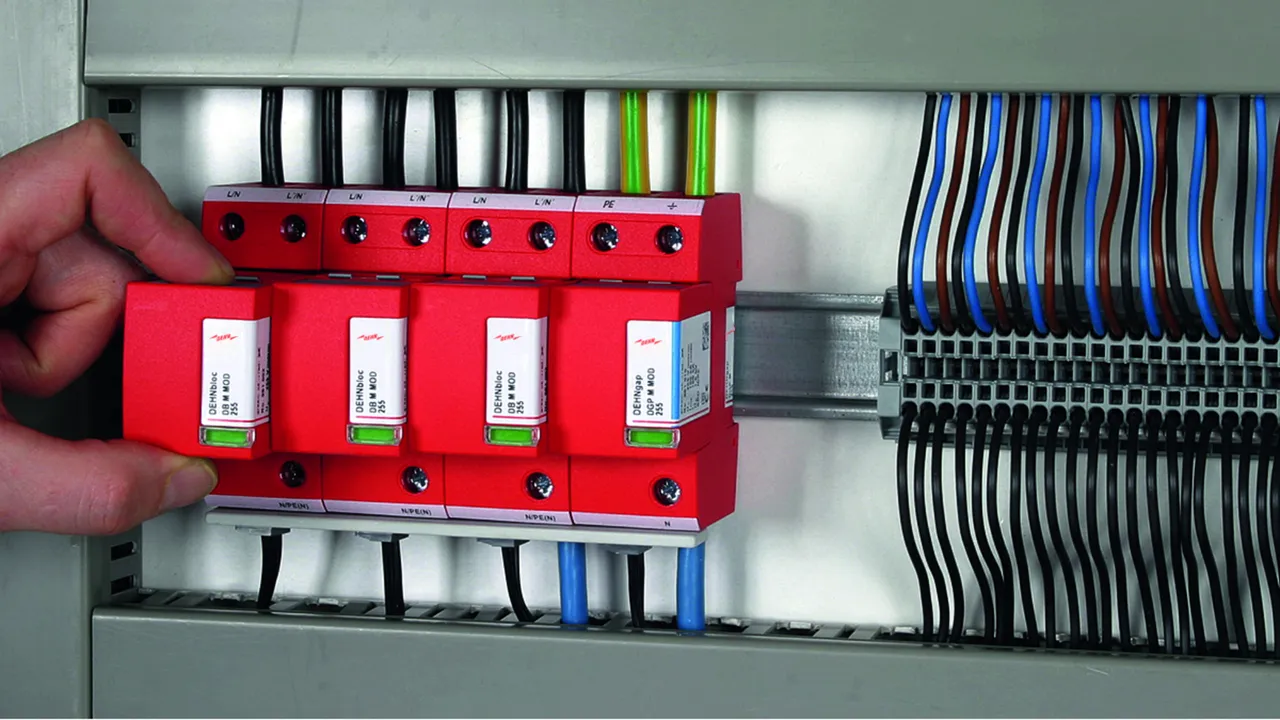

  • Beskyttelsesmoduler skiftes let uden værktøj ved at trykke på beskyttelsesmodulets udløseknapper
  • Det stikbare beskyttelsesmodul kan udskiftes uden at fjerne tavleafdækningen

DB M gnistgabsbaseret beskyttelsesmodul

Gnistgabsbaseret beskyttelsesmodul for DEHNbloc M ...

3 Products

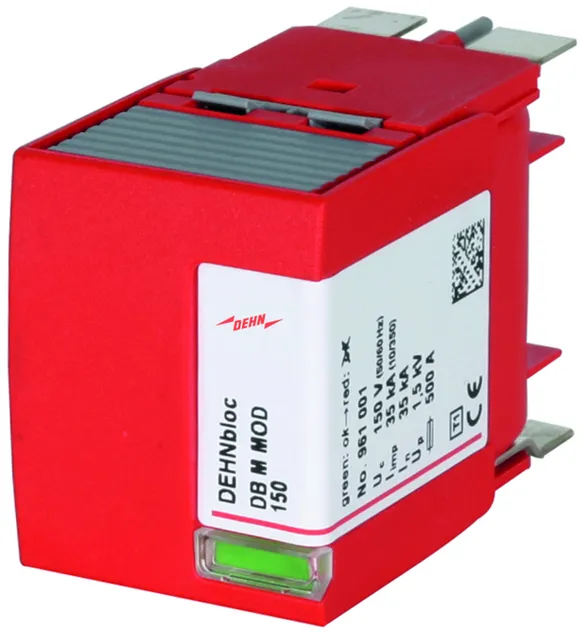

Part No. 961001 DB M MOD 150

GTIN 4013364118584, Customs tariff No. (EU): 85363090, Gross weight: 184.90 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Gnistgabsbaseret beskyttelsesmodul DB M MOD 150
Net-gnistgabsbaseret beskyttelsesmodul til enpolet,
koordineret, stikbar type 1-afleder til Red/Line-
produktserien iht. EN 61643-11
Højtydende slukkegnistgab
Maks. driftsspænding 150 V AC
Lynimpulsstrøm: op til 35 kAeff (prosp.)
Fejlvisning

fabrikat: DEHN
Type: DB M MOD 150
artikelnr.: 961001
eller tilsvarende

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. driftsspænding AC (UC ) 150 V
Lynstødstrøm (10/350 µs) (Iimp ) 35 kA

Product 961001 was added to Notepad.

Go to Notepad

Product 961001 was added to the cart.

Go to Web-Shop

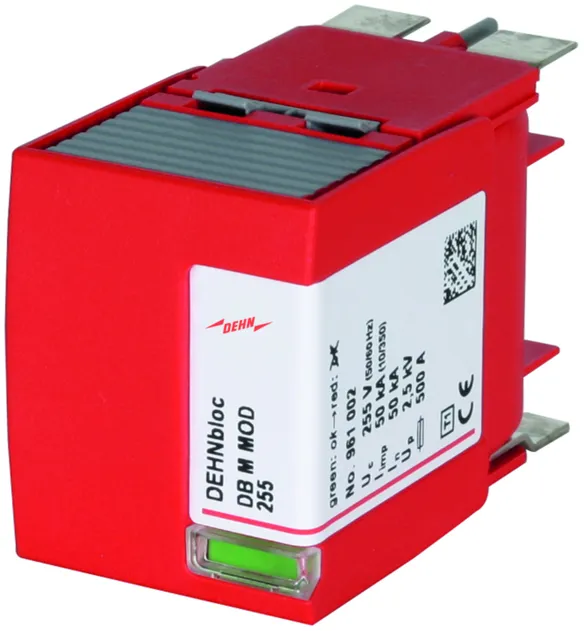

Part No. 961002 DB M MOD 255

GTIN 4013364118591, Customs tariff No. (EU): 85363090, Gross weight: 207.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DB M MOD 255
artikelnr.: 961002
eller tilsvarende

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. driftsspænding AC (UC ) 255 V
Lynstødstrøm (10/350 µs) (Iimp ) 50 kA

Product 961002 was added to Notepad.

Go to Notepad

Product 961002 was added to the cart.

Go to Web-Shop

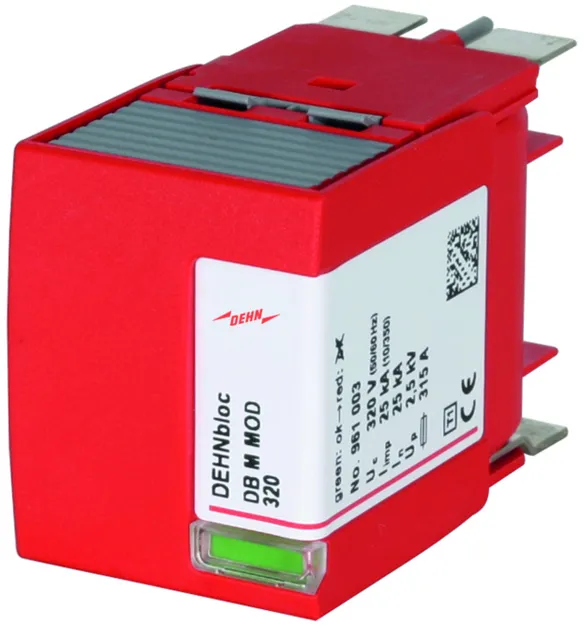

Part No. 961003 DB M MOD 320

GTIN 4013364118607, Customs tariff No. (EU): 85363090, Gross weight: 192.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information

Gnistgabsbaseret beskyttelsesmodul DB M MOD 320
Net-gnistgabsbaseret beskyttelsesmodul til enpolet,
koordineret type 1-afleder i Red/Line-
produktserien iht. EN 61643-11
Højtydende slukkegnistgab
Maks. driftsspænding 320 V AC
Lynimpulsstrøm: op til 50 kAeff (prosp.)
Fejlvisning

fabrikat: DEHN
Type: DB M MOD 320
artikelnr.: 961003
eller tilsvarende

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. driftsspænding AC (UC ) 320 V
Lynstødstrøm (10/350 µs) (Iimp ) 25 kA

Product 961003 was added to Notepad.

Go to Notepad

Product 961003 was added to the cart.

Go to Web-Shop
