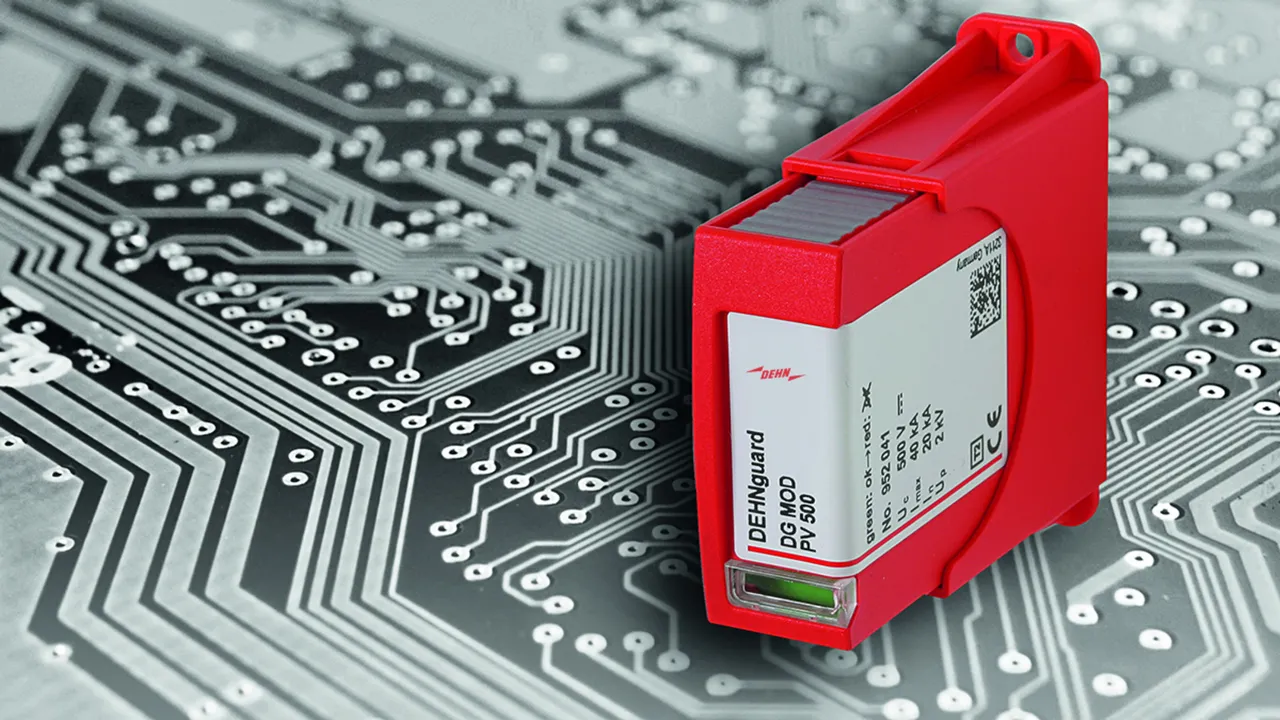

DEHNguard PCB

  • Basisdel til DEHNguard-beskyttelsesmoduler til montering på printplade
  • Optimal integrering af Type 2-afleder i enheden
  • Enkel og fleksibel installation i alle slags kredsløb
  • De gennemprøvede DEHNguard-moduler sikrer høj ydeevne
  • Mekanisk kodet basisdel og beskyttelsesmodul forhindrer montering af forkert modul
  • Udgave med og uden fjernmeldekontakt til fjernovervågning
  • Udgaver til at efterleve de højeste krav omkring luft- og krybestrækninger
  • Udgaver til andre DEHNguard-beskyttelsesmoduler kan fås ved forespørgsel

DEHNguard PCB PV SCI ...

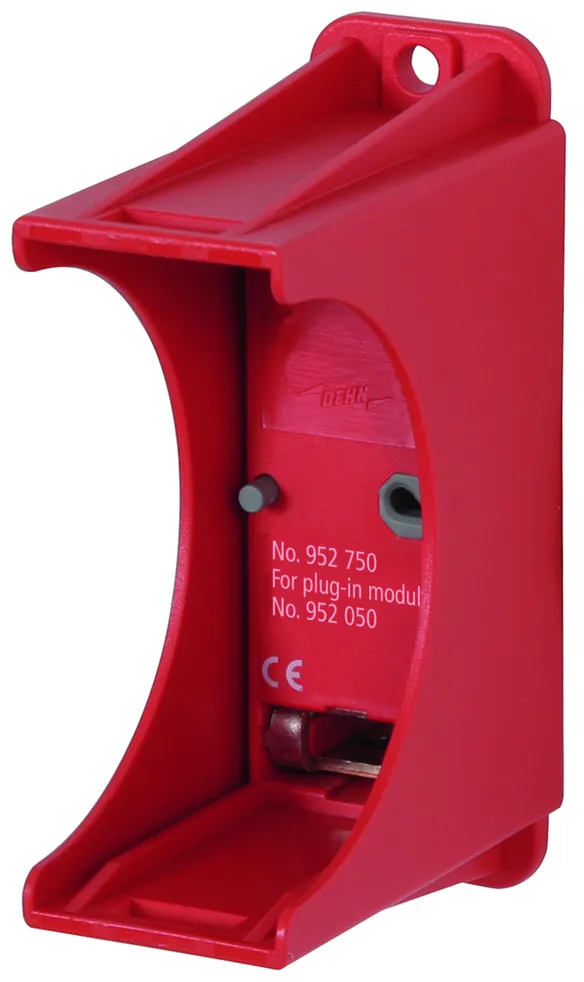

1-polet basisdel til montering af DEHNguard-moduler på printplader.

3 Products

Part No. 952653 DG PCB PV SCI 300

GTIN 4013364150713, Customs tariff No. (EU): 85366930, Gross weight: 19.89 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV SCI 300 single-pole base
Single-pole base for DEHNguard protection modules
for integration on PCBs
Coded base part and protection module
Mounting via screw and soldered connection on PCBs
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 500 V

fabrikat: DEHN
Type: DG PCB PV SCI 300
artikelnr.: 952653
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV SCI 300 (art.-nr. 952 053)
Max. driftsspænding DC (modul) 300 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)

Product 952653 was added to Notepad.

Go to Notepad

Product 952653 was added to the cart.

Go to Web-Shop

Part No. 952651 DG PCB PV SCI 500

GTIN 4013364146310, Customs tariff No. (EU): 85366930, Gross weight: 19.89 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV SCI 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV SCI 500
artikelnr.: 952651
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV SCI 500 (art.-nr. 952 051)
Max. driftsspænding DC (modul) 500 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)

Product 952651 was added to Notepad.

Go to Notepad

Product 952651 was added to the cart.

Go to Web-Shop

Part No. 952654 DG PCB PV SCI 600

GTIN 4013364149878, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV SCI 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV SCI 600
artikelnr.: 952654
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV SCI 600 (art.-nr. 952 054)
Max. driftsspænding DC (modul) 600 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)

Product 952654 was added to Notepad.

Go to Notepad

Product 952654 was added to the cart.

Go to Web-Shop

DEHNguard PCB PV SCI ... FM

1-polet basisdel til montering af DEHNguard-moduler på printplader, med fjernmeldekontakt til fjernovervågning (potentialfri skiftekontakt).

3 Products

Part No. 952753 DG PCB PV SCI 300 FM

GTIN 4013364150720, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV SCI 300 FM single-pole base
Single-pole base for DEHNguard protection modules
is mounted and integrated on PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV SCI 300 FM
artikelnr.: 952753
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV SCI 300 (art.-nr. 952 053)
Max. driftsspænding DC (modul) 300 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952753 was added to Notepad.

Go to Notepad

Product 952753 was added to the cart.

Go to Web-Shop

Part No. 952751 DG PCB PV SCI 500 FM

GTIN 4013364146327, Customs tariff No. (EU): 85366930, Gross weight: 20.49 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV SCI 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV SCI 500 FM
artikelnr.: 952751
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV SCI 500 (art.-nr. 952 051)
Max. driftsspænding DC (modul) 500 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952751 was added to Notepad.

Go to Notepad

Product 952751 was added to the cart.

Go to Web-Shop

Part No. 952754 DG PCB PV SCI 600 FM

GTIN 4013364149885, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV SCI 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV SCI 600 FM
artikelnr.: 952754
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV SCI 600 (art.-nr. 952 054)
Max. driftsspænding DC (modul) 600 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952754 was added to Notepad.

Go to Notepad

Product 952754 was added to the cart.

Go to Web-Shop

DEHNguard PCB PV ...

1-polet basisdel til montering af DEHNguard-moduler på printplader.

3 Products

Part No. 952643 DG PCB PV 300

GTIN 4013364150737, Customs tariff No. (EU): 85366930, Gross weight: 19.89 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV 300 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV 300
artikelnr.: 952643
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV 300 (art.-nr. 952 043)
Max. driftsspænding DC (modul) 300 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)

Product 952643 was added to Notepad.

Go to Notepad

Product 952643 was added to the cart.

Go to Web-Shop

Part No. 952641 DG PCB PV 500

GTIN 4013364146334, Customs tariff No. (EU): 85366930, Gross weight: 19.89 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV 500
artikelnr.: 952641
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV 500 (art.-nr. 952 041)
Max. driftsspænding DC (modul) 500 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)

Product 952641 was added to Notepad.

Go to Notepad

Product 952641 was added to the cart.

Go to Web-Shop

Part No. 952644 DG PCB PV 600

GTIN 4013364149892, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV 600
artikelnr.: 952644
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV 600 (art.-nr. 952 044)
Max. driftsspænding DC (modul) 600 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)

Product 952644 was added to Notepad.

Go to Notepad

Product 952644 was added to the cart.

Go to Web-Shop

DEHNguard PCB PV ... FM

1-polet basisdel til montering af DEHNguard-moduler på printplader, med fjernmeldekontakt til fjernovervågning (potentialfri skiftekontakt).

3 Products

Part No. 952743 DG PCB PV 300 FM

GTIN 4013364150744, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV 300 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV 300 FM
artikelnr.: 952743
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV 300 (art.-nr. 952 043)
Max. driftsspænding DC (modul) 300 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952743 was added to Notepad.

Go to Notepad

Product 952743 was added to the cart.

Go to Web-Shop

Part No. 952741 DG PCB PV 500 FM

GTIN 4013364146341, Customs tariff No. (EU): 85366930, Gross weight: 20.49 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV 500 FM
artikelnr.: 952741
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV 500 (art-nr. 952 041)
Max. driftsspænding DC (modul) 500 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952741 was added to Notepad.

Go to Notepad

Product 952741 was added to the cart.

Go to Web-Shop

Part No. 952744 DG PCB PV 600 FM

GTIN 4013364149908, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV 600 FM
artikelnr.: 952744
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV 600 (art-nr. 952 044)
Max. driftsspænding DC (modul) 600 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952744 was added to Notepad.

Go to Notepad

Product 952744 was added to the cart.

Go to Web-Shop

DEHNguard PCB ...

1-polet basisdel til montering af DEHNguard-moduler på printplader.

2 Products

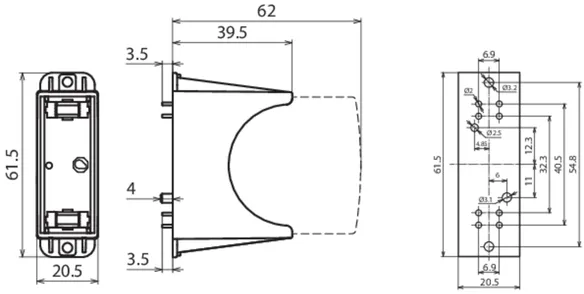

Part No. 952610 DG PCB 275

GTIN 4013364149816, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB 275 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (d.c.) (module): 275 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB 275
artikelnr.: 952610
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD 275 (art.-nr. 952 010)
Max. driftsspænding AC (modul) 275 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)

Product 952610 was added to Notepad.

Go to Notepad

Product 952610 was added to the cart.

Go to Web-Shop

Part No. 952614 DG PCB 385

GTIN 4013364149847, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB 385 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (d.c.) (module): 385 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB 385
artikelnr.: 952614
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD 385 (art.-nr. 952 014)
Max. driftsspænding AC (modul) 385 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)

Product 952614 was added to Notepad.

Go to Notepad

Product 952614 was added to the cart.

Go to Web-Shop

DEHNguard PCB ... FM

1-polet basisdel til montering af DEHNguard-moduler på printplader, med fjernmeldekontakt til fjernovervågning (potentialfri skiftekontakt).

2 Products

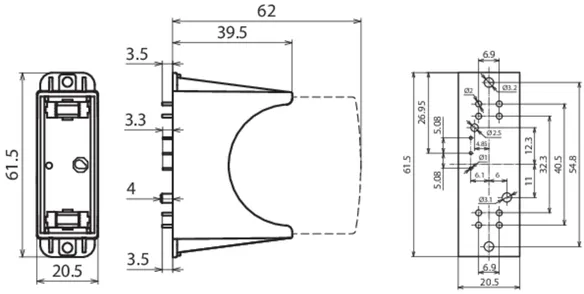

Part No. 952710 DG PCB 275 FM

GTIN 4013364149830, Customs tariff No. (EU): 85366930, Gross weight: 20.59 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB 275 FM
artikelnr.: 952710
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD 275 (art.-nr. 952 010)
Max. driftsspænding AC (modul) 275 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952710 was added to Notepad.

Go to Notepad

Product 952710 was added to the cart.

Go to Web-Shop

Part No. 952714 DG PCB 385 FM

GTIN 4013364149854, Customs tariff No. (EU): 85366930, Gross weight: 20.59 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB 385 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module): 385 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB 385 FM
artikelnr.: 952714
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD 385 (art.-nr. 952 014)
Max. driftsspænding AC (modul) 385 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952714 was added to Notepad.

Go to Notepad

Product 952714 was added to the cart.

Go to Web-Shop

DEHNguard PCB NPE (FM)

1-polet basisdel til montering af DEHNguard-moduler på printplader, med fjernmeldekontakt til fjernovervågning (potentialfri skiftekontakt).

2 Products

Part No. 952650 DG PCB NPE

GTIN 4013364149823, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB NPE single-pole base
Single-pole base for DEHNguard protection modules
to be integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (d.c.) (module): 255 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB NPE
artikelnr.: 952650
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD NPE (art.-nr. 952 050)
Max. driftsspænding AC (modul) 255 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)

Product 952650 was added to Notepad.

Go to Notepad

Product 952650 was added to the cart.

Go to Web-Shop

Part No. 952750 DG PCB NPE FM

GTIN 4013364149861, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB NPE FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module): 255 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB NPE FM
artikelnr.: 952750
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD NPE (art.-nr. 952 050)
Max. driftsspænding AC (modul) 255 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952750 was added to Notepad.

Go to Notepad

Product 952750 was added to the cart.

Go to Web-Shop

DEHNguard PCB PV I ... FM

1-polet basisdel med øget luft- og krybestrækning mellem strøm- og fjernmeldekontakt. Til montering af DEHNguard-moduler på printplader, med fjernmeldekontakt til fjernovervågning (potentialfri skiftekontakt).

3 Products

Part No. 952941 DG PCB PV I 500 FM

GTIN 4013364228177, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV I 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV I 500 FM
artikelnr.: 952941
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV 500 (art.-nr. 952 041)
Max. driftsspænding DC (modul) 500 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952941 was added to Notepad.

Go to Notepad

Product 952941 was added to the cart.

Go to Web-Shop

Part No. 952948 DG PCB PV I 600 FM

GTIN 4013364323919, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV I 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV I 600 FM
artikelnr.: 952948
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD H PV 600 (art.-nr. 952 048)
Max. driftsspænding DC (modul) 600 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952948 was added to Notepad.

Go to Notepad

Product 952948 was added to the cart.

Go to Web-Shop

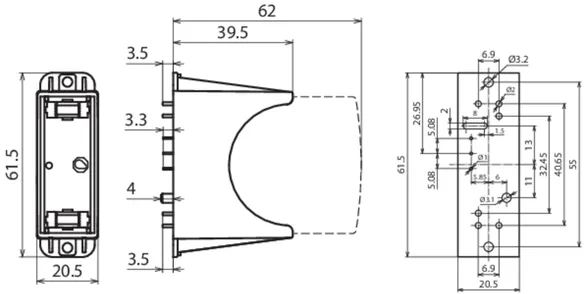

Part No. 952949 DG PCB PV I 750 FM

GTIN 4013364323926, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PV I 750 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module): 750 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PV I 750 FM
artikelnr.: 952949
eller tilsvarende



Technical data

Tilhørende beskyttelsesmodul DG MOD H PV 750 (art.-nr. 952 049)
Max. driftsspænding DC (modul) 750 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952949 was added to Notepad.

Go to Notepad

Product 952949 was added to the cart.

Go to Web-Shop

DEHNguard PCB PVSCI I ...FM

1-polet basisdel med øget luft- og krybestrækning mellem strøm- og fjernmeldekontakt. Til montering af DEHNguard-moduler på printplader, med fjernmeldekontakt til fjernovervågning (potentialfri skiftekontakt).

1 Product

Part No. 952951 DG PCB PVSCI I 500FM

GTIN 4013364228184, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB PVSCI I 500FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB PVSCI I 500FM
artikelnr.: 952951
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD PV SCI 500 (art.-nr. 952 051)
Max. driftsspænding DC (modul) 500 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952951 was added to Notepad.

Go to Notepad

Product 952951 was added to the cart.

Go to Web-Shop

DEHNguard PCB I ... FM

1-polet basisdel med øget luft- og krybestrækning mellem strøm- og fjernmeldekontakt. Til montering af DEHNguard-moduler på printplader, med fjernmeldekontakt til fjernovervågning (potentialfri skiftekontakt).

1 Product

Part No. 952910 DG PCB I 275 FM

GTIN 4013364266865, Customs tariff No. (EU): 85366930, Gross weight: 19.79 g, PU: 72.00 Pakkestørrelse

Images

Additional information

DEHNguard PCB I 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

fabrikat: DEHN
Type: DG PCB I 275 FM
artikelnr.: 952910
eller tilsvarende

Certificates



Technical data

Tilhørende beskyttelsesmodul DG MOD 275 (art.-nr. 952 010)
Max. driftsspænding AC (modul) 275 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952910 was added to Notepad.

Go to Notepad

Product 952910 was added to the cart.

Go to Web-Shop

DG PCB ... UL

2 Products

Part No. 952615 DG PCB 385 UL FM

GTIN 4013364535794, Customs tariff No. (EU): 85366930, Gross weight: 20.49 g, PU: 72.00 Pakkestørrelse

Images

Additional information

Enpolet sokkel DEHNguard PCB 385 UL FM
Enpolet sokkel til DEHNguard-beskyttelsesmoduler
til montering og integrering på lederplader
med fjernmeldekontakt
Fejlsikker som følge af kodning i underdel og beskyttelsesmodul
Tilhørende beskyttelsesmodul:
DG PLU 385 (varenr. 908 014)
Maks. driftsspænding AC (modul): 385 V
Skal monteres med skrue- og loddeforbindelse på lederplader

fabrikat: DEHN
Type: DG PCB 385 UL FM
artikelnr.: 952615
eller tilsvarende



Technical data

Tilhørende beskyttelsesmodul DG PLU 385 (varenr. 908 014)
Max. driftsspænding AC (modul) 385 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952615 was added to Notepad.

Go to Notepad

Product 952615 was added to the cart.

Go to Web-Shop

Part No. 952616 DG PCB 510 UL FM

GTIN 4013364535800, Customs tariff No. (EU): 85366930, Gross weight: 20.49 g, PU: 72.00 Pakkestørrelse

Images

Additional information

Enpolet sokkel DEHNguard DG PCB 510 UL FM
Enpolet sokkel til DEHNguard-beskyttelsesmoduler
til montering og integrering på lederplader
med fjernmeldekontakt
Fejlsikker som følge af kodning i underdel og beskyttelsesmodul
Tilhørende beskyttelsesmodul:
DG PLU 510 (varenr. 908 013)
Maks. driftsspænding AC (modul): 510 V
Skal monteres med skrue- og loddeforbindelse på lederplader

fabrikat: DEHN
Type: DG PCB 510 UL FM
artikelnr.: 952616
eller tilsvarende



Technical data

Tilhørende beskyttelsesmodul DG PLU 510 (varenr. 908 013)
Max. driftsspænding AC (modul) 510 V
Montage på Loddet direkte på printplade
Kapslingsklasse IP 20 (med stikbart beskyttelsesmodul)
FM-kontakt / kontakttype Skiftekontakt

Product 952616 was added to Notepad.

Go to Notepad

Product 952616 was added to the cart.

Go to Web-Shop
back to top
