Ochranný modul pro DEHNguard M, ... S a DEHNgap C S

  • Vysoký svodový výkon je zajištěn výkonným zinkooxidovým varistorem/jiskřištěm
  • Vysoký stupeň bezpečnosti je zajištěn odpojovacím zařízením „Thermo-Dynamic-Control“
  • Energeticky zkoordinovaný v rámci skupiny produktů Red/Line
  • Optická signalizace provoz/porucha prostřednictvím zelené/červené barvy terčíku v signalizačním poli

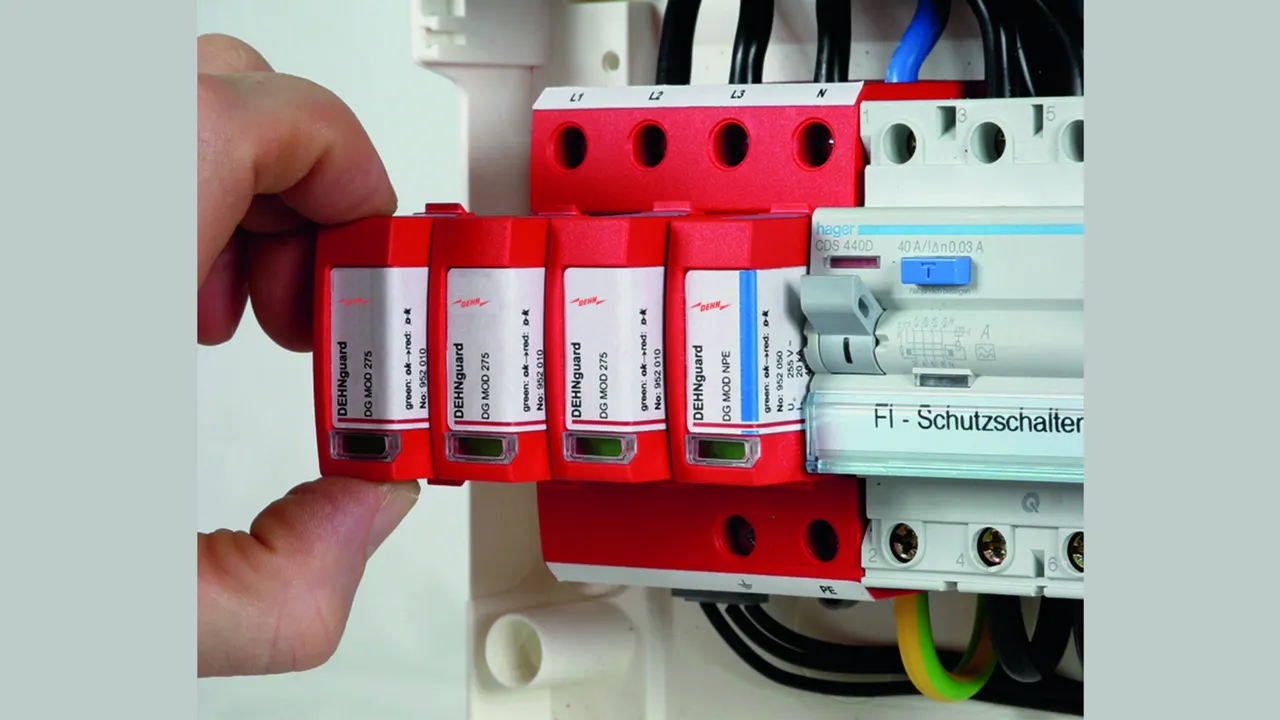

  • Snadná výměna ochranného modulu pomocí aretovacích tlačítek na ochranném modulu
  • Výměnu zásuvného ochranného modulu lze provést bez vypnutí síťového napětí a rovněž bez sejmutí krytu rozváděče
  • Zkoušeno vibrací a otřesem podle ČSN EN 60068-2

Ochranný modul v zapojení vypínač-jiskřiště pro DEHNguard M ACI

2 Products

Part No. 952024 DG MOD ACI 275

GTIN 4013364377356, Customs tariff No. (EU): 85363030, Gross weight: 55.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul v zapojení vypínač - jiskřiště pro DG MOD A 275
zásuvný ochranný modul pro DEHNguard M ACI ...
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
nejvyšší provozní napětí: 275 V ac/350 V dc
jmenovitý impulzní proud: 20 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD ACI 275
Obj. č.: 952024
nebo rovnocenný.

Certificates



ACI-Technology

A further development of CI technology, ACI technology consists of a switch/spark gap combination connected in series with a heavyduty varistor. This ensures the simple design and safe operation of the surge protective device. Other features are safe dimensioning, TOV withstand, a connection cross-section of only 6 mm² Cu and zero leakage current. Surge arresters with ACI technology offer maximum safety and system availability.

Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální provozní napětí AC (UC ) 275 V

Product 952024 was added to Notepad.

Go to Notepad

Product 952024 was added to the cart.

Go to Web-Shop

Part No. 952028 DG MOD ACI 385

GTIN 4013364387843, Customs tariff No. (EU): 85363030, Gross weight: 66.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul v zapojení vypínač-jiskřiště pro DG MOD A 275
zásuvný ochranný modul pro DEHNguard M ACI ...
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
nejvyšší provozní napětí: 275 V ac/350 V dc
jmenovitý impulzní proud: 20 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD ACI 385
Obj. č.: 952028
nebo rovnocenný.



ACI-Technology

A further development of CI technology, ACI technology consists of a switch/spark gap combination connected in series with a heavyduty varistor. This ensures the simple design and safe operation of the surge protective device. Other features are safe dimensioning, TOV withstand, a connection cross-section of only 6 mm² Cu and zero leakage current. Surge arresters with ACI technology offer maximum safety and system availability.

Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální provozní napětí AC (UC ) 385 V

Product 952028 was added to Notepad.

Go to Notepad

Product 952028 was added to the cart.

Go to Web-Shop

Ochranný modul s jiskřištěm pro DEHNguard M ACI

1 Product

Part No. 952022 DG MOD A NPE

GTIN 4013364376533, Customs tariff No. (EU): 85363030, Gross weight: 46.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s N-PE jiskřištěm DG MOD A NPE
zásuvný ochranný modul DEHNguard M ACI ...
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
nejvyšší provozní napětí:: 275 V ac/350 V dc
jmenovitý impulzní proud: 20 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD A NPE
Obj. č.: 952022
nebo rovnocenný.

Certificates



ACI-Technology

A further development of CI technology, ACI technology consists of a switch/spark gap combination connected in series with a heavyduty varistor. This ensures the simple design and safe operation of the surge protective device. Other features are safe dimensioning, TOV withstand, a connection cross-section of only 6 mm² Cu and zero leakage current. Surge arresters with ACI technology offer maximum safety and system availability.

Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí AC (UC ) 255 V

Product 952022 was added to Notepad.

Go to Notepad

Product 952022 was added to the cart.

Go to Web-Shop

Ochranný modul s varistorem pro DEHNguard M CI

1 Product

Part No. 952020 DG MOD CI 275

GTIN 4013364127784, Customs tariff No. (EU): 85363030, Gross weight: 59.30 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD CI 275
zásuvný ochranný modul pro DEHNguard M CI
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
nejvyšší provozní napětí: 275 V ac
jmenovitý impulzní proud: 12,5 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD CI 275
Obj. č.: 952020
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 12,5 kA
Maximální impulzní proud (8/20 µs) (Imax ) 25 kA
Maximální provozní napětí AC (UC ) 275 V

Product 952020 was added to Notepad.

Go to Notepad

Product 952020 was added to the cart.

Go to Web-Shop

Ochranný modul s varistorem pro DEHNguard SE CI ...

2 Products

Part No. 952926 DG MOD E CI 440

GTIN 4013364322646, Customs tariff No. (EU): 85363030, Gross weight: 83.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD E CI 440
zásuvný ochranný modul pro DEHNguard SE CI
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
nejvyšší provozní napětí: 440 V ac
jmenovitý impulzní proud: 12,5 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD E CI 440
Obj. č.: 952926
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 12,5 kA
Maximální provozní napětí AC (UC ) 440 V
Jmenovité napětí varistoru (Umov ) 440 V

Product 952926 was added to Notepad.

Go to Notepad

Product 952926 was added to the cart.

Go to Web-Shop

Part No. 952927 DG MOD E CI WE 440

GTIN 4013364322653, Customs tariff No. (EU): 85363030, Gross weight: 82.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD E CI WE 440
zásuvný ochranný modul pro DEHNguard SE CI
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
nejvyšší provozní napětí: 440 V ac
měrné napětí varistoru: 750 V ac
jmenovitý impulzní proud: 12,5 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD E CI WE 440
Obj. č.: 952927
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 12,5 kA
Maximální provozní napětí AC (UC ) 440 V
Jmenovité napětí varistoru (Umov ) 750 V

Product 952927 was added to Notepad.

Go to Notepad

Product 952927 was added to the cart.

Go to Web-Shop

Ochranný modul s varistorem pro DEHNguard M a DEHNguard S

8 Products

Part No. 952018 DG MOD 48

GTIN 4013364119482, Customs tariff No. (EU): 85363030, Gross weight: 43.50 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD 48
zásuvný ochranný modul pro DEHNguard S ...
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 48 V ac/60 V dc
jmenovitý impulzní proud: 7,5 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD 48
Obj. č.: 952018
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 7,5 kA
Maximální impulzní proud (8/20 µs) (Imax ) 25 kA
Maximální provozní napětí AC (UC ) 48 V

Product 952018 was added to Notepad.

Go to Notepad

Product 952018 was added to the cart.

Go to Web-Shop

Part No. 952011 DG MOD 75

GTIN 4013364109773, Customs tariff No. (EU): 85363030, Gross weight: 39.30 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD 75
zásuvný ochranný modul pro DEHNguard S ...
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 75 V ac/100 V dc
jmenovitý impulzní proud: 10 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD 75
Obj. č.: 952011
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 10 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí AC (UC ) 75 V

Product 952011 was added to Notepad.

Go to Notepad

Product 952011 was added to the cart.

Go to Web-Shop

Part No. 952012 DG MOD 150

GTIN 4013364109780, Customs tariff No. (EU): 85363030, Gross weight: 42.23 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD 150
zásuvný ochranný modul pro DEHNguard S ...
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 150 V ac/200 V dc
jmenovitý impulzní proud: 15 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD 150
Obj. č.: 952012
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 15 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí AC (UC ) 150 V

Product 952012 was added to Notepad.

Go to Notepad

Product 952012 was added to the cart.

Go to Web-Shop

Part No. 952010 DG MOD 275

GTIN 4013364108356, Customs tariff No. (EU): 85363030, Gross weight: 49.80 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD 275
zásuvný ochranný modul pro DEHNguard M...
a DEHNguard S...
svodič přepětí Typ 2 produktové skupiny Red/Line
podle ČSN EN 61643-11
nejvyšší provozní napětí: 275 V ac/350 V dc
jmenovitý impulzní proud: 20 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD 275
Obj. č.: 952010
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí AC (UC ) 275 V

Product 952010 was added to Notepad.

Go to Notepad

Product 952010 was added to the cart.

Go to Web-Shop

Part No. 952013 DG MOD 320

GTIN 4013364109797, Customs tariff No. (EU): 85363030, Gross weight: 52.50 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD 320
zásuvný ochranný modul pro DEHNguard M ...
a DEHNguard S ...
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 320 V ac/420 V dc
jmenovitý impulzní proud: 20 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD 320
Obj. č.: 952013
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí AC (UC ) 320 V

Product 952013 was added to Notepad.

Go to Notepad

Product 952013 was added to the cart.

Go to Web-Shop

Part No. 952014 DG MOD 385

GTIN 4013364108363, Customs tariff No. (EU): 85363030, Gross weight: 56.80 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD 385
zásuvný ochranný modul pro DEHNguard M ...
a DEHNguard S ...
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 385 V ac/500 V dc
jmenovitý impulzní proud: 20 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD 385
Obj. č.: 952014
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí AC (UC ) 385 V

Product 952014 was added to Notepad.

Go to Notepad

Product 952014 was added to the cart.

Go to Web-Shop

Part No. 952015 DG MOD 440

GTIN 4013364109803, Customs tariff No. (EU): 85363030, Gross weight: 60.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD 440
zásuvný ochranný modul pro DEHNguard M ...
a DEHNguard S ...
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 440 V ac/585 V dc
jmenovitý impulzní proud: 20 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD 440
Obj. č.: 952015
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí AC (UC ) 440 V

Product 952015 was added to Notepad.

Go to Notepad

Product 952015 was added to the cart.

Go to Web-Shop

Part No. 952016 DG MOD 600

GTIN 4013364109810, Customs tariff No. (EU): 85363030, Gross weight: 70.60 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD 600
zásuvný ochranný modul pro DEHNguard S ...
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 600 V ac/600 V dc
jmenovitý impulzní proud: 15 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD 600
Obj. č.: 952016
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 15 kA
Maximální impulzní proud (8/20 µs) (Imax ) 30 kA
Maximální provozní napětí AC (UC ) 600 V

Product 952016 was added to Notepad.

Go to Notepad

Product 952016 was added to the cart.

Go to Web-Shop

Ochranný modul s varistorem pro DEHNguard M (S) WE

1 Product

Part No. 952017 DG MOD 750

GTIN 4013364113329, Customs tariff No. (EU): 85363030, Gross weight: 69.70 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD 750
zásuvný ochranný modul pro DEHNguard S WE 600 (FM)
a DG M WE 600 (FM)
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 600 V ac/600 V dc
jmenovité napětí varistoru: 750 V ac
jmenovitý impulzní proud: 15 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD 750
Obj. č.: 952017
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 15 kA
Maximální impulzní proud (8/20 µs) (Imax ) 25 kA
Maximální provozní napětí AC (UC ) 600 V
Jmenovité napětí varistoru (Umov ) 750 V

Product 952017 was added to Notepad.

Go to Notepad

Product 952017 was added to the cart.

Go to Web-Shop

Ochranný modul s jiskřištěm N-PE pro DEHNguard M ACI

Ochranný modul s N-PE jiskřištěm pro dvou- a čtyřpólové DEHNguard DG M TT (2P) ACI ... .

1 Product

Part No. 952083 DG MOD H A NPE

GTIN 4013364376540, Customs tariff No. (EU): 85363030, Gross weight: 55.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s N-PE jiskřištěm DG MOD H A NPE
zásuvný ochranný modul s N-PE jiskřištěm
pro DEHNguard DG M TT (2P) ACI ...
pro N-PE svodiče přepětí typ 2
řady svodičů Red/Line podle ČSN EN 61643-11
nejvyšší provozní napětí: 255 V ac
jmenovitý impulzní proud: 80 kA
maximální impulzní proud: 120 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD H A NPE
Obj. č.: 952083
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 80 kA
Maximální impulzní proud (8/20 µs) (Imax ) 120 kA
Maximální provozní napětí AC (UC ) 275 V

Product 952083 was added to Notepad.

Go to Notepad

Product 952083 was added to the cart.

Go to Web-Shop

Ochranný modul s jiskřištěm N-PE pro DEHNguard M H TT ...

1 Product

Part No. 952081 DG MOD H NPE

GTIN 4013364318182, Customs tariff No. (EU): 85363030, Gross weight: 44.50 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s N-PE jiskřištěm DG MOD H NPE
zásuvný ochranný modul s N-PE jiskřištěm
pro DEHNguard DG M TT ...
pro N-PE svodiče přepětí typ 2
řady svodičů Red/Line podle ČSN EN 61643-11
nejvyšší provozní napětí: 255 V ac
jmenovitý impulzní proud: 80 kA
maximální impulzní proud: 120 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD H NPE
Obj. č.: 952081
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 80 kA
Maximální impulzní proud (8/20 µs) (Imax ) 120 kA
Maximální provozní napětí AC (UC ) 255 V

Product 952081 was added to Notepad.

Go to Notepad

Product 952081 was added to the cart.

Go to Web-Shop

Ochranný modul s jiskřištěm N-PE pro DEHNguard M TT ...

1 Product

Part No. 952050 DG MOD NPE

GTIN 4013364108370, Customs tariff No. (EU): 85363030, Gross weight: 44.50 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s N-PE jiskřištěm DG MOD NPE
zásuvný ochranný modul s N-PE jiskřištěm
pro DEHNguard DG M TT ...
N-PE svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
nejvyšší provozní napětí:: 255 V ac
jmenovitý impulzní proud: 40 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD NPE
Obj. č.: 952050
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí AC (UC ) 255 V

Product 952050 was added to Notepad.

Go to Notepad

Product 952050 was added to the cart.

Go to Web-Shop

Ochranný modul s jiskřištěm N-PE pro DEHNgap C S

1 Product

Part No. 952060 DGP C MOD

GTIN 4013364108387, Customs tariff No. (EU): 85363030, Gross weight: 44.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s N-PE jiskřištěm DGP C MOD
zásuvný ochranný modul s N-PE jiskřištěm
pro jednopólové N-PE svodiče přepětí DEHNgap C S ...
pro N-PE svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
nejvyšší provozní napětí:: 255 V ac
jmenovitý impulzní proud: 40 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DGP C MOD
Obj. č.: 952060
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí AC (UC ) 255 V

Product 952060 was added to Notepad.

Go to Notepad

Product 952060 was added to the cart.

Go to Web-Shop

Ochranný modul se sériovým zapojením varistor - jiskřiště pro DEHNguard S ... VA

3 Products

Part No. 952025 DG MOD 75 VA

GTIN 4013364127357, Customs tariff No. (EU): 85363030, Gross weight: 41.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD 75 VA
zásuvný ochranný modul pro DEHNguard S ... VA
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
nejvyšší provozní napětí: 75 V ac/100 V dc
jmenovitý impulzní proud: 10 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD 75 VA
Obj. č.: 952025
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 10 kA
Maximální impulzní proud (8/20 µs) (Imax ) 20 kA
Maximální provozní napětí AC (UC ) 75 V
Maximální provozní napětí DC (UC ) 100 V

Product 952025 was added to Notepad.

Go to Notepad

Product 952025 was added to the cart.

Go to Web-Shop

Part No. 952027 DG MOD 275 VA

GTIN 4013364127364, Customs tariff No. (EU): 85363030, Gross weight: 47.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD 75 VA
zásuvný ochranný modul pro DEHNguard S ... VA
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
nejvyšší provozní napětí: 275 V ac/350 V dc
jmenovitý impulzní proud: 10 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD 275 VA
Obj. č.: 952027
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 10 kA
Maximální impulzní proud (8/20 µs) (Imax ) 20 kA
Maximální provozní napětí AC (UC ) 275 V
Maximální provozní napětí DC (UC ) 350 V

Product 952027 was added to Notepad.

Go to Notepad

Product 952027 was added to the cart.

Go to Web-Shop

Part No. 952029 DG MOD 385 VA

GTIN 4013364127371, Customs tariff No. (EU): 85363030, Gross weight: 51.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD 385 VA
zásuvný ochranný modul pro DEHNguard S ... VA
svodič přepětí typ 2 podle ČSN EN 61643-11
řady svodičů Red/Line
nejvyšší provozní napětí: 385 V ac/500 V dc
jmenovitý impulzní proud: 10 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD 385 VA
Obj. č.: 952029
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 10 kA
Maximální impulzní proud (8/20 µs) (Imax ) 20 kA
Maximální provozní napětí AC (UC ) 385 V
Maximální provozní napětí DC (UC ) 500 V

Product 952029 was added to Notepad.

Go to Notepad

Product 952029 was added to the cart.

Go to Web-Shop

Ochranný modul s varistorem pro DEHNguard M YPV

2 Products

Part No. 952048 DG MOD H PV 600

GTIN 4013364327733, Customs tariff No. (EU): 85363030, Gross weight: 61.20 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD H PV 600
zásuvný ochranný modul pro DEHNguard M YPV
svodič přepětí typ 2 podle ČSN EN 61643-31
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 585 V dc
jmenovitý impulzní proud: 20 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD H PV 600
Obj. č.: 952048
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí DC (UC ) 600 V

Product 952048 was added to Notepad.

Go to Notepad

Product 952048 was added to the cart.

Go to Web-Shop

Part No. 952049 DG MOD H PV 750

GTIN 4013364327740, Customs tariff No. (EU): 85363030, Gross weight: 70.60 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD H PV 750
zásuvný ochranný modul pro DEHNguard M YPV
svodič přepětí typ 2 podle ČSN EN 61643-31
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 750 V dc
jmenovitý impulzní proud: 15 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD H PV 750
Obj. č.: 952049
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 15 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí DC (UC ) 750 V

Product 952049 was added to Notepad.

Go to Notepad

Product 952049 was added to the cart.

Go to Web-Shop

Ochranný modul s varistorem pro DEHNguard M YPV SCI a DEHNguard S PV SCI

3 Products

Part No. 952055 DG MOD PV SCI 75

GTIN 4013364136700, Customs tariff No. (EU): 85363030, Gross weight: 43.40 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD PV SCI 75
zásuvný ochranný modul pro DEHNguard M (Y)PV SCI
svodič přepětí typ 2 podle ČSN EN 50539-11
řady svodičů Red/Line
technologie vysoce výkonného varistoru
kombinované odpojovací a zkratovací zařízení
nejvyšší provozní napětí: 75 V dc
pro FV systémy až Ucpv <= 150 V
celkový impulzní proud: 40 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD PV SCI 75
Obj. č.: 952055
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 10 kA
Maximální impulzní proud (8/20 µs) (Imax ) 20 kA
Maximální provozní napětí DC (UC ) 75 V

Product 952055 was added to Notepad.

Go to Notepad

Product 952055 was added to the cart.

Go to Web-Shop

Part No. 952051 DG MOD PV SCI 500

GTIN 4013364126442, Customs tariff No. (EU): 85363030, Gross weight: 56.15 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD PV SCI 500
zásuvný ochranný modul pro DEHNguard M (Y)PV SCI
svodič přepětí typ 2 podle ČSN EN 61643-31
řady svodičů Red/Line
technologie vysoce výkonného varistoru
kombinované odpojovací a zkratovací zařízení
nejvyšší provozní napětí: 500 V dc
pro FV systémy až Ucpv <= 1000 V
celkový impulzní proud: 40 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD PV SCI 500
Obj. č.: 952051
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 12,5 kA
Maximální impulzní proud (8/20 µs) (Imax ) 25 kA
Maximální provozní napětí DC (UC ) 500 V

Product 952051 was added to Notepad.

Go to Notepad

Product 952051 was added to the cart.

Go to Web-Shop

Part No. 952054 DG MOD PV SCI 600

GTIN 4013364127975, Customs tariff No. (EU): 85363030, Gross weight: 58.80 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD PV SCI 600
zásuvný ochranný modul pro DEHNguard M (Y)PV SCI
svodič přepětí typ 2 podle ČSN EN 61643-31.
řady svodičů Red/Line
technologie vysoce výkonného varistoru
kombinované odpojovací a zkratovací zařízení
nejvyšší provozní napětí: 600 V dc
pro FV systémy až Ucpv <= 1200 V
celkový impulzní proud: 30 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD PV SCI 600
Obj. č.: 952054
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 12,5 kA
Maximální impulzní proud (8/20 µs) (Imax ) 25 kA
Maximální provozní napětí DC (UC ) 600 V

Product 952054 was added to Notepad.

Go to Notepad

Product 952054 was added to the cart.

Go to Web-Shop

Ochranný modul s varistorem pro DEHNguard M YPV a DEHNguard S PV

3 Products

Part No. 952045 DG MOD PV 75

GTIN 4013364141827, Customs tariff No. (EU): 85363030, Gross weight: 40.20 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD PV 75
zásuvný ochranný modul pro DEHNguard
M YPV SCI a S PV SCI
svodič přepětí typ 2 podle ČSN EN 50539-11
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 75 V dc
jmenovitý impulzní proud: 10 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD PV 75
Obj. č.: 952045
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 10 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí DC (UC ) 75 V

Product 952045 was added to Notepad.

Go to Notepad

Product 952045 was added to the cart.

Go to Web-Shop

Part No. 952041 DG MOD PV 500

GTIN 4013364141841, Customs tariff No. (EU): 85363030, Gross weight: 60.19 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD PV 500
zásuvný ochranný modul pro DEHNguard
M YPV SCI a S PV SCI
svodič přepětí typ 2 podle ČSN EN 61643-31
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 500 V dc
jmenovitý impulzní proud: 20 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD PV 500
Obj. č.: 952041
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí DC (UC ) 500 V

Product 952041 was added to Notepad.

Go to Notepad

Product 952041 was added to the cart.

Go to Web-Shop

Part No. 952044 DG MOD PV 600

GTIN 4013364141858, Customs tariff No. (EU): 85363030, Gross weight: 69.49 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD PV 600
zásuvný ochranný modul pro DEHNguard
M YPV SCI a S PV SCI
svodič přepětí typ 2 podle ČSN EN 61643-31
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 600 V dc
jmenovitý impulzní proud: 15 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD PV 600
Obj. č.: 952044
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 15 kA
Maximální impulzní proud (8/20 µs) (Imax ) 30 kA
Maximální provozní napětí DC (UC ) 600 V

Product 952044 was added to Notepad.

Go to Notepad

Product 952044 was added to the cart.

Go to Web-Shop

Ochranný modul s varistorem pro DEHNguard ME YPV SCI a DEHNguard SE PV SCI

1 Product

Part No. 952056 DG MOD E PV SCI 750

GTIN 4013364149106, Customs tariff No. (EU): 85363030, Gross weight: 82.70 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD E PV SCI 750
zásuvný ochranný modul pro DEHNguard
ME YPV SCI a SE PV SCI
svodič přepětí typ 2 podle ČSN EN 50539-11
řady svodičů Red/Line
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 750 V dc
celkový impulzní proud: 12,5 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD E PV SCI 750
Obj. č.: 952056
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 12,5 kA
Maximální impulzní proud (8/20 µs) (Imax ) 25 kA
Maximální provozní napětí DC (UC ) 750 V

Product 952056 was added to Notepad.

Go to Notepad

Product 952056 was added to the cart.

Go to Web-Shop

Ochranný modul s varistorem pro DEHNguard SE H ...

4 Products

Part No. 952900 DG MOD E H LI 275

GTIN 4013364158801, Customs tariff No. (EU): 85363030, Gross weight: 90.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD E H LI 275
zásuvný ochranný modul pro DEHNguard
SE H LI 275 FM
s třístupňovým systémem včasné výstrahy
svodič přepětí typ 2 podle ČSN EN 61643-11
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 275 V dc
celkový impulzní proud: 30 kA
ukazatel životnosti

Výrobek: DEHN
Typ: DG MOD E H LI 275
Obj. č.: 952900
nebo rovnocenný.



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 30 kA
Maximální impulzní proud (8/20 µs) (Imax ) 65 kA
Maximální provozní napětí AC (UC ) 275 V

Product 952900 was added to Notepad.

Go to Notepad

Product 952900 was added to the cart.

Go to Web-Shop

Part No. 952907 DG MOD E H LI 1000

GTIN 4013364158856, Customs tariff No. (EU): 85363030, Gross weight: 130.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD E H LI 1000
zásuvný ochranný modul pro DEHNguard
SE H LI 1000 FM
s třístupňovým systémem včasné výstrahy
svodič přepětí typ 2 podle ČSN EN 61643-11
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 1000 V dc
celkový impulzní proud: 20 kA
kódování ochranného modulu

Výrobek: DEHN
Typ: DG MOD E H LI 1000
Obj. č.: 952907
nebo rovnocenný.



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí AC (UC ) 1000 V

Product 952907 was added to Notepad.

Go to Notepad

Product 952907 was added to the cart.

Go to Web-Shop

Part No. 952908 DG MOD E H 1000

GTIN 4013364264526, Customs tariff No. (EU): 85363030, Gross weight: 123.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD E H 1000
zásuvný ochranný modul pro
DEHNguard SE H 1000 FM
svodič přepětí typ 2 podle ČSN EN 61643-11
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 1000 V DC
jmenovitý impulzní proud: 20 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD E H 1000
Obj. č.: 952908
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 20 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí AC (UC ) 1000 V

Product 952908 was added to Notepad.

Go to Notepad

Product 952908 was added to the cart.

Go to Web-Shop

Part No. 952918 DG MOD E H 1000 VA

GTIN 4013364308336, Customs tariff No. (EU): 85363030, Gross weight: 130.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD E 1000 VA
zásuvný ochranný modul pro DEHNguard
SE H 1000 VA FM
svodič přepětí typ 2 podle ČSN EN 61643-11
technologie vysoce výkonného varistoru
nejvyšší provozní napětí: 1000 V DC
jmenovitý impulzní proud: 15 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD E H 1000 VA
Obj. č.: 952918
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 15 kA
Maximální impulzní proud (8/20 µs) (Imax ) 40 kA
Maximální provozní napětí AC (UC ) 1000 V

Product 952918 was added to Notepad.

Go to Notepad

Product 952918 was added to the cart.

Go to Web-Shop

Ochranný modul s varistorem pro DEHNguard SE DC

4 Products

Part No. 972010 DG MOD E DC 60

GTIN 4013364158672, Customs tariff No. (EU): 85363030, Gross weight: 65.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD E DC 60
zásuvný ochranný modul pro DEHNguard SE DC ... (FM)
svodič přepětí typ 2 podle ČSN EN 61643-11
technologie vysoce výkonného varistoru
určený speciálně pro použití v DC obvodech
nejvyšší provozní napětí: 60 V DC
jmenovitý impulzní proud: 12,5 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD E DC 60
Obj. č.: 972010
nebo rovnocenný.



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 12,5 kA
Maximální provozní napětí DC (UC ) 60 V

Product 972010 was added to Notepad.

Go to Notepad

Product 972010 was added to the cart.

Go to Web-Shop

Part No. 972020 DG MOD E DC 242

GTIN 4013364158702, Customs tariff No. (EU): 85363030, Gross weight: 75.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD E DC 242
zásuvný ochranný modul pro DEHNguard SE DC ... (FM)
svodič přepětí typ 2 podle ČSN EN 61643-11
technologie vysoce výkonného varistoru
určený speciálně pro použití v DC obvodech
nejvyšší provozní napětí: 242 V DC
jmenovitý impulzní proud: 12,5 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD E DC 242
Obj. č.: 972020
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 12,5 kA
Maximální provozní napětí DC (UC ) 242 V

Product 972020 was added to Notepad.

Go to Notepad

Product 972020 was added to the cart.

Go to Web-Shop

Part No. 972030 DG MOD E DC 550

GTIN 4013364158719, Customs tariff No. (EU): 85363030, Gross weight: 89.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD E DC 550
zásuvný ochranný modul pro DEHNguard SE DC ... (FM)
svodič přepětí typ 2 podle ČSN EN 61643-11
technologie vysoce výkonného varistoru
určený speciálně pro použití v DC obvodech
nejvyšší provozní napětí: 550 V DC
jmenovitý impulzní proud: 12,5 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD E DC 550
Obj. č.: 972030
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 12,5 kA
Maximální provozní napětí DC (UC ) 550 V

Product 972030 was added to Notepad.

Go to Notepad

Product 972030 was added to the cart.

Go to Web-Shop

Part No. 972040 DG MOD E DC 900

GTIN 4013364158764, Customs tariff No. (EU): 85363030, Gross weight: 95.00 g, PU: 1.00 ks

Images

Additional information

Ochranný modul s varistorem DG MOD E DC 900
zásuvný ochranný modul pro DEHNguard SE DC ... (FM)
svodič přepětí typ 2 podle ČSN EN 61643-11
technologie vysoce výkonného varistoru
určený speciálně pro použití v DC obvodech
nejvyšší provozní napětí: 900 V DC
jmenovitý impulzní proud: 12,5 kA
ukazatel poruchy

Výrobek: DEHN
Typ: DG MOD E DC 900
Obj. č.: 972040
nebo rovnocenný.

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

Jmenovitý impulzní proud (8/20 µs) (In ) 12,5 kA
Maximální provozní napětí DC (UC ) 900 V

Product 972040 was added to Notepad.

Go to Notepad

Product 972040 was added to the cart.

Go to Web-Shop
back to top
