DEHNsecure modular

  • 火花间隙型、能量协调雷电流保护器，由底座和可插拔保护模块组成
  • 适用于直流电路的火花间隙技术
  • 放电能力达到25 kA (10/350 μs)
  • 与DEHNguard SE DC ... 电涌保护器能量协调
  • 电压保护水平低
  • 工作状态/故障以绿-红标记在监视窗口中指示
  • 带有模块锁扣装置，通过模块释放按钮轻松更换保护模块

DEHNsecure M 1 ...

单极模块化能量协调型直流雷电流保护器。

3 Products

Part No. 971121 DSE M 1 60

GTIN 4013364138582, Customs tariff No. (EU): 853630, Gross weight: 300.00 g, PU: 1.00 件

Images

Additional information

DEHNsecure M 1 60 是一款能量协调的雷电流保护器
单极模块化能量协调雷电流保护器，2模宽度
适用于直流应用
依据EN 61643-11，1级SPD
适用于直流电路的火花间隙技术
故障指示
直流最大持续工作电压：60 V
电压保护水平： ≤ 1.5 kV
雷电冲击电流(10/350)： 25 kA
直流续流遮断能力：25 kA
依据IEC 62305-4可与其它DEHN红线产品能量协调使用

制造商： DEHN
型号: DSE M 1 60
货号: 971121
其他类似产品

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD依据EN 61643-11/...IEC 61643-11 1级 / I级
直流最大持续工作电压 (UC ) 60 V
雷电冲击电流(10/350 μs) (Iimp ) 25 kA
电压保护水平 (UP ) ≤ 1.5 kV
直流最大后备熔丝 250 A gG
认证 UL

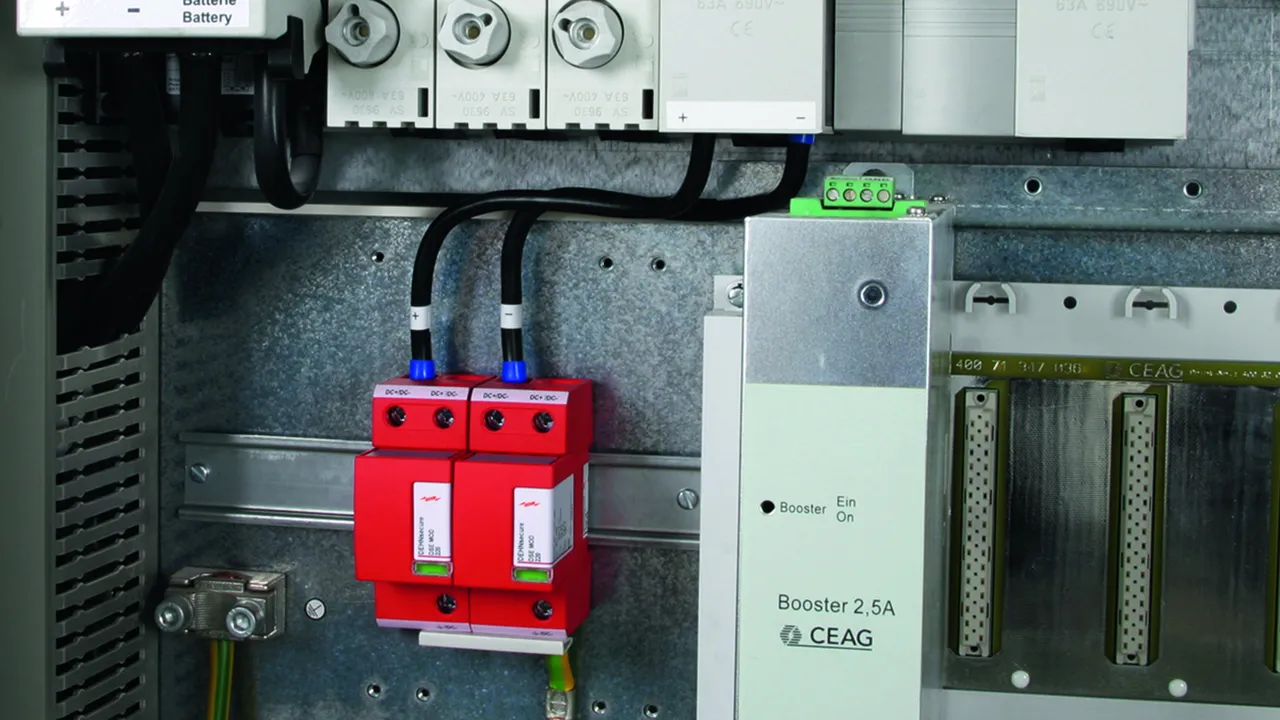

附加技术参数： 用于安全照明系统

Product 971121 was added to Notepad.

Go to Notepad

Product 971121 was added to the cart.

Go to Web-Shop

Part No. 971120 DSE M 1 220

GTIN 4013364133631, Customs tariff No. (EU): 853630, Gross weight: 268.20 g, PU: 1.00 件

Images

Additional information

DEHNsecure M 1 220 是一款能量协调的雷电流保护器
单极模块化能量协调雷电流保护器，2模宽度
适用于直流应用
依据EN 61643-11，1级SPD
适用于直流电路的火花间隙技术
故障指示
直流最大持续工作电压：220 V
电压保护水平： ≤ 2.5 kV
雷电冲击电流(10/350)： 25 kA
直流续流遮断能力：25 kA
依据IEC 62305-4可与其它DEHN红线产品能量协调使用

制造商： DEHN
型号: DSE M 1 220
货号: 971120
其他类似产品

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD依据EN 61643-11/...IEC 61643-11 1级 / I级
直流最大持续工作电压 (UC ) 220 V
雷电冲击电流(10/350 μs) (Iimp ) 25 kA
电压保护水平 (UP ) ≤ 2.5 kV
直流最大后备熔丝 250 A gG
附加技术参数： 用于安全照明系统

Product 971120 was added to Notepad.

Go to Notepad

Product 971120 was added to the cart.

Go to Web-Shop

Part No. 971122 DSE M 1 242

GTIN 4013364144477, Customs tariff No. (EU): 853630, Gross weight: 273.70 g, PU: 1.00 件

Images

Additional information

DEHNsecure M 1 242 是一款能量协调的雷电流保护器
单极模块化能量协调雷电流保护器，2模宽度
适用于直流应用
依据EN 61643-11，1级SPD
适用于直流电路的火花间隙技术
故障指示
直流最大持续工作电压：242 V
电压保护水平： ≤ 2.5 kV
雷电冲击电流(10/350)： 25 kA
直流续流遮断能力：25 kA
依据IEC 62305-4可与其它DEHN红线产品能量协调使用

制造商： DEHN
型号: DSE M 1 242
货号: 971122
其他类似产品

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD依据EN 61643-11/...IEC 61643-11 1级 / I级
直流最大持续工作电压 (UC ) 242 V
雷电冲击电流(10/350 μs) (Iimp ) 25 kA
电压保护水平 (UP ) ≤ 2.5 kV
直流最大后备熔丝 250 A gG
附加技术参数： 用于安全照明系统
– 最大持续工作电压 AC (UC ) 255 V

Product 971122 was added to Notepad.

Go to Notepad

Product 971122 was added to the cart.

Go to Web-Shop

DEHNsecure M 1 ... FM

单极模块化能量协调型直流雷电流保护器；带有供监控设备用的遥信端子（浮动切换触点）。

3 Products

Part No. 971126 DSE M 1 60 FM

GTIN 4013364138599, Customs tariff No. (EU): 853630, Gross weight: 304.00 g, PU: 1.00 件

Images

Additional information

DEHNsecure M 1 60 FM 是一款能量协调的雷电流保护器
单极模块化能量协调雷电流保护器，2模宽度
适用于直流应用
带遥信端子
依据EN 61643-11，1级SPD
适用于直流电路的火花间隙技术
故障指示
直流最大持续工作电压：60 V
电压保护水平： ≤ 1.5 kV
雷电冲击电流(10/350)： 25 kA
直流续流遮断能力：25 kA
依据IEC 62305-4可与其它DEHN红线产品能量协调使用

制造商： DEHN
型号: DSE M 1 60 FM
货号: 971126
其他类似产品

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD依据EN 61643-11/...IEC 61643-11 1级 / I级
直流最大持续工作电压 (UC ) 60 V
雷电冲击电流(10/350 μs) (Iimp ) 25 kA
电压保护水平 (UP ) ≤ 1.5 kV
直流最大后备熔丝 250 A gG
认证 UL
遥信触点类型 浮动切换触点
附加技术参数： 用于安全照明系统

Product 971126 was added to Notepad.

Go to Notepad

Product 971126 was added to the cart.

Go to Web-Shop

Part No. 971125 DSE M 1 220 FM

GTIN 4013364133648, Customs tariff No. (EU): 853630, Gross weight: 241.90 g, PU: 1.00 件

Images

Additional information

DEHNsecure M 1 220 FM 是一款能量协调的雷电流保护器
单极模块化能量协调雷电流保护器，2模宽度
适用于直流应用
带遥信端子
依据EN 61643-11，1级SPD
适用于直流电路的火花间隙技术
故障指示
直流最大持续工作电压：220 V
电压保护水平： ≤ 2.5 kV
雷电冲击电流(10/350)： 25 kA
直流续流遮断能力：25 kA
依据IEC 62305-4可与其它DEHN红线产品能量协调使用

制造商： DEHN
型号: DSE M 1 220 FM
货号: 971125
其他类似产品

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD依据EN 61643-11/...IEC 61643-11 1级 / I级
直流最大持续工作电压 (UC ) 220 V
雷电冲击电流(10/350 μs) (Iimp ) 25 kA
电压保护水平 (UP ) ≤ 2.5 kV
直流最大后备熔丝 250 A gG
遥信触点类型 浮动切换触点
附加技术参数： 用于安全照明系统

Product 971125 was added to Notepad.

Go to Notepad

Product 971125 was added to the cart.

Go to Web-Shop

Part No. 971127 DSE M 1 242 FM

GTIN 4013364144484, Customs tariff No. (EU): 853630, Gross weight: 269.50 g, PU: 1.00 件

Images

Additional information

DEHNsecure M 1 242 FM 是一款能量协调的雷电流保护器
单极模块化能量协调雷电流保护器，2模宽度
适用于直流应用
带遥信端子
依据EN 61643-11，1级SPD
适用于直流电路的火花间隙技术
故障指示
直流最大持续工作电压：242 V
电压保护水平： ≤ 2.5 kV
雷电冲击电流(10/350)： 25 kA
直流续流遮断能力：25 kA
依据IEC 62305-4可与其它DEHN红线产品能量协调使用

制造商： DEHN
型号: DSE M 1 242 FM
货号: 971127
其他类似产品

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD依据EN 61643-11/...IEC 61643-11 1级 / I级
直流最大持续工作电压 (UC ) 242 V
雷电冲击电流(10/350 μs) (Iimp ) 25 kA
电压保护水平 (UP ) ≤ 2.5 kV
直流最大后备熔丝 250 A gG
遥信触点类型 浮动切换触点
附加技术参数： 用于安全照明系统
– 最大持续工作电压 AC (UC ) 255 V

Product 971127 was added to Notepad.

Go to Notepad

Product 971127 was added to the cart.

Go to Web-Shop

DEHNsecure M 2P ... (FM)

两极模块化能量协调型直流雷电流保护器，直流电压可达60V（1+1电路），FM版本带遥信端子。

2 Products

Part No. 971221 DSE M 2P 60

GTIN 4013364138612, Customs tariff No. (EU): 853630, Gross weight: 638.00 g, PU: 1.00 件

Images

Additional information

DEHNsecure M 2P 60 是一款能量协调的雷电流保护器
两极模块化能量协调雷电流保护器，4模宽度
适用于直流应用
依据EN 61643-11，1级SPD
适用于直流电路的火花间隙技术
故障指示
直流最大持续工作电压：60 V
电压保护水平： ≤ 1.5 kV
雷电冲击电流(10/350)： 50 kA
直流续流遮断能力：25 kA
依据IEC 62305-4可与其它DEHN红线产品能量协调使用

制造商： DEHN
型号: DSE M 2P 60
货号: 971221
其他类似产品

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD依据EN 61643-11/...IEC 61643-11 1级 / I级
直流最大持续工作电压 (UC ) 60 V
雷电冲击电流(10/350 μs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (Iimp ) 25 / 50 kA
电压保护水平 (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (UP ) ≤ 1.5 / ≤ 1.5 kV
直流最大后备熔丝 250 A gG
认证 UL

Product 971221 was added to Notepad.

Go to Notepad

Product 971221 was added to the cart.

Go to Web-Shop

Part No. 971226 DSE M 2P 60 FM

GTIN 4013364138629, Customs tariff No. (EU): 853630, Gross weight: 675.00 g, PU: 1.00 件

Images

Additional information

DEHNsecure M 2P 60 FM 是一款能量协调的雷电流保护器
两极模块化能量协调雷电流保护器，4模宽度
适用于直流应用
带遥信端子
依据EN 61643-11，1级SPD
适用于直流电路的火花间隙技术
故障指示
直流最大持续工作电压：60 V
电压保护水平： ≤ 1.5 kV
雷电冲击电流(10/350)： 50 kA
直流续流遮断能力：25 kA
依据IEC 62305-4可与其它DEHN红线产品能量协调使用

制造商： DEHN
型号: DSE M 2P 60 FM
货号: 971226
其他类似产品

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD依据EN 61643-11/...IEC 61643-11 1级 / I级
直流最大持续工作电压 (UC ) 60 V
雷电冲击电流(10/350 μs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (Iimp ) 25 / 50 kA
电压保护水平 (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (UP ) ≤ 1.5 / ≤ 1.5 kV
直流最大后备熔丝 250 A gG
认证 UL
遥信触点类型 浮动切换触点

Product 971226 was added to Notepad.

Go to Notepad

Product 971226 was added to the cart.

Go to Web-Shop

DEHNsecure NG 2P 60 FM

两极模块化能量协调雷电流保护器，适合最高 60 V（1+1 电路）的直流电用途；采用配备无电势远程信号端子的规格 FM。

1 Product

Part No. 971222 DSE NG 2P 60 FM

GTIN 4013364489523, Customs tariff No. (EU): 853630, Gross weight: 507.00 g, PU: 1.00 件

Images

Additional information

能量协调雷电流保护器 DEHNsecure NG 2P 60 FM
2 极、模块化、可插拔式
能量协调雷电流保护器
适合直流电用途，宽度为 4 个分区单元
带遥信端子
符合 EN 61643-11 的 1 型电涌保护器
专用于在 DC 电路中使用
恰当的火花间隙技术
故障指示
最大持续工作电压：60 V dc
电压保护水平：<= 1.5 kV
雷电冲击电流 (10/350 µs)：50 kA
短路耐受能力 DC：10 kA
根据 DIN EN 62305-4 进行能源协调。
Red/Line 产品系列电涌保护器

制造商： DEHN
型号: DSE NG 2P 60 FM
货号: 971222
其他类似产品



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD依据EN 61643-11/...IEC 61643-11 1级 / I级
直流最大持续工作电压 (UC ) 60 V
雷电冲击电流(10/350 μs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (Iimp ) 25 / 50 kA
电压保护水平 (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (UP ) ≤ 1.5 / ≤ 1.5 kV
直流最大后备熔丝 250 A gG
遥信触点类型 浮动切换触点

Product 971222 was added to Notepad.

Go to Notepad

Product 971222 was added to the cart.

Go to Web-Shop
