Clamps, Connectors

Clamps and connectors for different requirements for mounting conductor materials, air-termination systems and connections.

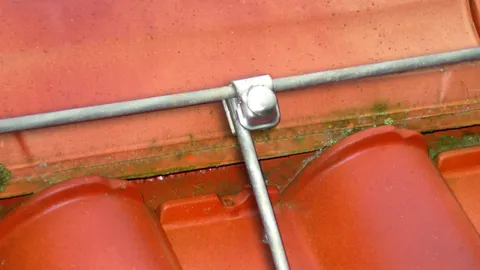

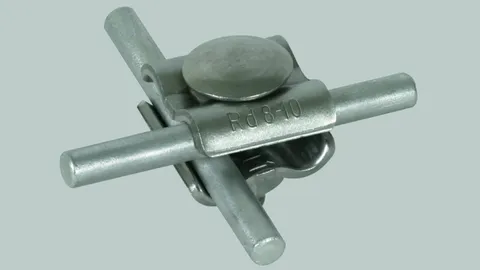

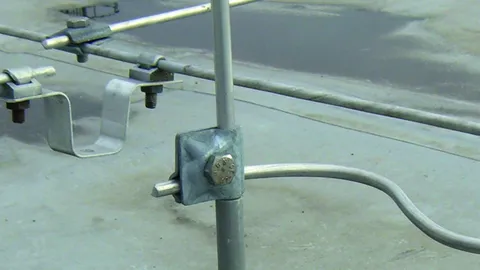

MV Clamps

Multipurpose connecting clamp (MehrzweckVerbindungs-Klemme) for universal use as a cross clamp, T clamp and parallel clamp; two-piece.

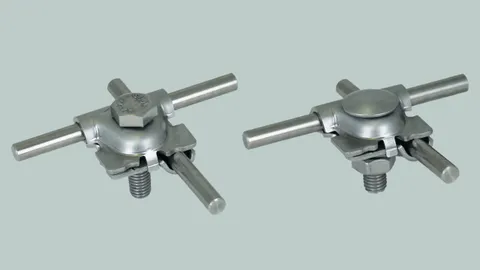

MV clamps, with locking lug

Multi-purposeconnecting clamp with locking lug for universal use as a cross clamp, T clamp and parallel clamp; two-part
  • Secure locking of the MV clamp in a cross arrangement
  • Time saving during installation due to screw-in technology

MMV Clamps

Mini multipurpose connecting clamp (Mini-MehrzweckVerbindungs-Klemme) for universal use as a cross clamp, T clamp and parallel clamp, with anti-rotation protection.

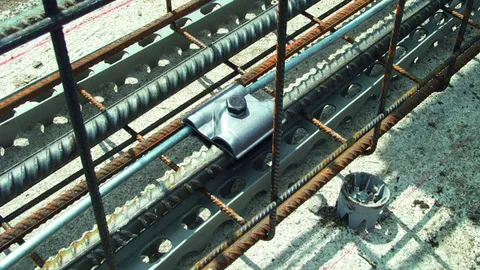

MAXI MV Clamps

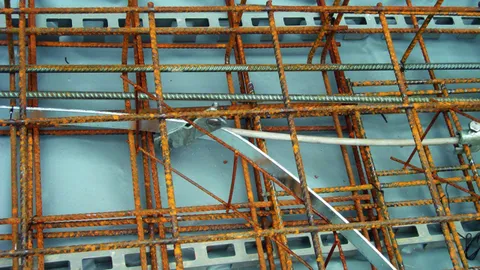

MAXI multipurpose connecting clamp (MAXI-MehrzweckVerbindungs-Klemme) for universal use as cross clamp, T clamp and parallel clamp, for connecting earth rods or reinforcements; three-part, with thread in the base part.

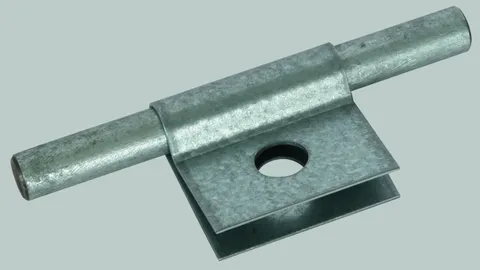

Clamping Piece Variants

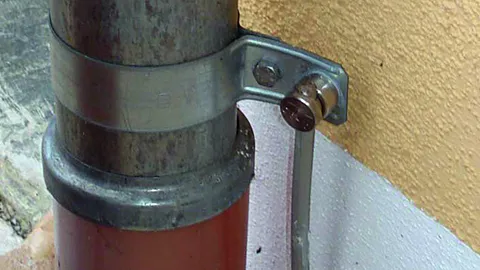

For example as a connection with end piece for constructions or downpipe clamps.
Clamping piece with square hole 11 mm and truss head screw.

Connectors

For connecting round conductors in T and longitudinal arrangements.

KS Connectors

Clamping screw connector (KlemmSchrauben-Verbinder) for lightning current carrying connection of round conductors, e.g. to flat profiles, downpipe clamps or other parts of the lightning protection system.

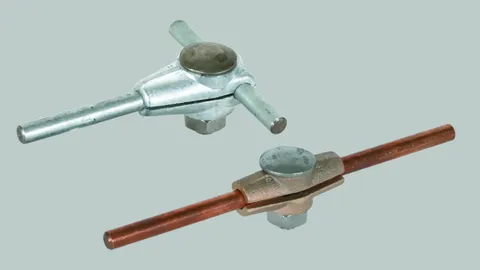

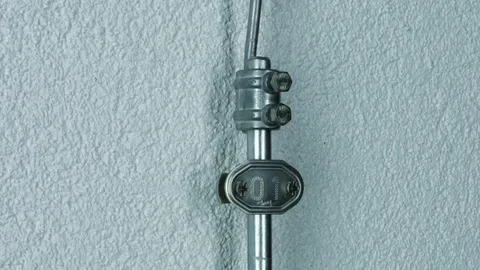

ES Disconnecting Clamp

Single-screw disconnecting clamp (Ein-Schrauben-Trennklemme) for connecting down conductors with earth entries.

Universal Connector

For connecting round conductors in cross, T, and parallel arrangements and for twin conductor connection.

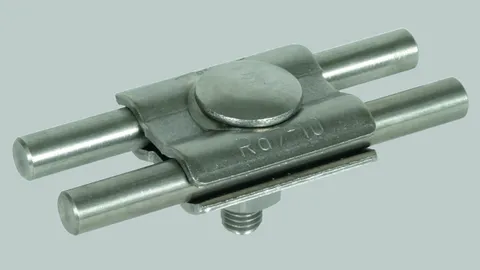

Parallel Connectors

For connecting two conductors in parallel arrangement.

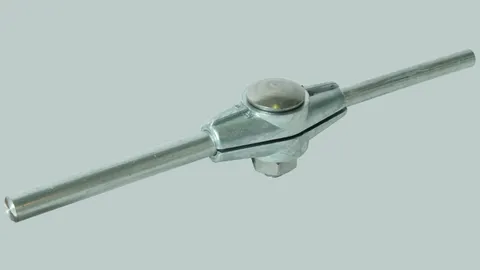

Connecting Sleeves

For longitudinal connection of two round conductors with four screws.

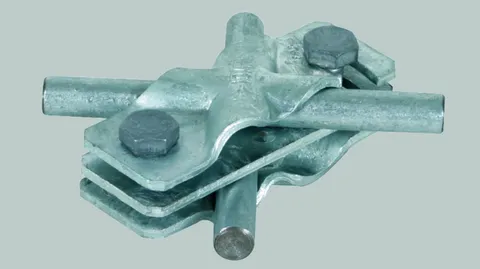

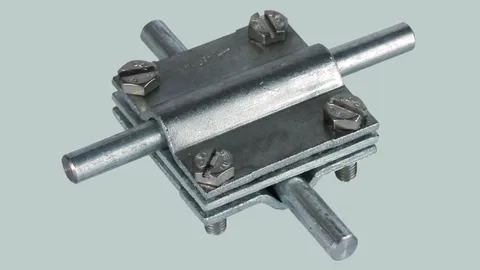

Cross Units for Aboveground Connections

of conductors in cross, parallel and T arrangement.

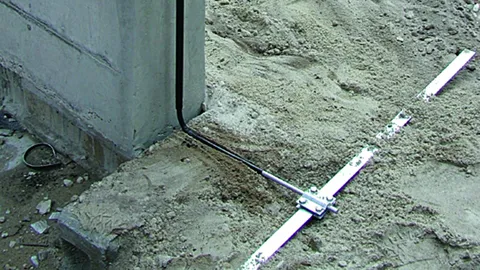

Cross Units for Aboveground and Underground Connections

of conductors in cross, parallel and T arrangement.

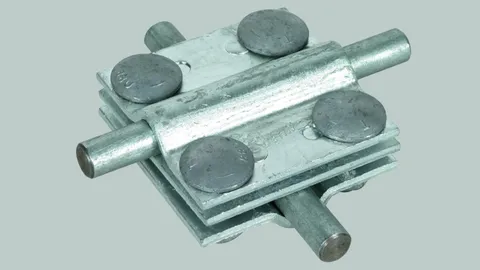

Cross Units with Truss Head Screws for Aboveground and Underground Connections

of conductors in cross, parallel and T arrangement. Version with anti-rotation protection for mounting with a tool.

SV Clamps for Underground Connections

SV (angled connector) clamps for cross, parallel and T connections.

SV Clamps for Aboveground and Underground Connections

SV (angled connector) clamps for cross, parallel and T connections, with anti-rotation protection of the screws.

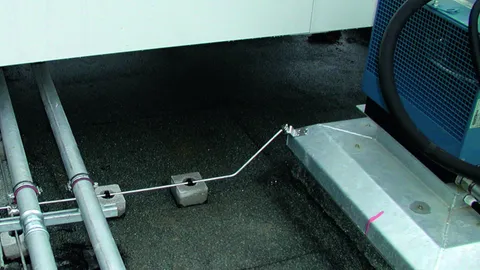

Connection Clamps

For connection to steel constructions and steel sheets.

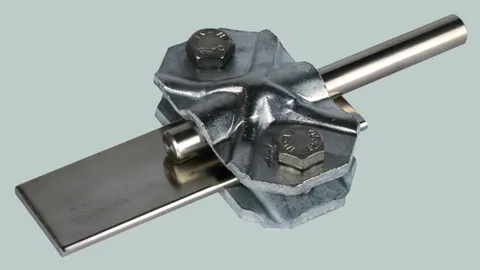

SVP Clamps for Aboveground and Underground Connections

Diagonal and parallel connecting clamps (Schräg-Verbinder-Parallel-Klemmen) for cross and parallel connections, with slotted upper part (no need to detach the screws).

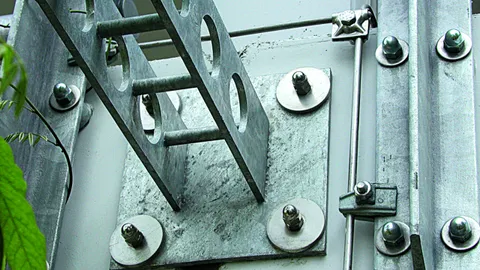

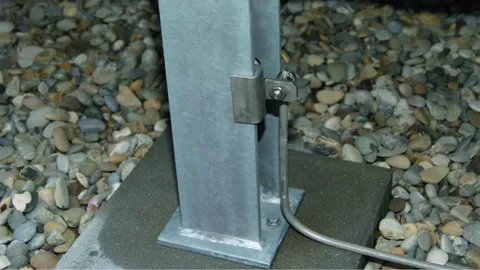

Connection Clamps for Steel Girders

Heavy design, for connection to steel constructions.

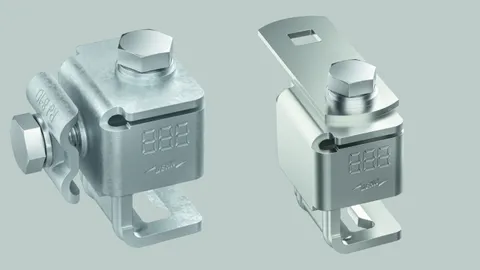

Connection Clamps with Thrust Piece

For connection to steel constructions and steel sheets with a single-screw technique.

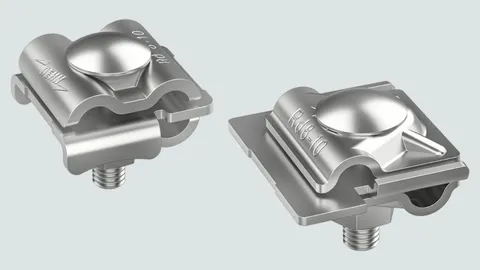

Seam Clamps

For connecting conductors with seams of the same or of different materials.

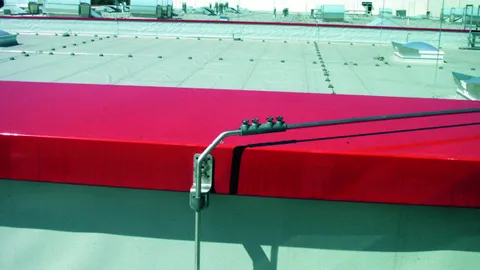

Saddle Clamps with Enlarged Contact Surface

For connecting conductors with seams; enlarged contact surface.

Multi-purpose connecting clamp

For the secure connection of round and flat conductors as well as seam connections. Thanks to their flexible design, they can be used universally as cross or parallel clamps and are suitable for a wide variety of conductor combinations. Whether it's round/round or round/flat – the multi-purpose connecting clamps offer a stable, long-lasting connection and can be installed flexibly. They are the ideal solution for demanding connection requirements in a wide range of applications.

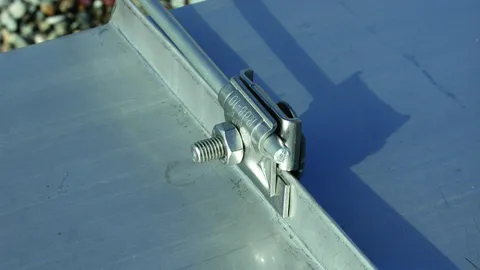

Gutter Clamps with Single-screw Technique

For connecting conductors with gutters.

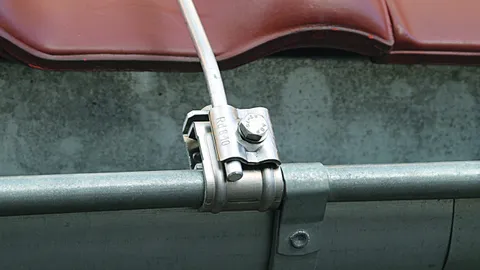

Gutter Clamps

For connecting conductors to gutters.

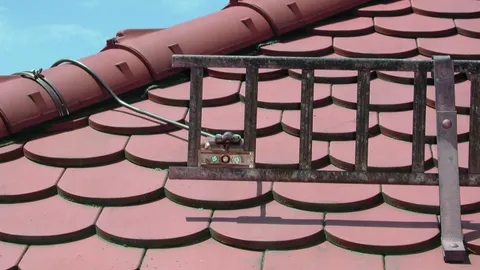

Snow Guard Clamps

For connecting conductors to snow guards, longitudinal connection with two-screw clamp.

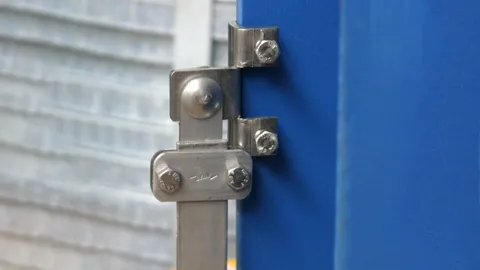

Connection Brackets

For connecting metal cladding using blind rivets or screws.

Clamping Shoes

For connecting conductors to structural parts.

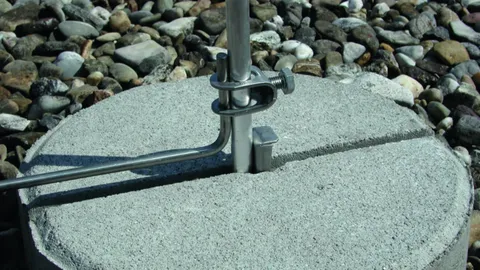

FS Clamps (Air-termination Rod Clamps)

For connecting air-termination rods/tips to one or two conductors.
Connection of two conductors improves the lightning current distribution and thus reduces the separation distance.

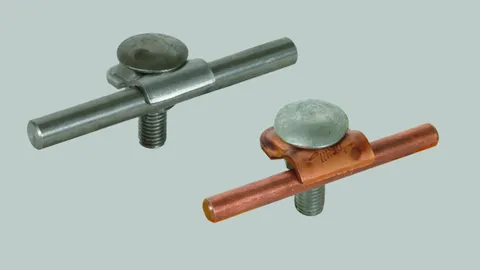

Clamping Piece

For connecting flat material to structural parts or, for example, connection clamps for steel girders (without a hole in the flat strip).

Rod Clamps

For connecting air-termination rods to conductors, for longitudinal connection of all conductor materials.
Cross connection (cross arrangement) only St/tZn and StSt.

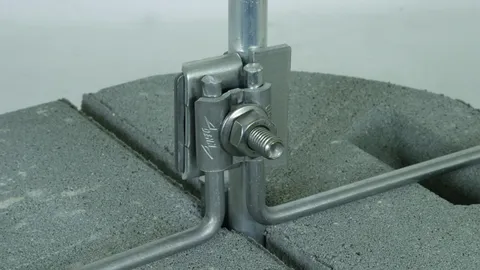

Connecting Sleeve for Air-Termination Rods

With embossings (stop) for connecting longer air-termination rods (transport length).
When using the connecting sleeve, the air-termination rod must be additionally fixed above the sleeve.

MV Clamps for Air-Termination Rods

Multi-purpose connecting clamp for universal use as a cross clamp, T clamp and parallel clamp; two-piece.

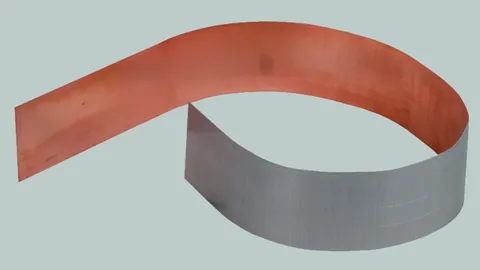

Cupal Sheets

Metal strips for corrosion-resistant connection of steel or aluminium with copper.

UNI Disconnecting Clamps

For connecting down conductors with earth entries or for connecting conductors made of different materials.

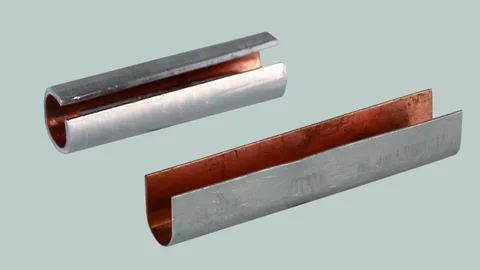

Cupal Sleeves

For corrosion-resistant connection of steel or aluminium with copper.

Connecting / Disconnecting Clamps

Two-piece or three-piece connection system with thread in the base part.

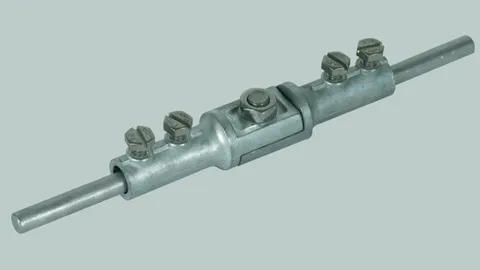

Disconnecting Sleeves

For connecting down conductors with earth entry rods.

Disconnecting Clamp – Austrian Standard

With connecting screw, for round conductors.

Connecting components 200 kA (10/350 μs)

For use in class of LPS I and II (LPL I, II).
Clamps are tested with a 200 kA (10/350 µs) lightning impulse current, based on EN 62561-1.

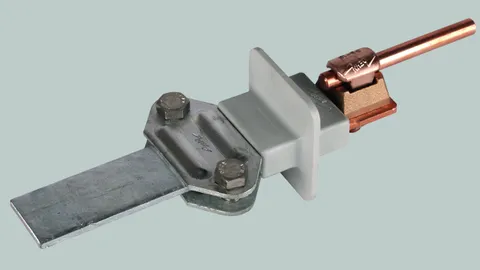

Bimetallic Disconnecting Clamp with Shield

Bimetallic version for connecting conductors made of different materials.
